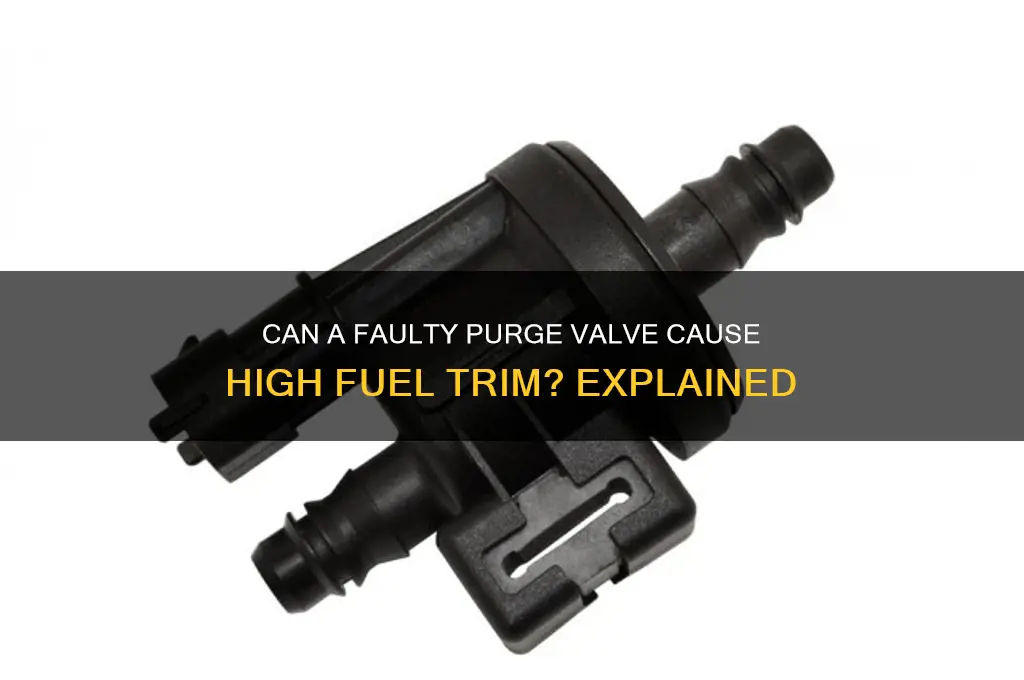

The purge valve, a critical component in a vehicle's evaporative emission control (EVAP) system, plays a vital role in reducing harmful emissions by allowing fuel vapors from the charcoal canister to enter the engine for combustion. However, a malfunctioning purge valve can lead to various issues, including potential impacts on fuel trim. High fuel trim, which indicates an imbalance in the air-fuel mixture, can occur if the purge valve is stuck open or leaking, allowing excessive fuel vapors into the engine. This can cause the engine's computer to compensate by adjusting the fuel trim, potentially leading to poor fuel efficiency, rough idling, or even a check engine light. Understanding the relationship between the purge valve and fuel trim is essential for diagnosing and resolving these issues effectively.
| Characteristics | Values |
|---|---|
| Can Purge Valve Cause High Fuel Trim | Yes, a faulty purge valve can cause high fuel trim. |
| Mechanism | A stuck-open purge valve allows excessive vapors into the intake manifold, enriching the air-fuel mixture. |
| Fuel Trim Impact | The engine's computer detects the rich mixture and increases fuel trim values (both short-term and long-term). |
| Symptoms | - Check Engine Light (CEL) illumination - Poor fuel efficiency - Rough idling - Failed emissions test |
| Diagnostic Codes | P0171 (System Too Lean), P0174 (System Too Lean Bank 2), P0420 (Catalyst System Efficiency Below Threshold) |
| Common Causes | - Stuck-open purge valve - Vacuum hose leaks - EVAP system malfunctions |
| Testing Methods | - Smoke test for EVAP system leaks - Monitor fuel trim values with a scan tool - Inspect purge valve operation |
| Resolution | Replace the faulty purge valve and address any related EVAP system issues. |
| Prevention | Regular maintenance and inspection of the EVAP system. |
Explore related products
What You'll Learn
Purge Valve Malfunction Impact on Fuel Trim
A purge valve malfunction can indeed impact fuel trim, leading to potential issues with engine performance and efficiency. The purge valve is a critical component of the evaporative emission control (EVAP) system, responsible for regulating the flow of fuel vapors from the charcoal canister to the engine intake manifold. When functioning correctly, it allows these vapors to be burned during combustion, reducing emissions. However, if the purge valve malfunctions—either by sticking open, sticking closed, or failing to operate properly—it can disrupt the air-fuel mixture, directly affecting fuel trim values.
When the purge valve sticks open, it continuously allows fuel vapors into the intake manifold, even when the engine does not require them. This introduces additional fuel into the combustion process, enriching the air-fuel mixture beyond the optimal ratio. As a result, the engine control module (ECM) detects a richer-than-commanded mixture and adjusts the fuel trim to compensate. This often leads to a high long-term fuel trim (LTFT) reading, indicating that the ECM is reducing fuel injector pulse width to correct the imbalance. Over time, this can cause symptoms such as rough idling, reduced fuel efficiency, and increased emissions.
Conversely, if the purge valve sticks closed, it prevents fuel vapors from entering the intake manifold altogether. While this might seem less problematic, it can still affect fuel trim. The ECM expects a certain amount of fuel vapor contribution to the air-fuel mixture, especially during specific driving conditions. Without these vapors, the mixture may become leaner than commanded, prompting the ECM to increase fuel delivery to maintain the correct ratio. This can result in a low fuel trim reading, though it is less common than high fuel trim caused by a stuck-open valve.
Another scenario involves a purge valve that operates erratically or fails intermittently. In such cases, the valve may open or close unpredictably, causing fluctuating fuel vapor levels in the intake manifold. This inconsistency leads to unstable air-fuel mixtures, forcing the ECM to constantly adjust fuel trim values. The result is often erratic engine behavior, such as hesitation, surging, or poor throttle response, along with diagnostic trouble codes (DTCs) related to fuel system imbalances.
Diagnosing a purge valve malfunction requires a systematic approach. Technicians typically start by checking for vacuum leaks, inspecting the valve for physical damage, and using a scan tool to monitor fuel trim data. A stuck-open purge valve often correlates with high positive LTFT values, while a stuck-closed valve may show minimal impact on fuel trim unless other factors are at play. Replacing the faulty purge valve and resetting the ECM usually resolves the issue, restoring proper fuel trim and engine performance. Understanding the relationship between purge valve function and fuel trim is essential for effective troubleshooting and maintaining optimal vehicle operation.
Can a Fuel Relay Fail? Understanding Causes, Symptoms, and Fixes
You may want to see also
Explore related products
Symptoms of a Faulty Purge Valve
A faulty purge valve can indeed contribute to high fuel trim readings, but it’s essential to recognize the broader symptoms that indicate a malfunctioning purge valve. The purge valve is part of the evaporative emission control (EVAP) system, responsible for redirecting fuel vapors from the charcoal canister to the engine for combustion. When it fails, it can disrupt the air-fuel mixture, leading to performance issues and diagnostic trouble codes (DTCs). One of the primary symptoms is an illuminated check engine light, often accompanied by codes like P0440, P0441, or P0446, which specifically point to EVAP system malfunctions. These codes are a direct indicator that the purge valve may be stuck open, stuck closed, or leaking, causing improper vapor management.
Another common symptom of a faulty purge valve is rough idling or stalling. When the purge valve fails, it can allow unmetered fuel vapors into the intake manifold, disrupting the engine’s air-fuel ratio. This imbalance can cause the engine to run rich or lean, leading to unstable idle speeds or even stalling, especially during startup or when coming to a stop. Drivers may notice the engine sputtering or hesitating, particularly under light throttle or at low RPMs. These issues are often more pronounced in cold weather or after the vehicle has been sitting for an extended period.
High fuel trim values, as measured by an OBD-II scanner, are a telltale sign of a purge valve problem. Fuel trim is the engine’s attempt to correct the air-fuel mixture, and if the purge valve is allowing excessive fuel vapors into the system, the engine control module (ECM) will compensate by adjusting the fuel trim. Consistently high short-term or long-term fuel trim readings, especially on Bank 1 or Bank 2, suggest that the purge valve is stuck open or leaking, causing an overly rich condition. This not only affects performance but also reduces fuel efficiency, as the engine burns more fuel than necessary.
A faulty purge valve can also cause difficulty starting the engine. If the valve is stuck closed, fuel vapors cannot enter the engine, leading to a lean condition that makes ignition challenging. Conversely, if the valve is stuck open, excessive vapors can flood the intake, causing the engine to crank but not start. Drivers may notice prolonged cranking times or the need to press the gas pedal to get the engine running. These starting issues are often intermittent, making diagnosis more challenging but reinforcing the need to inspect the purge valve.
Lastly, a failing purge valve may produce noticeable changes in fuel efficiency and exhaust odors. Since the valve’s malfunction affects the air-fuel mixture, drivers may observe a sudden decrease in miles per gallon (MPG) without any other apparent cause. Additionally, unburned fuel vapors escaping the EVAP system can create a strong gasoline odor, particularly around the vehicle’s rear or near the fuel tank. These symptoms, combined with diagnostic codes and performance issues, strongly indicate a faulty purge valve that requires immediate attention to prevent further damage to the engine or emissions system.
Returning a Fuel Pump to AutoZone: Policies, Procedures, and Tips
You may want to see also
Explore related products
How Purge Valve Affects Air-Fuel Ratio
The purge valve plays a crucial role in managing the air-fuel ratio in a vehicle's engine by controlling the introduction of fuel vapors from the charcoal canister into the intake manifold. Under normal operation, the purge valve opens and closes at specific times, allowing these vapors to be burned in the combustion chamber. This process is essential for emissions control, as it prevents fuel vapors from escaping into the atmosphere. However, when the purge valve malfunctions—either by remaining stuck open or not closing properly—it can disrupt the precise air-fuel mixture required for efficient combustion. This disruption often leads to a richer-than-optimal air-fuel ratio, as excess fuel vapors are introduced into the intake system.
A malfunctioning purge valve directly impacts the air-fuel ratio by adding unmetered fuel to the engine. The engine's computer, or ECU, relies on inputs from sensors like the mass airflow (MAF) sensor and oxygen (O2) sensors to maintain the ideal 14.7:1 air-fuel ratio for complete combustion. When the purge valve allows excessive fuel vapors into the intake, the ECU may not immediately detect this additional fuel, causing the mixture to become too rich. Over time, the O2 sensors will signal the ECU to adjust the fuel trim, but if the purge valve issue persists, the system may struggle to compensate, leading to consistently high fuel trim values.
High fuel trim readings are a common symptom of a faulty purge valve, as the ECU attempts to correct the rich condition by reducing the amount of fuel injected. However, if the purge valve continues to introduce unmetered fuel vapors, the ECU's adjustments may not be sufficient to restore the correct air-fuel ratio. This imbalance can result in decreased fuel efficiency, rough idling, and even engine performance issues. Diagnostic trouble codes (DTCs) related to fuel trim, such as P0171 or P0174, may also appear, indicating that the system is working overtime to compensate for the rich mixture caused by the purge valve.
To diagnose whether the purge valve is causing high fuel trim, technicians often perform a smoke test or use a scan tool to monitor fuel trim values during operation. If the purge valve is suspected, it can be tested for proper operation or replaced to see if the issue resolves. Additionally, inspecting the charcoal canister and associated hoses for leaks or blockages is important, as these components work in tandem with the purge valve. Addressing a faulty purge valve promptly not only restores the correct air-fuel ratio but also ensures compliance with emissions standards and prevents further damage to the engine.
In summary, the purge valve's influence on the air-fuel ratio is significant, and its malfunction can lead to high fuel trim values as the ECU struggles to maintain the ideal mixture. Understanding this relationship is key to diagnosing and resolving issues related to fuel trim and engine performance. Regular maintenance and timely repairs of the purge valve and associated components are essential for optimal engine operation and efficiency.
Can-Am Defender HD10 Fuel Filter: Maintenance Tips and Replacement Guide
You may want to see also
Explore related products
Diagnostic Codes Related to Purge Valve Issues
The purge valve, a critical component in a vehicle's evaporative emission control (EVAP) system, plays a significant role in managing fuel vapor flow from the charcoal canister to the engine. When this valve malfunctions, it can lead to various issues, including high fuel trim readings, which are often accompanied by specific diagnostic trouble codes (DTCs). Understanding these codes is essential for accurate diagnosis and repair. One of the most common codes related to purge valve issues is P0441, which indicates an evaporative emission control system incorrect purge flow. This code often suggests that the purge valve is either stuck open, stuck closed, or leaking, causing an imbalance in the air-fuel mixture and leading to high fuel trim values as the engine compensates for the excess or insufficient air.
Another relevant code is P0443, which specifically points to a circuit issue with the purge valve control solenoid. This could mean the solenoid is malfunctioning, the wiring is damaged, or there’s a problem with the connector. When the purge valve solenoid fails to operate correctly, it can cause erratic purge flow, resulting in high fuel trim as the engine tries to adjust for the inconsistent air-fuel ratio. Technicians should inspect the wiring harness, connectors, and the solenoid itself when this code is present, as electrical issues are often the root cause.
A less common but still relevant code is P0440, which indicates a general evaporative emission system malfunction. While this code is broader and can be triggered by multiple components within the EVAP system, a faulty purge valve is a frequent culprit. High fuel trim readings associated with this code suggest that the purge valve is allowing excessive fuel vapor into the engine, disrupting the air-fuel mixture. Diagnosing this issue requires a systematic approach, including smoke testing the EVAP system to identify leaks and checking the purge valve for proper operation.
In some cases, P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2) may appear alongside high fuel trim values when the purge valve is stuck open. These codes indicate that the engine is running too lean, often because excess air from the EVAP system is being introduced via a malfunctioning purge valve. While these codes are not specific to the purge valve, they are strong indicators of EVAP system issues when combined with high fuel trim data. Technicians should use a scan tool to monitor purge valve duty cycle and fuel trim values to confirm the diagnosis.
Lastly, P0455 is a code that signals a large leak in the EVAP system, which can sometimes be traced back to a faulty purge valve. If the valve is cracked or not sealing properly, it can allow vapor to escape, triggering this code. While not directly related to fuel trim, a large EVAP leak can indirectly affect engine performance and fuel efficiency, leading to compensatory adjustments in fuel trim. Addressing this issue involves inspecting the purge valve for physical damage and ensuring it seals correctly under vacuum conditions.
In summary, diagnostic codes such as P0441, P0443, P0440, P0171/P0174, and P0455 are key indicators of purge valve issues that can cause high fuel trim. Proper diagnosis requires a combination of code interpretation, visual inspection, and functional testing of the EVAP system components. By addressing these codes systematically, technicians can effectively resolve purge valve-related problems and restore optimal engine performance.
Using Kroger Fuel Points at Tom Thumb: What You Need to Know
You may want to see also
Explore related products
Fixing Purge Valve to Normalize Fuel Trim
The purge valve plays a crucial role in managing emissions by controlling the flow of fuel vapors from the charcoal canister to the engine. When the purge valve malfunctions, it can disrupt the air-fuel mixture, leading to high fuel trim readings. High fuel trim indicates that the engine’s computer (ECU) is compensating for an overly rich or lean mixture, often caused by unmetered air or fuel entering the system. Fixing a faulty purge valve is essential to restoring proper fuel trim and ensuring optimal engine performance.
To begin addressing the issue, diagnose the purge valve by checking for common symptoms such as rough idling, reduced fuel efficiency, or a check engine light. Use an OBD-II scanner to retrieve trouble codes related to the purge valve or evaporative emission system (EVAP). Common codes include P0440, P0441, or P0446. Once the purge valve is confirmed as the culprit, locate it in the vehicle—typically near the intake manifold or throttle body. Inspect the valve for physical damage, such as cracks or clogs, and test its functionality using a vacuum pump or multimeter to ensure it opens and closes properly.
If the purge valve is faulty, replace it with a high-quality OEM or aftermarket part. Disconnect the electrical connector and vacuum hoses, then remove the old valve. Install the new purge valve, ensuring all connections are secure and sealed. After replacement, clear any stored trouble codes using the OBD-II scanner and test drive the vehicle to monitor fuel trim levels. If the issue persists, inspect related components like the charcoal canister, vacuum lines, or the fuel tank pressure sensor, as they can also impact EVAP system performance.
In addition to replacing the purge valve, address any underlying issues that may have caused its failure. For example, a clogged charcoal canister or damaged vacuum lines can strain the purge valve, leading to premature failure. Regularly inspect and maintain the EVAP system to prevent future problems. After repairs, reset the ECU by disconnecting the battery for a few minutes or using a scanner to ensure the system relearns proper fuel trim parameters.
Finally, monitor the vehicle’s performance and fuel trim readings post-repair. Use a scan tool to observe short-term and long-term fuel trim values, ensuring they remain within the manufacturer’s specifications (typically ±10%). If fuel trim normalizes, the purge valve replacement was successful. However, if issues persist, consult a professional mechanic to diagnose and resolve any remaining problems. Fixing the purge valve not only normalizes fuel trim but also improves fuel efficiency, reduces emissions, and ensures the vehicle operates smoothly.
Antimatter's Infinite Fuel Potential: Fact or Science Fiction?
You may want to see also
Frequently asked questions
Yes, a faulty purge valve can cause high fuel trim because it allows unmetered fuel vapors from the charcoal canister to enter the engine, disrupting the air-fuel mixture and forcing the system to compensate, leading to high fuel trim values.
Symptoms include a check engine light, rough idle, reduced fuel efficiency, hesitation during acceleration, and elevated fuel trim readings (both short-term and long-term) detected by a diagnostic scan.
A stuck-open purge valve continuously allows fuel vapors into the engine, enriching the air-fuel mixture. The engine's computer tries to compensate by reducing fuel injection, but this imbalance results in high fuel trim readings.
No, a stuck-closed purge valve typically does not cause high fuel trim. Instead, it may prevent fuel vapors from being purged, leading to other issues like increased emissions or a vacuum leak, but it won’t directly cause high fuel trim.
Use a scan tool to monitor fuel trim values (STFT and LTFT). If they are consistently high, inspect the purge valve for proper operation. Perform a smoke test or pressure test to check for leaks, and ensure the valve is not stuck open or closed.
