The U1411 code, also known as the Implausible Fuel Volume Signal Received code, is a common issue that many car owners face. This error message indicates that the fuel volume message is corrupt or doesn't align with the expectations of the Powertrain Control Module (PCM). This issue can be caused by a variety of factors, including wiring problems, a faulty sending unit inside the fuel tank, or even a bad ignition switch. Resolving this issue may involve replacing the sending unit, which can be a costly and time-consuming process, or addressing any wiring faults that are causing interruptions in the fuel gauge's electrical circuit.
| Characteristics | Values |
|---|---|
| Code | U1411 |
| Cause | A wiring issue, faulty sending unit, or interrupted ground connection |
| Solution | Replace the sending unit, check for loose connections or corrosion, or temporarily disable any add-on systems that may be interfering with communications |
Explore related products
What You'll Learn
- The U1411 code is set when the computer doesn't receive expected information about fuel levels
- A faulty sending unit can cause the issue, requiring replacement of the fuel pump module
- Wiring issues can cause the fuel gauge to malfunction, requiring electrical repairs
- The fuel gauge sending unit may be faulty, causing erratic readings
- A Controller Area Network (CAN) bus B failure could set the code
The U1411 code is set when the computer doesn't receive expected information about fuel levels
The U1411 code is set when the computer doesn't receive the expected information about fuel levels. This issue is commonly associated with Jeep models, particularly the Jeep Commander, Jeep Liberty, and Jeep Grand Cherokee. The code indicates an implausible fuel volume signal, suggesting a discrepancy between the expected and actual fuel levels.
Several factors can trigger the U1411 code. One common cause is a faulty sending unit inside the fuel tank. The sending unit is responsible for sending fuel level information to the computer, and a malfunction can result in inaccurate or no data being transmitted. Replacing the sending unit is often recommended as a solution, which requires dropping the fuel tank and removing the fuel pump module.
In some cases, wiring issues may also be responsible for the U1411 code. Problems with the wiring can disrupt the communication of fuel level information to the computer, leading to the implausible fuel volume signal. Additionally, certain add-on systems, such as remote car starters, have been known to interfere with communications and trigger the code. Disabling any add-on systems temporarily can help determine if they are causing the issue.
It is worth noting that the U1411 code may not always be accompanied by noticeable changes in fuel consumption or vehicle performance. However, resetting the code or performing a few drive cycles without using the remote start can sometimes clear the code temporarily. Nonetheless, it is advisable to seek professional assistance or consult a mechanic to accurately diagnose and resolve the issue.
To summarise, the U1411 code is an indication that the vehicle's computer is not receiving the expected information about fuel levels. This can be due to various factors, including faulty components, wiring issues, or interference from add-on systems. Addressing these potential causes can help resolve the issue and ensure accurate fuel level readings.
Draining a Dodge Dakota Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
A faulty sending unit can cause the issue, requiring replacement of the fuel pump module

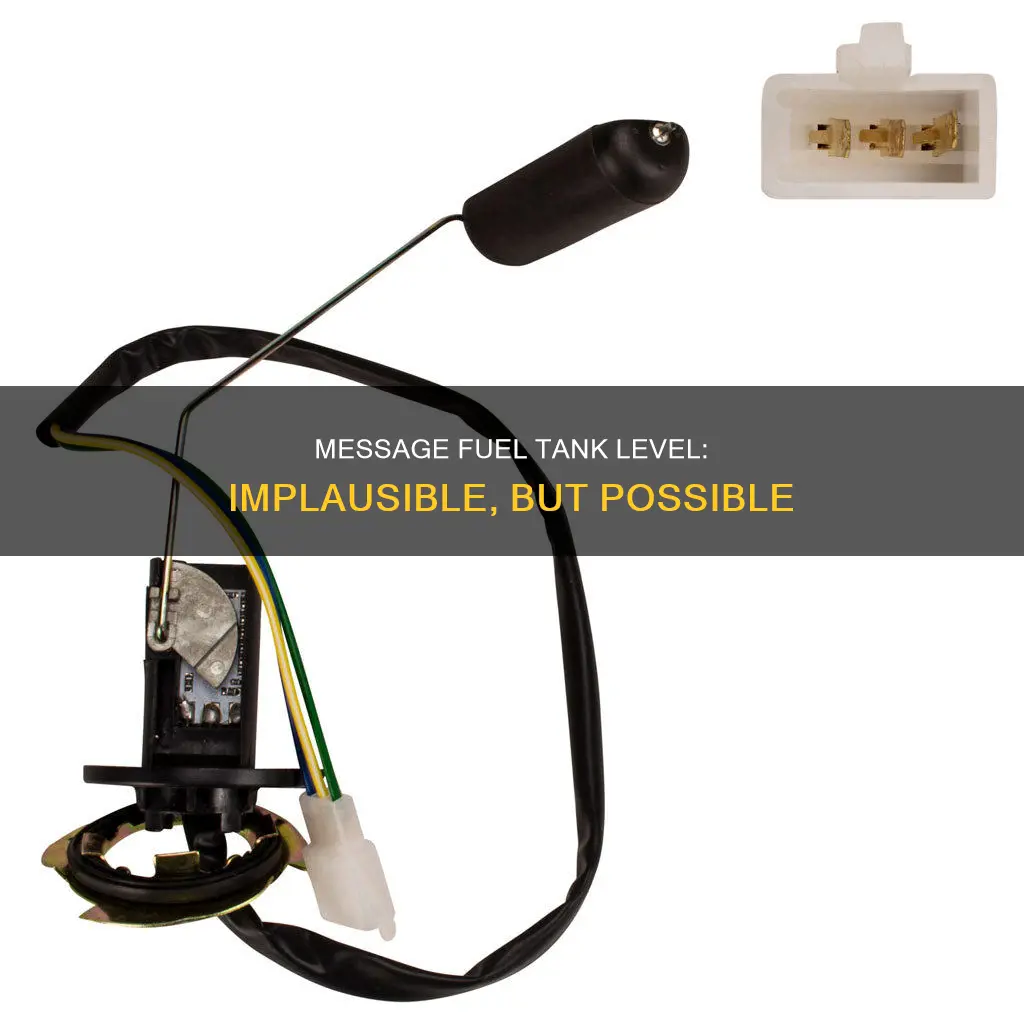

The fuel pump sending unit, also known as the fuel level sensor, is responsible for measuring the amount of fuel in the tank and sending this information to the fuel gauge on the dashboard. When the sending unit malfunctions, it can lead to inaccurate fuel gauge readings or even a complete failure of the gauge. A faulty sending unit will result in an inaccurate fuel gauge. Symptoms of a faulty fuel sending unit include the fuel gauge getting stuck on empty or full and the fuel gauge behaving erratically.
A faulty sending unit can cause the issue of an implausible fuel tank level message. This can be due to a wiring issue or a faulty sending unit inside the fuel tank. It is not advisable to drive with a faulty sending unit, as it can lead to inaccurate fuel readings and potential engine damage. The frequency of replacement depends on the make and model of your vehicle, but generally, it should be replaced every 100,000-150,000 miles.
To replace the sending unit, you need to drop the fuel tank and remove the fuel pump module. The sending unit is attached to the fuel pump module and can be replaced without needing a complete fuel pump assembly replacement. You can carefully disconnect the fuel lines from the fuel pump sending unit using a fuel line disconnect tool and then plug the fuel lines to prevent fuel leakage.
Next, disconnect the electrical connector from the fuel pump sending unit. Remove the bolts or screws holding the fuel pump assembly in place using a socket wrench and carefully lift the assembly out of the fuel tank. Remove the old fuel pump sending unit from the assembly and replace it with a new one, ensuring it is properly seated and secure.
Finally, lower the fuel pump assembly back into the fuel tank and tighten the bolts or screws. Reconnect the fuel lines and electrical connector, and then connect the negative terminal of the battery. Turn on the ignition and listen for the fuel pump to engage.
Merging Fuel Tanks: A Guide to Efficient Conversion
You may want to see also
Explore related products
Wiring issues can cause the fuel gauge to malfunction, requiring electrical repairs
A faulty fuel gauge can be caused by a number of issues, and wiring problems are among the most common causes. The fuel gauge system consists of the gauge, sender, and circuit, and issues can arise from any of these components. The fuel gauge circuit connects the battery, sending unit, gas gauge, and ground. The sending unit is used to measure the amount of fuel in the tank and communicate the fuel level to the fuel gauge.
To diagnose wiring issues, tests can be performed on the instrument cluster, fuel sender, and gas gauge using tools like an electrical wiring diagram and a digital multimeter. Many modern cars are equipped with an instrument cluster self-test feature to test computer-controlled instrument clusters. The procedure may be outlined in the owner's manual or available online. The test checks the digital lights and readouts, as well as swiping the gauges through their ranges. It is important to pay attention to whether the gas gauge sweeps smoothly from empty to full.
In some cases, a faulty resistor can cause the gauge to read empty by restricting the signal completely. The variable resistor receives power via a small coil from the vehicle's battery, which is used as the baseline signal. As the fuel level and float lower in the tank, the metal rod connected to the float moves the wiper, restricting or increasing the amount of electric current sent to the fuel gauge.
A U1411 code, indicating an implausible fuel volume, can be caused by wiring issues or a faulty sending unit. This code is set when the computer doesn't receive the expected information about the fuel level in the tank.
Draining a Boat Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
The fuel gauge sending unit may be faulty, causing erratic readings
The fuel gauge sending unit is a crucial component that helps monitor the fuel level in your vehicle. It is constantly in motion, measuring the amount of fuel in the tank and communicating that information to the fuel gauge on your dashboard. This allows you to stay informed about your fuel level and make timely visits to the gas station. However, issues with the fuel gauge sending unit can lead to erratic readings.
One common problem is a faulty variable resistor. This can cause the fuel gauge to get stuck on empty or full. For example, a faulty resistor may restrict the signal completely, resulting in the gauge reading empty even when the tank is full. Alternatively, it may send full voltage to the fuel gauge, causing it to always read full. In some cases, the float may break off or separate from the arm, leading to inaccurate readings.
Additionally, there could be wiring issues between the fuel sending unit and the fuel gauge. Over time, the constant motion of the sending unit can wear down the resistive material strip, creating an open circuit. Corroded wires can also disrupt voltage, leading to inaccurate readings. Furthermore, a poor connection with the signal wire from the sending unit or a poor grounding wire can result in similar erratic behaviour.
To diagnose the issue, you can perform some simple inspections and tests. First, check if the check engine light is illuminated on the dashboard, indicating a fault with one of the monitored systems. You can then use an OBD-II scanner to read the codes and identify the specific issue. Additionally, you can back-probe the input connector on the sending unit with the battery turned on and check for voltage. If the input voltage is lower than specified, there may be a problem with the wiring from the sending unit to the battery.
If you suspect a faulty sending unit, the next step is to remove the fuel tank and inspect the unit. This process can vary depending on the location of your fuel tank. In some cases, you may need to remove floor trim and carpeting to access the tank. Once you have access, you can pull out the sending unit and manipulate the float arm while measuring resistance. If all other components check out, replacing the sending unit should resolve the issue.
Inspecting Your Harley: Fuel Tank Filter Check
You may want to see also
Explore related products
A Controller Area Network (CAN) bus B failure could set the code
The Controller Area Network (CAN) is an electronic communication bus that defines how communication happens, how wiring is configured, and how messages are constructed, among other things. The CAN standard defines four different message types, which use a clever scheme of bit-wise arbitration to control access to the bus, and each message is tagged with a priority. The CAN standard also defines an elaborate scheme for error handling and confinement.
The CAN bus is a broadcast-type bus, meaning all nodes can "hear" all transmissions. There is no way to send a message to a specific node; all nodes will invariably pick up all traffic. The CAN hardware, however, provides local filtering so that each node may react only to the relevant messages.
The CAN standard utilizes a series of error detection mechanisms, which contribute to its high level of reliability and error resistance. The reliability of CAN has been calculated in a mathematical model. According to this model, the Residual Error Probability will be 1 undetected error in 1000 years.
It is important to check for any other Diagnostic Trouble Codes (DTCs) and temporarily disable any add-on systems that may be interfering with communications, such as a bad ignition switch.
Fuel Tank Level: Cluster Messages Explained
You may want to see also
Frequently asked questions
The U1411 code means that the fuel volume message is corrupt or doesn't make sense to the Powertrain Control Module (PCM).
The U1411 code is often caused by a faulty sending unit inside the fuel tank, although it can also be caused by a wiring issue.
To fix the U1411 code, you will need to replace the sending unit. This involves dropping the fuel tank and removing the fuel pump module, as the sending unit is attached to this module.
