The instrument cluster is a computer-controlled system that displays important information about a vehicle's performance, such as fuel level. When the message from instrument cluster fuel tank level implausible error is displayed, it could indicate a problem with the fuel sending unit, which is responsible for measuring and communicating the fuel level to the instrument cluster. This error can also be caused by a faulty instrument panel or a shorted circuit. To diagnose the issue, it is recommended to perform tests on the fuel sender, fuel gauge, and instrument cluster using tools such as an electrical wiring diagram and a digital multimeter.
Explore related products
What You'll Learn
A faulty fuel gauge resistor
The sending unit is made up of three components: a float, a metal rod/arm, and a variable resistor. The float moves up and down according to the fuel level, and the metal rod pivots in relation to the float, causing the wiper inside the variable resistor to move as well. The wiper sends an electric current to the fuel gauge, which displays the fuel level accordingly.
If the resistor is faulty, it can send a bad signal to the instrument cluster, causing the gauge to read empty or full permanently. This is an issue as the driver needs accurate fuel level information to avoid running out of fuel. A faulty resistor can also cause the gauge to behave erratically, suddenly changing positions or giving inaccurate readings.
To diagnose a faulty fuel gauge resistor, you can perform tests to confirm the issue. It is recommended to try all tests before accessing the fuel tank and replacing the sending unit. In some cases, the fix may be as simple as changing an instrument cluster fuse. If you suspect an issue with the fuel sending unit, it is best to have the vehicle inspected by a professional technician.
Aux Fuel Tanks: Boosting Can-Am Defender's Range
You may want to see also
Explore related products
A bad fuel sending unit
A faulty fuel sending unit can cause the fuel gauge to give inaccurate readings. The fuel sending unit, also known as a fuel gauge sender or gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the fuel level in the tank and communicate this information to the fuel gauge on the dashboard. This ensures that the driver is aware of the fuel level and can refuel when necessary.

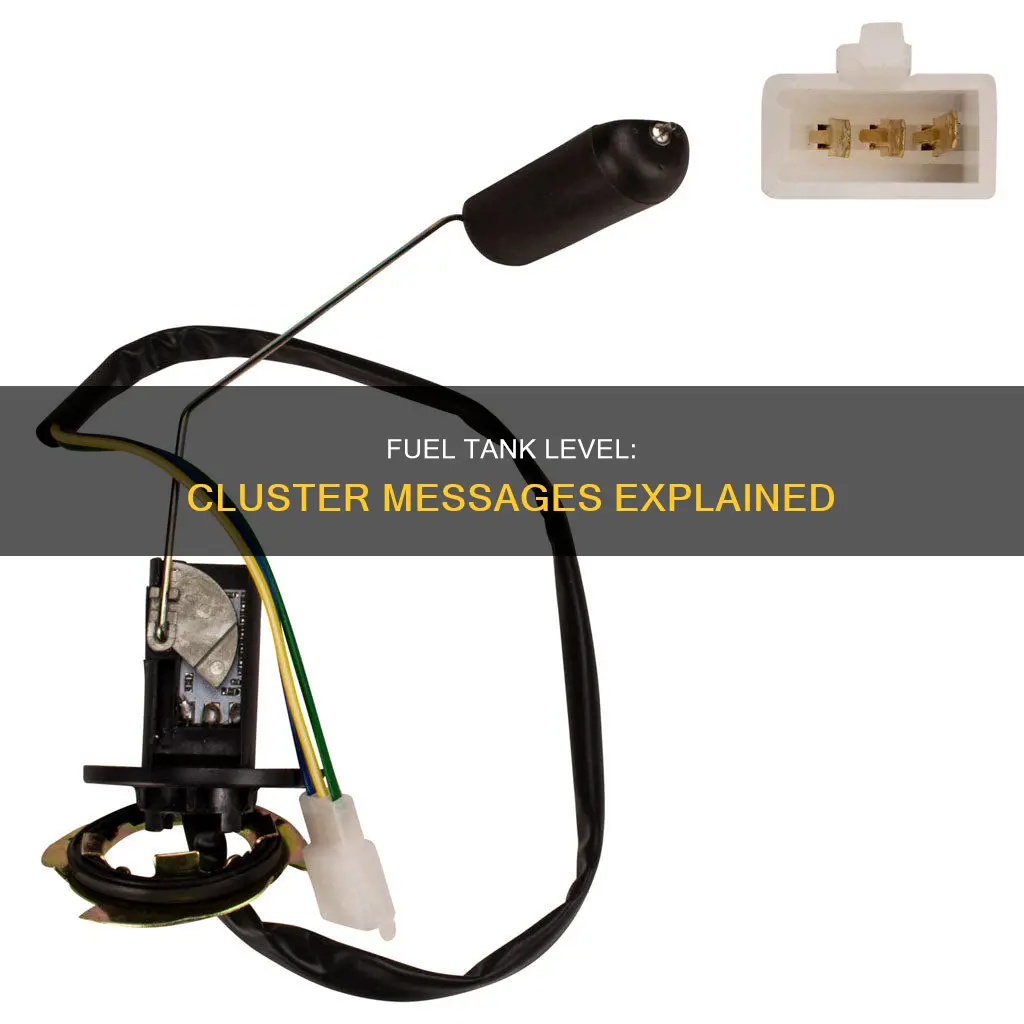

The fuel sending unit is located in the fuel tank and consists of three components: a float, a metal rod/arm, and a variable resistor. The float, made of buoyant composite or foam, sits on top of the fuel and is connected to the metal rod or arm, which pivots in relation to the float level. This movement causes the wiper inside the variable resistor to move along a strip of resistive material. The position of the wiper determines the strength of the electric current sent to the fuel gauge, which then displays the fuel level accordingly.
To diagnose a bad fuel sending unit, there are tests that can be performed before considering replacement. Wiring problems, corroded wires, and issues with the grounding terminal can also lead to inaccurate fuel gauge readings, so these should be checked first. A faulty fuel sending unit can cause inconvenience and even dangerous situations if a vehicle runs out of fuel unexpectedly, so it is important to address any issues promptly.
Draining a 1977 Chevy Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
A blown fuse
To diagnose a blown fuse, you can refer to your vehicle's manual to locate the fuse box and identify the correct fuse. You can then check the fuse by examining the dashboard displays. If all displays are malfunctioning, replacing the fuse may be the solution. In some cases, you may need to replace the entire instrument cluster if the old one is damaged.
It is important to note that a blown fuse may not always be the root cause of the issue. Other factors, such as a faulty fuel sending unit, bad wirings, or a damaged fuel gauge itself, can also contribute to inaccurate fuel level readings. Therefore, it is recommended to perform thorough diagnostics and consider multiple potential causes before jumping to conclusions.
Neon SRT4 Fuel Tank: What's the Capacity?
You may want to see also
Explore related products
A faulty instrument panel
The most common problem that causes the fuel gauge to read incorrectly is a bad fuel sending unit. A faulty fuel gauge resistor can send a bad signal to the instrument cluster, causing the gauge to read inaccurately. This can be caused by excessive dirt inside the tank that has clogged the fuel filter, causing a misfire. The fuel sending unit may also fail due to normal wear and tear, as the sending unit is in constant motion when the vehicle is in motion, and the contacts can wear over time, leading to an open circuit.
If you suspect that your vehicle is experiencing issues due to a faulty instrument panel, there are a few tests you can perform to confirm the issue. You can test the continuity between the sending terminal and the connection at the tank. If there is no continuity, you need to find a break in the wiring. You can also test the fuel gauge by checking the resistance, although this can be difficult with newer vehicles that have an integrated instrument cluster. In this case, it is recommended to carefully inspect the wiring and sending unit first.
Another test you can perform is the instrument cluster self-test. Many modern vehicles are equipped with this feature to test computer-controlled instrument clusters. The procedure may be in your owner's manual or available online. During this self-test, you should see the fuel gauge go through an entire sweep of the different locations. If it doesn't, there is something wrong with the fuel gauge or instrument cluster.
Understanding Reserve Fuel Tanks: How They Work
You may want to see also
Explore related products
A faulty fuel pump module
A faulty fuel pump control module can cause various issues with a vehicle's performance and fuel efficiency. This module is responsible for controlling the amount of voltage delivered to the fuel pump, which in turn maintains optimal fuel delivery and pressure. If this module malfunctions, it may not send the correct amount of fuel for the engine to operate, leading to engine surges or hesitations during acceleration.
One of the key indicators of a faulty fuel pump driver module (FPDM) is abnormal engine behaviour, such as surging or hesitating while accelerating. This can be attributed to the FPDM not providing the right amount of fuel required for engine operation. Additionally, if you are finding it challenging to maintain a smooth idle, it could be a sign that your FPDM requires attention.
Another symptom of a faulty FPDM is an unusual noise coming from the fuel tank. While it is normal to hear a faint hum, a loud whining noise could indicate an issue with the fuel pump, possibly due to a faulty FPDM. This module is crucial to the vehicle's operation, and driving with a malfunctioning FPDM is not recommended as it can lead to further complications that are more challenging to repair.
The FPDM plays a vital role in fuel pump management. When the engine is started, voltage is transmitted to the pump through the FPDM or a separate fuel pump circuit. The FPDM controls the fuel pump motor's ground circuit using a pulse-width modulated duty cycle, offering a more advanced method of managing fuel pressure compared to older vehicles' fuel pressure regulators.
If you suspect that your FPDM is faulty, it is essential to contact a licensed mechanic immediately. The replacement cost of the FPDM can vary between $100 and $500, depending on your vehicle and the chosen brand. However, it's important to remember that the replacement module must be programmed to your specific vehicle.
Fuel Tanker Capacity: How Many Gallons in an 18-Wheeler?
You may want to see also
Frequently asked questions
This error message indicates that the fuel gauge is not working properly and is displaying an inaccurate fuel level. This could be due to an issue with the fuel sending unit, the instrument cluster, or the wiring between them.
A fuel sending unit is a component found in the fuel tank of most vehicles. It measures the amount of fuel in the tank and communicates this information to the fuel gauge on the dashboard. The sending unit consists of a float, a metal rod/arm, and a variable resistor.
There are several things you can try:
- Check the fuse for the fuel gauge.
- Perform a self-test on the instrument cluster (refer to your owner's manual for the procedure).
- Inspect the wiring and sending unit for any signs of damage or corrosion.
- Consult a professional technician for further diagnosis and repair.
