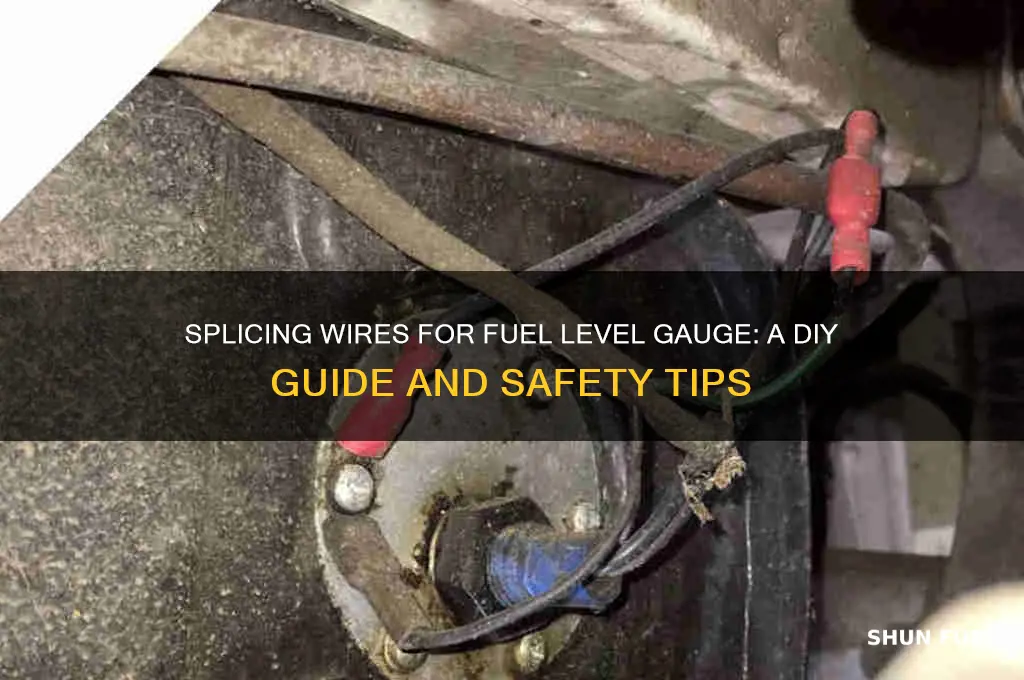

Splicing wires for a fuel level gauge can be a practical solution if you're dealing with damaged or worn-out wiring, but it requires careful consideration and execution. The fuel level gauge is a critical component in any vehicle, providing essential information about the fuel tank's contents, and improper wiring can lead to inaccurate readings or even safety hazards. Before attempting to splice wires, it's crucial to understand the gauge's wiring diagram, voltage requirements, and the type of wire being used. Additionally, ensuring proper insulation and secure connections is vital to prevent short circuits or fuel system malfunctions. If you're unsure about the process, consulting a professional or referring to detailed guides specific to your vehicle's make and model is highly recommended to avoid potential risks and ensure a reliable repair.
| Characteristics | Values |
|---|---|
| Feasibility | Possible but not recommended |
| Safety Concerns | High risk of electrical faults, fire hazards, or inaccurate readings |
| Compatibility | Depends on gauge type (analog vs. digital) and vehicle wiring |
| Tools Required | Wire strippers, crimp connectors, soldering iron, heat shrink tubing |
| Skill Level | Intermediate to advanced DIY |
| Common Issues | Poor connections, voltage drops, gauge malfunction |
| Alternatives | Using a relay, replacing the entire wire harness, or installing an aftermarket gauge |
| Legal Considerations | May violate vehicle warranty or safety regulations |
| Cost | Low (if DIY) to moderate (if professional help is needed) |
| Time Required | 1-3 hours depending on complexity |
| Reliability | Unpredictable; spliced wires may degrade over time |
| Professional Recommendation | Consult a mechanic or electrician for proper installation |
Explore related products
What You'll Learn
Tools Needed for Splicing Wires
When splicing wires for a fuel level gauge, having the right tools is essential to ensure a safe, reliable, and durable connection. The process involves cutting, stripping, connecting, and insulating wires, so each tool plays a specific role in achieving a professional result. Below is a detailed breakdown of the tools you’ll need for this task.
Wire Strippers are arguably the most critical tool for splicing wires. They allow you to remove the insulation from the wire ends without damaging the conductive core. For fuel level gauge wires, which are typically thin and delicate, a precision wire stripper with adjustable settings is ideal. This ensures you strip only the necessary amount of insulation, maintaining the integrity of the wire. Avoid using knives or pliers, as they can easily nick or break the wire, leading to poor connections or failures.
Wire Cutters are needed to trim the wires to the appropriate length before splicing. A sharp pair of wire cutters ensures clean cuts, which are crucial for a secure connection. Dull cutters can crush or fray the wire ends, making splicing more difficult and less reliable. Look for cutters designed for electrical work, as they are typically sharper and more precise than general-purpose cutters.
Soldering Iron and Solder are highly recommended for creating strong, long-lasting wire connections. Soldering involves melting a small amount of solder (a metal alloy) onto the wire ends to fuse them together. This method provides a more reliable connection than twisting wires alone, especially in vibrating environments like a vehicle. A temperature-controlled soldering iron is ideal, as it allows you to adjust the heat to suit the wire gauge and prevent overheating. Additionally, use rosin-core solder, which includes flux to help the solder flow smoothly and create a clean joint.
Heat Shrink Tubing or Electrical Tape is essential for insulating the spliced wires and protecting them from moisture, dirt, and short circuits. Heat shrink tubing is preferred for its durability and professional appearance. It comes in various sizes, so choose a diameter that fits snugly over the spliced wires. After placing the tubing over the connection, use a heat gun or lighter to shrink it tightly around the wires. If heat shrink tubing is unavailable, electrical tape can be used as a temporary solution, though it is less durable and more prone to degradation over time.
Multimeter is a useful tool for testing the continuity and integrity of your spliced wires before reassembling the fuel level gauge system. A multimeter can confirm that the connection is solid and that there are no shorts or breaks in the circuit. This step is crucial for ensuring the fuel gauge functions accurately and safely. While not strictly necessary for the splicing process itself, a multimeter adds an extra layer of assurance to your work.
In summary, splicing wires for a fuel level gauge requires a combination of precision tools to ensure a safe and reliable connection. Wire strippers, cutters, a soldering iron, insulation materials, and a multimeter are the key tools you’ll need. Investing in high-quality tools and taking the time to execute each step carefully will result in a professional-grade splice that performs well over the long term.
