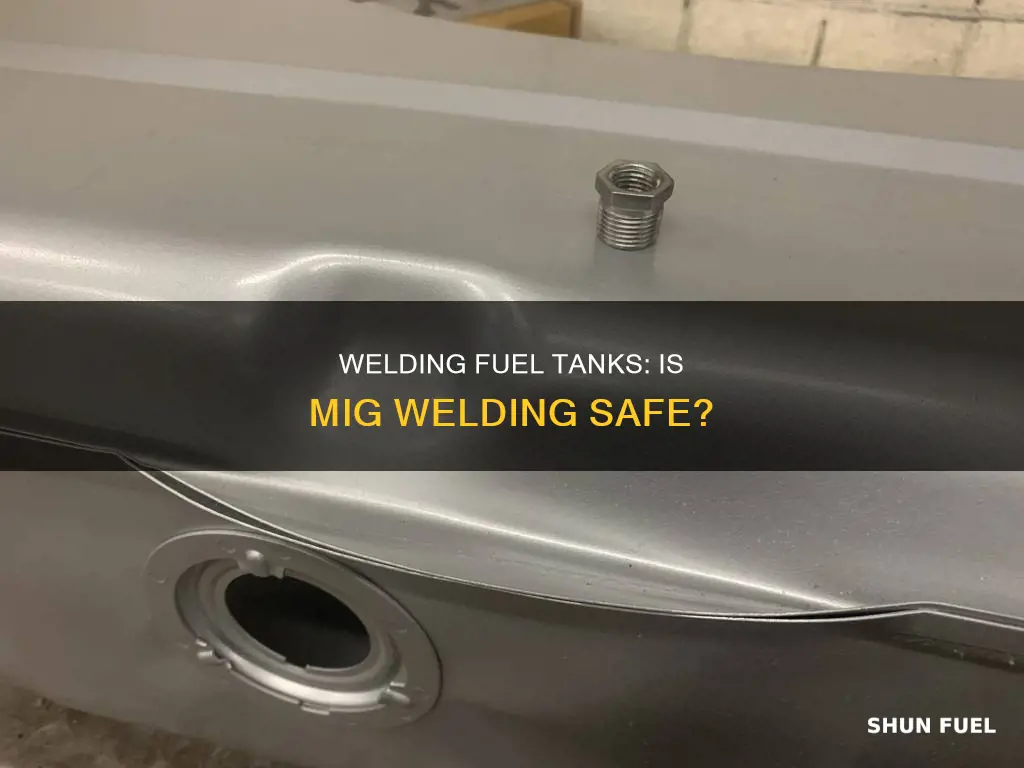

Welding a fuel tank can be a dangerous process, with many factors contributing to the potential risks. One of the primary concerns is the presence of flammable vapours, which can ignite and cause explosions. Even a small amount of flammable residue in an empty tank can be enough to cause an explosion when heated and turned into vapour. Before welding, it is crucial to ensure the tank is thoroughly cleaned and purged of any flammable material. Some suggest using dish soap and hot water to remove fuel residues, followed by purging with an inert gas such as argon to displace any oxygen or combustible vapours. While MIG welding is a commonly used method for fuel tanks, it is essential to prioritise safety and follow industry-proven procedures to mitigate the risks associated with welding fuel tanks.
| Characteristics | Values |
|---|---|
| Safety | MIG welding a fuel tank is extremely dangerous due to the possibility of igniting fuel vapours and the risk of suffocation from fumes if argon gas is used. |
| Precautions | Before beginning, disconnect the battery and ensure the ignition is off to reduce the chance of a spark igniting fuel in the tank. Drain the tank of any fuel and clean it thoroughly using dish soap and hot water to remove any residual fuel that could produce fumes. Use fire blankets, fire watchers, and cardboard spark arresters to prevent fires. |
| Alternatives | TIG welding is a slower but potentially safer alternative for welding fuel tanks. Soldering with a soldering iron may also be possible for small holes. |
| Best Practices | Ensure the tank is purged of any oxygen or air that could cause ignition. Use inert gases such as argon, CO2, or nitrogen to fill the tank during welding. Test the integrity of the weld by placing a small amount of fuel in the tank and checking for leaks. |
Explore related products
What You'll Learn
Purging the fuel tank
Purging a fuel tank is a crucial step in preparing it for welding, as it helps remove any flammable residues that could cause an explosion. Here are some detailed instructions and considerations for purging a fuel tank safely:
Preparation
Before purging, ensure the fuel tank is thoroughly cleaned to remove any residual fuel, oil, or other flammable substances. This can be done by washing the tank with hot water and dish soap multiple times. It is essential to understand that even "empty" tanks can have flammable residues in the bottom, seams, and crevices, so thorough cleaning is critical to safety.
Purging with Inert Gas
The most common method for purging a fuel tank is to fill it with an inert gas, such as argon, CO2, or nitrogen. This helps displace any remaining oxygen and flammable vapours. To do this, find a good source of your chosen inert gas and ensure a steady flow into the tank while welding. It is recommended to purge the tank before and during the welding process.
Calculating Purging Time and Flow Rate
Determining the correct purging time and flow rate is essential for effective purging. There are formulas available to calculate these, taking into account the volume of the tank, the gas flow rate, and the number of changeovers needed. For example, for a 1000-liter tank, a purging flow rate of 10-15 L/min during filling and 5-10 L/min during welding is suggested.
Purging with Water
While some people suggest using water to purge a fuel tank, it is generally not recommended due to safety concerns. Water can vaporize during welding, causing a buildup of pressure and even explosions. If you choose to use water, ensure the tank is thoroughly dried before welding, and always follow up with a gas purge to remove any remaining vapours.
Safety Considerations
Purging and welding a fuel tank can be dangerous, and explosions have occurred even when following recommended procedures. Always wear appropriate personal protective equipment (PPE) and ensure the work area is well-ventilated. If you are ever in doubt about your ability to safely purge and weld a fuel tank, it is best to consult a specialist company.
Testing Fuel Tank Vapor Valves: A Step-by-Step Guide
You may want to see also
Explore related products
$31.44 $36.99
$26.99
Using inert gases
Welding a fuel tank is a dangerous procedure and should be approached with caution. Even ""empty"" tanks may have flammable residues in the bottom, in seams, and in crevices, and it only takes a teaspoon of combustible fuel to cause an explosion. Before welding, the tank must be purged of any flammable vapours. One way to do this is to leave the tank open, preferably on a sunny day, so that the heat of the sun evaporates any remaining vapour. However, if the fuel vapour to air mix is just right, this can also cause an explosion.
Another method of purging a fuel tank is to fill it with an inert gas such as argon, helium, or CO2. This will prevent any oxygen from getting into the tank and causing an explosion. It is important to note that nitrogen is not an inert gas and should not be used. The tank should be filled with a good steady flow of gas while welding to ensure that no oxygen can enter.
After welding, a gas purge is advisable to ensure that no flammable vapours remain in the tank.
It is also important to clean the tank before welding. This can be done using dish soap and hot water to remove any fuel that is left and producing fumes.
MIG (Metal Inert Gas) welding uses inert shielding gases such as helium or argon to shield the weld pool from atmospheric contamination. This produces cleaner and faster welds and removes the need to frequently stop to replace electrodes. The choice of gas depends on several factors, including the type of metal being welded, the desired welding characteristics, and cost considerations. Argon is the most commonly used inert gas due to its affordability and effectiveness, while helium is more expensive and used for specific applications that require higher heat input.
Hilux Fuel Tank Capacity: How Much Can It Hold?
You may want to see also
Explore related products
Safety precautions
MIG welding a fuel tank is a potentially dangerous task and should be approached with caution. The primary concern is the presence of flammable substances and vapours, which can cause explosions. Even a teaspoon of flammable liquid in a drum can be enough to cause an explosion when heated and turned into vapour. Before welding, it is crucial to ensure that the fuel tank is thoroughly cleaned and purged of any flammable substances, vapours, or residues. This can be done by using a chemical test to ensure removal, or by filling the tank with water and then purging it with an inert gas such as argon, CO2, or nitrogen.
Another concern is the risk of suffocation or asphyxiation due to the use of shielding gases such as argon. It is important to ensure proper ventilation and to use a gas detector to monitor the presence of any dangerous gases. Additionally, all ignition sources should be removed or turned off to prevent any accidental sparks or flames.
Furthermore, it is essential to wear appropriate protective gear, including flame-resistant clothing, MIG safety gloves and boots, and other protective gear made from non-combustible materials. A dry, hole-free pair of gloves is especially important to protect against electrical shocks. Eye and lung protection, such as auto-darkening welding helmets and high-quality respirators, are also crucial due to the intense UV radiation and fumes generated during MIG welding.
It is also important to choose the right welding machine and welding wire for the specific project, ensuring that it matches the size and power requirements, and type of metal being welded. Proper grounding of the welding equipment is vital to minimise the risk of electrical shocks or electrocution. Regular inspection of welding cables for wear and tear can help prevent electrical accidents.
Finally, it is recommended to familiarise oneself with emergency procedures, such as how to respond in case of accidents, electrical shocks, fires, or injuries. This includes training on how to use fire extinguishers and first aid techniques.
Standard Home Fuel Oil Tanks: Size and Capacity
You may want to see also
Explore related products
Welding techniques
Welding a fuel tank can be extremely dangerous, and it is important to follow safety precautions. The primary risk is igniting fuel vapours, which can cause an explosion. Even a teaspoon of flammable liquid in a drum can be enough to cause an explosion when heated and turned into vapour. Therefore, it is crucial to ensure that the tank is thoroughly cleaned and purged before welding.
One method to purge the tank is to use an inert gas such as argon, CO2, or nitrogen to displace any oxygen or air that could fuel an ignition. The tank should be filled with the inert gas, and a steady flow maintained during the welding process. This helps to prevent any sparks or flames from igniting fuel vapours.
Another important precaution is to ensure that all power sources are disconnected before beginning work on the fuel tank. This includes disconnecting the battery and ensuring the ignition is turned off, reducing the chance of a spark igniting any fuel vapours.
After welding, it is essential to test the integrity of the weld and check for any leaks. This can be done by placing a small amount of fuel in the tank and observing if there are any leaks. If the tank is leak-free, it can be reattached according to the manufacturer's specifications.
Some welders also recommend using a fire blanket or ceramic insulation board to cover the area nearest the tank during welding, providing an additional layer of protection against sparks and flames.
While MIG welding can be used to repair fuel tanks, it is crucial to prioritise safety and follow established procedures to minimise the risk of accidents or explosions.
The Dark Side of DEF: Fuel Tank Woes
You may want to see also
Explore related products
Cleaning the tank
Welding a fuel tank is not safe, whether it is full or empty. Even "empty" tanks usually still have residues at the bottom and in seams and crevices. Just a teaspoon of flammable liquid in a drum can be enough to cause an explosion when heated and turned into vapour.
Before attempting to weld a fuel tank, it is crucial to ensure that the tank is thoroughly cleaned and made inert. Here are some detailed steps for cleaning the tank:
Drain and Dry the Tank
Start by draining out all the liquid fuel. One method to evaporate any remaining vapours is to leave the tank open, preferably outdoors on a sunny day. However, this method can be dangerous as the fuel vapour-to-air mixture could be flammable and lead to an explosion.
Clean with Soap and Water
Once the tank is drained, use dish soap and hot water to clean the tank and remove any fuel residue. You can pressure wash the tank or use a non-flammable solvent to ensure a thorough cleaning.
Purge the Tank
After cleaning, purge the tank with an inert gas such as argon or CO2 to remove any remaining oxygen or air that could fuel an ignition. Ensure a steady flow of the inert gas into the tank while welding.
Perform a Sniff Test
Let the tank air out for several days, then perform a sniff test to ensure no residual fumes remain.
Back-Gas with Inert Gas
If the sniff test is successful, back-gas the tank with a non-flammable gas like argon or nitrogen.
Alternative Approach
If you don't want to use the above methods, an alternative is to store the tank for an extended period, allowing any fumes to dissipate over time. However, this method may not be feasible if you want to weld the tank promptly.
Remember, the most important aspect of welding a fuel tank is ensuring it is thoroughly cleaned and free of any flammable residues or vapours. If in doubt, it may be safer to engage a specialist company to perform the work or consider purchasing a new tank.
Hydrogen Fuel Tanks: Production and Energy Storage
You may want to see also
Frequently asked questions
No, welding a fuel tank can be extremely dangerous due to the possibility of igniting fuel vapours. There is also a risk of suffocation from fumes if argon gas is used.
One alternative is to use a soldering iron instead of a gas torch. Another option is to send the tank to a specialist company to carry out the work.
Before beginning to work on the fuel tank, disconnect the battery and ensure all power sources are off to reduce the chance of a spark igniting any fuel. Then, drain the tank of any fuel and use dish soap and hot water to remove any residual fuel that could produce fumes. You can also purge the tank with an inert gas such as argon to remove any oxygen that could aid ignition.
