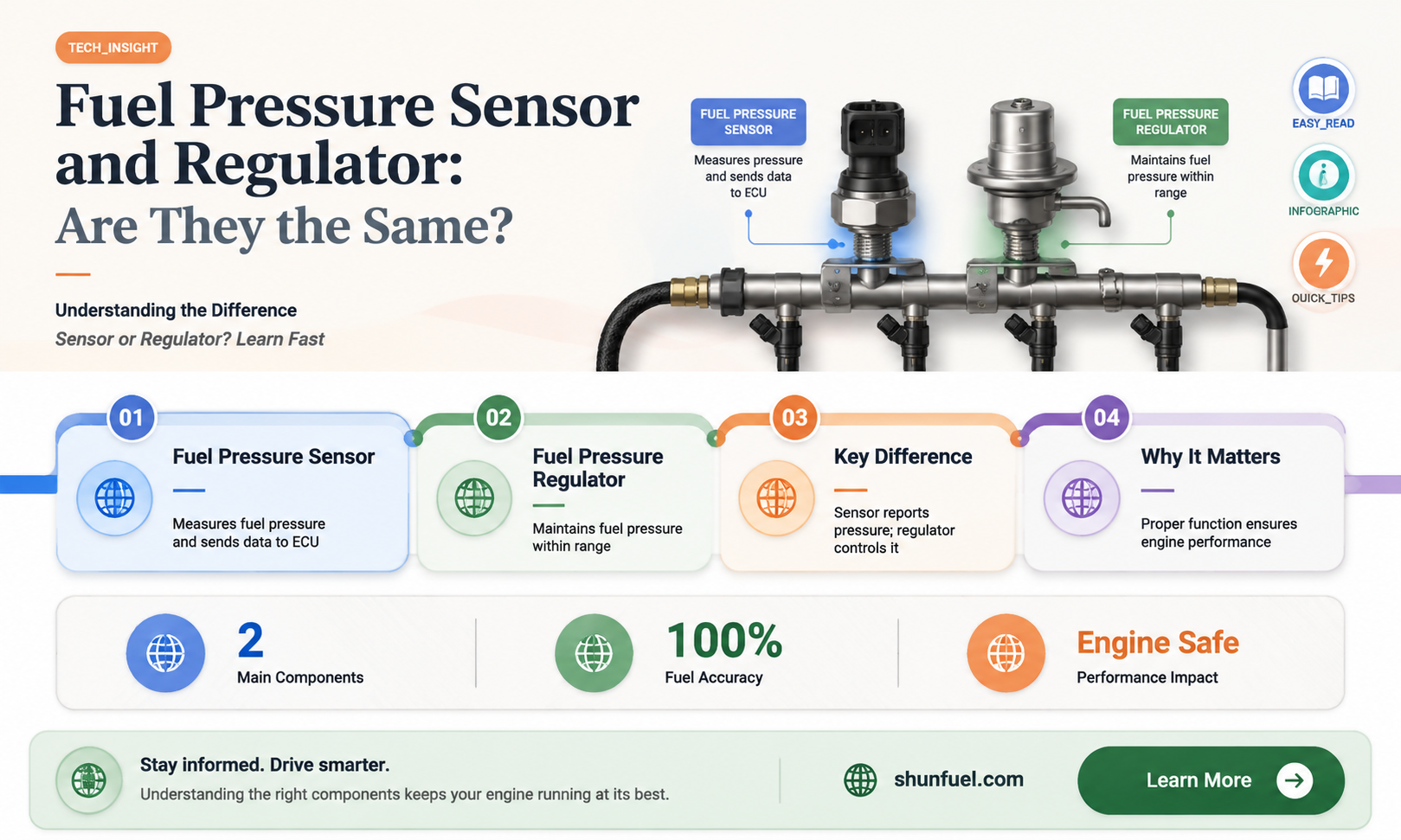

Fuel Pressure Sensor And Regulator: Are They The Same?

The fuel pressure regulator and the fuel pressure sensor are two different components of a vehicle's fuel system. While the fuel pressure regulator maintains a steady fuel supply by ensuring the fuel rail builds up enough pressure to support the vehicle's fuel injector system, the fuel pressure sensor measures the pressure in the fuel lines.

Fuel pressure regulator and fuel pump differences

The fuel pressure regulator and the fuel pump are two distinct parts of a vehicle's fuel system, each serving a unique purpose. Here are the key differences between the two:

Function

The fuel pump's primary role is to transfer fuel from the tank to the carburetor or fuel injector. The method of fuel transfer depends on the type of pump, with mechanical pumps utilising the camshaft and electric pumps employing an electric motor to increase pressure and transfer fuel.

On the other hand, the fuel pressure regulator maintains consistent pressure for the injectors. It ensures the ideal fuel-boost ratio by regulating the pressure, allowing the fuel injector to maintain the perfect ratio between fuel and boost.

Location

The fuel pump and fuel pressure regulator can usually be distinguished by their location within the vehicle. Typically, the fuel pump is located within the fuel tank at the rear of the vehicle. In contrast, the fuel pressure regulator is often found on top of the engine, where the fuel rail ends. However, it's important to note that the positions may vary depending on the vehicle type and design. For instance, in vehicles with GDI, the fuel pump may be located in the engine compartment, and in returnless fuel systems, the fuel pressure regulator may be integrated into the fuel tank next to the pump.

Failure Symptoms

Troubleshooting the fuel system can be challenging due to the distinct functions of its components. The symptoms of a malfunctioning fuel pump include unusual fuel tank noise, difficulty starting the engine, engine sputtering, reduced fuel efficiency, and frequent car cut-offs.

Meanwhile, signs of a faulty fuel pressure regulator include a fuel smell from the dipstick, the presence of gasoline in the vacuum hose, and black smoke emanating from the exhaust pipe.

Availability

Generally, the fuel pump and fuel pressure regulator are sold as separate components. However, in rare cases, some fuel system sets may include both parts, and in newer vehicle models with integrated fuel systems, the fuel pressure regulator may be part of the fuel pump assembly.

Fuel pressure regulator function

A fuel pressure regulator is a crucial component of a vehicle's fuel system. Its main function is to maintain the correct fuel pressure to ensure optimal performance of the fuel injectors. The regulator ensures a consistent fuel supply, adapting to the fuel demand during various driving conditions. It plays a vital role in achieving and maintaining the perfect fuel-boost ratio.

The fuel pressure regulator is designed to maintain proper and consistent pressure for the injectors. This pressure regulation is essential as too high or too low pressure can lead to issues. Excessive pressure can cause misfiring and increased vehicle emissions, while low pressure can result in poor vehicle performance, difficulty starting the engine, and even reduced fuel efficiency. Therefore, the regulator helps to optimise fuel efficiency and protect the engine's longevity.

The regulator typically consists of a diaphragm that controls the bypass valve, allowing it to open and close to adjust the fuel delivery accordingly. This diaphragm has two sides or chambers; one side is under pressure from the fuel rail, while the other side is subject to vacuum or boost pressure from the inlet tract. The regulator adjusts the fuel pressure against the air pressure or boost, enabling the fuel injector to maintain the ideal ratio between fuel and boost.

The fuel pressure regulator is usually mounted after the fuel rail, ensuring that the fuel rail receives the required fuel flow. The regulator controls the amount of fuel bled from the fuel rail by opening an outlet port, allowing excess fuel to flow back into the fuel tank. This process helps maintain a constant fuel pressure in the fuel rail, which is essential for the proper functioning of the fuel injectors.

In summary, the fuel pressure regulator's function is to ensure a steady and adequate fuel supply to the injectors, adapting to varying fuel demands. It plays a critical role in maintaining the correct fuel pressure, which in turn enhances vehicle performance, fuel efficiency, and the overall longevity of the engine.

Fuel pump function

The fuel pump is a critical component in liquid-fuelled engines, such as those powered by petrol, gasoline, or diesel. Its primary function is to transfer fuel from the fuel tank to the carburettor or fuel injector, where it is mixed with intake air before being drawn into the engine. This process ensures that the engine receives the required quantity of fuel at the necessary pressure for optimal performance.

There are two main types of fuel pumps: mechanical fuel pumps and electric fuel pumps. In older vehicles, carburetted engines commonly employ low-pressure mechanical pumps mounted on the engine. These mechanical pumps are typically driven by the camshaft or distributor shaft, drawing fuel from the tank and delivering it to the float chamber of the carburettor. The supply pressure generated by mechanical pumps is relatively low, ranging from 0.2 to 0.3 bar or 10-15 psi (0.7-1.0 bar).

On the other hand, modern fuel-injected engines usually feature electric fuel pumps, which are often located inside the fuel tank. These electric pumps supply fuel to the injectors at a defined pressure. Electric pumps operate by using an electric motor that rotates, increasing fuel pressure and facilitating its transfer. This type of pump is advantageous as it does not require mechanical power from the engine, allowing for greater flexibility in its placement.

The specific design of electric fuel pumps includes components such as electrical connections, a check valve to prevent fuel escape, and a hydraulic outlet. Additionally, electric pumps may incorporate carbon brushes for operating the commutator drive motor and interference suppression elements like inductors or capacitors. The pump section can be either a positive displacement pump or a flow-type pump.

The functionality of the fuel pump is essential for maintaining the overall performance of the vehicle. Any malfunction or inadequate fuel supply can lead to issues such as poor engine performance, misfiring, and bucking. Therefore, it is crucial to ensure the proper functioning of the fuel pump to maintain the engine's efficiency and avoid costly repairs.

Fuel pressure regulator and fuel pump locations

The fuel pressure regulator and fuel pump are two distinct components of a vehicle's fuel system, each playing a unique role in ensuring optimal performance and reliability. While their functions differ, their locations within the vehicle also vary.

The fuel pump's primary role is to draw fuel from the tank and transfer it to either the carburetor or the fuel injector. The location of the fuel pump depends on the vehicle's type and design. In most cases, the fuel pump is located within the fuel tank, typically at the rear of the vehicle. However, in vehicles with GDI (Gasoline Direct Injection) systems, the fuel pump may be positioned in the engine compartment instead.

On the other hand, the fuel pressure regulator's job is to maintain consistent pressure for the injectors, ensuring the perfect fuel-boost ratio as you drive. Usually, the fuel pressure regulator is found on top of the engine, where the fuel rail ends. However, in vehicles with returnless fuel systems, the regulator is integrated into the fuel tank, positioned next to the pump.

It is important to note that the locations of these components can vary across different vehicle makes and models. While the fuel pump is commonly found within the fuel tank, and the regulator sits atop the engine, exceptions do exist depending on the specific fuel system design.

Additionally, it is worth mentioning that while the fuel pressure regulator and fuel pump serve separate functions and are typically located separately, they work together harmoniously to ensure the vehicle's fuel system operates efficiently.

Symptoms of a malfunctioning fuel pressure regulator

A fuel pressure regulator is responsible for maintaining the correct pressure and amount of fuel sent to the injectors. If there is a problem with the fuel pressure regulator, it can cause too much or too little fuel to end up in the combustion chamber, which has several side effects. Here are some common symptoms of a malfunctioning fuel pressure regulator:

• Engine misfires, poor acceleration, and reduced fuel efficiency: These issues are caused by an incorrect air-fuel mixture, which can be a result of a faulty fuel pressure regulator.
• Black smoke coming from the exhaust: This indicates that the engine is burning too much fuel (running rich), which can be caused by a faulty regulator.
• Spark plugs appear black: If the spark plug tips are coated in a dark substance, it suggests that the air-fuel mixture in the combustion chamber is incorrect, which could be due to a faulty regulator.
• Gasoline in the vacuum hose: As the vacuum tube is connected to the fuel pressure regulator, the presence of fuel in the vacuum hose indicates a leak in the regulator.
• Engine won't crank or start: A faulty regulator can prevent the engine from receiving the proper fuel pressure, resulting in an engine that won't start.
• Excessive fuel pump noise: While the fuel pump normally makes some noise, a "whirring" sound could indicate a problem with the fuel pressure regulator.
• Fuel drips out of the tailpipe: A faulty regulator may cause fuel leaks from the tailpipe, as the excess fuel floods through the fuel lines and overfills the exhaust system.
• Fuel smell from the dipstick: When checking the engine oil, if you smell fuel from the dipstick, it could indicate a failing or faulty fuel pressure regulator.
• Engine malfunction: A faulty regulator can cause engine performance issues such as hard-starting, rough running, stalling, and a lack of power.
• Illuminated check engine light: The engine computer may detect issues caused by a faulty regulator and turn on the check engine light, storing a corresponding diagnostic trouble code.
