The fuel system is a major part of the engine. It consists of a fuel pump, fuel tank, fuel injector, and fuel rails. The fuel injector is responsible for supplying fuel to the engine, while the fuel rail is a high-pressure fuel line that supplies fuel to the fuel injector. The fuel rail pressure sensor (FRP) measures the fuel pressure in the fuel rail leading to the fuel injectors and sends this information to the engine control module or powertrain control module (ECM/PCM), which then adjusts the fuel injection timing and duration. Despite their similar functions and proximity, the fuel injector and the fuel rail pressure sensor are distinct components.
| Characteristics | Values |
|---|---|
| Purpose | A fuel injector supplies fuel to the engine. A fuel rail pressure sensor measures the pressure of the fuel in the rail leading to the fuel injectors. |
| Location | A fuel injector injects fuel into the engine combustion chamber. A fuel rail pressure sensor is usually installed near the center of the fuel rail. |
| Function | N/A |
| Maintenance | Fuel rails need proper care and maintenance for proper operation. |
| Replacement cost | The average fuel rail pressure sensor replacement cost is from $190 to $350. |
| Malfunction signs | Illuminated check engine warning light, engine problems such as stalling and misfires, reduced fuel economy, rough and surging idle, severe loss of power, and misfiring under load. |
Explore related products
What You'll Learn
The fuel rail pressure sensor measures fuel pressure in the fuel rail

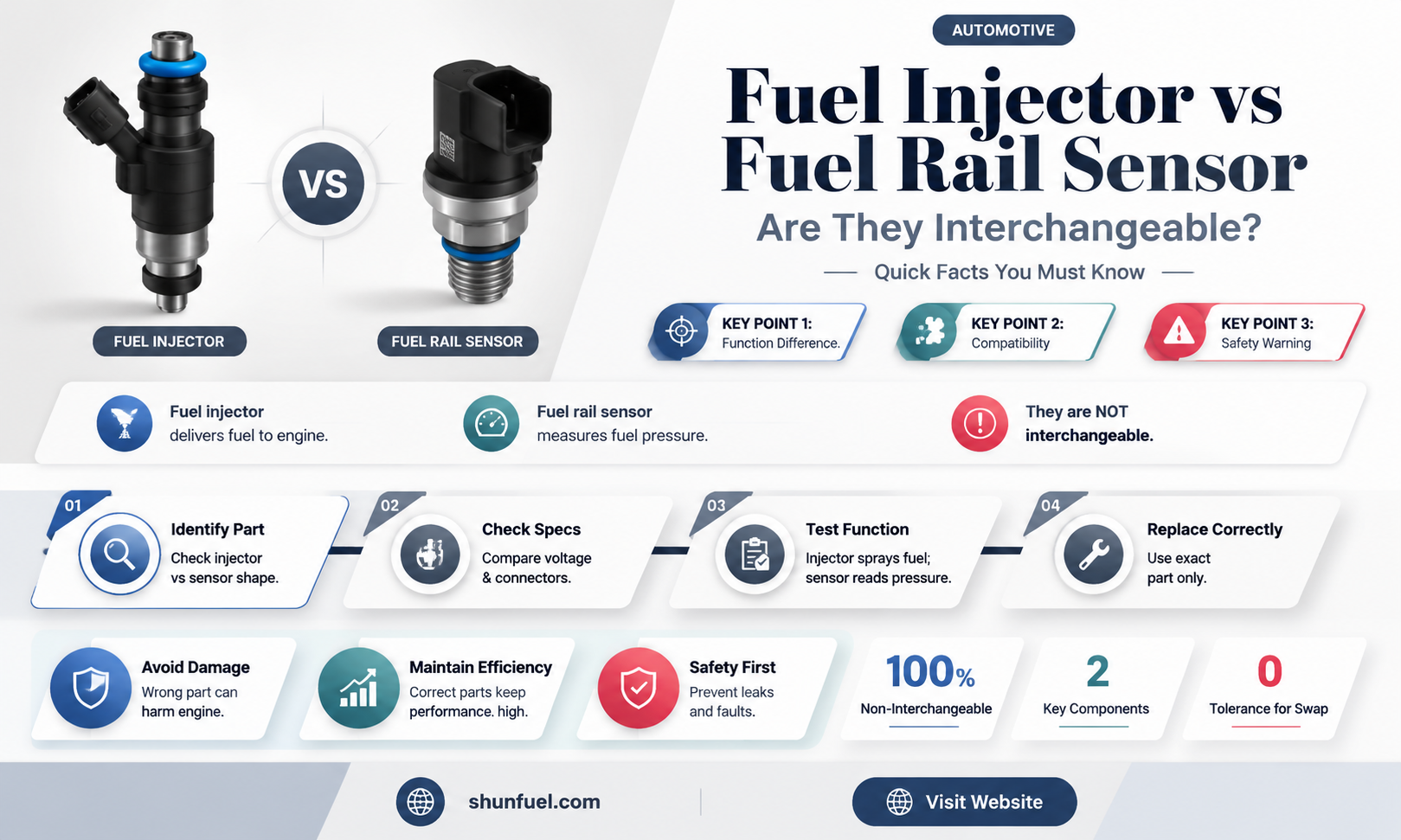

The fuel rail pressure sensor is not the same as the fuel injector. The fuel injector is responsible for injecting fuel into the engine, while the fuel rail pressure sensor's job is to monitor the pressure of the fuel in the rail feeding the injectors.
Now, let's delve deeper into the role of the fuel rail pressure sensor in measuring fuel pressure in the fuel rail.
The fuel rail pressure sensor, also known as the injection control pressure sensor (ICP) or fuel pressure sensor, plays a critical role in monitoring the pressure levels of the fuel in the rail that supplies fuel to the injectors. This sensor is typically found on the fuel rail itself, which is the metal tube connecting the fuel delivery system to the engine. By measuring the fuel pressure, the sensor ensures that the engine receives the correct amount of fuel.
The sensor consists of an electric circuit and a semiconductor. As fuel passes through the rail, the sensor measures the pressure by detecting the force applied by the fuel. This process leads to variations in the semiconductor's resistance, which the sensor's integrated circuit then converts into a digital signal. This signal is transmitted to the Powertrain Control Module (PCM) or the Engine Control Module (ECM), which uses the data to adjust the fuel rail pressure and injection timing accordingly.
The proper functioning of the fuel rail pressure sensor is vital for the smooth operation of the vehicle's engine. A faulty sensor can lead to various issues, including hard starts, engine stalling, misfires, reduced fuel economy, and check engine lights. Therefore, regular maintenance and replacement of the sensor, when necessary, are essential to ensure optimal engine performance.
Fuel Injector Issues: Signs Your Injector is Failing
You may want to see also
Explore related products
![A-Premium Fuel Injection Pressure Sensor [3 Pins] Compatible with Ford F-150, Explorer, Escape, Fusion, Focus, Edge, Transit, Mustang, Taurus, Expedition & Lincoln MKZ, MKX, MKC, Navigator, MKS, MKT](https://m.media-amazon.com/images/I/715-bVTP7IL._AC_UY218_.jpg)
![A-Premium Fuel Injection Manifold Pressure Sensor [4 Pins] Compatible with Ford, Lincoln, Mazda, Mercury - For F-150, E-250, Explorer, Escape, Fusion, Focus, Navigator - 4.6L 5.4L 6.8L](https://m.media-amazon.com/images/I/71vQeNgzaVL._AC_UY218_.jpg)
The fuel injector supplies fuel to the engine
The fuel injector is an electronically controlled valve, supplied with pressurised fuel by the fuel pump. When energised, an electromagnet moves a plunger that opens the valve, allowing fuel to be released through a tiny nozzle. The nozzle is designed to atomise the fuel, creating a fine mist that burns easily. The amount of fuel supplied to the engine is determined by the duration of the valve opening, known as the pulse width.
The fuel injector plays a vital role in maintaining the optimal air-to-fuel ratio. Sensors in the engine monitor the mass of air entering and the oxygen levels in the exhaust. This information is used by the engine control unit (ECU) to fine-tune fuel consumption and delivery. The ECU controls the pulse width of the fuel injector, ensuring the correct amount of fuel is supplied to the engine.
The introduction of fuel injectors has significantly improved engine performance and efficiency. By injecting fuel directly into the combustion chamber, the precision of fuel delivery is enhanced, resulting in improved combustion efficiency and power output. This advancement has also contributed to reduced emissions, addressing environmental concerns and complying with new regulations.
How Ultrasonic Cleaners Can Clean Fuel Injectors?
You may want to see also
Explore related products
![A-Premium Fuel Injection Pressure Sensor [3 Pins] Compatible with Hyundai Elantra 2013-2014, Sonata 2010-2019, Santa Fe 2019-2020, Tucson & Genesis G80, G90, 1.6L 1.8L 2.0L 2.4L 5.0L](https://m.media-amazon.com/images/I/713l845ZxsL._AC_UY218_.jpg)
The ICP sensor is important for engine performance
A fuel rail pressure sensor (FRP) is not the same as a fuel injector. The former senses the fuel pressure in the fuel rail that feeds the injectors and sends an electrical signal to the computer to adjust the pressure as needed. On the other hand, the fuel injector is responsible for injecting fuel into the engine.
The injection control pressure (ICP) sensor is a type of FRP. It is responsible for monitoring the pressure levels of the fuel in the rail feeding the injectors. The ICP sensor is important for engine performance because it ensures that the engine operates within specific parameters. If the pressure levels of the fuel are misread, the engine will malfunction. The ICP sensor provides feedback to the ECM/PCM, which uses this information to determine and control rail pressure.
The ICP sensor regulates pressure in the fuel injectors. It reads the oil pressure in the high-pressure oil system and sends this information to the Powertrain Control Module (PCM). The PCM then adjusts the oil pressure through the injector pressure regulator. This ensures that the engine responds efficiently when you accelerate.
A properly functioning ICP sensor is crucial for maintaining optimal fuel efficiency and engine power. If the ICP sensor is faulty or damaged, your vehicle may experience a sudden drop in engine power or fuel efficiency. In some cases, the vehicle may even stall due to insufficient fuel pressure. Other signs of a failing ICP sensor include rough idling, stalling, surging, misfires, and vibrations.
The location of the ICP sensor varies depending on the vehicle's make and model but is typically found on the fuel rail or oil rail. Regular maintenance, such as cleaning the sensor, can help prevent issues. However, if the ICP sensor fails, it should be replaced as soon as possible to avoid permanent engine damage.
Using Fuel Injector Cleaner: A Guide to Maximizing Engine Performance
You may want to see also
Explore related products
The PCM uses data from the ICP sensor to adjust rail pressure
The powertrain control module (PCM) is a computer that ensures a vehicle's smooth and efficient performance. It controls the powertrain, encompassing the engine and transmission, and monitors parameters like engine speed, coolant temperature, and throttle position. The PCM also manages outputs, such as fuel injectors and ignition coils, using data from various sensors.
One crucial sensor is the injection control pressure (ICP) or fuel rail pressure (FRP) sensor, which provides feedback to the PCM about fuel pressure in the rail feeding the injectors. The PCM relies on this data to determine and adjust the rail pressure, ensuring the engine receives the appropriate amount of fuel.
The ICP/FRP sensor is essential for diesel and GDI engines with specific operational parameters. If the sensor malfunctions or provides inaccurate readings, the PCM may fail to control the pressure delivered to the common rail, resulting in driveability issues. Common signs of a failing ICP/FRP sensor include an illuminated check engine light, engine stalling, misfires, reduced fuel economy, and poor acceleration.
To diagnose ICP/FRP sensor issues, monitoring scan tool readings is essential since directly checking fuel rail pressure is challenging due to the high-pressure levels involved. If the ICP/FRP sensor is faulty, replacing it is recommended to restore optimal vehicle performance and avoid potential safety risks associated with engine stalling.
In summary, the PCM plays a pivotal role in vehicle performance by utilizing data from sensors like the ICP/FRP sensor to adjust rail pressure and other parameters. Regular maintenance and timely sensor replacements contribute to the overall efficiency and safety of the vehicle.
Cleaning Fuel Injectors: Nissan 300ZX Maintenance Guide
You may want to see also
Explore related products
The fuel rail is a high-pressure fuel line
Fuel injection is a system that delivers fuel to an engine, and it comes in two types: low-pressure fuel pump feeding unit injectors (or pump nozzles) and high-pressure injection. The latter, also known as common rail direct fuel injection, injects fuel as a larger number of smaller droplets, resulting in a higher ratio of surface area to volume. This leads to improved vaporization and more efficient combining of atmospheric oxygen with vaporized fuel, resulting in more complete combustion.
The common rail system in fuel injection refers to the fact that all fuel injectors are supplied by a common fuel rail, which is essentially a pressure accumulator storing fuel at high pressure. This high-pressure pump can store fuel at pressures of up to and above 2,000 bars (200 MPa or 29,000 psi). The accumulator then supplies multiple fuel injectors with this high-pressure fuel. This simplifies the role of the high-pressure pump as it only needs to maintain the target pressure, either mechanically or electronically.
The fuel rail pressure sensor, also known as the fuel pressure sensor, is an integral part of the fuel injection system. It is responsible for monitoring the fuel pressure in the fuel rail and is typically installed near the center of the fuel rail. By measuring the fuel pressure, the sensor helps to control the fuel pressure in the rail. This data is sent to the engine control unit (ECU), which uses it to adjust the vehicle's timing and fuel economy.
Fuel Injector Ohms: What's the Standard Resistance?
You may want to see also
Frequently asked questions
No, they are not the same. The fuel rail pressure sensor measures the fuel pressure in the fuel rail leading to the fuel injectors. The fuel injector then injects the fuel into the engine combustion chamber.
The fuel rail pressure sensor measures the fuel pressure in the fuel rail and sends this data to the engine control unit, which uses the data to control the fuel pressure inside the fuel rails. This helps to improve the performance of the engine in the existing operating conditions.
A faulty or bad fuel rail sensor will have the following signs: the check engine warning light on the vehicle dashboard starts to illuminate, rough and surging idle, severe loss of power, and misfiring under load.
The fuel injection system is responsible for supplying fuel to the engine. The fuel injector injects fuel into the engine combustion chamber.
