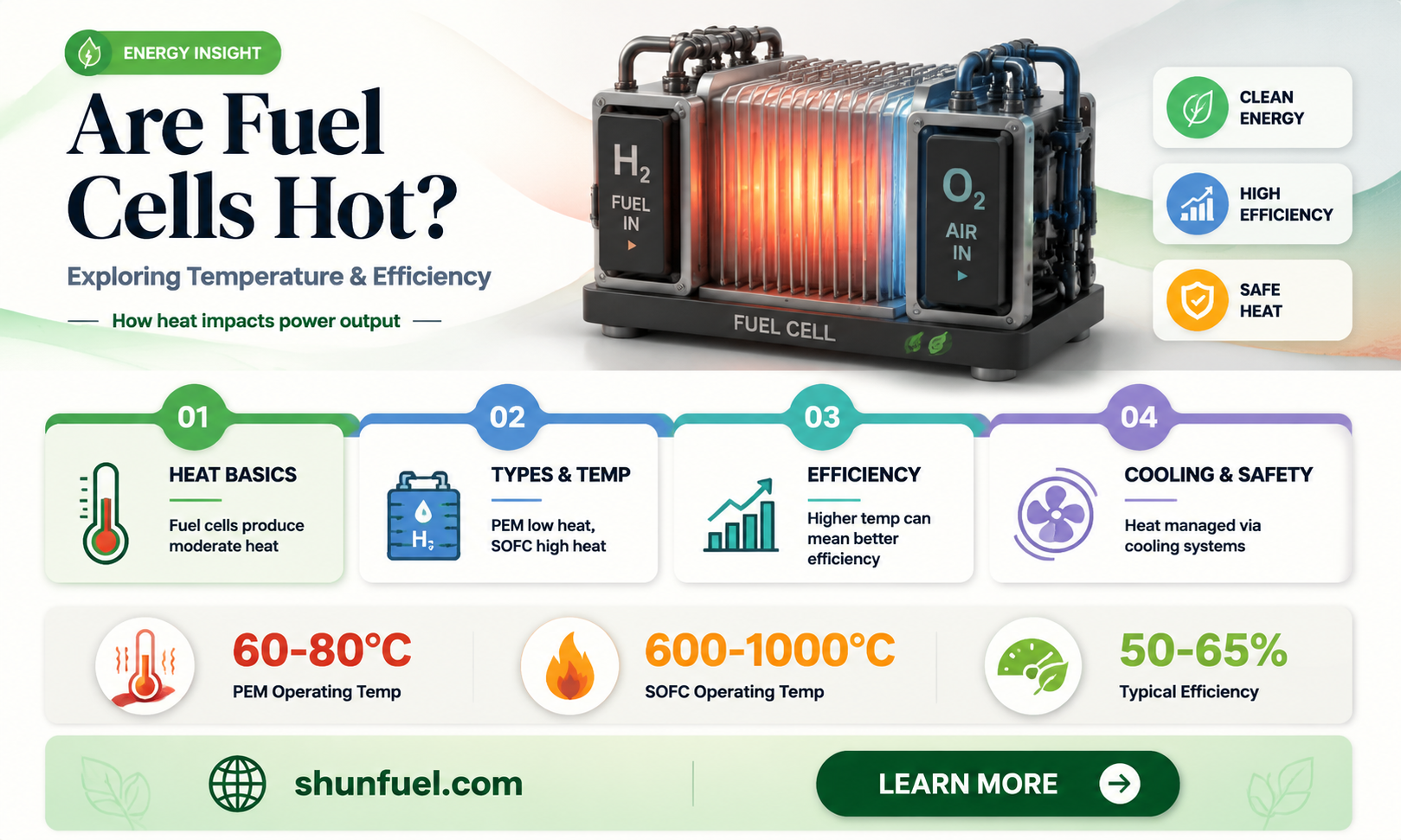

Fuel cells, which generate electricity through electrochemical reactions between hydrogen and oxygen, are often discussed in terms of their efficiency and environmental benefits, but their operating temperatures are a critical aspect of their functionality. Depending on the type of fuel cell, operating temperatures can range from relatively low (around 50-100°C for Proton Exchange Membrane Fuel Cells, PEMFCs) to very high (up to 1000°C for Solid Oxide Fuel Cells, SOFCs). While these temperatures are necessary for optimal performance, they do not typically make fuel cells hot to the touch in most applications, as the heat is managed and contained within the system. However, the thermal management of fuel cells remains a key engineering challenge, influencing their design, efficiency, and safety in various applications, from vehicles to stationary power generation.
| Characteristics | Values |
|---|---|
| Operating Temperature | PEMFC: 60-100°C (140-212°F); SOFC: 500-1000°C (932-1832°F) |
| Heat Generation | Yes, as a byproduct of electrochemical reactions |
| Thermal Management | Required for optimal performance and durability |
| Waste Heat Utilization | Can be captured for combined heat and power (CHP) applications |
| Cooling Methods | Air, liquid, or phase-change cooling systems |
| Temperature Control | Critical for efficiency, especially in PEMFCs |
| Thermal Efficiency | Varies; SOFCs generally higher due to high operating temps |
| Heat Dissipation | Essential to prevent overheating and damage |
| Application Impact | Temperature affects material selection and system design |
| Environmental Impact | Lower emissions compared to combustion engines, even with heat generation |
Explore related products
What You'll Learn
- Fuel Cell Operating Temperatures: Range varies by type, from low to high heat generation
- Thermal Management Systems: Cooling methods to maintain efficiency and prevent overheating in fuel cells
- High-Temperature Fuel Cells: Benefits and applications of SOFCs and MCFCs in heat utilization
- Safety Concerns: Risks of excessive heat and mitigation strategies in fuel cell operation
- Heat as Byproduct: Utilizing waste heat for combined heat and power (CHP) systems
Fuel Cell Operating Temperatures: Range varies by type, from low to high heat generation
Fuel cells, the clean energy workhorses, don't all run at the same temperature. Understanding their operating temperature range is crucial for choosing the right type for your application. Imagine needing a blowtorch when a candle would suffice – that's the difference between high-temperature and low-temperature fuel cells.
Let's delve into this thermal spectrum.
Low-Temperature Fuel Cells: The Cool Operators
At the chillier end of the spectrum reside Proton Exchange Membrane (PEM) fuel cells, operating between 60°C and 100°C (140°F to 212°F). This relatively low temperature makes them ideal for applications where heat management is crucial, like powering electric vehicles or portable electronics. Their quick start-up times and ability to handle frequent on/off cycles further solidify their position as the go-to choice for dynamic power needs.
Think of them as the sprinters of the fuel cell world – quick, efficient, and cool under pressure.
Mid-Range Marvels: Striking a Balance
Alkaline fuel cells (AFCs) and Phosphoric Acid Fuel Cells (PAFCs) find their sweet spot in the mid-temperature range, typically operating between 150°C and 200°C (302°F to 392°F). This moderate heat generation allows them to balance efficiency and durability, making them suitable for stationary power generation and backup power systems.
High-Temperature Titans: Harnessing the Heat
Molten Carbonate Fuel Cells (MCFCs) and Solid Oxide Fuel Cells (SOFCs) are the heat-loving giants, operating at scorching temperatures ranging from 600°C to 1000°C (1112°F to 1832°F). This high temperature enables them to achieve impressive efficiency levels, making them attractive for large-scale power generation and industrial applications. However, managing such extreme heat requires specialized materials and cooling systems, adding complexity to their design and operation.
Imagine them as the marathon runners – enduring high temperatures to deliver sustained, powerful performance.
Choosing the Right Temperature:
Selecting the appropriate fuel cell type depends on your specific needs. Consider factors like:
- Power Output: Higher temperatures generally translate to higher efficiency and power density.
- Application: Portable devices require low-temperature cells, while industrial applications can handle high-temperature variants.
- Cost and Complexity: High-temperature cells often involve more expensive materials and complex cooling systems.
Understanding the temperature spectrum of fuel cells empowers you to make informed decisions, ensuring you harness the right amount of heat for your energy needs.
Understanding Fuel Vapor Lock: Causes, Symptoms, and Prevention Tips
You may want to see also
Explore related products
Thermal Management Systems: Cooling methods to maintain efficiency and prevent overheating in fuel cells
Fuel cells, particularly proton-exchange membrane fuel cells (PEMFCs), operate optimally within a narrow temperature range, typically 60°C to 80°C. Exceeding this range reduces efficiency, damages components, and shortens lifespan. Thermal management systems are critical to dissipate heat generated during electrochemical reactions, ensuring consistent performance. Without effective cooling, fuel cells risk overheating, especially during high-power operations or in ambient temperatures above 30°C.
Cooling Methods: A Comparative Analysis
Three primary cooling techniques dominate fuel cell thermal management: air cooling, liquid cooling, and phase-change materials (PCMs). Air cooling, the simplest method, relies on convective airflow to remove heat. It’s lightweight and cost-effective but struggles to handle high heat loads, making it unsuitable for heavy-duty applications like trucks or buses. Liquid cooling, using glycol or water, offers superior heat dissipation by circulating coolant through channels near the fuel cell stack. This method is efficient but adds complexity and weight, requiring pumps, radiators, and leak-proof seals. PCMs, such as paraffin wax, absorb heat during phase transitions, providing passive thermal buffering. While promising for temperature stabilization, PCMs have limited heat storage capacity and are still under development for commercial use.
Practical Implementation: Steps and Cautions
Designing a thermal management system requires balancing efficiency, weight, and cost. For liquid cooling systems, ensure coolant flow rates match the fuel cell’s heat output—typically 1–2 L/min per kW of power. Radiator sizing should account for ambient temperatures, with larger units needed in hotter climates. Air cooling systems benefit from optimized fin designs and fan speeds, but avoid excessive airflow to minimize parasitic power losses. When integrating PCMs, select materials with melting points near the fuel cell’s operating temperature (e.g., 60°C for PEMFCs) and ensure encapsulation to prevent leakage. Regularly monitor coolant levels and inspect for blockages to prevent overheating.
Innovative Solutions: The Role of Hybrid Systems
Hybrid cooling systems combine air and liquid methods to maximize efficiency. For instance, a low-temperature liquid loop can cool the fuel cell stack, while air cooling manages balance-of-plant components. This approach reduces the size and weight of liquid cooling components while maintaining thermal control. Another innovation is the use of thermoelectric devices (TEDs), which convert waste heat into electricity, improving overall system efficiency. However, TEDs are currently expensive and less efficient than traditional cooling methods, limiting their widespread adoption.
Takeaway: Tailoring Cooling to Application
The choice of cooling method depends on the fuel cell’s application. For passenger vehicles, liquid cooling is often preferred for its reliability and performance. Air cooling suits portable or low-power devices like drones or backup power units. PCMs and hybrid systems are ideal for applications requiring thermal stability, such as aerospace or remote power generation. Regardless of the method, proactive thermal management is non-negotiable for maximizing fuel cell efficiency and longevity.
How Starfield's Fuel Systems Power Space Exploration and Travel
You may want to see also
Explore related products
High-Temperature Fuel Cells: Benefits and applications of SOFCs and MCFCs in heat utilization
Fuel cells operate across a spectrum of temperatures, but high-temperature variants like Solid Oxide Fuel Cells (SOFCs) and Molten Carbonate Fuel Cells (MCFCs) stand out for their ability to harness heat as a byproduct, transforming it from waste to resource. These cells run at temperatures between 600°C and 1,000°C, making them inherently "hot" in both literal and functional terms. Unlike low-temperature fuel cells, which dissipate heat, SOFCs and MCFCs integrate heat utilization into their design, offering a dual benefit: efficient electricity generation and valuable thermal output. This characteristic positions them as ideal candidates for applications where heat is not just tolerated but actively sought.
Consider a combined heat and power (CHP) system in an industrial facility. An SOFC stack, operating at 800°C, generates electricity with an efficiency of up to 60%. Simultaneously, the waste heat is captured and directed to preheat feedwater, power absorption chillers, or support process heating. For instance, a 100 kW SOFC system can provide 60 kW of electricity while delivering 120 kW of thermal energy, achieving a total efficiency of over 180%. This synergy reduces primary energy consumption and operational costs, making SOFCs a cornerstone of energy-intensive industries like chemical manufacturing or refineries. MCFCs, with their molten carbonate electrolyte, operate at slightly lower temperatures (650°C) but excel in internal reforming of fuels, further enhancing their thermal integration capabilities.
The applications of these high-temperature fuel cells extend beyond industry. In residential settings, SOFC-based micro-CHP systems can supply a home’s electricity needs while simultaneously providing space heating and hot water. A 5 kW SOFC unit, for example, can meet the electrical demand of an average household while delivering enough thermal energy to heat a 200-square-meter home in moderate climates. This dual functionality reduces reliance on separate heating systems, lowering energy bills by up to 30%. However, the high operating temperatures require robust materials like ceramic electrolytes in SOFCs or corrosion-resistant metals in MCFCs, which increase upfront costs but pay dividends in long-term efficiency and durability.
One cautionary note: the high temperatures of SOFCs and MCFCs demand careful system design and maintenance. Thermal cycling, for instance, can degrade materials over time, necessitating periodic inspections and component replacements. Additionally, safety measures like insulation and automated shutdown protocols are critical to prevent overheating or thermal runaway. Despite these challenges, the benefits of heat utilization in SOFCs and MCFCs far outweigh the drawbacks, particularly in sectors where both electricity and heat are in constant demand.
In conclusion, high-temperature fuel cells like SOFCs and MCFCs redefine the concept of "hot" by turning waste heat into a valuable asset. Their ability to simultaneously generate electricity and thermal energy makes them indispensable in industrial, commercial, and residential applications. While their high operating temperatures introduce design and maintenance complexities, the resulting efficiency gains and cost savings make them a compelling choice for a sustainable energy future. By leveraging the inherent heat of these fuel cells, we can unlock new pathways to energy optimization and decarbonization.
Understanding the Mechanics of Fuel Oil Systems: A Comprehensive Guide
You may want to see also
Explore related products
Safety Concerns: Risks of excessive heat and mitigation strategies in fuel cell operation
Fuel cells, by their very nature, generate heat as a byproduct of the electrochemical reactions that produce electricity. While this heat is often harnessed for cogeneration in combined heat and power (CHP) systems, excessive temperatures can pose significant safety risks. Overheating can lead to material degradation, reduced efficiency, and in extreme cases, thermal runaway—a self-perpetuating increase in temperature that may result in system failure or even fire. Understanding these risks is critical for ensuring the safe operation of fuel cell systems, particularly in applications like transportation and stationary power generation.
One of the primary mitigation strategies involves thermal management systems designed to dissipate heat efficiently. These systems often include cooling plates, fans, and heat exchangers that maintain operating temperatures within safe limits. For example, proton exchange membrane fuel cells (PEMFCs) typically operate optimally between 60°C and 100°C, while solid oxide fuel cells (SOFCs) require much higher temperatures, around 500°C to 1,000°C. Exceeding these ranges can compromise performance and safety, making precise temperature control essential. Regular maintenance, such as cleaning cooling components and ensuring proper airflow, is equally important to prevent heat buildup.
Another critical aspect is material selection. Fuel cell components must be engineered to withstand operational temperatures without degrading or losing functionality. For instance, bipolar plates in PEMFCs are often made from graphite or metal composites that offer high thermal conductivity and stability. In SOFCs, ceramic materials like yttria-stabilized zirconia are used to tolerate extreme temperatures. However, even these materials have limits, and excessive heat can cause cracking, warping, or chemical degradation. Manufacturers must balance performance with thermal resilience to minimize risks.
In addition to passive and active cooling measures, safety protocols play a vital role in mitigating heat-related risks. Over-temperature sensors and shutdown mechanisms are standard features in modern fuel cell systems, automatically halting operation if temperatures exceed safe thresholds. For instance, a PEMFC system might shut down if temperatures surpass 120°C, preventing thermal runaway. Operators should also adhere to manufacturer guidelines, such as avoiding prolonged operation under high-load conditions and ensuring adequate ventilation in installation environments.
Finally, education and training are indispensable for safe fuel cell operation. Operators must understand the signs of overheating, such as unusual odors, system inefficiencies, or abnormal noise, and know how to respond promptly. For example, in a hydrogen fuel cell vehicle, a sudden drop in power output or a warning light indicating high temperatures should prompt immediate action, such as pulling over and shutting down the system. By combining advanced thermal management, robust materials, and proactive safety measures, the risks of excessive heat in fuel cell operation can be effectively minimized, ensuring both performance and safety.
From Crude Oil to Kerosene: The Fuel Production Process Explained
You may want to see also
Explore related products
Heat as Byproduct: Utilizing waste heat for combined heat and power (CHP) systems
Fuel cells, particularly those used in combined heat and power (CHP) systems, inherently produce heat as a byproduct of their electrochemical reactions. This waste heat, often considered a secondary output, can be harnessed to significantly enhance the efficiency and sustainability of energy systems. For instance, proton exchange membrane fuel cells (PEMFCs) operate at temperatures between 60°C and 100°C, while solid oxide fuel cells (SOFCs) reach much higher temperatures, up to 1,000°C. Instead of dissipating this heat, CHP systems integrate it into building heating, industrial processes, or even district heating networks, achieving overall efficiencies of up to 90%, compared to 40-60% in conventional power generation.
To effectively utilize waste heat, system designers must consider the temperature compatibility between the fuel cell and the end-use application. For example, low-temperature PEMFCs are ideal for residential heating, where hot water systems typically operate below 80°C. In contrast, high-temperature SOFCs can drive absorption chillers for cooling or support energy-intensive industries like chemical manufacturing. Practical implementation requires thermal storage solutions, such as water tanks or phase-change materials, to buffer heat supply and demand mismatches. For instance, a 500-liter water tank can store approximately 40 kWh of thermal energy, sufficient to heat a small home for several hours.
From a persuasive standpoint, integrating waste heat recovery into CHP systems offers a compelling case for both environmental and economic benefits. By reducing the need for separate heating systems, fuel cell CHP installations can lower greenhouse gas emissions by up to 50% compared to grid electricity and natural gas heating. Additionally, businesses and homeowners can realize significant cost savings. A study by the U.S. Department of Energy found that CHP systems can reduce energy costs by 20-40%, with payback periods as short as 3-5 years for well-designed installations. Governments and utilities can further incentivize adoption through rebates, tax credits, or feed-in tariffs for excess electricity fed back to the grid.
Comparatively, waste heat utilization in fuel cell CHP systems outshines traditional power plants, which often vent excess heat into the environment. For example, a natural gas power plant typically achieves 40% electrical efficiency, with the remaining 60% lost as heat. In contrast, a fuel cell CHP system can achieve 40% electrical efficiency while capturing 40-50% of the remaining energy as usable heat. This dual-purpose approach not only maximizes resource use but also reduces the carbon footprint of energy production. However, it’s crucial to note that CHP systems are most effective in applications with consistent thermal and electrical demand, such as hospitals, hotels, or manufacturing facilities.
In conclusion, treating heat as a valuable byproduct rather than waste transforms fuel cells into versatile tools for sustainable energy management. By aligning fuel cell technology with CHP systems, stakeholders can unlock higher efficiencies, lower emissions, and reduced costs. Practical steps include conducting detailed energy audits, selecting fuel cell types based on temperature requirements, and integrating thermal storage solutions. As the world shifts toward decentralized and low-carbon energy systems, waste heat utilization in CHP applications stands out as a smart, forward-thinking strategy.
Is Fuel Considered Payload? Understanding Weight Classification in Aviation
You may want to see also
Frequently asked questions
Fuel cells typically operate at moderate temperatures, usually between 60°C to 100°C (140°F to 212°F), depending on the type. They are not considered "hot" compared to internal combustion engines, but they do generate some heat as a byproduct of the electrochemical reaction.
Fuel cells are designed with thermal management systems to prevent overheating. While they can become warm, they rarely reach temperatures that pose a safety risk. Proper ventilation and cooling systems ensure safe operation.
Most fuel cells, such as proton-exchange membrane (PEM) fuel cells, do not require external heat to operate. They generate their own heat through the electrochemical reaction between hydrogen and oxygen. However, some types, like solid oxide fuel cells (SOFCs), operate at higher temperatures and may require initial heating to start.
