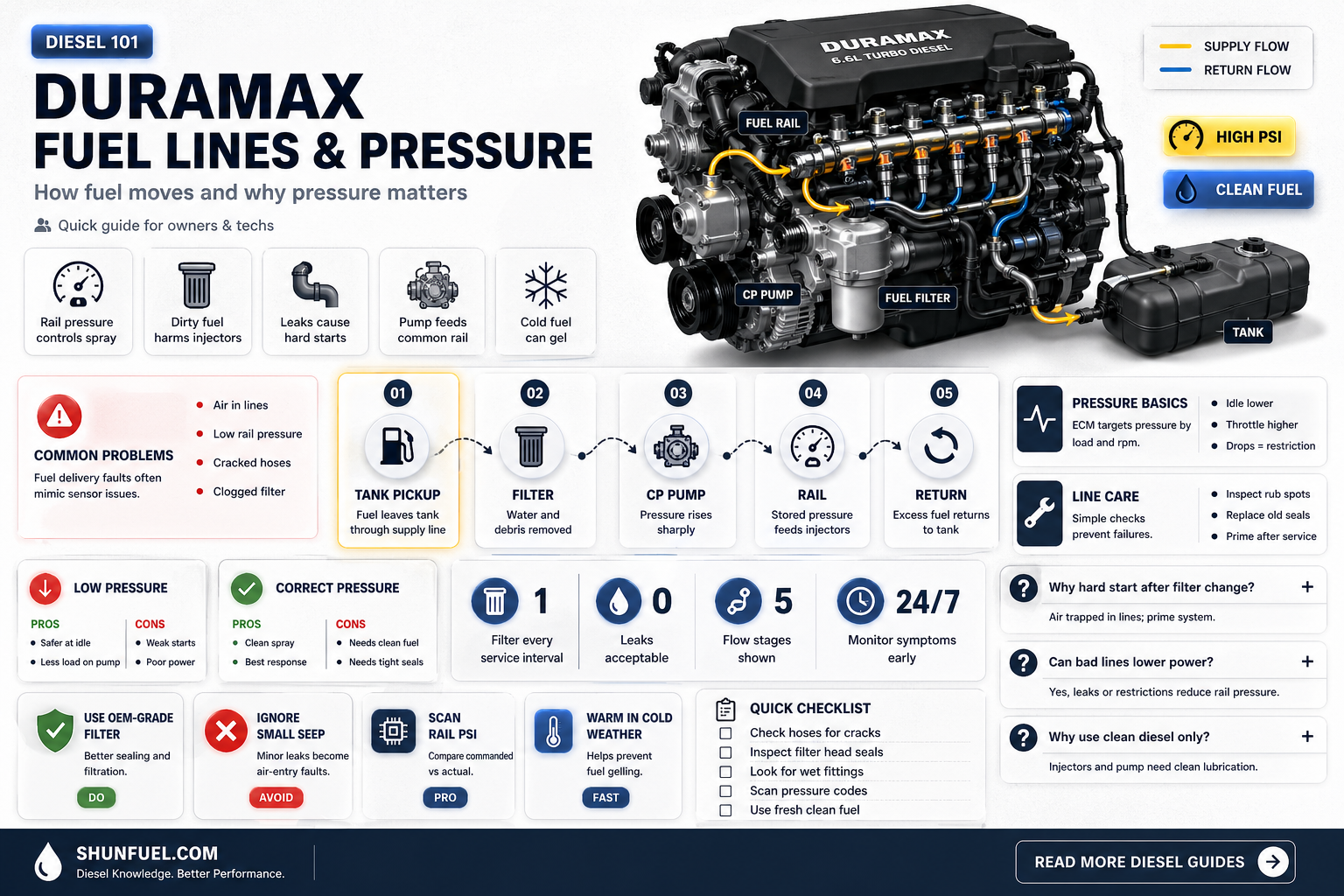

Understanding Duramax Diesel Fuel Lines And Pressure

The 2001-2004 Duramax is a powerful diesel engine designed by Isuzu and installed in light to medium-sized trucks and vans. While these engines are known for their power and stability, they are not without their issues. One common problem is low fuel rail pressure, which can leave drivers stranded if not addressed. This can be caused by a variety of factors, including faulty fuel filters, leaks or damage in the fuel lines, a faulty fuel pressure relieve valve, or a failing fuel pressure regulator or injection pump. Another issue that has been reported is fuel in the crankcase, which can be caused by leaking fuel injectors or fuel rail supply lines. It is important for Duramax owners to regularly maintain their vehicles and address any minor issues to avoid major problems down the road.

Duramax fuel lines and low rail pressure issues

Low fuel rail pressure is a common issue with Duramax trucks, and it can leave you stranded if not addressed. The problem can manifest in several ways, including reduced engine power, a "change fuel filter" message, poor transmission shifting, increased smoke output, high exhaust gas temperatures, and a check engine light.

Troubleshooting and Repairs

If you experience any of the above symptoms, it is important to investigate and address the issue promptly. Here are some steps you can take to troubleshoot and resolve low fuel rail pressure issues:

• Monitor Engine Performance: Use a suitable tuning platform to monitor your engine's performance in real time. This will help you identify any deviations between the commanded and actual fuel rail pressure. A consistent deviation of more than 1,500 PSI indicates a problem that needs immediate attention.
• Change the Fuel Filter: Start with a basic maintenance check. If your fuel filter hasn't been changed recently (within the past 5,000 miles), replace it. A clean fuel filter ensures optimal fuel flow and can help resolve pressure issues.
• Inspect Fuel Lines: Carefully inspect the fuel lines from the fuel filter to the injection pump and from the CP3 to the fuel rails. Look for any signs of leaks or damage. Leaks can lead to a loss of fuel pressure, and damaged fuel lines may need to be replaced.
• Replace the Fuel Pressure Relief Valve: The factory fuel pressure relief valve may wear out over time, causing it to relieve pressure at a lower level than intended. Consider replacing it with a Race Fuel Valve (solid valve replacement), which can help maintain the correct fuel pressure.
• Check the Fuel Pressure Regulator: Inspect the CP3 or CP4 fuel pressure regulator for debris or damage. In particular, look for metal shavings on the regulator screen, as this could indicate a failure that would require cleaning or replacing various fuel system parts.
• Inspect the Injection Pump: If the above steps do not resolve the issue, the CP3 or CP4 injection pump may need attention. Injection pumps can wear over time, affecting their ability to maintain proper fuel pressure. Consult a technician for further diagnosis and possible replacement.
• Routine Maintenance: Most fuel rail pressure issues can be prevented through regular maintenance. Keep your fuel filters clean and fresh, consider investing in a lift pump, and address minor issues promptly. Additionally, purchase fuel from reputable sources to ensure fuel quality.

Community Insights

Online forums dedicated to Duramax engines provide additional insights and suggestions from experienced owners and technicians. Some of the recommendations include:

• Checking for tuning modifications, as these can impact fuel rail pressure.
• Installing a lift pump to help maintain fuel rail pressure.
• Replacing the fuel pressure regulator valve, as it may be faulty.
• Returning the vehicle to the dealer for further diagnosis and repairs, especially if previous attempts have not resolved the issue.
• Checking for restrictions or leaks in the fuel supply line between the fuel tank and the injection pump.
• Inspecting the injectors for high return rates, as faulty injectors can affect fuel pressure.

The CP3 injection pump and its role in fuel supply

The CP3 injection pump is a key component in the fuel supply system of diesel engines, including the Duramax. It is responsible for pressurising the fuel and delivering it to the fuel injectors at the required pressure and timing. This process is known as common-rail injection technology, and it has revolutionised the diesel industry by allowing engine builders to increase injection pressures, improve efficiency, and reduce emissions.

The CP3 pump was introduced by Bosch in the early 2000s and gained widespread adoption in the mid-2000s with the transition to Common Rail technology. It has since become a standard component in many diesel engines due to its performance and reliability. The CP3's sole job is to create and regulate high-pressure fuel, and it is not timed with the engine's crankshaft and camshaft. This is a simpler task than that of previous injection pumps, which had more functions.

The CP3 pump's ability to deliver high-pressure fuel has allowed engines to run at much higher injection pressures, reaching up to 29,000 psi in some cases. This increase in pressure has resulted in multiple injection events, making diesel engines quieter, more efficient, and more powerful while significantly reducing emissions.

The CP3 pump's functionality can be divided into two circuits: the low-pressure circuit and the high-pressure circuit. In the low-pressure circuit, fuel enters the gear pump, which feeds the high-pressure pump. The calibrated suction throttle limits the maximum flow rate to avoid overloading the overflow valve. The overflow valve also provides lubrication and maintains constant pressure before the metering unit. The metering unit, or fuel pressure regulator, then regulates the maximum flow rate to the rail.

In the high-pressure circuit, fuel passes through the metering unit to the suction valves, which allow fuel to enter each of the pump's cylinders. Finally, the high-pressure valves send pressurised fuel out to the rail, where it is delivered to the fuel injectors.

The CP3 pump has undergone various modifications and upgrades to enhance its performance and durability. These include increasing the stroke, machining the buckets, modifying the suction and metering valves, and enlarging the ports on the gear pump. The CP3 pump has also been utilised in dual and triple pump setups for high-horsepower applications, further showcasing its versatility and importance in diesel fuel supply systems.

Troubleshooting fuel line problems

• Low fuel rail pressure: Low fuel rail pressure is a common issue with Duramax trucks and can leave you stranded if not addressed. Symptoms of low fuel rail pressure include reduced engine power, a "Change fuel filter" message, poor transmission shifting operation, increased smoke output, high exhaust gas temperatures, and a check engine light. If you experience any of these issues, data log your truck to monitor engine parameters in real time and identify the problem. Start with cheaper and easier repairs, such as changing the fuel filter and inspecting fuel lines for leaks or damage. Consider upgrading to a Race Fuel Valve to address potential issues with the factory valve.
• Fuel filter issues: If your Duramax is having trouble starting or losing prime, the fuel filter head seals may need to be rebuilt or replaced. This is a relatively inexpensive repair and can often solve fuel delivery issues. Check for leaks or damage in the fuel lines, especially the rubber lines, as they can become soft and collapse, choking off the fuel supply.
• Fuel pump problems: If your Duramax is not starting and you suspect a fuel pump issue, you'll need to test the fuel rail pressure. This can be done by checking the Schrader Valve at the front of the engine or using a diagnostic tool to read the rail pressure from the OBDII port. If there is no pressure, the CP3 injection pump may need to be tested or replaced.
• Air leaks: Air leaks in the fuel system can cause significant issues. Check for leaks in the fuel lines, especially between the quick connect on the driver's side and the tank. A rotted sending unit is a common source of air leaks. You can also try running the truck off a bucket of fuel to isolate the issue. If the truck runs fine, you may need to clean or replace the fuel tank and lines.
• Contaminated fuel: If your Duramax is experiencing starting issues or running poorly, contaminated fuel could be the culprit. Check the fuel filter for signs of dirt, rust, or water. If present, you may need to drop the tank, clean it, and flush the fuel lines to ensure pure fuel is entering the system.
• Fuel pressure regulator: If your Duramax is exhibiting symptoms such as reduced power or knocking, the fuel pressure regulator may be at fault. Check the regulator for debris or damage. Failure of the regulator may require cleaning or replacement of multiple fuel system components, including the pump and injectors.

Remember to refer to a qualified mechanic or a Duramax specialist if you are unsure about any procedures or require further assistance.

The importance of routine maintenance and fuel filter cleanliness

Routine maintenance and fuel filter cleanliness are of utmost importance for the optimal performance and longevity of your Duramax engine. Here are several reasons why:

Preventing Performance Issues

Low fuel rail pressure is a common problem in Duramax trucks, and it can leave you stranded if not addressed promptly. Regular maintenance, including fuel filter cleaning or replacement, can help prevent this issue. A clean fuel filter ensures uninterrupted fuel supply to the engine, maintaining power and performance.

Protecting Fuel Injectors

Fuel injectors are critical components that control engine performance and efficiency. By using high-quality, clean diesel fuel and regularly servicing your fuel filters, you protect the injectors from contaminants, dirt, rust, and water. This, in turn, enhances overall engine performance and extends the lifespan of your fuel injectors, which are costly to replace.

Ensuring Smooth Operation

Clogged or dirty fuel filters can lead to reduced engine power, rough idling, and poor fuel economy. Routine maintenance and filter replacements ensure smooth and efficient engine operation. A well-maintained fuel system improves fuel economy, enhances engine performance, and reduces the likelihood of costly repairs.

Avoiding Costly Repairs

Routine maintenance is key to avoiding costly repairs and replacements. By keeping your fuel filters clean and fresh, you can prevent issues with fuel rail pressure, injection pumps, and other fuel system components. This proactive approach saves you time, money, and the hassle of unexpected breakdowns.

Extending the Life of Your Truck

A well-maintained truck is a testament to your care and dedication as an owner. Regular maintenance and attention to fuel filter cleanliness help extend the life of your vehicle. By following the manufacturer's recommendations and staying proactive with maintenance, you can enjoy a reliable and efficient truck for many years.

Fuel line replacement options and considerations

When considering fuel line replacement for the 04 Duramax, there are several options and factors to take into account. The fuel lines in the Duramax engine are known to be prone to rust and collapse, especially in colder climates where road salt is used. This can lead to fuel supply issues and potential engine damage if not addressed promptly. Here are some key points to consider when planning a fuel line replacement:

• Inspection and Diagnosis: Before undertaking any repairs, it is important to thoroughly inspect the fuel lines to identify the extent of the damage. Check for signs of rust, corrosion, or softening of the rubber lines. Pay close attention to the fuel line that runs near the transmission and comes up on the driver's side near the brake cylinder, as this is a common problem area. Any damaged or deteriorated fuel lines should be replaced.
• Choice of Materials: You may choose to replace the fuel lines with either hard lines or flexible rubber hoses. Hard lines, such as stainless steel or nickel copper, offer durability and are less susceptible to collapse or kinking. However, they can be more challenging to install and may require bending or manipulating to fit through the frame. Flexible rubber hoses, on the other hand, are easier to route and install but require careful selection to ensure they can withstand the fuel pressure and temperature conditions. Always choose fuel hoses that are specifically designed for diesel fuel and meet the necessary specifications.
• OEM vs Aftermarket Parts: When replacing fuel lines, you have the option of using original equipment manufacturer (OEM) parts or aftermarket alternatives. OEM parts are designed to match the original specifications of your vehicle, ensuring a precise fit. However, they may be more expensive and might not offer significant improvements in terms of durability over the original lines. Aftermarket parts, such as those from Dorman or ClassicTube, can provide a more cost-effective solution, but be sure to research the quality and compatibility of these parts before purchasing.
• Lift Pump and Fuel Cooler Considerations: If you decide to install a lift pump, it is important to note that it does not eliminate the need for a fuel cooler. The lift pump pressurizes the supply side of the fuel system, but the fuel cooler remains necessary to regulate fuel temperatures. Consider replacing the fuel cooler if it shows signs of rust or corrosion, as it plays a crucial role in maintaining optimal fuel temperatures.
• Repair or Replacement: In some cases, you may be able to repair the fuel lines instead of replacing them. This typically involves cutting and replacing only the damaged sections of the line. However, if the lines are extensively damaged or deteriorated, it is generally recommended to replace the entire fuel line assembly for peace of mind and to avoid future issues.
• Maintenance and Prevention: To extend the lifespan of your fuel lines and prevent future problems, regular maintenance is key. Consider coating the fuel lines with a corrosion inhibitor, such as Amsoil Metal Protector, and washing them annually to remove any corrosive buildup. This is especially important if you operate your vehicle in areas where road salt is used during winter.

When undertaking fuel line replacement, always refer to a trusted repair manual or seek advice from experienced mechanics or Duramax enthusiasts who have successfully completed similar projects. Online forums and communities dedicated to Duramax vehicles can be invaluable sources of information and troubleshooting guidance.
