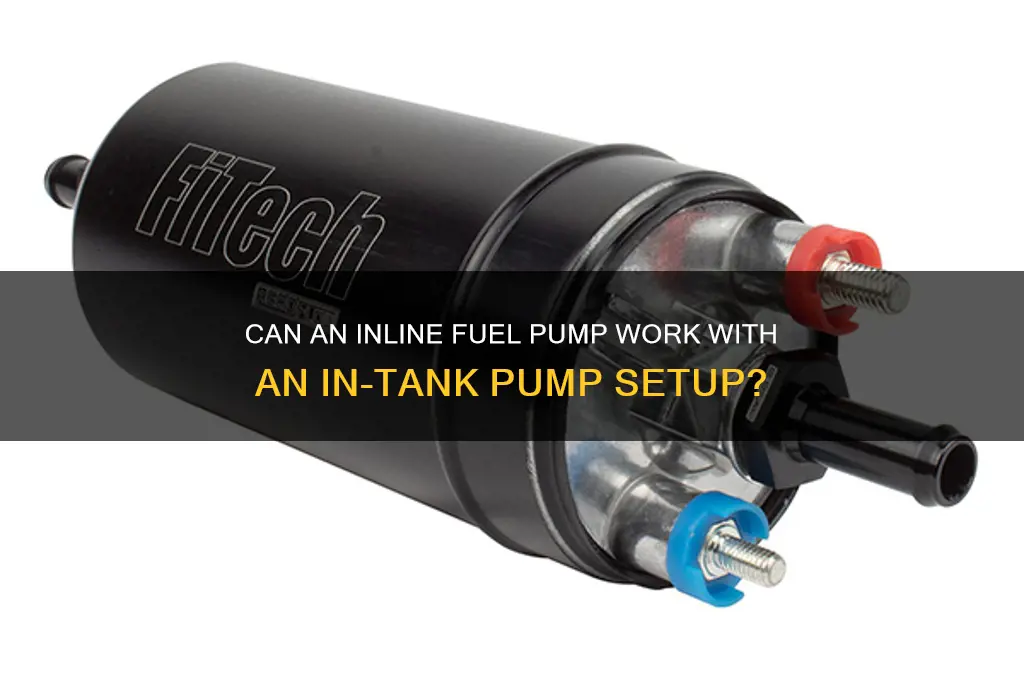

The question of whether an inline fuel pump can effectively draw fuel through an in-tank pump is a common concern among automotive enthusiasts and mechanics. Inline fuel pumps are typically installed outside the fuel tank and rely on the ability to pull fuel from the tank, while in-tank pumps are designed to push fuel out. The compatibility of these systems depends on factors such as the in-tank pump's design, the length and diameter of the fuel lines, and the overall fuel system pressure. In some cases, an in-tank pump may not generate enough pressure to overcome the resistance of the fuel lines, leading to inadequate fuel delivery to the inline pump. However, with proper setup and ensuring the in-tank pump is capable of delivering sufficient flow, it is possible for an inline pump to function effectively in such a configuration. Understanding the dynamics of these components is crucial for optimizing fuel system performance and avoiding potential issues like fuel starvation or pump failure.
| Characteristics | Values |
|---|---|
| Compatibility | Inline fuel pumps are generally not designed to "suck" fuel through an in-tank pump. They are typically used as supplementary or replacement pumps in fuel systems. |
| Flow Direction | Inline pumps are usually push-only (push fuel from the tank to the engine), while in-tank pumps are designed to draw fuel from the tank and push it towards the engine. |
| Pressure Capabilities | Inline pumps often have lower pressure capabilities compared to in-tank pumps, which are designed to handle higher pressures required for modern fuel injection systems. |
| Installation Location | Inline pumps are installed outside the fuel tank, typically along the fuel line, whereas in-tank pumps are mounted inside the fuel tank. |
| Priming Ability | In-tank pumps are self-priming and can draw fuel from the tank, while inline pumps typically require fuel to be present at their inlet to operate effectively. |
| Common Use Cases | Inline pumps are often used in carbureted engines, aftermarket fuel systems, or as booster pumps. In-tank pumps are standard in most modern vehicles with electronic fuel injection. |
| Reliability | In-tank pumps are generally more reliable for continuous operation due to their immersion in fuel, which helps with cooling. Inline pumps may overheat if not properly cooled. |
| Cost | Inline pumps are usually less expensive than in-tank pumps, but installation complexity can vary. |
| Maintenance | In-tank pumps are more difficult to access and replace, while inline pumps are easier to service or replace due to their external location. |
| Efficiency | In-tank pumps are typically more efficient in drawing fuel from the tank, while inline pumps are efficient in pushing fuel but may struggle with suction. |
Explore related products
$22.99
What You'll Learn
Compatibility of Inline and In-Tank Fuel Pumps
Inline and in-tank fuel pumps serve distinct purposes in a vehicle's fuel system, but their compatibility is often questioned when considering modifications or upgrades. An inline fuel pump is typically installed outside the fuel tank and is designed to push fuel toward the engine, while an in-tank pump is submerged in the fuel and primarily responsible for drawing fuel from the tank. The key compatibility concern arises when an inline pump is added to a system already equipped with an in-tank pump: will the inline pump effectively "suck" fuel through the in-tank pump, or will this configuration cause issues?
From a mechanical standpoint, the compatibility of these pumps depends on their flow rates, pressure capabilities, and the overall design of the fuel system. An inline pump can theoretically work in tandem with an in-tank pump if the in-tank pump is capable of supplying fuel at a rate that meets or exceeds the inline pump's demand. For example, if the in-tank pump delivers 40 liters per hour (LPH) and the inline pump requires 30 LPH, the system can function harmoniously. However, if the in-tank pump’s output falls short, the inline pump may starve for fuel, leading to performance issues or damage.
To ensure compatibility, it’s crucial to match the pumps’ specifications to the vehicle’s fuel demands. Start by assessing the engine’s fuel requirements under peak load conditions. For high-performance applications, such as turbocharged or supercharged engines, an inline pump may be necessary to supplement the in-tank pump’s output. In these cases, install a check valve between the in-tank and inline pumps to prevent fuel from backflowing into the tank, which can cause the inline pump to run dry. Additionally, ensure both pumps are compatible with the fuel type (e.g., ethanol blends) and operate within the same voltage range to avoid electrical issues.
A common misconception is that an inline pump can replace an in-tank pump entirely. While an inline pump can push fuel effectively, it lacks the ability to submerge and draw fuel from the tank’s bottom, especially as fuel levels decrease. This makes the in-tank pump indispensable in most setups. For optimal performance, treat the inline pump as a supplementary component rather than a substitute. For instance, in a racing application, an inline pump can be used to maintain consistent fuel pressure during high-G maneuvers, while the in-tank pump ensures a steady supply from the tank.
In conclusion, the compatibility of inline and in-tank fuel pumps hinges on careful system design and component matching. By understanding their roles, flow rates, and limitations, enthusiasts can create a fuel system that maximizes performance without compromising reliability. Always consult manufacturer specifications and consider professional installation when integrating these pumps to avoid common pitfalls.
Step-by-Step Guide to Priming Your Mechanical Fuel Pump Post-Replacement
You may want to see also
Explore related products
Pressure Requirements for Dual Pump Systems
In dual pump fuel systems, pressure balance is critical to prevent one pump from overpowering the other. An inline pump, typically designed for higher pressure, must be matched with an intank pump's output to avoid backflow or cavitation. For instance, if an inline pump generates 80 PSI while the intank pump only handles 60 PSI, the inline pump can force fuel backward, causing the intank pump to act as a resistor rather than a contributor. To mitigate this, install a check valve between the pumps to ensure unidirectional flow, and ensure the inline pump’s pressure exceeds the intank pump’s by no more than 10-15 PSI.
Analyzing pressure requirements reveals that dual pump systems thrive on staged activation. The intank pump should prime the fuel line at a lower pressure (30-40 PSI) before the inline pump engages at higher loads. This sequential operation prevents pressure spikes and ensures consistent fuel delivery. For turbocharged or high-performance engines, program the inline pump to activate at 3,000 RPM or under full throttle, while the intank pump maintains baseline pressure. Use a fuel pressure regulator with a 1:1 ratio to maintain system integrity and avoid overloading the intank pump.
Persuasive arguments for precise pressure calibration center on longevity and efficiency. Overpressurizing the intank pump reduces its lifespan, while underutilizing the inline pump wastes potential. A pressure differential of 5-10 PSI between the pumps optimizes performance without strain. For example, a Walbro 255 intank pump (60 PSI max) paired with an Aeromotive A1000 inline pump (100 PSI max) should be tuned to operate at 55 PSI and 65 PSI, respectively. Regularly monitor pressure with a gauge to detect deviations and adjust as needed.
Comparatively, dual pump systems in racing vs. street applications highlight distinct pressure needs. Racing setups often run both pumps at full capacity (70-90 PSI) for maximum flow, while street systems prioritize efficiency with lower pressures (40-60 PSI). In racing, a dual-pump controller with adjustable pressure maps ensures peak performance under extreme conditions. For street use, a simple relay-based activation system suffices, with the inline pump engaging only during high-demand scenarios. Always match pump pressures to the engine’s fuel demand to avoid unnecessary wear or fuel starvation.
Descriptively, envision a dual pump system as a relay race where the intank pump passes the baton to the inline pump seamlessly. The intank pump initiates flow, lifting fuel from the tank at 4-6 PSI, while the inline pump takes over at higher pressures, delivering fuel to the rail. This handoff requires precise timing and pressure coordination. Use a fuel pressure sensor to monitor transitions and ensure neither pump stalls or surges. Properly calibrated, this system delivers reliable fuel delivery from idle to redline, proving that pressure harmony is the key to dual pump success.
Does the Saturn Vue Have Two Fuel Pumps? Explained
You may want to see also
Explore related products
Fuel Flow Dynamics in Series Pumps
In series fuel pump setups, the interplay between an inline pump and an intank pump hinges on flow dynamics and pressure differentials. The inline pump, typically positioned downstream, must overcome the resistance of the intank pump to maintain fuel flow. This resistance arises because the intank pump’s impeller and housing create a pressure drop, even when it’s not actively pumping. For the inline pump to "suck through" the intank pump, it must generate enough suction pressure to counteract this drop while also meeting the engine’s fuel demand. This requires precise calibration: the inline pump’s flow rate should exceed the intank pump’s maximum output by at least 20–30% to ensure uninterrupted delivery.
Consider a practical scenario: a high-performance engine with a 100 LPH (liters per hour) intank pump paired with a 150 LPH inline pump. If the intank pump’s pressure drop is 2–3 PSI, the inline pump must generate at least 5–6 PSI of suction pressure to compensate. However, if the inline pump’s suction capacity is insufficient, cavitation occurs, leading to air bubbles in the fuel and reduced flow. To mitigate this, install a pre-filter before the intank pump and ensure fuel lines are no smaller than 3/8” diameter to minimize flow restrictions. Additionally, use a pump with a higher head pressure rating (e.g., 8–10 PSI) for safety margins.
From a comparative standpoint, series pump setups differ significantly from parallel configurations. In parallel systems, pumps operate independently, sharing the load, whereas series setups rely on sequential operation. This makes series configurations more prone to flow disruptions if one pump underperforms. For instance, if the intank pump’s check valve fails, fuel can backflow, reducing the inline pump’s effective suction. To address this, install a one-way check valve between the pumps to prevent reverse flow. Alternatively, opt for a single high-capacity pump (e.g., 200+ LPH) if the application allows, eliminating series-specific challenges.
Persuasively, series pump setups are not inherently flawed but require meticulous planning. Start by calculating the engine’s peak fuel demand (e.g., 80 LPH for a turbocharged 4-cylinder) and select pumps accordingly. Use a fuel pressure gauge to monitor system performance, aiming for 45–55 PSI at the rail. Regularly inspect fuel lines for kinks or clogs, as even minor restrictions amplify pressure drops in series systems. For tuners and enthusiasts, investing in a programmable fuel pressure regulator (e.g., AEM or Aeromotive) allows fine-tuning of pump output, ensuring optimal flow dynamics.
Descriptively, envision fuel flowing through a series system as a relay race: the intank pump hands off to the inline pump, which must sprint to the finish line (injector rail). Any stumble—be it a clogged filter, weak pump, or faulty wiring—breaks the chain. To visualize this, use a flow meter to test each pump’s output individually, then in series, noting discrepancies. For example, if the intank pump outputs 90 LPH alone but drops to 70 LPH in series, investigate for restrictions. Practical tip: run the system at idle and full throttle, comparing pressure drops to diagnose issues dynamically. This hands-on approach transforms abstract dynamics into actionable insights.
Why Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Explore related products
Potential Issues with Inline Pump Suction
Inline fuel pump suction through an in-tank pump is theoretically possible but fraught with practical challenges. The in-tank pump is designed to push fuel, not pull it, and its impeller and motor are optimized for pressure generation, not vacuum creation. Attempting to reverse its function risks mechanical stress, reduced efficiency, and potential damage to internal components. Forcing an in-tank pump to operate in reverse could lead to overheating, premature wear, or complete failure, rendering it ineffective for its primary role of supplying fuel under pressure.
Consider the fuel system’s pressure dynamics. Inline pumps are typically positioned downstream of the in-tank pump to boost pressure for high-performance applications. If the inline pump attempts to "suck" fuel through the in-tank pump, it creates a low-pressure zone that the in-tank pump is ill-equipped to handle. This can cause cavitation, where air bubbles form in the fuel, leading to erratic fuel delivery, engine misfires, or stalling. In extreme cases, cavitation can erode pump components, shortening their lifespan.
Another critical issue is fuel flow restriction. In-tank pumps often incorporate check valves or one-way designs to prevent fuel backflow into the tank. If an inline pump tries to draw fuel backward, these valves may close, starving the inline pump of fuel. Even if the valves allow partial flow, the resistance increases fuel system strain, reducing overall efficiency. This inefficiency not only affects performance but also increases the risk of fuel pump overheating, especially under high-demand conditions like acceleration or towing.
Practical implementation requires careful system design. If reverse flow is unavoidable, install a bypass line with a check valve to allow fuel to flow directly from the tank to the inline pump. Ensure the inline pump’s suction capacity does not exceed the in-tank pump’s maximum flow rate to prevent overloading. Regularly monitor fuel pressure and temperature to detect anomalies early. For example, a pressure drop below 30 psi or a temperature rise above 140°F indicates potential issues requiring immediate attention.
In conclusion, while an inline pump can theoretically suck through an in-tank pump, the risks far outweigh the benefits. Mechanical stress, cavitation, flow restrictions, and efficiency losses make this setup unreliable. Instead, prioritize proper fuel system design, ensuring pumps operate in their intended direction. If reverse flow is necessary, implement safeguards like bypass lines and monitor system parameters closely to mitigate risks. Always consult a professional for complex fuel system modifications to avoid costly mistakes.
Step-by-Step Guide to Installing a FASS Fuel Pump Easily
You may want to see also
Explore related products
Optimal Setup for Dual Fuel Pumping
Inline and in-tank fuel pumps can work in tandem, but their compatibility depends on strategic setup and clear roles. An inline pump, typically positioned outside the tank, excels at delivering fuel under pressure to the engine. An in-tank pump, meanwhile, is designed to draw fuel from the tank and prevent air pockets, ensuring a consistent supply. When paired, these pumps can address high-performance demands, but their integration requires careful planning to avoid inefficiencies or damage.
To achieve an optimal dual-pump setup, start by defining each pump’s primary function. Assign the in-tank pump as the "sucker" and the inline pump as the "pusher." The in-tank pump should be rated to supply more fuel than the engine demands at idle and low RPMs, ensuring it can maintain a steady flow even when the inline pump is inactive. For example, if your engine requires 60 liters per hour (LPH) at peak load, select an in-tank pump rated for at least 80 LPH. This prevents the inline pump from starving under low-demand conditions.
Next, position the inline pump as close to the engine as possible to minimize pressure drop and reduce the risk of cavitation. Use a pre-filter before the inline pump to protect it from debris, especially if the in-tank pump lacks a robust filter. Set the inline pump to activate only under high-demand conditions—such as above 3,000 RPM or during boost—using a relay controlled by a pressure switch or ECU signal. This ensures the in-tank pump handles baseline fuel delivery while the inline pump supplements flow when needed.
Caution: Avoid running both pumps at full capacity simultaneously unless the system is designed for it. Overlapping their operation can lead to excessive pressure, damaging fuel lines or injectors. Additionally, ensure the return line from the fuel pressure regulator is directed back into the tank, not into the feed line, to prevent aeration and maintain a closed-loop system. Regularly monitor fuel pressure and flow to verify both pumps are operating within their design parameters.
In high-performance applications, such as turbocharged or supercharged engines, this dual-pump setup can provide reliability and scalability. For instance, a stock in-tank pump paired with an Aeromotive A1000 inline pump can support up to 700 horsepower on gasoline. However, always match pump capacities to your engine’s specific fuel demands, factoring in future upgrades. With precise configuration, dual pumping eliminates fuel starvation while maximizing efficiency, making it a go-to solution for enthusiasts pushing their vehicles to the limit.
SVT Focus Fuel Pump Size: A Comprehensive Guide and Overview
You may want to see also
Frequently asked questions
No, an inline fuel pump is designed to push fuel, not pull it. It requires fuel to be supplied to it under pressure or by gravity, so it cannot "suck" fuel through an in-tank pump.
Yes, they can work together. The in-tank pump supplies fuel to the inline pump, which then boosts pressure further for high-performance or modified engines.
Using both pumps increases fuel pressure and flow, which is necessary for high-performance engines, turbochargers, or superchargers that demand more fuel than a single pump can provide.
Yes, if the inline pump creates a vacuum or backpressure that the in-tank pump cannot handle, it can cause the in-tank pump to fail or operate inefficiently. Proper installation and tuning are critical.
No, an inline pump cannot replace an in-tank pump because it lacks the ability to draw fuel from the tank. An in-tank pump is still needed to supply fuel to the inline pump.
