Sylvie Willis
A fuel injector is a device that regulates the injection of fuel into an engine's internal combustion chamber, where it is mixed with air and ignited. Cummins Inc. manufactures fuel injectors for diesel, natural gas, and hydrogen engines, as well as hydrogen fuel cell vehicles. The latest technology in fuel injectors helps reduce carbon and greenhouse gas emissions by delivering accurate fueling with optimized air mixing. In this article, we will discuss the process of airing a Cummins fuel injector, including the necessary tools and steps to ensure a successful and safe outcome. We will also explore the benefits and advantages of using Cummins fuel injectors, as well as address common challenges and provide troubleshooting tips, as seen in various discussions about Cummins fuel injectors.
| Characteristics | Values |
|---|---|
| Engine type | Diesel, natural gas, hydrogen internal combustion engines (ICE), and hydrogen fuel cells |
| Function | Regulates the injection of fuel into the engine's internal combustion chamber |
| Fuel type | Diesel, natural gas, hydrogen |
| Components | Solenoid (electromagnet), nozzle, and needle within the injector body |
| Injection type | Direct injection (fuel delivered directly into the combustion chamber) |
| Fuel pressure | Up to 37,000 psi |
| Emissions | Reduced carbon and greenhouse gas emissions |
| Warranty | 2 years with unlimited mileage (for 5.9 or 6.7 Cummins engine) |
| Models | ISM425, ISM 305, ISM 320 |
Explore related products
What You'll Learn
The role of fuel injectors in the energy transition from fossil fuels to cleaner energy sources
The clean energy transition refers to the process of shifting energy production from sources that release greenhouse gases, such as fossil fuels, to those that produce little to no greenhouse gas emissions. This transition involves a shift towards renewable and cleaner energy sources, such as wind and solar power, which are self-replenishing and more sustainable than finite fossil fuels.
Fuel injectors play a crucial role in this transition from fossil fuels to cleaner energy sources. They are not just a component in engines but a key enabler of the shift towards more sustainable energy usage. Fuel injectors regulate the injection of fuel into an engine's internal combustion chamber, where it is mixed with air and ignited to generate power. The latest fuel injector technology helps reduce carbon and greenhouse gas emissions by delivering accurate fuelling with optimised air mixing.
In diesel engines, fuel injectors can fire multiple pulses in a single power stroke, which is useful for noise mitigation and emissions control. The high fuel pressure and fine injector nozzle holes ensure optimal mixing of air and fuel, meeting stricter emissions standards. By optimising fuel consumption in diesel engines, fuel injectors can contribute to reducing carbon emissions.
Additionally, fuel injectors facilitate the operation of alternative fuel engines, such as natural gas and hydrogen internal combustion engines (ICE). Natural gas engines, for instance, utilise a spark plug to ignite the air-fuel mixture, resulting in lower carbon intensity compared to diesel. Renewable Natural Gas (RNG) can even possess negative carbon intensity. Hydrogen fuel cells, on the other hand, split hydrogen atoms to produce electricity, heat, and water vapour, with no carbon or pollutant emissions.
The role of fuel injectors in optimising fuel consumption and enabling the use of alternative fuels makes them a critical component in the transition towards cleaner energy sources. By partnering with vehicle fleets, companies like Cummins are helping to optimise engine performance while achieving sustainability goals.
Clean Fuel Injectors: Enhancing Performance and Efficiency
You may want to see also
Explore related products
How to change Cummins ISM injectors
Changing the injectors in a Cummins ISM engine requires you to first push the fuel out of the system. There is no need to remove the fuel from the head prior to removing the injectors unless the fuel tank is higher than the engine, in which case gravity will allow the fuel to flow. In this case, remove the supply line and plug off, then remove the injector and install the new one.
To remove the injector, loosen the valves, take the bridges off, and pull the injector. You can then install the new injector and adjust the overhead. Make sure to connect the injector wires to the same cylinder from which they were removed.
If you are adjusting the injector, you can loosen the injector-adjusting screw locknut using a screwdriver or a box end wrench. Bottom the injector plunger three or four times to remove the fuel. Then, turn the adjusting screw in until it bottoms the plunger. It is important not to use excessive force when bottoming the plunger. Back out the adjusting screw two flats, or 120 degrees, and then hold the adjusting screw and tighten the locknut.
If you are setting a Celect injector, you should tighten the adjuster until you feel it bottom and then back off two flats. This is because if the overhead has not been run in a while, carbon and gunk can get smashed into the nozzle orifices and cause a misfire.
Ford F-150 Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
The components of a fuel injector
Fuel injectors are a critical component in modern engines, delivering fuel to the engine for combustion. They are responsible for ensuring that a vehicle runs efficiently, smoothly, and with minimal emissions. The fundamental function of a fuel injector is to spray pressurised fuel into the engine.
The injector's body is typically made of metal or high-quality plastic and houses the internal parts, providing structural integrity. It is designed to withstand high-pressure fuel systems and harsh operating conditions. The nozzle is the part that sprays fuel into the combustion chamber. Nozzles come in different designs, including pintle, multi-hole, and disc-type nozzles. The combination of high-fuel pressure and exceptionally fine injector nozzle holes ensures optimal mixing of air and fuel to meet emissions standards.
The fuel injection system can be divided into low-pressure and high-pressure sides. The low-pressure components include the fuel tank, fuel supply pump, and fuel filter. The high-pressure side components include a high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. Fuel pumps are commonly sized to deliver more fuel than is consumed by the engine, and this extra fuel flow helps to cool injectors, pumps, and other engine components. Fuel filters help to reduce damage and premature wear by retaining very fine particles and water to prevent them from entering the fuel injection system.
In some systems, a single component performs multiple functions. Fuel injectors which also control the metering are called injection valves, while injectors that perform all three functions are called unit injectors. Direct injection means that the fuel is injected into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber. Therefore, only air is sucked into the engine during the intake stroke. The injection scheme is always intermittent, either sequentially or cylinder-individual.
How Injectors Spray: Fuel Volume and Switch Control
You may want to see also
Explore related products
The benefits of using natural gas engines over diesel engines
Natural gas engines offer several advantages over traditional diesel engines. Firstly, they are more environmentally friendly, producing fewer emissions and helping to reduce air pollution. Natural gas is a lower carbon-intensity fuel compared to diesel, and recent research from the University of California, Riverside's College of Engineering, found that diesel engines emitted five times more NOx (nitrogen dioxide and nitric oxide) emissions than natural gas vehicles (NGVs). NGVs also generate almost no emissions of nitrogen oxides, particulate matter, volatile organic compounds, or carbon monoxide. This makes them particularly attractive to companies looking to meet corporate sustainability or ESG (environmental, social, and governance) goals.
Natural gas is also more abundant and efficient than diesel. As the number one producer of natural gas in the world, the US has over 90 years' worth of supply, giving natural gas greater price stability than diesel. Natural gas contains fewer hydrocarbons, and with an octane rating of 130, it helps increase engine combustion and efficiency. It can be used in two forms: Compressed Natural Gas (CNG) or Liquefied Natural Gas (LNG). CNG fuel systems are sealed, reducing the chance of fuel loss or contamination, and in the event of a spill, natural gas is less likely to ignite and mixes easily with air, quickly dispersing.
Another benefit of natural gas engines is that they are noticeably quieter than diesel engines, making them a more attractive option for companies operating in urban environments, such as transit companies and school corporations. The reduced noise can also help improve productivity by keeping drivers comfortable.
Finally, natural gas engines offer financial benefits. NGV engines that use CNG fuel tend to experience fewer breakdowns and lower maintenance costs over time, as they do not require regular changes of oil or air filters. This can help businesses grow their revenues and reduce costs.
Fuel Injector Sizing for 280HP: 6-Cylinder Requirements
You may want to see also
Explore related products

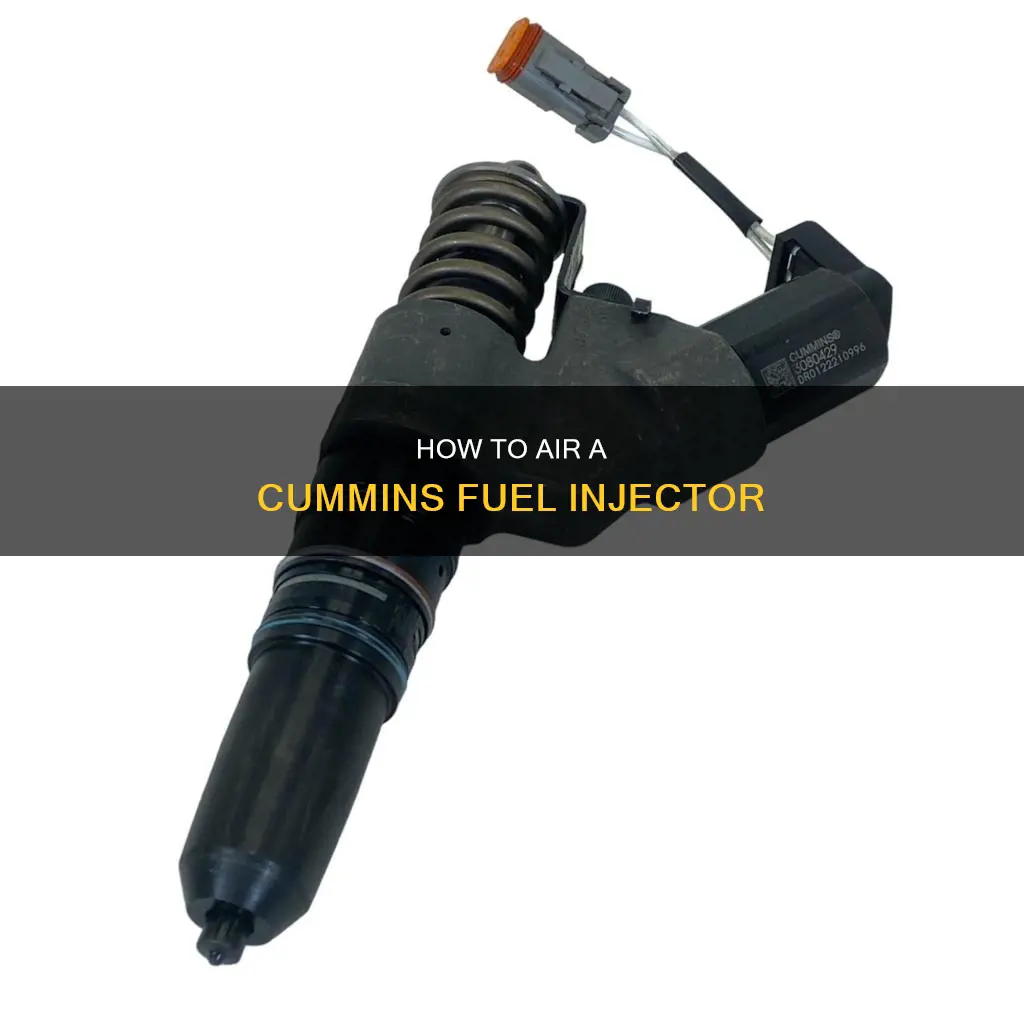

The process of purging air from a Cummins fuel injector
The Cummins diesel engine is designed to be a longevity engine, with a lifespan of 500,000 to a million miles between teardowns. However, peripherals like the turbocharger, fuel injectors, and fuel pump can wear out or fail earlier. Purging the high-pressure pump and injectors is an important part of maintaining peak performance and reliability. Here is a step-by-step process for purging air from a Cummins fuel injector:
Step 1: Prime the Fuel System
Before starting the engine, it is important to prime the fuel system to bring tank fuel to the canister and purge air from the supply lines. This can be done using the bump-key method: gently bump the key to the crank position without starting the engine, then release the key to the 'ON' position. This will activate the fuel pump for about 25 seconds. Repeat this cycle a few times to run the low-pressure fuel pump without starting the engine.
Step 2: Loosen Injector Fittings
Loosen the fittings on injectors #1, #3, and #4 with a 3/4" open-end wrench. This will help release any trapped air in the system.
Step 3: Crank the Engine
Crank the engine for about 10 seconds and then stop. Check for any wet or dripping fuel injector fittings and tighten them if necessary. This step may need to be repeated a few times until the engine starts.
Step 4: Tighten Remaining Fittings
Once the engine starts, tighten any remaining loose fittings. The engine may need to be revved a few times to clear up any remaining air bubbles.
Step 5: Flush the Injection System
To thoroughly purge contaminants and debris from the high-pressure pump and injectors, it is recommended to flush the injection system with a product like Sea Foam Motor Treatment. This can be done during a routine fuel filter change by filling the canister with the treatment. On restart, the engine can idle unloaded on the treatment, flushing the pump, injection system, and combustion areas.
Step 6: Bench Testing
Although not directly related to purging air, it is important to regularly bench test the injectors to ensure they are functioning properly. This can be done using a machine like the Bosch EPS205 to check for issues such as fuel return rate, pressure readings, leaks, and spray patterns.
Fuel Injector Functionality: Can-Am Vehicles
You may want to see also
Frequently asked questions
A Cummins fuel injector regulates the injection of fuel into an engine's internal combustion chamber where it is mixed with air and ignited.
A fuel injector in a diesel engine consists of a solenoid, a nozzle, and a needle within the injector body. When the piston moves upward, an electrical signal is sent to the solenoid, causing the injector needle to lift, allowing high-pressure fuel to flow through the nozzle and into the combustion chamber to mix with air.
The best fuel injectors enable an engine to generate maximum power while minimizing fuel consumption and reducing pollution. Fuel injectors with the latest technology help reduce carbon and greenhouse gas emissions by delivering accurate fueling with optimized air mixing.
Cummins fuel injectors are compatible with diesel, natural gas, and hydrogen engines, as well as hydrogen fuel cell vehicles.
You can buy a Cummins fuel injector from Cummins Inc. or authorized retailers. Some retailers offer a 2-year warranty with unlimited mileage for Cummins engine fuel injectors.
