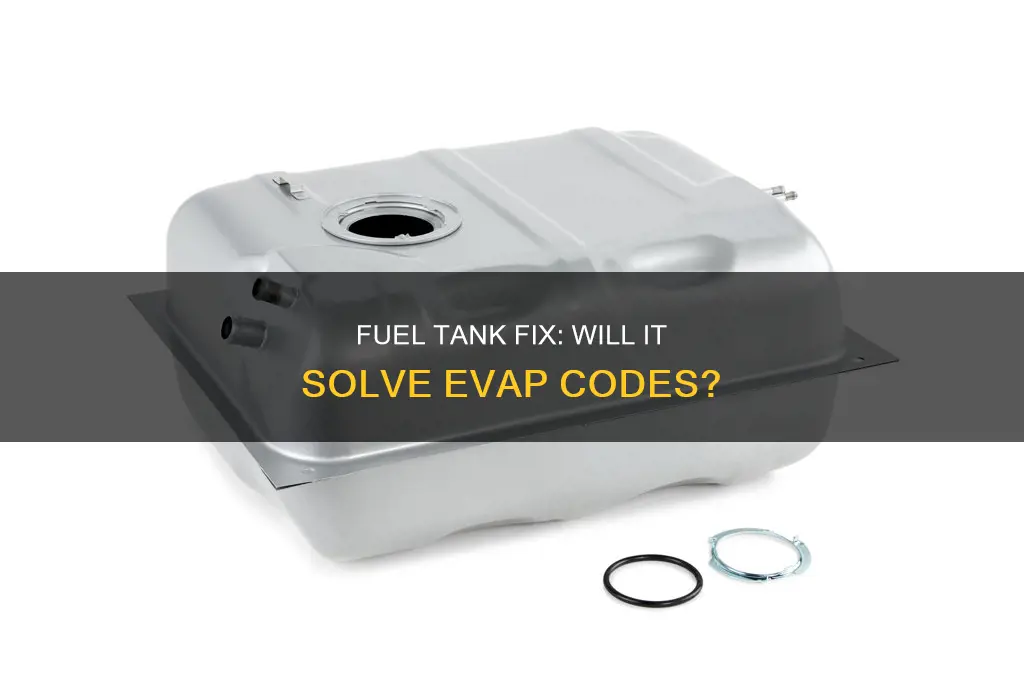

The Evaporative Emission Control (EVAP) system is a crucial component of a vehicle's emission control strategy, designed to trap fuel vapors and prevent their release into the atmosphere. When the EVAP system malfunctions or leaks, the vehicle's onboard diagnostic system (OBD-II) detects it and triggers a Diagnostic Trouble Code (DTC), such as P0455 for a large leak or P0442 for a small leak. While a simple fix like tightening a loose gas cap may resolve the issue, more extensive repairs like replacing the fuel tank might be necessary in rare cases. Understanding these EVAP codes and their solutions can help keep your vehicle running efficiently and environmentally friendly.
| Characteristics | Values |
|---|---|
| Reasons for EVAP codes | Fuel pump malfunction, loose or damaged gas cap, cracked or damaged hoses, faulty purge valve or vent valve, damaged canister, leaks in the fuel tank |
| Solutions | Replacing the fuel pump, tightening or replacing the gas cap, replacing hoses with EVAP-specific ones, replacing the purge valve or vent valve, repairing or replacing the fuel tank |
| Cost of repairs | Simple gas cap replacement: $20; Extensive repairs like replacing the purge valve or fuel tank: $100-$1,000 |
| Impact of ignoring EVAP codes | EVAP system leaks are a common reason for failing emissions tests, leading to environmental concerns |
Explore related products
What You'll Learn
A loose or damaged gas cap
If you encounter an EVAP error code, the first step is to tighten the gas cap and clear the code with a scan tool or code reader. If the code returns, you may need to replace the gas cap if it is damaged or not forming a good seal. In most cases, tightening or replacing the gas cap will solve the problem. You can find a compatible gas cap replacement by inputting your vehicle's year, make, and model.
If the check engine light comes on again after tightening or replacing the gas cap, there could be a leak in one of the EVAP tubes. This issue rarely causes problems with the vehicle, but the check engine light will remain illuminated. A repair shop can diagnose and fix the tube if necessary.
It is important to note that the solutions to EVAP error codes may vary depending on the vehicle. For example, the fix for a P0457 code in a Ford may differ from the solution for the same code in a Subaru. When troubleshooting and repairing diagnostic trouble codes, it is recommended to consult factory repair information, such as repair manuals or an ALLDATA subscription.
Fuel Tank Capacity for Peterbilt Trucks: Sizing Up Options
You may want to see also
Explore related products
Cracked or damaged hoses
A cracked or damaged hose is one of the most common causes of an EVAP leak. The EVAP system plays a crucial role in trapping fuel vapours and preventing their escape into the atmosphere. When there is a leak or malfunction in the EVAP system, the vehicle's onboard diagnostic system (OBD-II) detects it and triggers a Diagnostic Trouble Code (DTC). Some common DTCs indicating an EVAP system leak include P0455 (large leak), P0442 (small leak), and P0456 (very small leak).
To diagnose a cracked or damaged hose, a smoke test is often performed. This involves introducing smoke into the EVAP system and checking for any smoke escaping from leaks in the hoses, canister, or other components. Advanced diagnostic tools also enable pressure tests to detect smaller leaks.
If a cracked or damaged hose is identified as the source of the EVAP leak, it is essential to replace it with a hose specifically designed for EVAP systems. This replacement is a straightforward fix, and these hoses are typically inexpensive and widely available.
It is worth noting that other components of the EVAP system, such as the gas cap, purge valve, vent valve, and canister, can also contribute to EVAP leaks if they are loose, faulty, or damaged. Therefore, a comprehensive inspection of the entire EVAP system is recommended to identify and address all potential sources of the leak before replacing the fuel tank.
Duramax Fuel Tank Hiss: What's the Reason?
You may want to see also
Explore related products
Faulty purge valve
The purge valve is an important component of a vehicle's ECU system. When it fails, it negatively affects the vehicle's engine performance. A faulty purge valve can increase fuel emissions from your vehicle. The liquid fuel stored in the fuel tank tends to evaporate easily, and the degree of evaporation increases under high-temperature conditions.
A check engine light on your dashboard could indicate a faulty purge valve. If your car sensor shows a car diagnostic code, including P0441, P0446, or any other EVAP codes, it will illuminate the check engine light. The vapour tank flush valve redirects fuel vapours to the engine, preventing toxic hydrocarbons from escaping from the tailpipe. If the valve is stuck closed instead of open, the fuel vapours won't be pushed back into the engine.
The EVAP system includes a purge valve canister that restricts the amount of fuel vapour escaping from the carbon canister. The EVAP system releases these vapours into the car's engine when it starts at a regular speed, and the flow of these vapours is controlled by the purge valve. A problem occurs when the purge valve gets stuck and doesn't open on time.
One of the symptoms of a faulty purge valve is low engine performance. When the valve is stuck open, the vehicle receives more air into its system than expected, resulting in insufficient fuel entering the engine when the throttle is pressed. This leads to weaker engine performance, particularly when driving at low RPMs, going uphill, or trying to overtake another vehicle.
Repairing a Weeping Marine Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Faulty vent valve
The EVAP system is part of a vehicle's emissions control system, which prevents the release of fuel vapours into the atmosphere. It captures and stores fuel vapours from the fuel tank and fuel system, which are then burnt off as part of the combustion process. This system is designed to be a closed system, sealed to prevent fuel vapours from escaping. It is made up of various components, including the fuel tank, fuel filler neck, purge valve, charcoal canister, hoses, and lines.
The EVAP canister vent valve is a normally open valve that checks for leaks in the EVAP system. One side of the vent valve is attached to the charcoal canister, and the other side is connected to the vent hose, which includes a filter at the end. When the EVAP canister vent valve malfunctions, it may not close properly, resulting in a leak in the EVAP system during testing. This can trigger the vehicle's Onboard Diagnostics (OBD) system to illuminate the Malfunction Indicator Light (MIL) and store a corresponding Diagnostic Trouble Code (DTC) in its memory.
If the EVAP canister vent valve becomes stuck closed, it prevents excess pressure from being vented and released from the fuel tank. This results in an excessive accumulation of pressure that will only escape when you open the fuel tank cap and may also lead to difficulty when refueling. When the canister vent valve is stuck open, excess fuel vapours escape into the environment, causing a strong smell of gasoline around the vehicle.
There are several reasons why an EVAP canister vent valve may malfunction:
- Physical damage: Vibrations and collisions can contribute to EVAP canister vent valve failures, leading to physical damage to the valve.
- Debris and contamination: If the filter at the end of the vent hose is damaged or missing, dirt, dust, and other debris can enter the vent valve through the vent hose, building up inside the valve and causing blockages.
- Electrical issues: Electrical problems such as wiring issues, short circuits, or loose connectors can interrupt signal transmission from the PCM and prevent the valve from operating correctly.
- Age and wear: Over time, the moving parts in the vent valve can degrade due to normal use.
Cleaning a Bobcat Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Fuel tank leak
A fuel tank leak can be dangerous and put you and your passengers at risk. It can also affect your fuel bill. There are several warning signs of a leaking fuel tank. For instance, if you constantly smell fuel vapour while inside your vehicle, the gas tank has likely sprung a leak. Gasoline has a distinct scent, which can be sweet or sulfurous, depending on the blend.
You can also check the fuel gauge to investigate a potential leak. A large gas tank leak will cause a significant drop in the value displayed by the fuel gauge. This is usually a problem when a fuel line is breached, leaking, or disconnected, and the fuel is leaking out under pressure. A leak in or near the top of the fuel tank won't leak much fuel but will cause a fuel odour. Small leaks can be harder to notice unless you park your vehicle for a while.
If you suspect a leak, record the fuel level during parking and compare it with a new reading taken half a day later. You can also check for spots of fuel or moisture below the gas tank.
If you have a leaking fuel tank, it is recommended that you do not drive the vehicle and instead get it towed to a mechanic. While some temporary fixes may be possible, these are not recommended due to safety concerns. For example, while you may be able to use a product like J-B Weld to patch a plastic tank, gasoline will eat through it.
To fix a leaking fuel tank, you will likely need to replace the tank. This can cost around $150-$200, assuming a scrapyard has one available. When replacing the tank, it is important to also replace all the filters, as not doing so could cause issues with the new fuel pump.
In some cases, the EVAP system may be the cause of the leak. It is recommended to check the entire EVAP system before and after any repairs. A smoke machine can be used to ensure the fuel tank and EVAP system are sealed after a fuel tank has been dropped.
Repairing Cracked Plastic Fuel Tanks: Sealing Solutions
You may want to see also
Frequently asked questions
The Evaporative Emission Control (EVAP) system is a key component in a vehicle’s emission control strategy. Its primary role is to trap fuel vapors and prevent their escape into the atmosphere.
When there is a leak or malfunction in the EVAP system, the vehicle's onboard diagnostic system (OBD-II) detects it and triggers a Diagnostic Trouble Code (DTC), commonly known as an EVAP code.
The fix will depend on the problem. For example, if the gas cap is loose, tighten it. If it is damaged, replace it. If there are cracked or damaged hoses, replace them with EVAP-specific hoses. If the purge or vent valve is faulty, replace it.
In rare cases, a fuel tank may develop a leak and need to be repaired or replaced. However, there are many other potential causes of EVAP codes, and a new fuel tank will not fix an EVAP code if the issue is with another component of the EVAP system.
A simple gas cap replacement might cost around $20, while more extensive repairs, such as replacing the purge valve or fuel tank, could range from $100 to $1,000.
