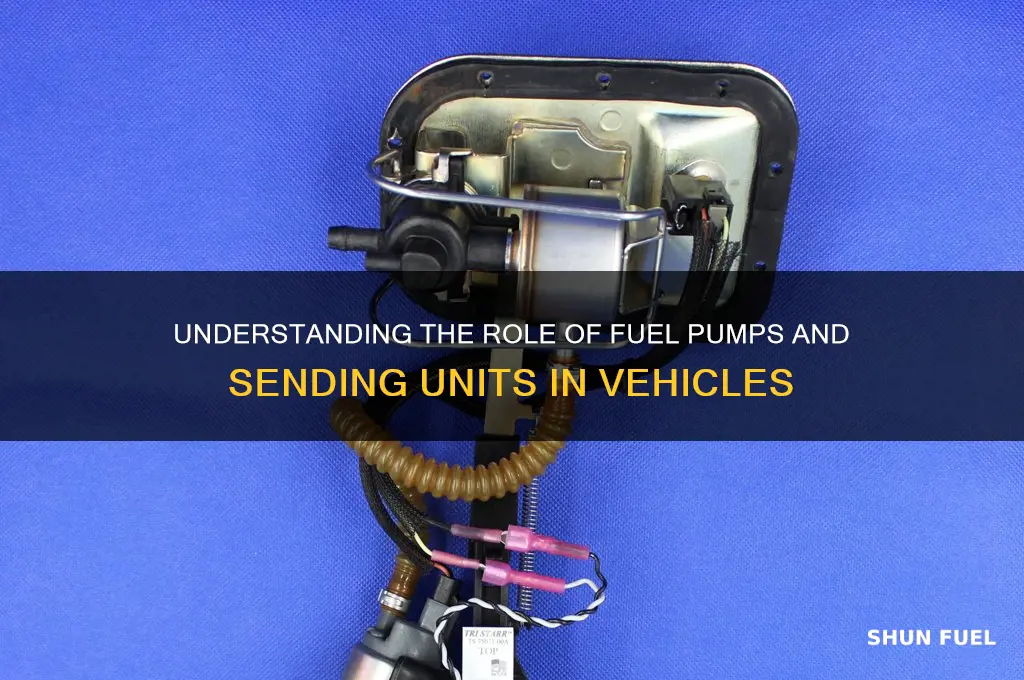

The fuel pump and sending unit are essential components of a vehicle's fuel system, working together to ensure the engine receives a consistent and accurate supply of fuel. The fuel pump is responsible for drawing fuel from the tank and delivering it to the engine at the required pressure, while the sending unit, often integrated with the pump, monitors the fuel level in the tank and relays this information to the fuel gauge on the dashboard. This combination ensures optimal engine performance, prevents fuel starvation, and provides drivers with real-time data on their fuel levels, making these components critical for both efficiency and convenience in modern vehicles.
| Characteristics | Values |
|---|---|
| Purpose of Fuel Pump | Delivers fuel from the tank to the engine at the required pressure and flow rate. |
| Purpose of Sending Unit | Measures the fuel level in the tank and sends the data to the fuel gauge. |
| Location | Both are typically located inside the fuel tank (in-tank design). |
| Fuel Pump Types | Mechanical, electric, or turbine-based. |
| Sending Unit Operation | Uses a float connected to a variable resistor to measure fuel level. |
| Fuel Pressure Regulation | Maintains consistent fuel pressure for optimal engine performance. |
| Fuel Flow Rate | Ensures sufficient fuel delivery to meet engine demands, especially under load. |
| Compatibility | Designed to work with specific fuel types (e.g., gasoline, diesel). |
| Failure Symptoms | Engine stalling, hard starting, inaccurate fuel gauge readings. |
| Maintenance | Regular inspection and replacement as needed to ensure reliability. |
| Integration | Often combined into a single module for efficiency and ease of installation. |
| Modern Systems | Include advanced diagnostics and fail-safes for improved safety and performance. |
Explore related products
What You'll Learn
- Fuel Pump Functionality: Delivers fuel from tank to engine efficiently under required pressure for combustion
- Sending Unit Role: Measures fuel level, relays data to gauge for accurate dashboard display
- Integrated Design: Combines pump and sender in one unit for compact, cost-effective installation
- Failure Symptoms: Causes engine sputtering, stalling, or inaccurate fuel gauge readings if faulty
- Maintenance Tips: Regular checks prevent issues; replace every 100,000 miles or as needed
Fuel Pump Functionality: Delivers fuel from tank to engine efficiently under required pressure for combustion
The fuel pump is the unsung hero of your vehicle's fuel system, tasked with a critical mission: transporting fuel from the tank to the engine with precision and efficiency. This process is not merely about moving liquid; it's about delivering fuel under the exact pressure required for optimal combustion. Without this functionality, your engine would either starve for fuel or receive it in inconsistent amounts, leading to poor performance, reduced efficiency, or even complete failure. The fuel pump ensures that every drop of fuel is utilized effectively, contributing to smoother acceleration, better fuel economy, and overall engine reliability.
Consider the journey of fuel from tank to engine: it begins with the pump drawing fuel from the tank, where it is stored under ambient conditions. The fuel must then travel through lines and filters before reaching the engine. Here’s where the fuel pump’s role becomes crucial—it must maintain a consistent pressure, typically between 30 to 85 psi (pounds per square inch), depending on the engine’s design and load demands. This pressure ensures that fuel atomizes correctly in the combustion chamber, allowing for efficient mixing with air and ignition. For instance, in a modern fuel-injected engine, the fuel pump works in tandem with the fuel injectors, which spray fuel at high pressure into the intake manifold or directly into the cylinders.
One practical tip for vehicle owners is to monitor fuel pump performance through symptoms like sputtering, loss of power, or difficulty starting the engine. These issues often indicate a failing fuel pump, which can be diagnosed using a fuel pressure gauge to check if the pump is maintaining the manufacturer’s specified pressure range. Regular maintenance, such as replacing the fuel filter every 30,000 miles, can also extend the life of the fuel pump by preventing contaminants from clogging the system. Additionally, using high-quality fuel reduces the risk of pump wear caused by debris or low-quality additives.
Comparatively, older carbureted engines relied on gravity or low-pressure mechanical pumps to deliver fuel, which were less efficient and less adaptable to varying engine demands. Modern electric fuel pumps, often located inside the fuel tank, offer greater reliability and control. They are designed to operate quietly and efficiently, with some systems even incorporating a variable-speed pump that adjusts pressure based on engine load, further optimizing fuel delivery. This evolution highlights the fuel pump’s central role in adapting automotive technology to meet demands for performance, efficiency, and environmental compliance.
In conclusion, the fuel pump’s functionality is a cornerstone of modern vehicle operation, ensuring that fuel is delivered precisely where and when it’s needed. By understanding its role and maintaining the system proactively, drivers can avoid common issues and maximize their vehicle’s performance and longevity. Whether you’re cruising on the highway or idling in traffic, the fuel pump works tirelessly behind the scenes, proving that even the most overlooked components can have the most significant impact.
Do Carburetors Require Fuel Pumps? Understanding Engine Fueling Systems
You may want to see also
Explore related products
Sending Unit Role: Measures fuel level, relays data to gauge for accurate dashboard display
The sending unit is a critical component in modern vehicles, serving as the eyes and ears of the fuel system. Its primary function is to measure the fuel level in the tank, a task it accomplishes through a float mechanism connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance and generating an electrical signal proportional to the amount of fuel present. This signal is then transmitted to the fuel gauge on the dashboard, ensuring drivers have an accurate, real-time display of their fuel status. Without this component, drivers would be left guessing, relying on mileage estimates or manual checks, which are both inconvenient and unreliable.
Consider the sending unit as the translator between the fuel tank and the driver. It takes raw data—the physical position of the float—and converts it into a readable format for the gauge. This process is seamless, occurring in milliseconds, and is essential for preventing unexpected fuel depletion. For instance, a malfunctioning sending unit can lead to inaccurate readings, such as a full tank indication when it’s nearly empty, or vice versa. This not only causes inconvenience but can also leave drivers stranded in unsafe locations. Regular maintenance, including checking for corrosion or damage to the unit’s wiring, is crucial to ensure its longevity and accuracy.
From a practical standpoint, understanding the sending unit’s role can help vehicle owners diagnose common fuel gauge issues. If the gauge reads inconsistently or remains stuck at a certain level, the sending unit is often the culprit. Testing it involves measuring the resistance at different fuel levels using a multimeter, comparing the readings to the manufacturer’s specifications. For DIY enthusiasts, this can be a straightforward task, but professional inspection is recommended for those unfamiliar with automotive electrical systems. Replacing a faulty sending unit typically costs between $200 and $500, depending on the vehicle make and labor rates, making it a relatively affordable fix for a critical system.
A comparative analysis highlights the sending unit’s evolution over the years. Early vehicles relied on mechanical gauges with direct linkages to the fuel tank, which were prone to wear and inaccuracy. Modern sending units, however, use electronic sensors and resistive circuits, offering greater precision and durability. This advancement reflects the broader trend in automotive technology toward smarter, more reliable systems. While the core function remains the same—measuring fuel level—the method has become more sophisticated, integrating seamlessly with other vehicle diagnostics and warning systems.
In conclusion, the sending unit is more than just a component; it’s a safeguard that ensures drivers remain informed about their vehicle’s fuel status. Its role in measuring fuel levels and relaying data to the gauge is indispensable for safe and efficient driving. By understanding its function and importance, vehicle owners can better maintain their fuel systems, avoid unexpected breakdowns, and appreciate the technological ingenuity behind this small but vital part. Whether you’re a seasoned mechanic or a casual driver, recognizing the sending unit’s contribution enhances your overall driving experience.
Diagnosing a Faulty Honda Accord Fuel Pump Relay: Signs and Solutions
You may want to see also
Explore related products
Integrated Design: Combines pump and sender in one unit for compact, cost-effective installation
Modern vehicles demand efficiency in every component, and the integration of the fuel pump and sending unit into a single module exemplifies this principle. By combining these two critical functions, engineers reduce the overall footprint of the fuel system, freeing up valuable space in the fuel tank for additional fuel capacity or other components. This design is particularly advantageous in compact cars and electric-hybrid vehicles, where space optimization is paramount. The integrated unit also minimizes the number of connections and potential leak points, enhancing safety and reliability.
From a cost perspective, the integrated design offers significant advantages. Manufacturing a single unit instead of two separate components reduces material and labor costs. Additionally, the simplified installation process lowers assembly time, translating to savings for both manufacturers and consumers. For instance, in a typical midsize sedan, the integrated fuel pump and sender unit can reduce installation time by up to 30%, compared to installing separate components. This efficiency extends to maintenance as well, as technicians can replace the entire unit in one step, rather than troubleshooting and replacing individual parts.
Consider the practical implications for vehicle owners. An integrated fuel pump and sender unit often comes with a longer warranty period, reflecting its durability and reliability. For example, many integrated units are rated for 150,000 miles or more, compared to 100,000 miles for separate components. This extended lifespan reduces the frequency of replacements, saving owners both time and money. Moreover, the compact design allows for easier access during routine maintenance, particularly in vehicles with limited underbody clearance.
To maximize the benefits of an integrated fuel pump and sender unit, follow these tips: first, ensure compatibility with your vehicle’s make and model, as not all units are universal. Second, opt for units with built-in strainers to prevent debris from damaging the pump. Finally, during installation, verify that the unit is securely mounted and all electrical connections are properly sealed to avoid malfunctions. By adhering to these guidelines, you can leverage the full potential of this innovative design.
In summary, the integrated fuel pump and sender unit represents a smart engineering solution that balances compactness, cost-effectiveness, and performance. Its streamlined design not only optimizes vehicle space but also simplifies manufacturing, installation, and maintenance. For both manufacturers and consumers, this integration is a win-win, offering enhanced efficiency without compromising functionality. As automotive technology continues to evolve, such innovations will play a crucial role in shaping the future of vehicle design.
Activating Your Fuel Pump Using INPA: A Step-by-Step Guide
You may want to see also
Explore related products
Failure Symptoms: Causes engine sputtering, stalling, or inaccurate fuel gauge readings if faulty
A faulty fuel pump or sending unit can manifest in ways that are both subtle and alarming, often leaving drivers puzzled about the root cause. One of the most immediate symptoms is engine sputtering, which occurs when the fuel pump fails to deliver a consistent supply of fuel to the engine. This inconsistency disrupts the air-fuel mixture, causing the engine to misfire and produce a jerky, uneven performance. For instance, you might notice this sputtering during acceleration or under load, such as when climbing a hill or carrying heavy cargo. If left unaddressed, this symptom can escalate to engine stalling, where the vehicle abruptly shuts off, posing a safety risk, especially in high-traffic areas.
Another critical failure symptom is inaccurate fuel gauge readings, which stem from a malfunctioning sending unit. The sending unit, located inside the fuel tank, communicates the fuel level to the gauge on your dashboard. When it fails, you might see the gauge fluctuate erratically, stick at a certain level, or read "empty" even after refueling. This inaccuracy can lead to unexpected fuel depletion, leaving you stranded if you rely solely on the gauge. For example, a driver might assume they have 50 miles of range left, only to run out of fuel after 10 miles due to a faulty sending unit.
To diagnose these issues, start by monitoring your vehicle’s behavior under different driving conditions. If sputtering occurs consistently during acceleration, it’s likely a fuel pump problem. For fuel gauge inaccuracies, manually track your fuel consumption for a few fill-ups to verify discrepancies. A practical tip: keep a small fuel reserve container in your vehicle as a temporary solution if you suspect the gauge is unreliable.
Preventive maintenance is key to avoiding these failures. Fuel pumps typically last 100,000 to 200,000 miles, but driving habits and fuel quality can shorten their lifespan. Regularly replacing fuel filters and using high-quality gasoline can reduce strain on the pump. For the sending unit, avoid letting your fuel tank drop below a quarter full, as running on low fuel increases the risk of debris clogging the unit.
In conclusion, recognizing the symptoms of a failing fuel pump or sending unit—sputtering, stalling, and inaccurate fuel gauge readings—can save you from costly repairs and unsafe driving conditions. By staying vigilant and adopting proactive maintenance practices, you can ensure these components function reliably, keeping your vehicle running smoothly.
DIY Guide: Replacing the Fuel Pump in a 2001 Chevrolet Suburban 2500
You may want to see also
Explore related products
Maintenance Tips: Regular checks prevent issues; replace every 100,000 miles or as needed
The fuel pump and sending unit are critical components in your vehicle's fuel system, working in tandem to ensure a steady supply of fuel to the engine while providing accurate fuel level readings. Neglecting their maintenance can lead to poor performance, inaccurate fuel gauge readings, or even engine failure. Regular checks and timely replacements are essential to avoid these issues.
Analytical Insight: The fuel pump, typically located inside the fuel tank, operates under harsh conditions—immersed in fuel, exposed to contaminants, and subjected to constant electrical and mechanical stress. Over time, this environment can cause wear, leading to reduced efficiency or failure. The sending unit, which measures fuel levels, can also degrade, resulting in an unreliable fuel gauge. Studies show that fuel pump failures often occur after 100,000 miles, making this a critical milestone for replacement.
Instructive Steps: To maintain these components, start by inspecting the fuel tank and lines for leaks or corrosion during routine oil changes or tire rotations. Use a multimeter to test the sending unit’s resistance, ensuring it corresponds to the fuel level. For the fuel pump, listen for unusual noises during startup or acceleration, which may indicate impending failure. If your vehicle is over 100,000 miles and you’ve never replaced the fuel pump, schedule a professional inspection.
Comparative Caution: While some drivers wait for symptoms like sputtering or stalling before addressing fuel system issues, this reactive approach can lead to costly repairs or roadside breakdowns. Proactive maintenance, such as replacing the fuel pump and sending unit at recommended intervals, is far more cost-effective. For example, a fuel pump replacement typically costs $500–$1,000, but ignoring it can damage the catalytic converter, doubling the repair bill.
Descriptive Takeaway: Picture this: you’re on a long drive, and your fuel gauge suddenly drops to empty, or your engine stalls in traffic. These scenarios are avoidable with regular maintenance. By adhering to the 100,000-mile replacement guideline and performing periodic checks, you ensure your fuel system operates reliably, saving you time, money, and stress. Treat your fuel pump and sending unit like any other critical vehicle component—with care and foresight.
Diagnosing Fuel Pump Failure: Quick Steps to Check if It's Down
You may want to see also
Frequently asked questions
The fuel pump delivers fuel from the tank to the engine, ensuring proper combustion, while the sending unit measures the fuel level and relays this information to the fuel gauge on the dashboard.
Combining them into a single unit simplifies installation, reduces the number of components, and ensures both functions work seamlessly together, improving efficiency and reliability.
No, a faulty fuel pump will prevent the engine from receiving fuel, causing it to stall or not start. A malfunctioning sending unit won’t affect engine operation but will result in an inaccurate fuel gauge reading.
