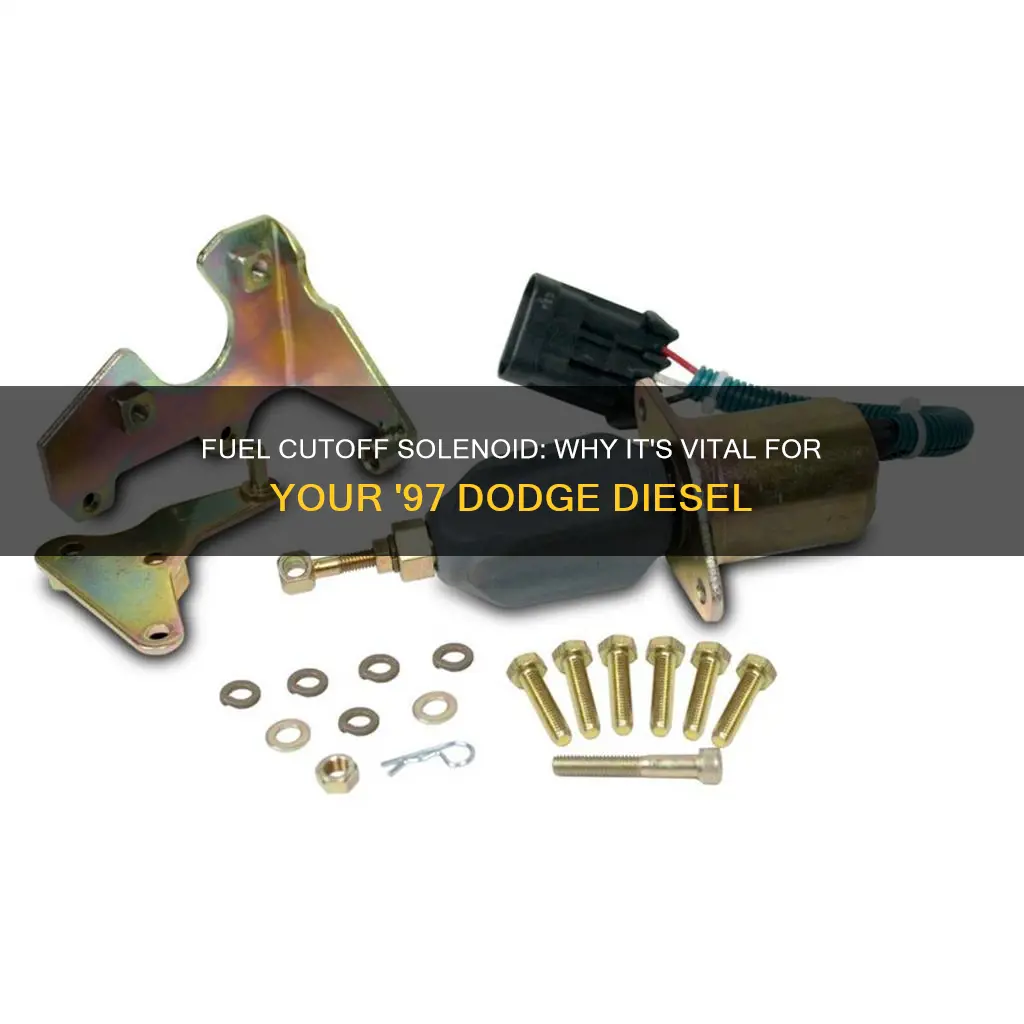

The fuel cutoff solenoid in the 1997 Dodge Diesel has been a common issue for many owners of the vehicle. The solenoid is responsible for shutting off the engine when the key is turned off, but in some cases, it can malfunction and cause the engine to shut off unexpectedly. This issue can be dangerous and inconvenient for drivers. There are a few potential causes for the solenoid malfunction, including a burned-out solenoid, a bad relay, or a burned/corroded fusible link. Some owners have chosen to replace the solenoid with a manual shut-off, while others have opted for a complete fix kit that addresses all three potential issues.
| Characteristics | Values |
|---|---|
| Vehicle Type | 1997 Dodge Diesel |
| Engine Type | 5.9L, 12-valve |
| Fuel Shutoff Solenoid (FSS) Issues | Occasional cut-offs, overheating, need for manual shut-off |
| Possible Causes | 1. Burned-out solenoid, 2. Bad relay, 3. Burned/corroded fusible link |
| Troubleshooting Steps | 1. Test voltage between black and green wires to the solenoid, 2. Check ASD relay, fuse, and voltage at red and white wires, 3. Test solenoid with jumper wires |
| Solutions | 1. Replace solenoid and relay, 2. Install a Solenoid-Saver Diode, 3. Use a manual pull cable shutoff |
Explore related products
What You'll Learn
Fuel shutoff solenoid malfunctions
A malfunctioning fuel shutoff solenoid can have several negative consequences for a diesel engine. The fuel shutoff solenoid is a critical component in regulating the fuel supply to the engine. When it fails, it can lead to issues such as engine stalling, erratic idling, and poor engine performance.
One of the most common signs of a faulty fuel shutoff solenoid is engine stalling. This occurs because the solenoid is responsible for controlling fuel flow based on the engine's needs. If it becomes faulty, the engine may receive an inconsistent fuel supply, leading to stalling during operation and leaving the system without power when it is needed most.
Another consequence of a malfunctioning fuel shutoff solenoid is erratic engine performance. This can manifest as rough idling, uneven acceleration, or a lack of power during operation. This issue is usually caused by the solenoid not fully opening or closing, resulting in too much or too little fuel entering the engine. Over time, this imbalance can damage other components of the engine, particularly the injectors and fuel system.
A faulty fuel shutoff solenoid can also prevent the engine from starting. The engine may be unable to start even with adequate fuel and proper ignition due to the solenoid being stuck in the "off" position, obstructing fuel flow to the engine. Additionally, a malfunctioning solenoid can cause fuel leakage, which poses a fire hazard and requires immediate inspection and repair.
There are several ways to identify and address a faulty fuel shutoff solenoid. It is recommended to start by checking for electrical issues and inspecting the wiring and connectors. In some cases, cleaning the solenoid may solve the issue, especially if dirt or debris is the cause of the malfunction. However, in many cases, replacing the component with a compatible replacement part that meets the manufacturer's specifications is necessary.
Russian Diesel Engines: Jet Fuel Alternative?
You may want to see also
Explore related products
Manual shut-off installation
The fuel shutoff solenoid (FSS) in a 1997 Dodge Diesel can occasionally cut out, causing the engine to shut off and not restart until the handle is pulled. This can be annoying and dangerous, especially if the solenoid is getting hot and shutting down.
As an alternative to replacing the solenoid, which can be expensive, some people opt for a manual shut-off installation. This involves removing the FSS and its brackets and installing a manual pull cable shutoff.
One option for the cable is to purchase an 84-inch-long T-handle universal choke cable for around $20. To install the cable, push it through the firewall, run it under the top lip of the driver's side front quarter panel, behind the battery, and then make a gentle 180-degree turn back to the location of the solenoid. The cable can be anchored with a zip-tie attached to the existing throttle valve cable bracket and secured with black tape to make it less obvious. To reduce vibration, the cable can be run through a couple of rubber hoses at the bracket.
It is worth noting that a manual shut-off installation may be seen by some as a "hack-job cheap workaround", while others may prefer the convenience of a standard FSS setup, especially for vehicles with multiple drivers.
Idling vs Cranking: Which Burns More Diesel Fuel?
You may want to see also
Explore related products
Fuel shutoff solenoid troubleshooting
Troubleshooting a malfunctioning fuel shutoff solenoid in a 1997 Dodge Diesel vehicle can involve several steps and considerations. Here is a guide to help you identify and address potential issues:
Common Issues and Troubleshooting Steps:
- Engine Stalling or Not Starting: One of the most common signs of a faulty fuel shutoff solenoid is an engine that stalls or fails to start. This can be due to several factors, including a stuck or failed solenoid, a clogged valve, or issues with the fuel system. Before assuming it's the solenoid, check the rest of the fuel system to ensure fuel is flowing through the fuel line as intended.
- Fuel Leakage: Inspect the solenoid and surrounding area for any signs of fuel leakage. A damaged or cracked solenoid can lead to fuel leakage, creating a potential fire hazard. If you smell fuel or notice any signs of leakage, have the solenoid inspected and repaired immediately.
- Erratic Engine Performance: A malfunctioning solenoid can cause erratic engine behaviour, such as rough idling, uneven acceleration, or lack of power. This is often due to an inadequate or inconsistent fuel supply reaching the engine.
- Electrical Issues: A loose connection or an electrical issue with the solenoid's internal circuitry could lead to sudden and unexpected engine shutdown. Check for any loose or damaged wires, frayed insulation, or signs of corrosion in the wiring connections leading to the solenoid. Ensure all connections are secure and clean, and if issues are found, repair them and retest the solenoid.
- Solenoid Testing: You can test the solenoid using three jumper wires. Connect one wire to the black ground pin and a good ground. Connect the second wire to the red hold pin and battery positive. Use a thick wire for the third connection, linking it to the white pull pin, and briefly touch it to battery positive. If the solenoid is functioning correctly, it should pull on and stay on when the wire is removed.
- Blue Fusible Link Wire: The blue fusible link wire from the battery is prone to corrosion under the insulation, leading to low voltage to the lift coil of the solenoid. Replacing this wire can be an effective troubleshooting step.
- Solenoid Replacement: If the solenoid is burned out, consider replacing it with a new one. Additionally, a bad relay or a burned/corroded fusible link can cause issues. These components are typically included in comprehensive repair kits, which can save time and money.
Additional Considerations:
- The fuel shutoff solenoid is often a significant source of breakdowns in these vehicles, so taking proactive measures to address any issues is essential.
- Some people opt for a manual shut-off conversion, removing the solenoid and installing a manual cable-operated shut-off mechanism. However, this is a personal preference and may be considered a "hack-job" by some.
By following these troubleshooting steps and staying mindful of potential issues, you can effectively address problems related to the fuel shutoff solenoid in your 1997 Dodge Diesel vehicle.
Tractor Fuel: How Long Does Diesel Really Last?
You may want to see also
Explore related products
Fuel shutoff solenoid replacement
Fuel shutoff solenoids are an indispensable component in contemporary construction machinery and engine systems. They play a vital role in remotely shutting off the fuel supply to an engine. This device consists of a valve body and a complete solenoid assembly attached to a valve stem. When a suitable current is passed through the solenoid, a strong magnetic field is generated around it, attracting the solenoid plunger and pulling it toward the coil. This action lifts the valve seat, allowing fuel to flow through the valve. Once the diesel fuel shut off solenoid is de-energized, the valve spring pulls the poppet back to its fixed position, firmly closing the valve and resetting the diesel solenoid valve for the next duty cycle.
There are several reasons why a fuel shutoff solenoid may need to be replaced. One common issue is a burned-out solenoid, which can be caused by a clicking/sticking starter that activates the solenoid in the "start" or "pull" position for extended periods, leading to overheating and failure. Another possible cause of malfunction is a bad relay. Additionally, a burned or corroded fusible link can also lead to issues with the fuel shutoff solenoid. Corrosion under the insulation of the blue fusible link wire from the battery can cause low voltage to the lift coil of the solenoid.
Before replacing the fuel shutoff solenoid, it is important to perform troubleshooting and diagnostics to identify the root cause of the issue. This may involve examining the fuel oil circuit to ensure it is functioning normally and checking for any blockages or leaks that could impact the solenoid's performance. It is also crucial to test the solenoid itself, which can be done using three jumper wires. By connecting the wires to the black ground pin, red hold pin, and white pull pin, and then briefly touching the thick wire to the battery positive terminal, you can determine if the solenoid is functioning correctly.
If, after troubleshooting, you determine that the fuel shutoff solenoid needs to be replaced, it is important to follow the appropriate replacement procedure for your specific vehicle or equipment. This may involve disconnecting and removing the old solenoid, installing a new solenoid with the correct bolt spacing and hardware, and ensuring that all connections are secure. It is also recommended to refer to a repair manual or seek assistance from a qualified technician if you are unsure about the replacement process.
Additionally, it is worth considering preventative measures to avoid future issues with the fuel shutoff solenoid. This may include regular cleaning and maintenance of battery cable connections, as well as inspecting the oil level and voltage regulator, as these factors can impact the performance of the solenoid. By taking proactive steps and staying vigilant about maintenance, you can help extend the lifespan of the fuel shutoff solenoid and maintain the overall performance of your vehicle or equipment.
Fuel Save Pro: Does It Work with Diesel?
You may want to see also
Explore related products
Fuel shutoff solenoid causes
Fuel shutoff solenoids are an indispensable component in contemporary construction machinery, acting as a vital control element in a vehicle's fuel supply system. A malfunctioning fuel shutoff solenoid can cause erratic engine performance, including rough idling, uneven acceleration, or a lack of power during operation.
There are several causes of fuel shutoff solenoid malfunction, including:
- A burned-out solenoid
- A bad relay
- A burned/corroded fusible link
- A loose connection or an electrical issue with the solenoid's internal circuitry
- A faulty or damaged solenoid resulting in fuel leakage
- A short circuit inside the solenoid, causing it to get hot and shut down
The solenoid rarely goes bad and is probably the most replaced needless item on a 12-valve engine. However, it is important to note that a malfunctioning fuel shutoff solenoid can cause erratic engine performance and even lead to abrupt and unexpected engine shutdown while the vehicle is in motion.
To test the solenoid, one can use three jumper wires. Connect one wire to the black ground pin and to a good ground. Then, connect another wire to the red hold pin and to the battery positive. Finally, connect a good thick 10-gauge wire to the white pull pin. Briefly touch the thick wire to the battery positive. If the solenoid does not work this way, there is a problem with the solenoid.
Finding Diesel Fuel in Rust: Best Locations
You may want to see also
Frequently asked questions
There are three main reasons for fuel solenoid malfunction in the 1997 Dodge Diesel: a burned-out solenoid, a bad relay, or a burned/corroded fusible link.
You can test the solenoid with three jumper wires. Connect the wires to the black ground pin, the red hold pin, and the white pull pin, then briefly touch the thick wire to the battery positive. If the solenoid does not work, there is a problem with it.
A malfunctioning solenoid will cause the truck to crank but not start.
You can purchase a replacement solenoid and install it. There are also complete fix kits available that can address all three common causes of solenoid malfunction.
