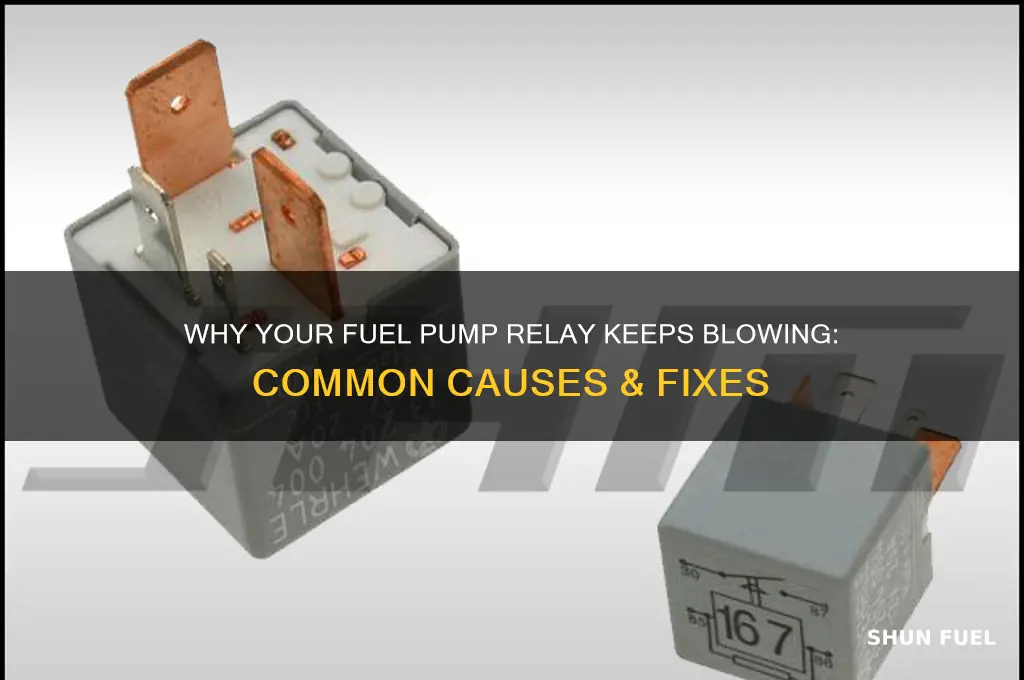

If your fuel pump relay keeps blowing, it’s likely due to an underlying electrical issue or excessive current draw in the fuel pump circuit. Common causes include a faulty fuel pump drawing too much power, a short circuit in the wiring harness, or a malfunctioning relay socket. Overloading the relay can also occur if the fuel pump is running continuously due to a stuck fuel pump control module or a failing fuel pressure regulator. Additionally, using an incorrect relay rating or poor grounding can contribute to the problem. Diagnosing the root cause requires checking the fuel pump’s amperage draw, inspecting wiring for damage, and testing related components to ensure the relay isn’t repeatedly failing due to systemic issues.
| Characteristics | Values |
|---|---|
| Electrical Overload | Excessive current draw due to a faulty fuel pump, wiring issues, or short circuits. |
| Faulty Fuel Pump | A failing or seized fuel pump can cause the relay to overwork and blow. |
| Wiring Issues | Damaged, frayed, or corroded wires leading to the relay or fuel pump. |
| Short Circuits | Wiring shorts to ground or between circuits can overload the relay. |
| Incorrect Relay Rating | Using a relay with an amperage rating too low for the fuel pump's demand. |
| Grounding Problems | Poor or insufficient grounding of the fuel pump or relay circuit. |
| High Resistance in Circuit | Corroded connections or poor contacts increase resistance, overheating the relay. |
| Overheated Engine Bay | Extreme heat can degrade the relay's components, leading to failure. |
| Age and Wear | Relays degrade over time due to repeated use and environmental factors. |
| Voltage Spikes | Sudden voltage surges in the electrical system can damage the relay. |
| Improper Installation | Incorrectly installed relay or wiring can cause premature failure. |
| Fuel Pump Drawing Excessive Current | A pump drawing more current than the relay can handle due to mechanical issues. |
| Fuse or Relay Compatibility | Using incompatible fuses or relays can lead to repeated blowing. |
| Intermittent Issues | Sporadic faults in the circuit that are hard to diagnose but cause failure. |
| Environmental Factors | Exposure to moisture, dirt, or debris can corrode relay components. |
