Mercedes Mullins

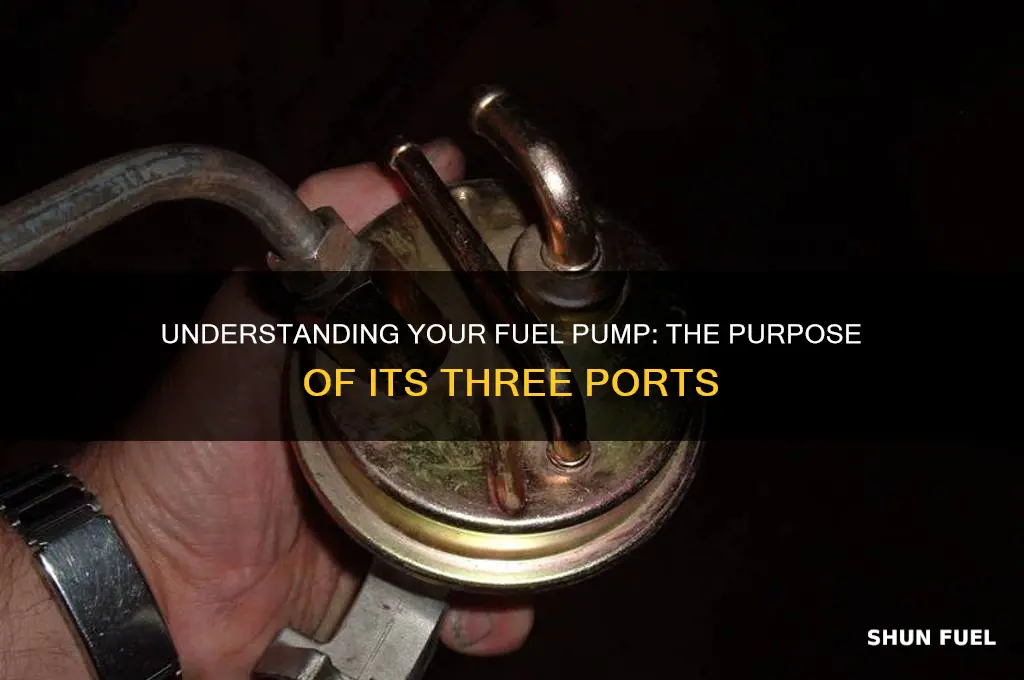

The presence of three ports on a fuel pump can initially seem puzzling, but it’s a common design feature in many modern vehicles. These ports typically serve specific functions essential to the fuel system’s operation. One port is usually the inlet, which draws fuel from the tank, while another is the outlet, delivering fuel to the engine. The third port often serves as a return line, allowing excess fuel to circulate back to the tank, which helps regulate pressure, prevent overheating, and maintain a consistent fuel supply. This three-port configuration ensures efficient fuel delivery, proper pressure management, and optimal engine performance, making it a critical component in modern fuel systems.
| Characteristics | Values |
|---|---|
| Number of Ports | 3 |
| Purpose of Ports | 1. Fuel Inlet: Draws fuel from the tank. 2. Fuel Outlet: Delivers fuel to the engine. 3. Return Line: Sends excess fuel back to the tank to regulate pressure and prevent vapor lock. |
| Common Applications | Found in vehicles with return-style fuel systems, often in carbureted or high-performance engines. |
| Benefits | Improved fuel pressure regulation, reduced fuel vaporization, and better engine performance. |
| Potential Issues | Clogged return line can cause high fuel pressure, while a disconnected return line may lead to fuel starvation. |
| Maintenance Tips | Regularly inspect and clean all ports and lines to ensure proper fuel flow and system efficiency. |
| Compatibility | Typically used in systems requiring precise fuel pressure control, not common in modern EFI systems with single-line fuel pumps. |
Explore related products
What You'll Learn
Understanding Fuel Pump Ports
Fuel pumps with three ports are a common feature in many modern vehicles, particularly those with returnless fuel systems. The three ports typically serve distinct functions: one for fuel inlet, one for fuel outlet to the engine, and a third for pressure regulation or venting. Understanding the purpose of each port is crucial for diagnosing issues, performing maintenance, or upgrading your fuel system. For instance, the pressure regulator port ensures that excess fuel is returned to the tank, maintaining optimal pressure for efficient combustion.
Analyzing the design reveals a shift toward efficiency and reliability. In older systems, fuel pumps often had separate lines for supply and return, adding complexity and potential failure points. The three-port design consolidates these functions, reducing the risk of leaks and improving fuel delivery consistency. This is especially critical in high-performance engines, where precise fuel pressure and flow are essential for power and fuel economy. If you notice fluctuations in engine performance, inspect the pressure regulator port for clogs or leaks, as this can disrupt the entire system.
From a practical standpoint, knowing which port does what can save time and money during repairs. The inlet port draws fuel from the tank, the outlet port delivers it to the engine, and the third port manages pressure. When replacing a fuel pump, ensure the new unit matches the port configuration of your vehicle. Mismatched ports can lead to poor performance or even damage. For example, installing a pump with a return port on a returnless system will cause fuel to backflow, potentially flooding the engine.
Comparing returnless and return-style systems highlights the versatility of the three-port design. Returnless systems, common in newer vehicles, rely on the third port for pressure regulation, eliminating the need for a separate return line. In contrast, return-style systems use the third port to send excess fuel back to the tank. This comparison underscores the importance of understanding your vehicle’s specific fuel system. Always consult your vehicle’s manual or a trusted mechanic to confirm compatibility before making modifications.
Finally, a descriptive look at the ports can aid in troubleshooting. The inlet port is usually larger to handle the flow from the tank, while the outlet port is sized for engine demand. The third port is often smaller and may have a vacuum line connected to it for pressure regulation. If you hear a whining noise from the pump or experience hard starts, check for debris in the inlet port or a malfunctioning pressure regulator. Regularly inspecting these ports as part of your vehicle maintenance routine can prevent costly repairs and ensure your fuel system operates smoothly.
Step-by-Step Guide: Safely Removing Your Vehicle's Fuel Pump Assembly
You may want to see also
Explore related products
$37.35 $55.99
Purpose of Each Port Explained
Fuel pumps with three ports are common in modern vehicles, each port serving a distinct function critical to the fuel delivery system. The first port, typically labeled as the inlet, connects to the fuel tank and draws fuel into the pump. This port is designed to handle the suction required to lift fuel from the tank, even when the vehicle is tilted or running low on fuel. Its strategic placement and diameter ensure optimal flow without causing cavitation, which can damage the pump.
The second port, often referred to as the outlet, delivers pressurized fuel to the engine. This port is engineered to withstand higher pressures, as it must overcome resistance from the fuel lines, injectors, or carburetor. The outlet’s design includes a check valve in many systems to prevent fuel from flowing backward when the pump is off, maintaining residual pressure for quicker engine restarts.
The third port, known as the return or pressure relief port, is a safety and efficiency feature. It redirects excess fuel back to the tank when system pressure exceeds the pump’s rated capacity, preventing damage to the fuel lines or injectors. This port is particularly crucial in high-performance or turbocharged engines, where fuel demand fluctuates rapidly. Without it, pressure spikes could lead to leaks or component failure.
Understanding these ports’ roles is essential for troubleshooting. For instance, a clogged inlet port can cause a lean fuel mixture, while a blocked return port may trigger a "hard start" condition due to excessive pressure. Regular inspection and maintenance of these ports, including cleaning and replacing seals, can extend the pump’s lifespan and ensure reliable performance.
In summary, the three ports on a fuel pump are not redundant—they are a deliberate design to optimize fuel delivery, manage pressure, and safeguard the system. By recognizing their unique functions, vehicle owners can better diagnose issues and maintain their fuel systems effectively.
Repairing Your Briggs V-Twin Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Common 3-Port Configurations
Fuel pumps with three ports are not uncommon, especially in modern vehicles, and understanding their configurations is crucial for maintenance and troubleshooting. One prevalent setup is the supply-return-vent arrangement. Here, the first port connects to the fuel tank, supplying fuel to the pump. The second port returns excess fuel back to the tank, maintaining optimal pressure and preventing overheating. The third port is dedicated to venting, allowing air to escape and ensuring a consistent fuel flow. This configuration is essential in high-performance engines where precise fuel delivery is critical.
Another common 3-port design is the supply-pressure-sensor layout. In this setup, the first port draws fuel from the tank, while the second port delivers pressurized fuel to the engine. The third port is connected to a fuel pressure sensor, which monitors and regulates the system’s pressure. This configuration is often found in vehicles with electronic fuel injection systems, where accurate pressure readings are vital for efficient combustion. Mechanics should note that a malfunctioning sensor port can lead to poor engine performance or even stalling.
For diesel engines, a supply-return-leakage configuration is frequently employed. The first port supplies fuel to the pump, the second returns unused fuel to the tank, and the third port handles leakage or overflow. Diesel fuel systems operate under higher pressures, making this setup crucial for safety and efficiency. Regular inspection of the leakage port is recommended, as blockages can cause system failure or fuel contamination.
Lastly, some fuel pumps feature a supply-return-vapor design, particularly in vehicles with evaporative emission control systems. Here, the third port is dedicated to capturing fuel vapors, which are then routed to a charcoal canister for storage and later combustion. This configuration is environmentally friendly, reducing harmful emissions. However, a clogged vapor port can trigger check engine lights, so periodic cleaning is advised.
Understanding these 3-port configurations allows for targeted diagnostics and repairs. Whether dealing with a supply-return-vent, supply-pressure-sensor, supply-return-leakage, or supply-return-vapor setup, each design serves a specific purpose tailored to the vehicle’s fuel system requirements. Always consult the vehicle’s manual or a professional when in doubt, as misdiagnosis can lead to costly repairs.
Delphi Fuel Pumps Assembly: Are They Made in China?
You may want to see also
Explore related products
Troubleshooting Port-Related Issues
Fuel pumps with three ports often serve distinct functions, such as supplying fuel, returning excess fuel, and venting vapors. When troubleshooting port-related issues, start by identifying each port’s purpose using the vehicle’s manual or a diagram. Misidentification can lead to incorrect diagnoses, like mistaking a return line for a supply line, causing fuel pressure irregularities. Always label ports during inspection to avoid confusion.
Next, inspect each port for physical damage, clogs, or leaks. A clogged supply port restricts fuel flow, leading to engine sputtering or stalling, while a blocked return port can cause excessive pressure in the fuel tank. Use a compressed air source to test for obstructions, but avoid excessive pressure that could damage components. Leaks, even minor ones, should be addressed immediately to prevent fuel system inefficiency or fire hazards.
Pressure testing is critical for diagnosing port-related issues. Connect a fuel pressure gauge to the supply port and compare readings to manufacturer specifications. Low pressure may indicate a failing pump, while high pressure suggests a restricted return line. If the vent port is compromised, vacuum or pressure imbalances can occur, leading to hard starting or rough idling. Ensure the vent port is clear of debris and connected securely to the charcoal canister.
Finally, consider the electrical connections to the fuel pump. A faulty ground or power supply can mimic port-related issues, causing intermittent pump operation. Use a multimeter to verify voltage at the pump’s electrical connector. If power and ground are stable, the problem likely lies within the ports or lines. Always disconnect the battery before working on electrical components to prevent accidents.
In summary, troubleshooting three-port fuel pump issues requires methodical inspection, testing, and understanding of each port’s function. Address physical damage, perform pressure tests, and verify electrical connections to isolate the problem accurately. Ignoring these steps can lead to misdiagnosis, unnecessary part replacements, or safety risks. With careful attention, port-related issues can be resolved efficiently, restoring optimal fuel system performance.
Priming Your 01 Dodge Cummins Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Compatibility with Vehicle Systems
Fuel pumps with three ports are not uncommon, especially in modern vehicles, and their design is a direct response to the increasing complexity of vehicle systems. The third port often serves a specific function that ensures compatibility with advanced engine management systems, emissions controls, and fuel delivery requirements. For instance, one port may be dedicated to the fuel pressure regulator, which maintains optimal pressure for efficient combustion, while another might connect to the fuel filter or the return line to the tank. The third port could be for a sensor or a vent, ensuring the system operates within precise parameters dictated by the vehicle’s computer.
Analyzing the compatibility aspect, the three-port design allows for seamless integration with the vehicle’s electronic control unit (ECU). This is crucial because the ECU monitors and adjusts fuel delivery in real time based on factors like engine load, temperature, and oxygen levels. A dedicated port for a pressure sensor, for example, enables the ECU to receive accurate data, ensuring the fuel pump operates at the correct speed and pressure. Without this compatibility, the engine might run inefficiently, leading to increased fuel consumption, reduced power, or even emissions violations.
From a practical standpoint, installing a three-port fuel pump requires careful attention to the vehicle’s specific wiring and plumbing configurations. Misconnecting the ports can result in system malfunctions, such as fuel starvation or excessive pressure. Always refer to the vehicle’s service manual to identify which port connects to the regulator, return line, or sensor. For DIY enthusiasts, using color-coded hoses or labels can prevent errors during installation. Additionally, ensure the pump’s electrical connector matches the vehicle’s harness to avoid compatibility issues with the ECU.
Comparatively, older vehicles often featured simpler fuel systems with fewer ports, as they lacked advanced emissions controls or electronic fuel injection. The evolution to three-port designs reflects the automotive industry’s shift toward precision and efficiency. For example, a modern fuel pump in a turbocharged engine might use the third port for a high-pressure relief valve, preventing damage during high-load conditions. This contrasts with carbureted systems, where fuel delivery was less regulated and less dependent on multiple ports.
In conclusion, the three-port fuel pump design is a testament to the intricate compatibility required with modern vehicle systems. Each port serves a distinct purpose, from pressure regulation to sensor integration, ensuring the engine operates optimally. Understanding this design not only aids in proper installation but also highlights the advancements in automotive engineering. Whether you’re a mechanic or a car owner, recognizing the role of each port can prevent costly mistakes and ensure your vehicle runs smoothly.
Finding the 1987 Nissan 300ZX Turbo Fuel Pump: A Comprehensive Guide
You may want to see also
Frequently asked questions
A fuel pump with 3 ports typically includes one port for the fuel inlet, one for the fuel outlet to the engine, and a third port for a return line to the fuel tank, which is common in high-performance or return-style fuel systems.
The third port is usually for the fuel return line, which sends excess fuel back to the tank to maintain proper pressure, prevent overheating, and ensure consistent fuel delivery in high-performance applications.
Yes, but you’ll need to adapt the system by either capping off the return port or installing a return line to the fuel tank, depending on your vehicle’s fuel system design.
A 3-port fuel pump is generally better for high-performance or modified engines because it allows for a return fuel system, which helps regulate fuel pressure and temperature more effectively.
Ensure the inlet port is connected to the fuel tank, the outlet port is connected to the engine, and the return port is properly routed back to the fuel tank. Check for leaks and verify fuel pressure with a gauge.
