Safety is paramount in racing, and fuel cells are an essential component in ensuring the safety of race cars. Fuel cells are designed to retain fuel in the event of an accident, protecting the driver from a fuel-fed fire. They are also important in providing the driver with the performance they need, preventing fuel from sloshing around and ensuring that every drop of fuel is used. Fuel cells can be made from stainless steel, aluminium, or plastic, and are generally located behind the driver, making servicing and replacing the in-tank fuel pump easier. There are two main types of fuel cells: gasoline/diesel fuel cells and hydrogen fuel cells. Hydrogen fuel cells are slowly but surely emerging in motorsport, with hydrogen race cars expected to race at the Le Mans 24 Hours by 2027.
Explore related products
What You'll Learn
- Safety: Fuel cells prevent fuel spillage and increase the driver's odds of survival in a crash
- Performance: Fuel cells improve performance by preventing fuel from sloshing around
- Hydrogen fuel cells: Hydrogen is an alternative to fossil fuels, and hydrogen fuel cells are lightweight and efficient
- Construction: Fuel cells are made from materials like rubber, Kevlar, and aluminium to provide strength and puncture resistance
- Maintenance: Fuel cells are easier to service and replace than fuel tanks
Safety: Fuel cells prevent fuel spillage and increase the driver's odds of survival in a crash
Safety fuel cells are an essential part of race cars, just as important as wearing a seatbelt. They are designed to prevent fuel spillage and increase the driver's odds of survival in a crash.
A safety fuel cell consists of four main component parts that give the vital protection necessary in high-speed racing. The first of these is the bladder (or bag tank), which is the core of the system. The bladder is flexible and extremely strong, made from high tensile strength elastomeric components. It is engineered to be strong enough to withstand tears and flexible enough to deform in the event of an impact. The bladder also has to withstand the fuel's chemical attack and acts as a defensive line in the event of a crash.
The second component is the foam baffling, which is found inside the bladder. This foam acts as a sponge, helping to prevent the fuel from exploding in the event of a puncture. It also prevents the sloshing of the fuel within the cell, which improves the handling of the vehicle. The third component is the fuel cell itself, which is a rubber and Kevlar bladder encased in an aluminum tank. This provides strength and puncture resistance in the instance of a racing incident. The final component is the container (or can), which protects the bladder and provides a way to mount the fuel cell in the car.
Safety fuel cells are designed to retain all the fuel even if the car is deformed, rolled over, or directly impacted in an accident. They come in three different standard ratings: FT3, FT3.5, and FT5, which are defined by different levels of bladder material strength.
The use of safety fuel cells in race cars has greatly increased the driver's odds of survival in a crash. They provide the driver with peace of mind and the confidence to race competitively while feeling safe.
What's Included in Car Payload? Fuel's Controversial Status
You may want to see also
Explore related products
Performance: Fuel cells improve performance by preventing fuel from sloshing around
The use of fuel cells in race cars is becoming increasingly common, with hydrogen fuel cells in particular being touted as the future of the sport. Hydrogen fuel cells are a viable alternative to fossil fuels, being the most abundant element in the universe, releasing approximately three times more energy per unit weight than gasoline, and only emitting water and heat when used to power vehicles.
Fuel cells are an essential component of race cars, as they improve performance by preventing fuel from sloshing around. Fuel cells are made from high tensile strength elastomeric components, which are extremely strong and flexible. This flexibility is crucial, as it allows the bladder to deform in the event of an impact. The bladder is also designed to be puncture-resistant, protecting the fuel cell in the event of a crash.
The foam baffling inside the bladder is a crucial component that helps to prevent the fuel from sloshing around. This foam acts like a sponge, filling the fuel safety cell and preventing the fuel from moving around. This improves the handling of the vehicle, giving the driver more control and confidence to race competitively.
In addition to improving performance, fuel cells also provide important safety benefits. In the event of an accident, the fuel cell is designed to retain all the fuel, even if it is deformed, rolled over, or directly impacted. This helps to prevent fuel spillage, reducing the risk of a fuel-fed fire, and increasing the driver's chances of survival.
The use of fuel cells can also provide strategic advantages during a race. By combining a hydrogen fuel cell with a small capacitor bank, the base weight of the car is reduced, allowing for faster acceleration and more overtaking opportunities. Additionally, the use of hydrogen power can address fan criticisms of the lack of noise associated with electric championships, as hydrogen combustion race cars emit a similar sound to conventional internal combustion engines.
Improving Fuel Efficiency in Cars: Tips and Tricks
You may want to see also
Explore related products
Hydrogen fuel cells: Hydrogen is an alternative to fossil fuels, and hydrogen fuel cells are lightweight and efficient
Hydrogen is an alternative to fossil fuels, and hydrogen fuel cells are lightweight and efficient. Hydrogen fuel cells are an environmentally friendly technology that converts hydrogen into electricity through an electrochemical process that emits only water and heat as byproducts. This makes it a clean energy source that does not emit greenhouse gases from the tailpipe, thereby reducing pollution in urban areas.
Hydrogen fuel cells are also highly efficient, with larger energy outputs than internal combustion engines. They are lightweight, which means that, when combined with a small capacitor bank, the base weight of the car is reduced, allowing for faster acceleration and more overtaking. This is a significant advantage over electric cars, which are weighed down by heavy battery packs.
However, hydrogen fuel cells also face several challenges. Hydrogen must be stored in expensive, high-pressure tanks, and its storage is extremely problematic. It is difficult to store, corrosive, and the membranes in fuel cells eventually degrade. Furthermore, fuel cells are very costly to manufacture, requiring expensive materials such as platinum.
Despite these challenges, hydrogen fuel cells are gaining traction in the motorsport industry. Hydrogen-powered cars have already entered races such as the Fuji 24 Hours and the Dakar Rally, and the world's first hydrogen championship, Extreme H, is set to take place in 2025. By combining hydrogen fuel cells with batteries or supercapacitors, teams can benefit from a strategic element introduced by the need to balance the energy from the two sources.
Cars Compatible with E85 Fuel: The Complete List
You may want to see also
Explore related products
Construction: Fuel cells are made from materials like rubber, Kevlar, and aluminium to provide strength and puncture resistance
Fuel cells are a crucial piece of safety equipment in race cars. They are designed to prevent fuel spills in the event of a racing incident. They are made from materials like rubber, Kevlar, and aluminium to provide strength and puncture resistance.

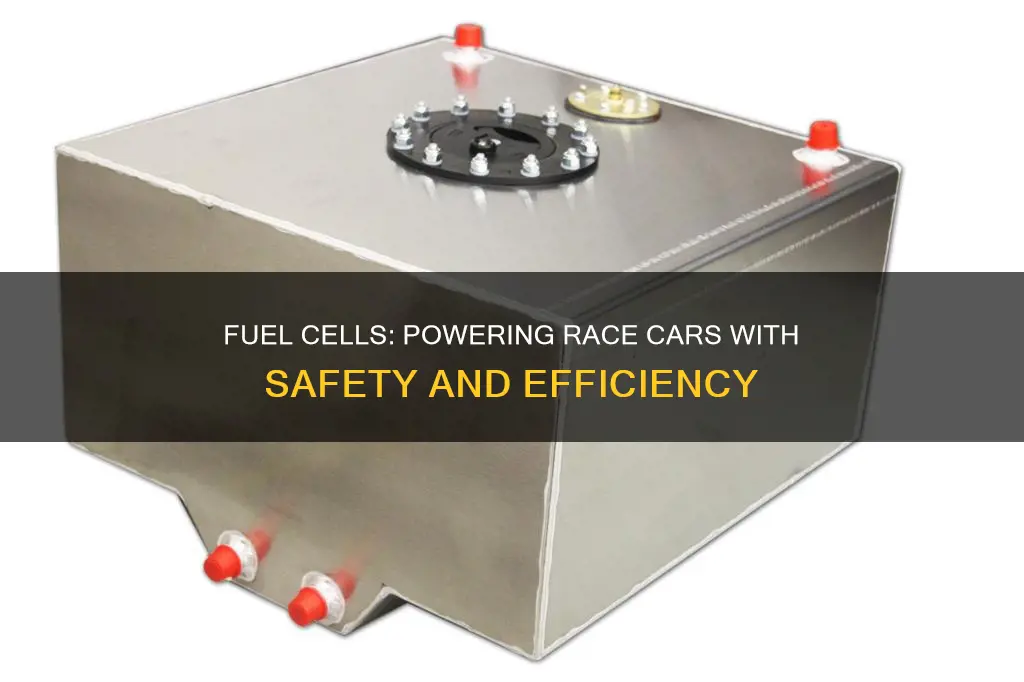

The construction of a fuel cell is quite simple. It consists of three parts: the outer can or enclosure, the bladder, and the foam baffling. The outer enclosure is typically made of steel or aluminium and acts as the first line of defence against damage. The bladder, which is the rubber and Kevlar component, is encased within this enclosure. It is designed to be flexible, allowing it to fold and bend without spilling fuel during an accident. The bladder can be made from a variety of materials, including hard or soft rubber, composite materials like Kevlar-Aramid or Aramid, and even Nylon.
The foam baffling inside the bladder is not a typical sponge but rather a material that fills the space in the tank. It helps to prevent fuel from sloshing around, which could cause weight balance and distribution issues. This foam requires careful maintenance and should be inspected regularly, especially after accidents, as it is susceptible to damage from environmental factors such as ozone, UV light, heat, vibration, and even gasoline.
Fuel cells have a lifespan of about five years due to the materials used, which offer increased strength and safety but for a limited duration. Manufacturers have the option to inspect and recertify cells before they expire, with a maximum total lifespan of seven years.
In terms of fuel type, hydrogen fuel cells are slowly emerging in motorsport. Hydrogen is the most abundant element in the universe, releases approximately three times more energy per unit weight than gasoline, and only emits water and heat when used to power vehicles. However, hydrogen storage is challenging, and hydrogen fuel cells cannot react quickly enough for motorsport on their own. As a result, they are typically combined with a battery or supercapacitor to provide instantaneous power during acceleration and braking.
The Weighty Issue of Car Fuel Tanks
You may want to see also
Explore related products
Maintenance: Fuel cells are easier to service and replace than fuel tanks
Fuel cells are much easier to service and replace than fuel tanks. Firstly, fuel cells are often placed behind the driver, rather than underneath the vehicle, making them more accessible. This also makes it quicker and easier to service or replace the in-tank fuel pump.
Fuel cells are also a safer alternative to fuel tanks, which is especially important for racing vehicles. Fuel cells are designed to retain fuel in the event of an accident, even if they are deformed, rolled over, or directly impacted. This is due to the layering of safety components, including the use of a bladder and/or fuel cell foam. The bladder is made from high tensile strength elastomeric components, which are flexible and strong enough to withstand tears and fuel chemical attacks. The foam baffling inside the bladder prevents the fuel from sloshing around and exploding in the event of a puncture.
Fuel cells are also a more modern alternative to older fuel tanks, which may need to be replaced or heavily modified to work with new fuel systems. For example, older fuel tanks may not be compatible with ethanol-based fuels, as they were not designed with this in mind. This can cause the fuel lines to deteriorate quickly and create clogs in the fuel system.
In terms of maintenance, fuel cells offer a range of benefits that make them easier to service and replace than traditional fuel tanks, especially in the context of racing vehicles where safety and performance are crucial.
Understanding Antique Cars: Vacuum Fuel Systems Explained
You may want to see also
Frequently asked questions
Race cars require fuel cells for safety reasons. Fuel cells are designed to retain fuel in the event of an accident, rollover, or impact, thus preventing fuel spillage and increasing the driver's odds of survival.
Fuel cells are made from high tensile strength elastomeric components, which are extremely strong and flexible. The bladder is encased in a container made from aluminum, steel, carbon fiber, or fiberglass.
Fuel cells store fuel inside and pump it out using fluid dynamics. They also prevent the fuel from sloshing around, which improves vehicle handling and gives the driver confidence to race competitively.
There are two main types of fuel cells: gasoline/diesel fuel cells and hydrogen fuel cells. Hydrogen fuel cells are lightweight and efficient, but hydrogen storage is challenging.
No, not all racing series require fuel cells. The requirement depends on the specific rules and regulations of the racing class. Some sanctioning bodies mandate the use of fuel cells for safety reasons.
