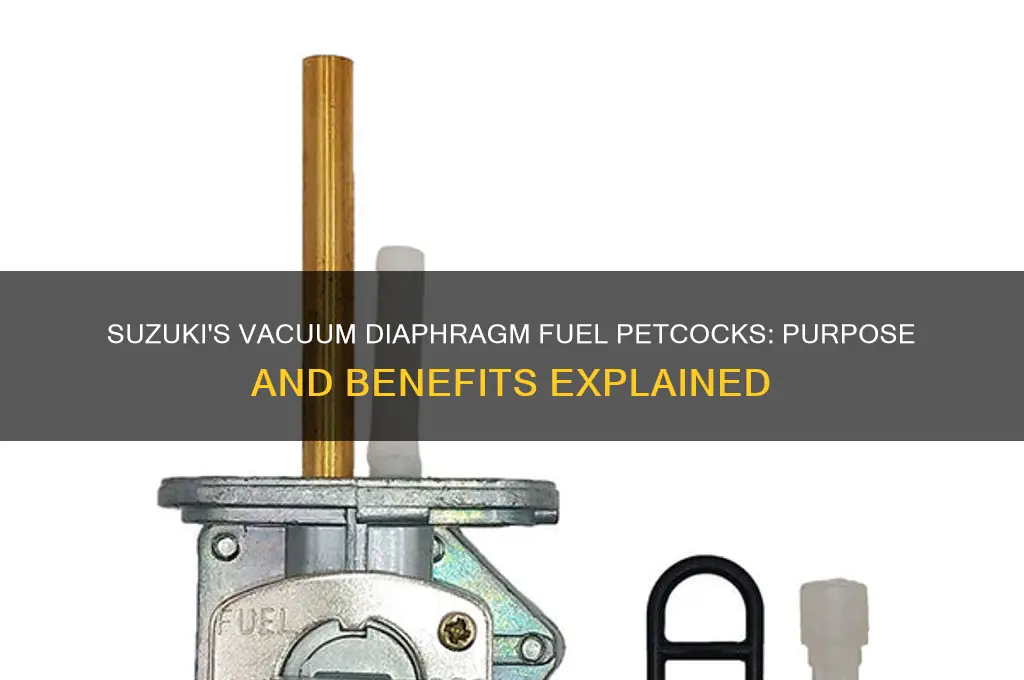

Suzuki's adoption of vacuum diaphragm fuel petcocks was driven by the need to address safety and efficiency concerns in motorcycle fuel systems. Traditional petcocks, which rely on manual operation, posed risks of fuel leakage when left open or forgotten, potentially leading to fires or fuel wastage. By integrating a vacuum diaphragm mechanism, Suzuki ensured that fuel flow was automatically controlled based on engine operation: when the engine was running, vacuum pressure opened the petcock, allowing fuel to flow, and when the engine was off, the petcock closed, preventing leaks. This innovation not only enhanced safety by minimizing the risk of accidental spills but also improved fuel efficiency by ensuring a consistent and controlled fuel supply to the carburetor. Additionally, the vacuum diaphragm design reduced the reliance on rider intervention, making the system more user-friendly and reliable, particularly for long-distance riders or those in varying environmental conditions.
| Characteristics | Values |
|---|---|
| Purpose | To prevent fuel leakage during engine operation and when the engine is turned off |
| Operation Principle | Utilizes engine vacuum to open the fuel passage when the engine is running, and closes it when the engine is off or vacuum is lost |
| Advantages | Reduces fuel evaporation and emissions, improves fuel efficiency, prevents fuel spillage during transportation or storage |
| Design | Consists of a diaphragm, spring, and valve mechanism that responds to vacuum changes |
| Maintenance | Requires periodic cleaning and inspection to ensure proper functioning, as dirt or debris can cause sticking or leakage |
| Applications | Commonly used in Suzuki motorcycles, particularly in models from the 1970s to 1990s, such as the GS series and RM series |
| Alternatives | Manual petcocks (on/off/reserve) or electric fuel pumps, which are more common in modern vehicles |
| Environmental Impact | Helps reduce hydrocarbon emissions by minimizing fuel evaporation, contributing to compliance with emissions regulations |
| Reliability | Generally reliable when maintained properly, but can fail due to diaphragm deterioration or vacuum hose leaks |
| Cost | Relatively inexpensive to manufacture and replace compared to more complex fuel systems |
| User Control | Limited user control, as the petcock operates automatically based on engine vacuum; no manual override for fuel flow |
| Compatibility | Designed specifically for carbureted engines, less common in modern fuel-injected systems |
Explore related products
What You'll Learn
- Design Advantages: Vacuum diaphragm ensures consistent fuel flow, prevents leaks, and improves engine efficiency
- Reliability Benefits: Reduces clogging, resists dirt, and enhances long-term durability in harsh conditions
- Safety Features: Prevents fuel overflow, minimizes fire risks, and ensures secure operation
- Performance Impact: Optimizes fuel delivery, boosts engine response, and maintains stable performance
- Cost Efficiency: Low maintenance, fewer replacements, and cost-effective compared to alternatives
Design Advantages: Vacuum diaphragm ensures consistent fuel flow, prevents leaks, and improves engine efficiency
Suzuki’s adoption of vacuum diaphragm fuel petcocks wasn’t arbitrary—it was a strategic engineering choice rooted in solving specific fuel delivery challenges. Traditional petcocks rely on gravity and manual control, which can lead to inconsistent fuel flow, especially during acceleration, deceleration, or when the bike is tilted. The vacuum diaphragm system, however, synchronizes fuel delivery with engine demand by using intake manifold vacuum, ensuring a steady supply regardless of riding conditions. This design eliminates the guesswork of manual adjustments, making it a reliable solution for both performance and safety.
Consider the mechanics: as the engine creates vacuum during operation, the diaphragm responds by opening the fuel passage precisely when needed. This dynamic control prevents fuel starvation during high-demand scenarios, such as climbing hills or rapid throttle inputs. Conversely, it restricts flow when the engine is idling or off, minimizing the risk of overflow or leaks. For riders, this means no more mid-ride stalls or fuel spills, even during aggressive maneuvers or off-road adventures.
Leak prevention is another critical advantage. Traditional petcocks often rely on seals that degrade over time, leading to slow drips or sudden failures. The vacuum diaphragm, however, acts as a self-sealing mechanism. When the engine is off, the diaphragm closes tightly, cutting off fuel flow entirely. This not only prevents leaks but also reduces the risk of fire hazards, a significant concern with carbureted motorcycles. For long-term storage or infrequent use, this feature ensures the fuel system remains secure without requiring manual intervention.
Engine efficiency gains are equally noteworthy. By delivering fuel in direct proportion to engine demand, the vacuum diaphragm optimizes the air-fuel mixture, reducing wastage and improving combustion. This precision translates to better throttle response, smoother idling, and even marginal fuel savings. For Suzuki, this meant meeting stricter emissions standards while enhancing the overall riding experience. It’s a win-win for both performance enthusiasts and environmentally conscious riders.
Practical implementation tips: If you own a Suzuki with this system, avoid tampering with the vacuum hose connections, as proper sealing is critical for functionality. During maintenance, inspect the diaphragm for cracks or wear, replacing it every 5–7 years or 20,000 miles, depending on usage. For troubleshooting, a weak or inconsistent vacuum signal often indicates a clogged hose or faulty diaphragm—both easy fixes with basic tools. By understanding and maintaining this system, riders can fully leverage its design advantages for years to come.
Burning Used Oil in a Fuel Oil Furnace: Safety and Efficiency Tips
You may want to see also
Explore related products
![[JiExp]For Suzuki 82-02 version DR125/DR125SE off-road motorcycle MIKUNI BST31 CV carburetor repair kit with Valve-Float and Vacuum Diaphragm](https://m.media-amazon.com/images/I/71hLjvzPTSL._AC_UY218_.jpg)
Reliability Benefits: Reduces clogging, resists dirt, and enhances long-term durability in harsh conditions
Suzuki's adoption of vacuum diaphragm fuel petcocks was a strategic move to address common issues in fuel systems, particularly in motorcycles designed for rugged use. One of the primary reliability benefits of this design is its ability to reduce clogging, a persistent problem in traditional petcocks caused by debris and sediment in the fuel tank. The vacuum diaphragm mechanism ensures that fuel flows only when the engine is running, minimizing the chances of stagnant fuel settling and forming blockages. This feature is especially critical for off-road or adventure bikes, where fuel quality and tank cleanliness cannot always be guaranteed.
Resisting dirt infiltration is another key advantage of vacuum diaphragm petcocks. Unlike manual petcocks, which rely on physical seals that can degrade over time, the diaphragm-based system creates a more robust barrier against contaminants. This design prevents dirt and debris from entering the fuel line, which could otherwise lead to carburetor or injector malfunctions. For riders operating in dusty or muddy environments, this resistance to dirt ensures consistent fuel delivery, reducing the risk of mid-ride breakdowns and costly repairs.
The long-term durability of vacuum diaphragm petcocks in harsh conditions is a testament to their engineering. Traditional petcocks often suffer from corrosion, leaks, or mechanical failures due to exposure to extreme temperatures, moisture, and vibrations. In contrast, the diaphragm mechanism is less prone to wear and tear, as it operates with fewer moving parts and is often housed in a sealed unit. This durability is particularly beneficial for motorcycles used in extreme climates, such as desert racing or winter riding, where components are subjected to constant stress.
To maximize the reliability benefits of vacuum diaphragm petcocks, riders should perform regular maintenance checks. Inspect the vacuum lines for cracks or leaks, and ensure the diaphragm itself is intact and free from damage. While the system is inherently more durable, neglecting these checks can lead to unexpected failures. Additionally, using fuel stabilizers in stored vehicles can further prevent internal clogging, complementing the petcock’s design. By understanding and maintaining this system, riders can fully leverage its advantages, ensuring their Suzuki motorcycles remain dependable in even the toughest conditions.
Peat as Fuel: Uses, Benefits, and Environmental Impact Explained
You may want to see also
Explore related products
Safety Features: Prevents fuel overflow, minimizes fire risks, and ensures secure operation
Fuel overflow is a silent hazard, often overlooked until it’s too late. Suzuki’s vacuum diaphragm fuel petcocks address this by creating a sealed system that stops fuel flow when the engine is off. Unlike traditional petcocks, which rely on manual operation and can leak if left open, the vacuum-activated diaphragm ensures fuel remains contained in the tank. This design eliminates the risk of overflow during storage, transportation, or accidental spills, making it a critical safety feature for both riders and their surroundings.
Fire risks on motorcycles are amplified by their exposed components and proximity to hot surfaces. By preventing fuel overflow, Suzuki’s vacuum diaphragm petcocks significantly reduce the likelihood of fuel coming into contact with ignition sources. For instance, a leaking petcock near a hot exhaust pipe could ignite fuel vapors, but the sealed system minimizes this danger. This feature is particularly vital in high-temperature environments or during extended rides, where fuel lines and components heat up, increasing the risk of combustion.
Secure operation is the cornerstone of rider confidence, and Suzuki’s design delivers by ensuring fuel delivery only when the engine is running. The vacuum diaphragm activates with engine suction, opening the petcock to allow fuel flow. When the engine stops, the diaphragm closes, cutting off fuel supply. This automatic mechanism eliminates human error—such as forgetting to turn off a manual petcock—and ensures the bike operates safely under all conditions. It’s a fail-safe system that prioritizes reliability without requiring rider intervention.
Practical application of this safety feature extends beyond the bike itself. For riders storing their motorcycles in garages or sheds, the risk of fuel spills contaminating the environment is eliminated. Additionally, during long-term storage, the sealed system prevents fuel evaporation and gum buildup in the tank, maintaining fuel integrity. Riders can also perform maintenance tasks, like carburetor cleaning, with reduced risk of fuel leakage. To maximize safety, always inspect the vacuum diaphragm for wear or damage, especially after extended use or exposure to extreme temperatures, and replace it as part of routine maintenance.
In comparison to manual petcocks, Suzuki’s vacuum diaphragm design offers a proactive approach to safety rather than a reactive one. While manual systems require constant vigilance, the vacuum-activated petcock operates independently, ensuring consistent performance regardless of rider oversight. This innovation reflects Suzuki’s commitment to engineering solutions that not only enhance functionality but also prioritize rider and environmental safety. By integrating this feature, Suzuki sets a benchmark for fuel management systems in motorcycles, proving that safety and convenience can coexist seamlessly.
Eco-Friendly Disposal: Where to Take Your Used Fuel Responsibly
You may want to see also
Explore related products
Performance Impact: Optimizes fuel delivery, boosts engine response, and maintains stable performance
Suzuki's adoption of vacuum diaphragm fuel petcocks was a strategic move to address the inherent challenges of carbureted motorcycle fuel systems. These petcocks, often overlooked, play a pivotal role in optimizing fuel delivery, which is crucial for engine performance. By utilizing a vacuum-operated diaphragm, Suzuki engineered a system that responds dynamically to engine demands, ensuring a consistent and adequate fuel supply under various operating conditions.
Consider the mechanics: as the engine creates a vacuum during operation, the diaphragm within the petcock lifts, allowing fuel to flow from the tank to the carburetor. This design eliminates the need for manual adjustments, a common requirement in traditional petcocks, and ensures that fuel delivery is directly tied to engine load. For instance, during acceleration or high-load conditions, the increased vacuum pulls more fuel, providing the carburetor with the necessary volume to maintain optimal air-fuel mixture. This automatic adjustment is particularly beneficial in high-performance scenarios, where sudden changes in throttle position demand immediate and precise fuel delivery.
The impact on engine response is significant. Riders often report a more immediate and linear throttle response with vacuum diaphragm petcocks. This is because the system inherently matches fuel supply with engine demand, reducing the lag that can occur with manual or less responsive petcocks. For example, in racing or aggressive riding, where split-second responses are critical, this technology ensures that the engine receives the correct amount of fuel without hesitation, translating to quicker acceleration and smoother power delivery.
Moreover, the stability of performance is a key advantage. Traditional petcocks can allow air to enter the fuel system when the tank is low or during hard cornering, leading to fuel starvation and engine stuttering. Suzuki’s vacuum diaphragm design minimizes this risk by maintaining a sealed system until the engine demands fuel. This not only prevents air ingress but also ensures that the fuel flow remains consistent, even in extreme riding conditions. For long-distance riders or those tackling varied terrain, this means fewer performance fluctuations and a more reliable riding experience.
In practical terms, this technology is particularly beneficial for motorcycles with high-performance engines or those used in demanding environments. For instance, a Suzuki GSX-R equipped with a vacuum diaphragm petcock can maintain peak performance during track days, where consistent fuel delivery is essential for lap times. Similarly, adventure bikes like the V-Strom benefit from this system when navigating off-road trails, where fuel stability can be compromised by uneven terrain. By optimizing fuel delivery, boosting engine response, and maintaining stable performance, Suzuki’s vacuum diaphragm fuel petcocks address critical performance needs, making them a thoughtful and effective engineering solution.
Lean vs. Rich Fuel: Optimizing Engine Performance for Efficiency and Power
You may want to see also
Explore related products
Cost Efficiency: Low maintenance, fewer replacements, and cost-effective compared to alternatives
Suzuki's adoption of vacuum diaphragm fuel petcocks was a strategic move towards cost efficiency, addressing the common pain points of traditional petcocks. These innovative components offered a trifecta of benefits: low maintenance, reduced replacement needs, and overall cost-effectiveness compared to alternatives.
Let's delve into why this mattered.
Traditional petcocks, prone to clogging and leakage due to debris and ethanol-blended fuels, demanded frequent cleaning and replacement. This not only inconvenienced riders but also incurred recurring costs. Vacuum diaphragm petcocks, however, mitigated these issues. Their design, utilizing a diaphragm to control fuel flow, minimized exposure to contaminants, significantly reducing the likelihood of clogs. This meant less downtime for maintenance and fewer trips to the mechanic, translating to substantial savings over the motorcycle's lifespan.
Imagine the difference between replacing a petcock every few years versus enjoying trouble-free operation for significantly longer.
The cost-effectiveness extends beyond maintenance. Vacuum diaphragm petcocks were often more affordable upfront compared to complex electric fuel pumps or other alternatives. Their simplicity in design and operation meant lower manufacturing costs, which were passed on to consumers. Furthermore, their reliability reduced the need for emergency replacements, avoiding the premium prices often associated with urgent parts procurement.
This made them a financially prudent choice for both Suzuki and its customers.
The longevity of vacuum diaphragm petcocks further solidified their cost-efficiency. Their robust construction and resistance to wear and tear meant they outlasted traditional petcocks, delaying the need for replacement. This not only saved money but also contributed to a more sustainable approach by reducing waste. Think of it as investing in a durable tool that pays dividends over time, rather than constantly replacing disposable ones.
In essence, Suzuki's choice of vacuum diaphragm fuel petcocks wasn't just about functionality; it was a calculated decision prioritizing long-term cost savings and rider satisfaction.
Why Apollo Chose Fuel Cells for Lunar Missions
You may want to see also
Frequently asked questions
Suzuki used vacuum diaphragm fuel petcocks to prevent fuel leakage during accidents or when the motorcycle was tipped over, ensuring safety and reducing the risk of fire.
A vacuum diaphragm fuel petcock operates by using engine vacuum to open the fuel valve when the engine is running, and it automatically closes when the engine is turned off, preventing fuel flow.
Vacuum diaphragm fuel petcocks offer improved safety by automatically stopping fuel flow when the engine is off, reduce the risk of fuel spills, and eliminate the need for the rider to manually switch the petcock on or off.
