Ameer Randolph
Fixing an aluminium fuel tank is a complex process that requires expertise in welding and other technical skills. The first step is to identify the issue, which could be anything from small pinholes to cracks or corrosion. The next step is to decide whether to repair or replace the tank. If the tank is older, it is generally recommended to replace it with a plastic or polyethylene tank that is less susceptible to corrosion. If repairing, the tank must be thoroughly cleaned, and all flammable fumes removed. This can be done using dry ice, which turns into carbon dioxide gas and pushes out oxygen, eliminating the risk of fire or explosion. After ensuring the tank is safe, repairs can be made using epoxy putty, fiberglass, or welding, depending on the damage. Some companies specialize in fuel tank repairs, offering cleaning, welding, and coating services to restore aluminium fuel tanks to their original condition.
Explore related products
What You'll Learn
Repairing pitted spots and corrosion
Aluminium fuel tanks are prone to corrosion and pitting, which can be caused by water build-up, lack of oxygen, or the use of certain materials in contact with the tank. Corrosion and pitting can also be caused by the presence of other metals, which can lead to galvanic corrosion. This occurs when dissimilar metals, such as aluminium and steel, are in contact with each other and can cause the aluminium to corrode more quickly.
Before attempting any repairs, it is crucial to remove the fuel tank and examine it thoroughly. This includes checking for any leaks and ensuring that there are no remaining fuel vapours or fumes, as they pose a serious safety hazard. Once the tank is empty and free of any hazardous substances, it can be cleaned and prepared for repair.
One method to repair pitted spots and corrosion on an aluminium fuel tank is to use a wire wheel brush to clean the affected areas. It is important to work slowly and control the speed to avoid sparks. After cleaning, the surface should be wiped with acetone to ensure it is free of any residue. Subsequently, a suitable repair epoxy, such as Marine Tex-Grey, can be applied to the cleaned and prepared surface. It is important to follow the manufacturer's instructions for proper application and curing time.
Another approach to repairing pitted aluminium fuel tanks is to use a metal-fixing composite, such as Loctite Weld Epoxy. These products are designed specifically for mechanical applications and can effectively repair pit corrosion without the need for welding. Belzona, a manufacturer of metallic coatings, also offers products suitable for repairing aluminium hulls/bilges affected by pitting.
While welding is an option for repairing aluminium fuel tanks, it is generally discouraged due to the potential for additional damage and the risk of contamination from the corroded material. If welding is the only option, it is crucial to take necessary precautions, such as filling the cavity with inert gas or water to minimise the risk of fuel vapour explosion. Additionally, it is essential to ensure that the welder is qualified in marine tank building to avoid improper evacuation of fuel, which can lead to dangerous consequences.
Draining a Ford Fiesta Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products

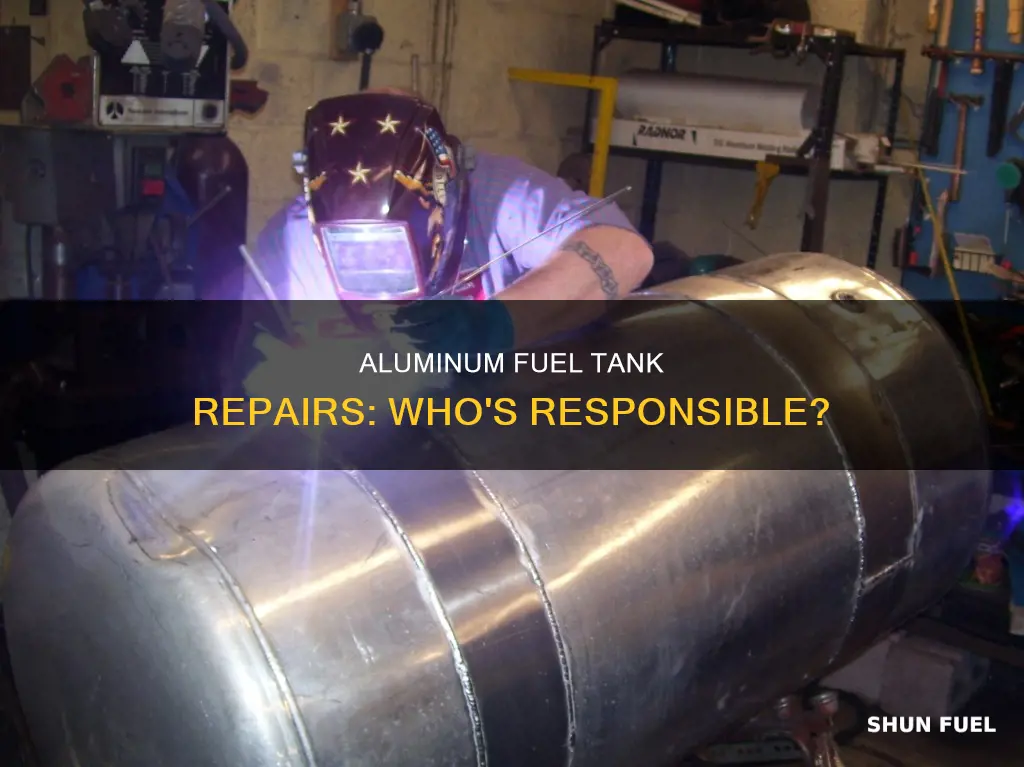

Welding and soldering
Once the tank is cleaned and prepared, welding techniques such as TIG welding or MIG welding can be used to repair cracks or leaks in the tank. It is important to ensure that the welds are of good quality and that the tank is inspected for leaks after welding. Some people also recommend using a copper backer bar on the inside of the corners for additional support.
When creating a custom aluminum fuel tank, it is important to consider the thickness of the aluminum sheet and the placement of welds. The bottom of the tank should be bent, and the weld joints should be kept as high as possible, preferably on the side, to minimize the chances of leaks. Baffles should also be considered to prevent the fuel from sloshing and to provide additional structural strength.
While welding and soldering are common methods for repairing and creating aluminum fuel tanks, some sources recommend against repairing corroded or older tanks, suggesting that it is safer to replace the tank entirely.
Pumping Fuel: Buildcraft Tank Tricks
You may want to see also
Explore related products
Using epoxy putty and fibreglass
Repairing an aluminium fuel tank using epoxy putty and fibreglass is a detailed process. Firstly, it is important to ensure that the tank is not sitting in moisture or on wet beds, as this can cause corrosion and damage to the tank. The tank bed should be made of plywood and treated with epoxy resin.
Once the tank is in a suitable location, the next step is to remove any corrosion or damage to the metal. This involves grinding, sanding, and washing the tank with acetone to create a smooth and clean surface for the repairs. It is crucial to remove all corrosion down to good metal, as these spots can result from sand, foam, or other materials holding moisture against the metal.
After preparing the surface, the next step is to apply a metal epoxy putty to the damaged areas. This will help fill in any pits or cracks in the aluminium. One product that can be used for this step is Marine-Tex, which is a tenacious epoxy that can be rubbed onto the affected areas.
Once the epoxy putty has been applied and allowed to cure, the next step is to apply a layer of fibreglass. Cut the fibreglass cloth to fit the repaired area, and then mix and apply a resin to the cloth and the tank. The resin must be applied quickly, as it will begin to harden within 8 minutes. Spread the resin mixture in a uniform layer using a brush, and then place the fibreglass over the damaged area, ensuring it is completely saturated with resin.
Finally, allow the resin to cure, and consider painting the tank for additional protection. It is important to note that while these repairs can extend the life of the fuel tank, if the tank is 15 years or older, it is recommended to replace it entirely.
Equalizing Fuel Tanks: The Ultimate Guide to Balancing Your Reserves
You may want to see also
Explore related products
Replacing the tank
While some sources suggest that repairing an aluminium fuel tank is possible, others advise replacing the tank, especially if it is an older model.
If you do decide to replace the tank, there are a few steps you should follow. First, you will need to purchase a replacement tank that is compatible with your vehicle. Make sure to check the dimensions and specifications of the new tank to ensure it will fit properly. Once you have the new tank, you will need to remove the old one. This may involve disconnecting any fuel lines or hoses that are attached to the tank and carefully removing it from the vehicle. In some cases, you may need to remove other components, such as the engine, to access the fuel tank.
Next, you will need to install the new fuel tank. This process will vary depending on the vehicle, but it typically involves bolting or mounting the new tank in place. Make sure to follow any instructions or guidelines provided by the manufacturer of the replacement tank. Once the new tank is in place, you will need to reconnect any fuel lines or hoses and ensure that they are properly secured.
Finally, you will need to test the new fuel tank to ensure it is functioning properly. This may involve filling the tank and checking for any leaks or issues. It is important to exercise caution when working with fuel and to follow any safety guidelines or regulations. In some cases, it may be advisable to seek the assistance of a professional or qualified individual to ensure the job is done safely and correctly.
Nissan Versa Fuel Tank: Size and Capacity Explored
You may want to see also
Explore related products
Preventing future damage
Aluminium fuel tanks are vulnerable to rust and corrosion, especially in humid environments. If left unchecked, corrosion can eat through the tank, and rust can contaminate the fuel supply. Therefore, it is important to regularly clean aluminium tanks and remove any debris or dirt buildup.
To prevent corrosion, you can coat the inside of the tank with a protective layer. This will also help seal small cracks and pinholes. One option is to use an epoxy putty and then cover the tank with a thin layer of fibreglass and an epoxy resin. Alternatively, you can use a two-part epoxy primer, such as etch/alodine/strontium chromate, and then paint the tank for added protection. It is also recommended to coat diesel tanks as diesel fuel is particularly vulnerable to water absorption.
To prevent physical damage, ensure the tank is installed correctly and does not come into contact with water or moisture. The tank bed should be plywood, epoxy-saturated, and glassed over. Lay 1/4" plastic strips 2" wide and 12" apart on the bottom of the tank, allowing for airflow and preventing the tank from sitting in water.
If your tank has a crack, you may need to weld it. However, some sources advise against repairing cracks and instead recommend replacing the tank, especially if it is old.
Cleaning Your Lawn Mower's Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Industrial Radiator Service offers fuel tank repair, fuel tank cleaning, and aluminum welding services. They repair all types of fuel tanks, including aluminum, and can address issues such as pinholes, cracks, dents, and corrosion.
Before welding an aluminum fuel tank, it is important to remove any fuel residue and flammable gasoline fumes to prevent the risk of fire or explosion. This can be done by washing the tank with warm soapy water and then rinsing it with clear water. To eliminate fumes, insert small pieces of dry ice into the filler neck of the tank. As dry ice sublimates, it turns into carbon dioxide gas, which displaces oxygen and pushes out the fumes from the tank.
It is possible to repair a pitted or corroded aluminum fuel tank, but it may be more cost-effective to replace the tank, especially if it is an older tank or the damage is extensive. Temporary repairs using epoxy or metal epoxy can be done, but these may only last a few seasons before leaking again. For a more permanent solution, consider finding a local shop that specializes in welding and repairing aluminum fuel tanks.
