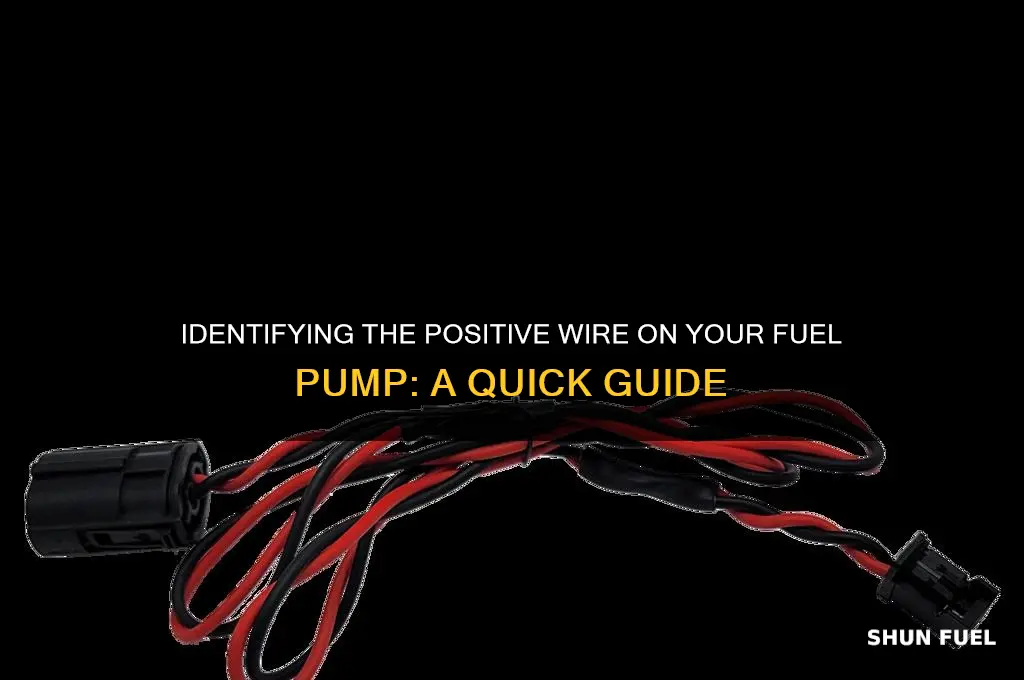

When troubleshooting or installing a fuel pump, identifying the correct wiring is crucial for proper functionality and safety. One common question that arises is, Which wire is positive on a fuel pump? Typically, the positive wire is distinguished by its color, often red or orange, though this can vary depending on the vehicle’s make and model. It is essential to consult the vehicle’s wiring diagram or manual to confirm the correct wire, as misidentifying the positive wire can lead to electrical issues or damage to the fuel pump system. Additionally, using a multimeter to test for voltage can provide further assurance when determining the positive connection.
Explore related products
What You'll Learn
Identifying Positive Wire Color Coding
The positive wire on a fuel pump is typically red, but this isn't a universal rule. Automotive wiring color codes vary by manufacturer, vehicle model, and even production year. While red is a common choice for positive wires due to its association with "live" or "hot" circuits, you'll encounter exceptions. For instance, some European vehicles use brown for positive wires, while others might employ yellow or orange. This inconsistency underscores the importance of consulting your vehicle's wiring diagram or repair manual before making any assumptions.
Relying solely on color coding can lead to costly mistakes. A seemingly positive red wire might actually be a switched power source, only active when the ignition is on. Conversely, a black wire, often associated with ground, could be a positive lead in certain systems. To avoid confusion, use a multimeter to test for voltage. With the ignition on, probe the suspected positive wire. A reading of 12 volts (or close to it) confirms it's the positive lead.
Let's say you're working on a 1998 Honda Civic. The fuel pump wiring diagram reveals a red wire with a yellow stripe as the positive lead. This specific color combination is unique to this model year and wouldn't apply to a newer Civic. This example highlights the need for model-specific information. Online forums and automotive databases can be valuable resources for finding wiring diagrams and color code information for your particular vehicle.
Remember, safety is paramount when working with electrical systems. Always disconnect the battery before handling wires to prevent accidental shorts or shocks. Double-check your connections and ensure proper insulation after completing any repairs. By combining color code awareness with multimeter testing and reliable information sources, you can confidently identify the positive wire on your fuel pump and tackle your automotive projects with accuracy.
Chevy Colorado Fuel Pump Lifespan: What to Expect and Maintenance Tips
You may want to see also
Explore related products
Testing Wires with a Multimeter
A multimeter is an indispensable tool for identifying the positive wire on a fuel pump, but its effectiveness hinges on proper technique. Begin by setting the multimeter to the DC voltage range, typically marked with a "V" and a straight line, and ensure the range exceeds your vehicle’s battery voltage (usually 12V or 24V for trucks). Connect the multimeter’s red probe to the wire in question and the black probe to a solid ground, such as the engine block or battery negative terminal. With the ignition on but the engine off, a reading of 12V or higher indicates the wire is positive, as it’s receiving power directly from the battery.
While testing, observe the voltage behavior when activating the fuel pump relay or turning the key to the "start" position. The positive wire should maintain voltage, while others may fluctuate or drop to zero. This dynamic test helps distinguish between constant power wires and those controlled by the pump’s relay. However, be cautious: accidental shorting of probes or touching multiple wires simultaneously can damage the multimeter or vehicle circuitry. Always insulate probe tips with electrical tape when working in tight spaces.
For vehicles with multiple wires, a comparative approach can clarify which wire is positive. Test each wire individually, noting voltage levels and their response to ignition changes. The wire consistently showing battery voltage is the positive feed. In systems with a return wire, you may also encounter a ground wire, which will read 0V or close to it. If no wire shows voltage, check the fuel pump fuse and relay, as a blown fuse will cut power to all wires, rendering this method ineffective.
Advanced multimeters with continuity or diode testing modes offer additional verification. Switch to the continuity setting (beep sound) and test between each wire and ground. The positive wire will show no continuity, while grounds or return wires will trigger a beep. Alternatively, the diode test can reveal polarity by indicating forward voltage drop on the positive wire. However, these methods require a deeper understanding of multimeter functions and should be used cautiously to avoid misinterpretation.
In conclusion, testing wires with a multimeter combines precision with practical insight. By systematically checking voltage, observing dynamic behavior, and employing comparative techniques, you can confidently identify the positive wire on a fuel pump. Always prioritize safety, double-check connections, and consult a wiring diagram for your specific vehicle to avoid errors. With patience and the right approach, even complex wiring systems become decipherable.
Efficient Fuel Pump Filter Cleaning: Step-by-Step Guide for Optimal Performance
You may want to see also
Explore related products
Common Fuel Pump Wire Schematics
Fuel pump wire schematics vary widely across vehicle makes and models, but a common thread is the presence of a positive wire, typically colored red or orange, that supplies power to the pump. This wire is often thicker than the others, reflecting its role in carrying the higher current required to operate the fuel pump. In most configurations, the positive wire connects directly to the fuel pump’s power terminal and is usually fused to protect the circuit from overcurrent. Identifying this wire is crucial for diagnostics, repairs, or upgrades, as it is the primary source of electrical energy for the pump.
Analyzing common schematics reveals that the positive wire is frequently accompanied by a ground wire, often black or brown, and a signal wire that communicates with the vehicle’s engine control unit (ECU). The signal wire, sometimes yellow or green, activates the fuel pump relay, which in turn powers the pump. In older vehicles, the positive wire may be directly switched by the ignition system, while modern vehicles often use a dedicated fuel pump relay controlled by the ECU. Understanding this layout is essential for troubleshooting issues like a non-starting engine or inconsistent fuel delivery.
For DIY enthusiasts or mechanics, testing the positive wire’s functionality is a straightforward process. Using a multimeter, set to the voltage or continuity mode, check for power at the fuel pump connector when the ignition is turned on. If the positive wire reads 12 volts (or battery voltage) but the pump fails to operate, the issue may lie with the pump itself or the ground connection. Always disconnect the battery before working on the fuel system to prevent electrical hazards. This simple test can save time and narrow down potential causes of fuel pump failure.
Comparing schematics across different vehicles highlights variations in wire colors and configurations. For instance, European vehicles often use a standardized color coding system, while Asian and American models may deviate. Some fuel pumps incorporate a pressure regulator or return line, adding complexity to the wiring harness. In such cases, the positive wire remains the key focus, but additional wires may control the regulator or monitor fuel pressure. Familiarizing oneself with these differences ensures accurate diagnosis and repair across diverse vehicle systems.
In conclusion, mastering common fuel pump wire schematics begins with identifying the positive wire, typically red or orange, as the primary power source. By understanding its role and accompanying wires, one can effectively diagnose and repair fuel pump issues. Always refer to the vehicle’s specific wiring diagram for precise details, and prioritize safety when working with electrical systems. This knowledge not only streamlines repairs but also enhances overall vehicle maintenance proficiency.
Prevent Fuel Pump Failure: Essential Tips for Long-Lasting Performance
You may want to see also
Explore related products
![22awg Silicone Electrical Wire 2 Core Wire 20ft [Black 10ft Red 10ft] 22 Gauge Soft and Flexible Hook Up Oxygen Free Strands Tinned Copper Wire](https://m.media-amazon.com/images/I/61dNNGT8FML._AC_UL320_.jpg)
Positive Wire Location in Harness
Identifying the positive wire in a fuel pump harness is crucial for proper installation and troubleshooting. Most fuel pump harnesses use a standardized color-coding system, with red or pink wires typically indicating the positive terminal. However, this isn’t universal; some manufacturers may deviate, using yellow, orange, or even black wires with stripes. Always consult the vehicle’s wiring diagram or service manual to confirm, as relying solely on color can lead to errors. For example, in a Ford F-150, the positive wire is often pink/light green, while in a Honda Civic, it’s typically yellow.
Analyzing the harness layout can provide additional clues. The positive wire is usually thicker than the others, as it carries the primary current to the fuel pump. It’s also often paired with a ground wire, which is black in most cases. If the harness includes a relay, the positive wire will connect directly to the relay’s power input terminal. In systems with an inertia switch (common in older vehicles), the positive wire may pass through this safety device before reaching the pump. Understanding these patterns can help narrow down the correct wire even without a diagram.
For those without access to a wiring diagram, a multimeter is an essential tool. Set the multimeter to DC voltage and probe the wires while the ignition is on. The wire showing battery voltage (typically 12V) when the fuel pump is active is the positive wire. Be cautious not to probe wires while the pump is running continuously, as this can drain the battery or damage the pump. Instead, test during the initial priming cycle when the key is turned to the "on" position. This method is reliable but requires careful execution to avoid short circuits.
A practical tip for DIY enthusiasts is to trace the harness from the fuel pump to the power source. Start at the pump connector and follow the wires back toward the engine bay or fuse box. The positive wire will eventually connect to a fused power source, often a relay or the battery. Mark the wire at the pump connector before disconnecting it to avoid confusion during reinstallation. If the harness splits into multiple connectors, focus on the wire with the largest gauge, as it’s most likely the power supply.
In conclusion, determining the positive wire in a fuel pump harness requires a combination of knowledge, observation, and testing. While color-coding is a starting point, it’s not foolproof. Leveraging wiring diagrams, analyzing harness characteristics, and using a multimeter ensures accuracy. For those tackling this task, patience and attention to detail are key—rushing can lead to mistakes that compromise the fuel system’s functionality. Always double-check connections before finalizing the installation.
Diagnosing a Faulty Fuel Pump: Step-by-Step Testing Guide
You may want to see also
Explore related products
Troubleshooting Incorrect Wire Connections
Incorrect wire connections on a fuel pump can lead to a cascade of issues, from a non-starting engine to potential safety hazards. The first step in troubleshooting is to verify the wiring diagram specific to your vehicle’s make and model. Most fuel pumps have a positive wire (usually red or orange) that supplies power, a ground wire (black), and a signal wire (often gray or blue) that activates the pump. If the positive wire is connected to the wrong terminal, the pump may not receive power, causing the engine to stall or fail to start. Always disconnect the battery before inspecting wires to avoid electrical shorts.
Analyzing symptoms can narrow down the problem. If the fuel pump runs continuously but the engine doesn’t start, the positive wire may be shorted to a constant power source, bypassing the relay. Conversely, if the pump doesn’t activate at all, the positive wire might be disconnected or fused with a non-power wire. Use a multimeter to test voltage at the pump connector with the ignition on. A reading of 12V indicates proper power delivery, while 0V suggests a break in the positive wire. If the multimeter shows voltage but the pump doesn’t operate, the issue may lie in the ground connection or the pump itself.
Persuasive caution must be exercised when dealing with fuel systems. Incorrect wiring can lead to fuel leaks or fires, especially if the pump runs uncontrollably. If you’re unsure, consult a professional. However, for DIY enthusiasts, a systematic approach is key. Start by tracing the positive wire from the pump to the fuse box, checking for damage or loose connections. Replace any frayed wires or blown fuses. If the issue persists, test the relay by swapping it with a similar one in the fuse box. A functioning relay will click when the ignition is turned on, indicating proper signal transmission to the pump.
Comparatively, modern vehicles often include safety features like inertia switches that cut power to the pump during collisions. If the positive wire is correctly connected but the pump doesn’t operate, check the inertia switch (usually located in the trunk or near the driver’s side kick panel). Resetting it may restore power. Older vehicles, however, rely solely on the wiring integrity, making incorrect connections more critical. In such cases, a wiring harness adapter can simplify the installation process, ensuring the positive wire aligns with the correct terminal.
Descriptively, troubleshooting incorrect wire connections requires patience and precision. Imagine the fuel pump as the heart of your vehicle’s fuel system, with the positive wire acting as its lifeline. A misstep in wiring is akin to a blocked artery, starving the engine of fuel. By methodically checking each connection, testing voltage, and referencing the wiring diagram, you can diagnose and rectify the issue. Remember, the goal isn’t just to get the engine running but to ensure it operates safely and efficiently. Always double-check your work before reconnecting the battery and starting the vehicle.
Exploring Vortec 350 Fuel Systems: Mechanical Pump or Electric?
You may want to see also
Frequently asked questions
The positive wire on a fuel pump is typically the one connected to the power source, usually colored red or orange, depending on the vehicle's wiring diagram.
Use a multimeter to test for voltage. With the ignition on, probe each wire; the one showing battery voltage (usually 12V) is the positive wire.
No, while red is common, the positive wire color can vary by vehicle make and model. Always refer to the wiring diagram for accuracy.
Yes, a test light can be used. Connect the test light to ground and touch each wire; the one that illuminates the light with the ignition on is the positive wire.
