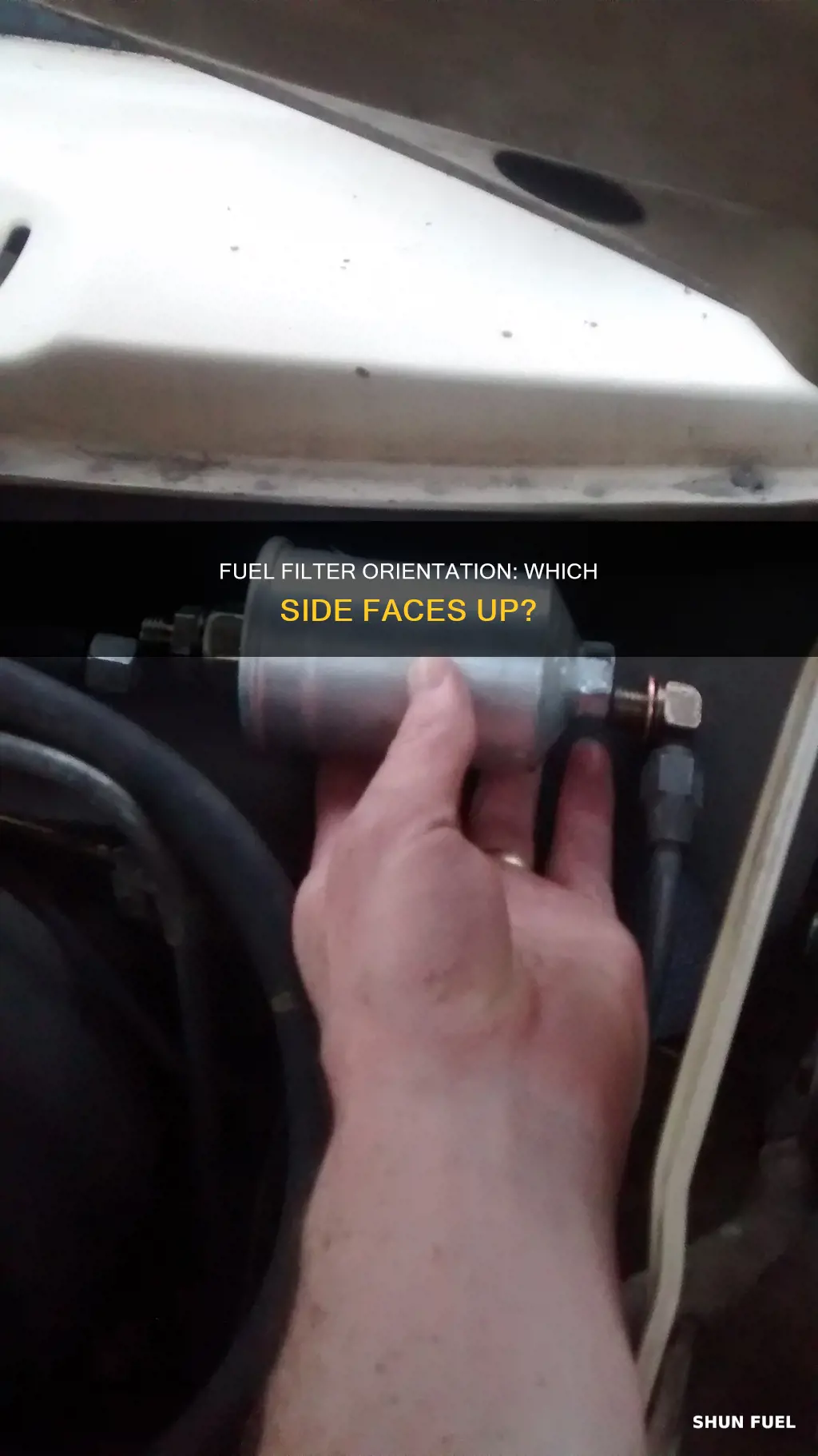

Knowing which side of a fuel filter is the top is crucial for proper installation and maintenance. Fuel filters are essential components in vehicles, capturing dirt in the fuel to prevent clogging and maintain engine performance. They are typically located along the fuel line, either on the bottom of the car or in the engine bay. When identifying the top of a fuel filter, it's important to consider the direction of fuel flow, which is usually indicated by an arrow embossed on the housing. The top of the filter is generally upstream, with the fuel entering through the wider base and exiting through the narrower top. Proper installation ensures effective fuel filtration and prevents issues such as reduced fuel pressure and volume.
Explore related products
What You'll Learn
- Fuel filters are held in place by two plastic clips
- The direction of the arrow on the filter indicates the direction of flow
- Fuel filters are usually located along the fuel line on the bottom of the car
- The top of a cone-shaped fuel filter usually points toward the fuel tank
- A clogged filter reduces fuel pressure and volume in the fuel system
Fuel filters are held in place by two plastic clips
Fuel filters are crucial for capturing dirt in the fuel system, preventing clogging, and ensuring optimal fuel pressure and volume. To access and replace the filter, you must first remove the clips holding it in place. Typically, fuel filters are secured by two plastic clips on either side of the cylindrical filter housing. These clips are thin and prone to breakage during removal, so it is recommended to have replacement clips on hand before beginning the task.
When removing the clips, use a flat-head screwdriver to carefully pop them out of their holes. Once the clips are released, slide the fuel lines away from the filter, disconnecting them from the nozzles on both ends. It is important to note that some fuel filters have arrows indicating the direction of fuel flow. Ensure that the arrow points away from the fuel pump, towards the carburettor or fuel rail.
The positioning of the fuel filter is crucial. In most cases, the top of the cone-shaped fuel filter should face the fuel tank, while the bottom should point towards the carburettor. This ensures that the fuel is properly filtered by the outer surface of the cone, preventing sediment buildup and maintaining uninterrupted fuel flow. However, it is always best to refer to your vehicle's service manual for specific instructions and locations, as fuel filter placements can vary among different vehicles.
By following these steps and paying attention to the direction of fuel flow and the proper positioning of the fuel filter, you can effectively replace the filter and ensure the optimal performance of your vehicle's fuel system. Remember to include fuel filter replacement as part of your regular vehicle maintenance routine, as recommended by the manufacturer.
Fuel Filter in 2004 TSX: Yes or No?
You may want to see also
Explore related products
The direction of the arrow on the filter indicates the direction of flow
The direction of the arrow on a fuel filter is crucial as it indicates the direction of fuel flow. The arrow should point in the direction of fuel flow, from the pump towards the carburettor. This is important to ensure unrestricted fuel flow into the carburettor.
Fuel filters are a crucial component of a vehicle's fuel system. They are typically located along the fuel line on the bottom of the car, just past the fuel pump. Some vehicles may have fuel filters located in the engine bay, leading to the fuel rail. It is important to refer to the vehicle's service manual to determine the exact location of the fuel filter.
The fuel filter plays a vital role in capturing dirt and impurities in the fuel, preventing them from entering the engine. Over time, the fuel filter can become clogged, leading to reduced fuel pressure and volume in the system. As a result, the vehicle may experience a loss of power. To maintain optimal performance, it is essential to replace the fuel filter at the manufacturer's recommended interval.
When replacing a fuel filter, it is important to ensure that the arrow is pointing in the correct direction. This will ensure that the fuel flows smoothly and efficiently through the system. Installing the fuel filter incorrectly can lead to performance issues and potential damage to the engine. Therefore, it is crucial to follow the manufacturer's instructions and seek guidance from a qualified mechanic if needed.
In some rare cases, the arrow on the fuel filter may point in the opposite direction of the fuel flow. This can be confusing for vehicle owners and mechanics alike. It is important to refer to the vehicle's service manual or seek expert advice to ensure the correct installation of the fuel filter. Additionally, some fuel filters may have arrows on both sides, indicating the direction of fuel flow into and out of the filter.
Unclogging Fuel Filter: What's the Cost?
You may want to see also
Explore related products
Fuel filters are usually located along the fuel line on the bottom of the car
Fuel filters are usually located along the fuel line on the underside of the car, just past the fuel pump. They are held in place by two plastic clips, which can be carefully removed with a flat-head screwdriver. The fuel filter is an important component of the fuel system, capturing dirt and preventing it from entering the fuel pump and causing damage.
The fuel filter should be replaced at the manufacturer's recommended interval. This is because, over time, the filter will become clogged with dirt and debris, reducing fuel pressure and volume in the system. A clogged filter can cause a loss of power in the vehicle. It is important to note that diesel engine fuel systems are under much higher pressure than gasoline engine vehicles, and special care should be taken when working on these systems.
There are two common locations for fuel filters in vehicles. In addition to being located along the fuel line on the bottom of the car, they can also be found in the engine bay on the line leading to the fuel rail. Some vehicles may have fuel filters in different locations, so it is always a good idea to refer to the service manual for the specific make and model of the car.
The direction of the fuel filter is important. The arrow on the housing of the fuel filter indicates the direction of flow. The arrow should point in the direction of fuel flow, from the pump to the carburettor. The wider base of the cone-shaped fuel filter should face the carburettor, with the inside of the cone facing the carburettor to prevent sediment build-up and interruption of fuel flow.
Dodge Neon 2003: Fuel Filter Location Guide
You may want to see also
Explore related products
The top of a cone-shaped fuel filter usually points toward the fuel tank
The fuel filter is a crucial component of a vehicle's fuel system, ensuring the fuel pump's longevity by capturing dirt and impurities in the fuel. The fuel filter's positioning and orientation are essential for its proper functioning.
It is important to note that the direction of fuel flow is indicated by an arrow embossed on the housing of the fuel filter. This arrow should be followed to ensure proper installation. In some cases, the arrow may point towards the fuel pump, indicating the direction of fuel flow.
The fuel filter's location can vary depending on the vehicle. In modern vehicles, the fuel filter is commonly found along the fuel line on the bottom of the car, past the fuel pump. Alternatively, it may be located in the engine bay, on the line leading to the fuel rail.
Changing the fuel filter is part of regular vehicle maintenance. It is recommended to replace the filter at the manufacturer's suggested interval to maintain optimal fuel system performance and prevent clogging, which can lead to reduced fuel pressure and volume.
Best Solutions to Clear a Clogged Fuel Filter
You may want to see also
Explore related products
A clogged filter reduces fuel pressure and volume in the fuel system
A fuel filter is a crucial component of any vehicle, ensuring the fuel that enters the engine is free of impurities. However, over time, the fuel filter can become clogged with dirt, debris, and other contaminants, leading to a reduction in fuel pressure and volume in the system.
The fuel filter's primary function is to capture and remove dirt and other particles from the fuel before it reaches the engine. As the filter does its job, the media or material inside the filter starts to become blocked, restricting the flow of fuel. This clogging reduces fuel pressure and volume, impacting the engine's performance and fuel efficiency.
A clogged fuel filter can cause a range of issues, from decreased engine performance to problems starting the engine. The engine may hesitate, stall, or even fail to start due to insufficient fuel reaching the engine. Additionally, a clogged filter can lead to increased fuel consumption as the engine compensates for the restricted fuel supply.
It is important to replace the fuel filter at the manufacturer's recommended intervals to maintain optimal vehicle health. The location of the fuel filter can vary, but it is typically found near the fuel tank or fuel pump. Consulting the vehicle's owner's manual is essential to properly locate and replace the filter.
By regularly maintaining the fuel filter, vehicle owners can ensure the fuel system operates efficiently, prolonging the life of the fuel pump and other engine components. While it may be tempting to delay replacement, a clogged fuel filter can lead to bigger fuel delivery issues and potential engine damage. Therefore, staying vigilant about fuel filter maintenance is crucial for any vehicle owner.
Finding the Fuel Filter in a 2010 F150
You may want to see also
Frequently asked questions
The fuel filter is located either along the fuel line on the bottom of the car, just past the fuel pump or in the engine bay on the line that leads to the fuel rail.
First, locate the plastic clips on either side of the cylindrical fuel filter and use a flat-head screwdriver to pop them out. Then, with the clips removed, slide the fuel lines away from the filter to pop them off the nozzles on either end.
The top of the cone-shaped fuel filter is usually upstream of the bottom part, with the wider portion (base) of the cone facing the carb.
There is usually an arrow embossed on the housing of the fuel filter, indicating the direction of flow. The arrow should point in the direction of fuel flow, from the narrower half of the filter to the wider half.
Refer to the manufacturer's recommended interval for replacing the fuel filter. Changing the fuel filter is a part of regular maintenance to prolong the life of the fuel pump and ensure the optimal performance of the fuel system.
