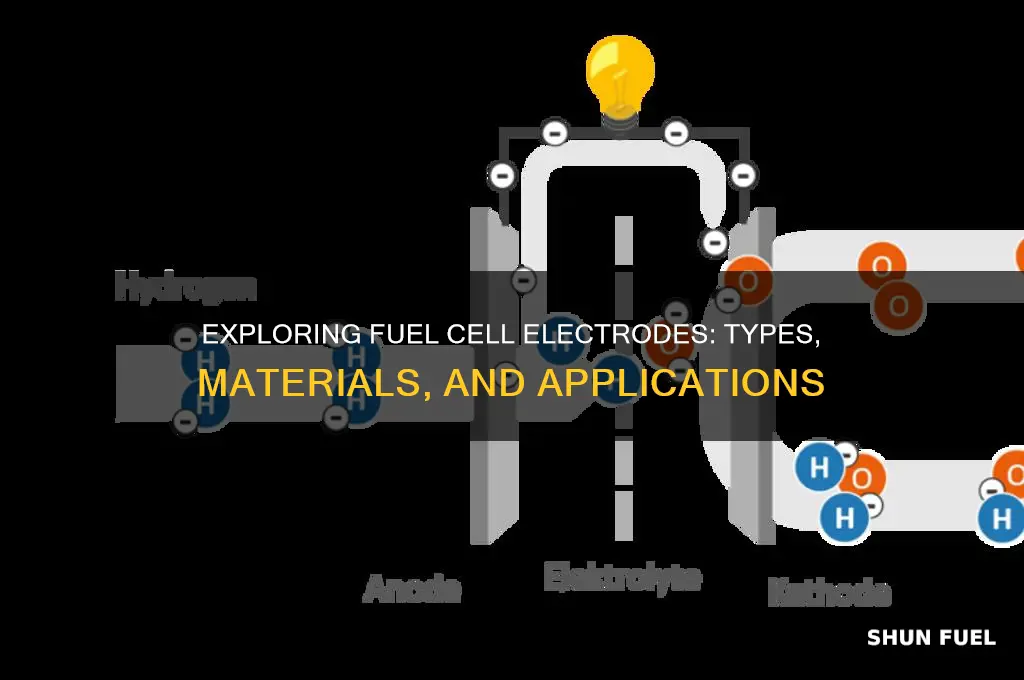

Fuel cells are electrochemical devices that convert chemical energy into electrical energy through a reaction between a fuel (typically hydrogen) and an oxidizing agent (usually oxygen). At the heart of this process are electrodes, which play a critical role in facilitating the necessary reactions. The two primary electrodes in a fuel cell are the anode and the cathode. The anode is where the fuel is oxidized, releasing electrons that travel through an external circuit to generate electricity, while the cathode is where the oxidizing agent is reduced, combining with the electrons and protons to form water or other byproducts. The materials used for these electrodes are crucial for efficiency and durability, with common choices including platinum, carbon, and other conductive materials, often supported on substrates like carbon paper or cloth. Additionally, some fuel cells may incorporate specialized electrodes, such as those made from metal oxides or alloys, depending on the specific type of fuel cell and its operating conditions.
Explore related products
What You'll Learn
- Platinum-based Electrodes: High efficiency, durability, and catalytic activity, commonly used in PEM fuel cells
- Carbon-supported Catalysts: Cost-effective, lightweight, and widely used in fuel cell electrodes
- Metal-organic Frameworks (MOFs): Emerging materials for enhanced electrode performance and stability
- Non-precious Metal Catalysts: Affordable alternatives to platinum, reducing fuel cell production costs
- Nanostructured Electrodes: Improved reactivity and surface area, boosting fuel cell efficiency
Platinum-based Electrodes: High efficiency, durability, and catalytic activity, commonly used in PEM fuel cells
Platinum-based electrodes stand as the gold standard in Proton Exchange Membrane (PEM) fuel cells, prized for their unparalleled efficiency, durability, and catalytic prowess. At the heart of their effectiveness lies platinum's ability to facilitate the oxygen reduction reaction (ORR), a critical process in converting chemical energy into electricity. Unlike other catalysts, platinum accelerates this reaction with minimal energy loss, achieving efficiencies upwards of 60% in ideal conditions. This high performance is why PEM fuel cells, commonly used in electric vehicles and portable power systems, rely heavily on platinum-loaded electrodes. However, the cost and scarcity of platinum present challenges, driving ongoing research into reducing its usage without compromising performance.
The durability of platinum-based electrodes is another cornerstone of their appeal. In PEM fuel cells, electrodes must withstand harsh operating conditions, including temperature fluctuations, humidity changes, and chemical degradation. Platinum’s resistance to corrosion and its stability under electrochemical stress ensure that these electrodes maintain their structural integrity over thousands of operational hours. For instance, in automotive applications, platinum-based electrodes can endure over 5,000 hours of continuous use, a critical factor for the long-term viability of fuel cell vehicles. This longevity reduces maintenance needs and enhances the overall reliability of fuel cell systems.
Despite their advantages, the high cost of platinum remains a barrier to widespread adoption. To address this, engineers often optimize platinum usage through techniques like nanostructuring, where platinum particles are dispersed on carbon supports to maximize surface area while minimizing material consumption. A typical commercial PEM fuel cell electrode contains approximately 0.2–0.4 mg of platinum per cm², a significant reduction from earlier designs. This approach not only lowers costs but also enhances catalytic activity by exposing more active sites for the ORR. Such innovations are essential for making platinum-based electrodes economically feasible in large-scale applications.
Comparatively, while alternative catalysts like iron-nitrogen-carbon (Fe-N-C) materials show promise, they currently fall short of platinum’s performance in terms of efficiency and durability. Platinum’s ability to operate effectively across a wide range of temperatures and humidity levels gives it a distinct edge, particularly in demanding environments. For example, in aerospace applications, where reliability is non-negotiable, platinum-based electrodes remain the preferred choice despite their cost. This underscores the trade-off between performance and affordability, a balancing act that continues to shape the evolution of fuel cell technology.
In practical terms, optimizing the use of platinum-based electrodes requires careful consideration of operating conditions and system design. For instance, maintaining a consistent humidity level around 60–80% in the fuel cell can prevent electrode degradation and ensure peak performance. Additionally, periodic diagnostic checks can identify early signs of catalyst degradation, allowing for timely interventions. While platinum-based electrodes are not without their drawbacks, their unmatched efficiency and durability make them indispensable in high-performance PEM fuel cells. As research progresses, the goal remains clear: to harness platinum’s strengths while mitigating its limitations, paving the way for a sustainable energy future.
Aircon Power Source: Fuel, Battery, or Electricity Explained
You may want to see also
Explore related products
Carbon-supported Catalysts: Cost-effective, lightweight, and widely used in fuel cell electrodes
Carbon-supported catalysts are the unsung heroes of fuel cell technology, offering a trifecta of advantages: affordability, low weight, and widespread applicability. These catalysts, typically composed of precious metals like platinum or non-precious alternatives, are dispersed onto a carbon substrate, maximizing their surface area and reactivity. This design is crucial for the oxygen reduction reaction (ORR), a critical process in fuel cells that converts oxygen and electrons into water. By anchoring the catalyst onto carbon, manufacturers achieve higher efficiency with less material, driving down costs and making fuel cells more accessible for applications ranging from electric vehicles to portable electronics.
Consider the practical implications of using carbon-supported catalysts in fuel cell electrodes. For instance, in proton-exchange membrane fuel cells (PEMFCs), the cathode often employs platinum nanoparticles supported on high-surface-area carbon, such as Vulcan XC-72. This combination ensures optimal ORR performance while minimizing platinum usage—a key cost driver. A typical loading of 0.4 mg/cm² of platinum on carbon can deliver sufficient catalytic activity for automotive fuel cells, balancing performance and economy. For researchers or engineers, selecting the right carbon support is critical; factors like pore size, conductivity, and corrosion resistance must align with the fuel cell’s operating conditions.
From a comparative standpoint, carbon-supported catalysts outshine alternative electrode materials in several ways. Unlike metal-based electrodes, which are heavy and expensive, carbon supports are lightweight and inexpensive, reducing the overall weight and cost of the fuel cell stack. Compared to unsupported catalysts, carbon-based systems offer superior dispersion and stability, preventing agglomeration that could degrade performance over time. However, carbon’s susceptibility to corrosion in acidic environments, such as those found in PEMFCs, necessitates careful material selection or protective coatings to ensure longevity.
For those implementing carbon-supported catalysts, several practical tips can optimize performance. First, ensure uniform dispersion of the catalyst on the carbon support during synthesis; techniques like impregnation or chemical reduction can achieve this. Second, control the particle size of the catalyst—smaller nanoparticles (1-5 nm) generally exhibit higher activity due to increased surface area. Third, test the electrode under realistic operating conditions, including temperature and humidity variations, to assess durability. Finally, consider hybrid approaches, such as combining carbon with graphene or carbon nanotubes, to enhance conductivity and mechanical strength, further boosting efficiency.
In conclusion, carbon-supported catalysts are a cornerstone of modern fuel cell electrodes, offering a cost-effective, lightweight solution for enhancing catalytic activity. Their versatility and scalability make them indispensable across industries, from transportation to energy storage. By understanding their properties and optimizing their use, engineers and researchers can unlock the full potential of fuel cells, paving the way for cleaner, more sustainable energy systems.
Maximize Savings: A Step-by-Step Guide to Using Ingles Fuel Points
You may want to see also
Explore related products
Metal-organic Frameworks (MOFs): Emerging materials for enhanced electrode performance and stability
Metal-organic frameworks (MOFs) are revolutionizing electrode design in fuel cells by addressing long-standing challenges in performance and stability. These porous, crystalline materials, composed of metal ions coordinated to organic ligands, offer a unique combination of high surface area, tunable pore size, and customizable chemical functionality. This makes them ideal candidates for enhancing catalytic activity, improving ion and electron transport, and increasing durability in fuel cell electrodes.
Consider the oxygen reduction reaction (ORR), a critical yet sluggish process in fuel cells. Traditional platinum-based catalysts suffer from high cost and susceptibility to poisoning. MOFs, when incorporated into electrodes, can act as both catalyst supports and active sites. For instance, iron-based MOFs doped with nitrogen have demonstrated ORR activity comparable to platinum, at a fraction of the cost. A study published in *Nature Energy* (2020) reported a 4-fold increase in ORR performance when a ZIF-8 (zeolitic imidazolate framework) derived carbon material was used as a catalyst support, attributed to its hierarchical porosity and high nitrogen content.
However, integrating MOFs into electrodes is not without challenges. Their inherent instability in acidic or alkaline environments, typical of fuel cell conditions, can lead to structural degradation. To mitigate this, researchers are exploring strategies such as encapsulation in carbon matrices or surface modification with protective coatings. For example, coating a UiO-66 MOF with a thin layer of graphene oxide improved its stability in 0.5 M H₂SO₄ by 80% over 1000 cycles, as reported in *Journal of Materials Chemistry A* (2021).
Practical implementation of MOF-based electrodes requires careful consideration of synthesis and processing conditions. Solvothermal methods at 120–150°C are commonly used to synthesize MOFs, but post-treatment steps like pyrolysis are often necessary to enhance conductivity. For instance, pyrolyzing a copper-based MOF at 900°C under argon yields a carbon-rich material with embedded copper nanoparticles, ideal for methanol oxidation in direct methanol fuel cells.
In summary, MOFs offer a promising pathway to enhance electrode performance and stability in fuel cells. By leveraging their structural versatility and functional tunability, researchers can address key limitations of traditional electrode materials. While challenges remain, ongoing advancements in MOF design and integration techniques position them as a cornerstone of next-generation fuel cell technology.
Ender Pearls as Fuel: Efficient Power Generation in Ender IO
You may want to see also
Explore related products
Non-precious Metal Catalysts: Affordable alternatives to platinum, reducing fuel cell production costs
Platinum has long dominated as the catalyst of choice in fuel cell electrodes due to its high efficiency in facilitating the oxygen reduction reaction (ORR), a critical process in converting chemical energy into electricity. However, its prohibitive cost—often exceeding $30,000 per kilogram—has stifled the widespread adoption of fuel cells in applications like electric vehicles and renewable energy systems. This economic barrier has spurred a relentless search for non-precious metal catalysts (NPMCs) that can match platinum's performance at a fraction of the cost.
Among the most promising NPMCs are iron-nitrogen-carbon (Fe-N-C) catalysts, which have demonstrated ORR activity approaching that of platinum in alkaline and acidic environments. These catalysts are synthesized by pyrolyzing iron-containing precursors with nitrogen-rich organic materials, such as melamine or polypyrrole, at temperatures between 800°C and 1,000°C. The key to their effectiveness lies in the precise control of the pyrolysis process, which determines the atomic dispersion of iron and the graphitic structure of the carbon support. For instance, a 2021 study in *Nature Energy* reported an Fe-N-C catalyst with an ORR activity within 85% of platinum's, achieved by optimizing the carbonization temperature and nitrogen doping levels.
Despite their potential, NPMCs face durability challenges, particularly in the corrosive environment of proton-exchange membrane fuel cells (PEMFCs). Platinum's resilience in acidic conditions is unmatched, but researchers are addressing this gap through innovative strategies. One approach involves encapsulating NPMCs in protective layers, such as graphene or metal-organic frameworks, to shield them from degradation. Another method is doping NPMCs with secondary metals like manganese or cobalt to enhance their stability. For example, a manganese-doped Fe-N-C catalyst exhibited a 30% improvement in durability after 10,000 cycles, as reported in a 2022 *Journal of Power Sources* study.
The transition to NPMCs also requires rethinking electrode design and manufacturing processes. Traditional platinum-based electrodes are often fabricated using high-temperature sintering, which is incompatible with the lower thermal stability of NPMCs. Instead, solution-based methods, such as spray coating or inkjet printing, offer a cost-effective and scalable alternative. These techniques allow for precise control over catalyst loading, typically in the range of 0.1 to 0.5 mg/cm², ensuring optimal performance without material waste. Additionally, integrating NPMCs with advanced membrane materials, such as anion-exchange membranes, can further reduce system costs by eliminating the need for expensive perfluorinated polymers.
In conclusion, non-precious metal catalysts represent a transformative opportunity to slash fuel cell production costs and accelerate their commercialization. While challenges remain, particularly in durability and manufacturing scalability, ongoing advancements in material science and engineering are rapidly closing the performance gap with platinum. As NPMCs continue to evolve, they hold the potential to democratize fuel cell technology, making it accessible for a broader range of applications and contributing to a more sustainable energy future.
How Organisms Convert Food into Energy for Survival and Growth
You may want to see also
Explore related products
Nanostructured Electrodes: Improved reactivity and surface area, boosting fuel cell efficiency
Nanostructured electrodes are revolutionizing fuel cell performance by addressing two critical limitations: sluggish reaction kinetics and limited active surface area. Traditional electrodes, often composed of bulk metals like platinum, suffer from inefficient utilization of catalytic material due to their low surface-to-volume ratio. Nanostructuring, however, introduces features like nanoparticles, nanowires, or mesoporous networks, dramatically increasing the electrode's interface with reactants. This enhanced surface area facilitates more frequent and efficient electrochemical reactions, directly translating to higher current densities and power output.
Consider the oxygen reduction reaction (ORR), a rate-determining step in many fuel cells. Nanostructured platinum catalysts, for instance, exhibit significantly higher ORR activity compared to their bulk counterparts. Studies demonstrate that platinum nanoparticles with diameters below 5 nm can achieve mass activities up to 10 times greater than commercial platinum black. This improvement stems from a higher density of active sites and improved accessibility of reactant molecules to the catalyst surface.
Moreover, nanostructuring allows for precise control over material properties. By tailoring the size, shape, and composition of nanostructures, researchers can optimize electronic properties, tune catalytic activity, and enhance stability. For example, incorporating transition metal atoms into platinum nanoparticles can modify their electronic structure, promoting ORR activity while reducing costly platinum usage.
The benefits of nanostructured electrodes extend beyond reactivity. Their high surface area enables efficient utilization of expensive catalytic materials, reducing overall cost. Additionally, nanostructures can enhance mass transport within the electrode, minimizing concentration losses and improving fuel cell durability. However, challenges remain. Nanostructured materials can be prone to agglomeration and degradation under harsh operating conditions. Researchers are actively developing strategies to enhance their stability, such as incorporating supporting materials like carbon nanotubes or graphene, or employing protective coatings.
Despite these challenges, the potential of nanostructured electrodes is undeniable. Their ability to significantly enhance reactivity, surface area, and overall efficiency positions them as a key enabler for the widespread adoption of fuel cells in various applications, from portable electronics to transportation. Continued research and development in this field will undoubtedly lead to further breakthroughs, paving the way for a more sustainable and energy-efficient future.
Mastering Heavy Chopper Fuel: Efficient Usage Tips for Optimal Performance
You may want to see also
Frequently asked questions
PEM fuel cells typically use platinum (Pt) or platinum-based alloys as catalysts for both the anode and cathode. The anode catalyzes the oxidation of hydrogen, while the cathode catalyzes the reduction of oxygen.
SOFCs use ceramic materials for their electrodes. The anode is often made of nickel (Ni) combined with yttria-stabilized zirconia (YSZ), while the cathode can be composed of lanthanum strontium manganite (LSM) or other perovskite materials.
Yes, researchers are exploring non-precious metal catalysts (e.g., iron-nitrogen-carbon (Fe-N-C)) to replace expensive platinum in PEM fuel cells. For SOFCs, materials like ceria-based ceramics and doped lanthanide nickelates are being investigated to improve performance and reduce costs.
