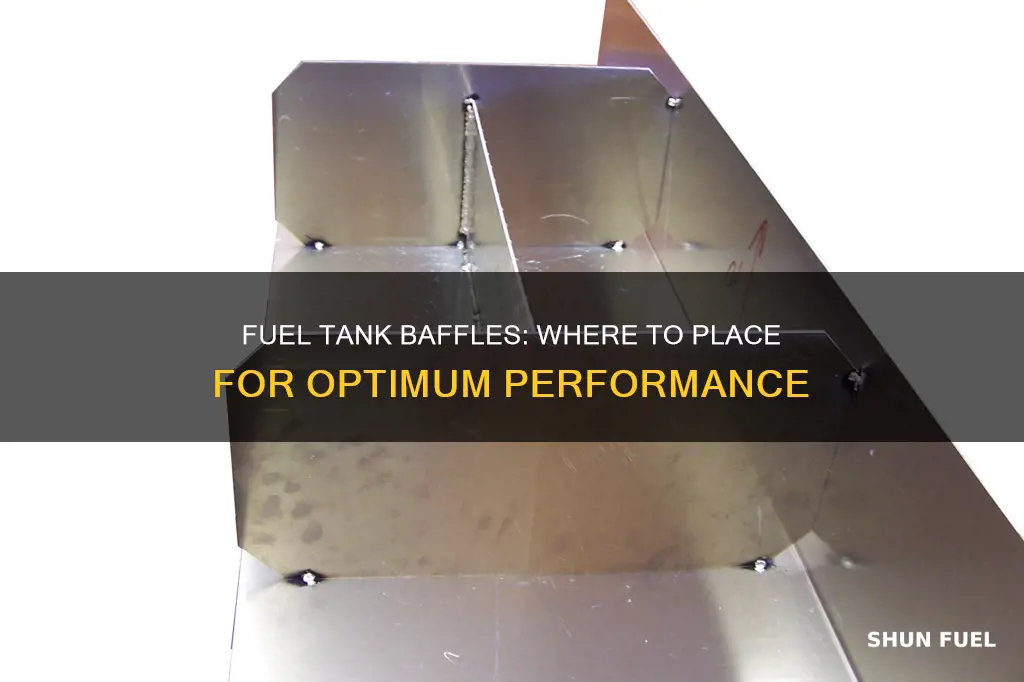

Fuel tank baffles are necessary to control fuel slosh, especially in vehicles converted to EFI. The placement of the baffles is critical to their effectiveness. For example, the baffled area for the fuel pump should be small enough to control fuel slosh, and the fuel pump should not be mounted at the front corner of the tank, as this can cause fuel starvation during right turns. In boats, baffles are vertical to prevent the horizontal travel of fluids. When securing baffles in a plastic fuel tank, some people use flange bolts at the top, while others use magnets to hold the baffle in place.
Characteristics and Values of Fuel Tank Baffle Placement
| Characteristics | Values |
|---|---|
| Placement | Baffles should be placed in the fuel tank to control fuel slosh and prevent fuel starvation issues during turns |
| Fuel Pump | The fuel pump should not be mounted at the front corner of the tank to avoid fuel starvation during right turns |
| Baffle Type | Vertical baffles are used to prevent the horizontal travel of fluids |
| Installation | The driving style, such as drag racing or road racing, determines where and how the baffles are installed |
| Securing Method | Flange bolts at the top of the tank can be used to secure the baffles, but some prefer using magnets to avoid drilling into the tank |
Explore related products
What You'll Learn
Baffle placement to prevent fuel starvation
Baffles are an important component of fuel tanks, helping to prevent fuel starvation and fuel slosh, which can cause inconsistent lap times and reduced speed in the corners.
The placement of baffles is crucial to their effectiveness. One of the most common issues with baffled fuel tanks is that the fuel pump is mounted at the front corner of the tank, which can cause fuel starvation during right turns as the fuel is pulled away from the pump. To rectify this issue, it is recommended to reposition the fuel pump to a more central location within the tank, ensuring that the baffled area is large enough to effectively control fuel slosh.
Another factor to consider when placing baffles is the intended use of the vehicle. For example, a fuel cell is an effective solution for drag racers to control fuel slosh, but it may not be suitable for regular drivers due to the loss of trunk space and fuel volume. For road racing, the baffled area for the fuel pump needs to be smaller, while still ensuring that the tank can hold enough fuel to complete the desired distance.
The use of tank foam in addition to baffles can also help to control fuel slosh and prevent starvation. This method is commonly used in aviation, where a coarse, sponge-like foam takes up a small percentage of the tank volume but effectively dampens fuel oscillations.
When securing baffles in a plastic fuel tank, it is important to consider the attachment method carefully. Some options include using flange bolts at the top of the tank or neodymium magnets to hold the baffle in place. It is crucial to ensure that the attachment method does not damage the tank or compromise the integrity of the baffle system.
