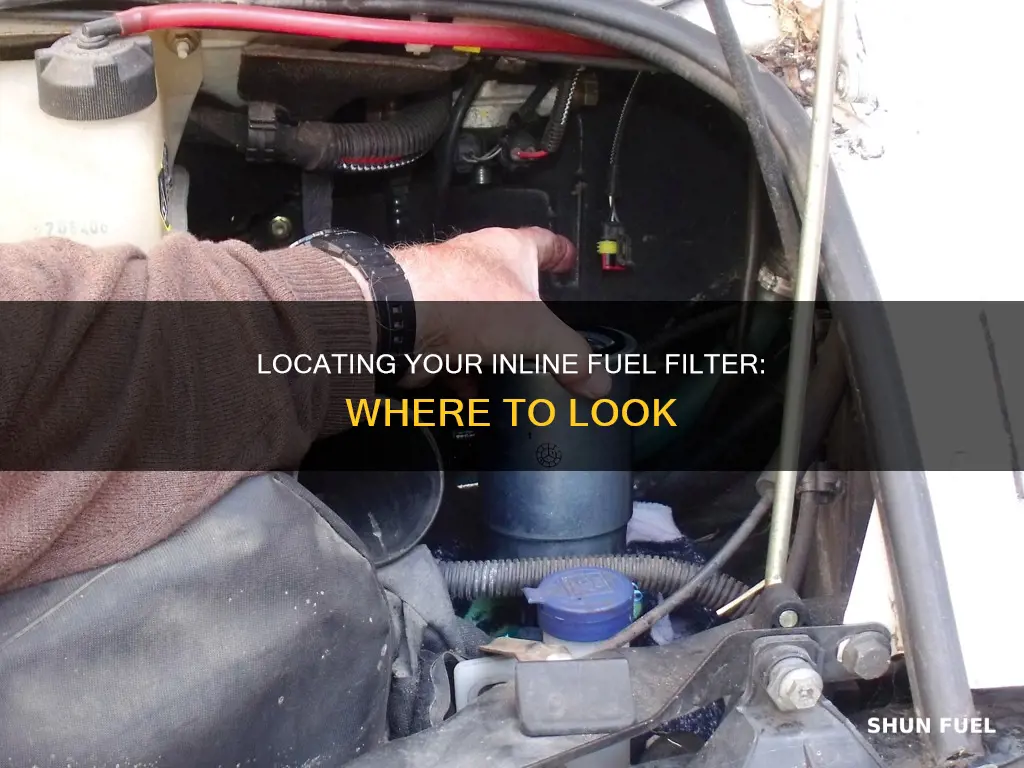

The inline fuel filter is located in the engine compartment, either under the vehicle near the fuel tank or under the hood in the fuel line near the engine. In some vehicles, the fuel filter is located in the engine bay on the line that leads to the fuel rail. The fuel filter is the fuel system's primary line of defence against dirt, debris and small particles of rust that flake off the inside of the fuel tank.
Characteristics and Values Table for Inline Fuel Filter Location
| Characteristics | Values |
|---|---|
| Common Locations | Along the fuel line on the bottom of the car, just past the fuel pump |
| In the engine bay on the line that leads to the fuel rail | |
| Inside the fuel tank | |
| In the fuel line between the tank and the fuel pump | |
| In the fuel pump | |
| In the engine compartment | |
| Under the car on the frame or sub-frame rail on the driver's side | |
| Under the hood in the fuel line near the engine | |
| Under the vehicle near the fuel tank | |
| Determining the Location | Refer to the vehicle's service manual |
Explore related products
What You'll Learn
The inline fuel filter is located in the engine compartment
The fuel filter is the fuel system's primary line of defence against dirt, debris, and small particles of rust that flake off the inside of the fuel tank. Dirty fuel filters can cause the engine to run too lean, leading to diminished performance and uneven operation. Replacing the fuel filter for preventive maintenance can reduce the risk of dirty fuel causing problems or a plugged filter causing engine performance or starting problems.
Refer to your owner's manual for the exact location of the filter. If your engine has fuel injection, your fuel filter may be located in the high-pressure fuel line, either under the vehicle near the fuel tank or under the hood in the fuel line near the engine. Some vehicles also have a fuel filter in the fuel pump, as well as a filter screen inside the fuel tank.
If your filter is installed inside the tank, you will need to drain the tank before you can remove the filter for inspection or replacement. If your filter is installed in the fuel line, remove the metal clips on each side of the filter, using needle-nose pliers, and slide the filter out of the fuel line.
BMW E90 Fuel Filter: Step-by-Step Guide to Removal
You may want to see also
Explore related products
In some vehicles, it's on the fuel line leading to the fuel rail
The inline fuel filter is an essential component of a vehicle's fuel system, ensuring that clean fuel reaches the engine. In some vehicles, it is located on the fuel line leading to the fuel rail, positioned just before the fuel rail or carb. This strategic placement allows the filter to capture any contaminants or foreign particles that may be present in the fuel line, preventing them from entering the engine.
The placement of the inline fuel filter just before the fuel rail is a carefully considered decision. By locating the filter here, any foreign particulate matter that could potentially originate from the fuel line itself can be effectively captured. This is particularly important when considering the potential breakdown of rubber components in the fuel line, especially when using ethanol-blended fuels.
While the optimal location for the inline fuel filter may vary slightly depending on the vehicle's fuel system configuration, the fundamental principle remains the same. The filter needs to be positioned in a way that ensures the fuel entering the engine is free of contaminants. This can also be achieved by placing the filter between the fuel pump and the carb, as some vehicle owners have suggested.
It is worth noting that there are also vehicles that have the fuel filter as part of the fuel pump assembly, located inside the fuel tank. This design decision is commonly seen in newer cars, which often feature in-tank electric pumps. However, the principle of ensuring clean fuel remains unchanged, regardless of the specific location of the inline fuel filter.
When deciding on the placement of an inline fuel filter, it is crucial to take into account the ease of maintenance and accessibility. While the ideal location may vary based on specific vehicle characteristics, the primary goal is to maintain a clean fuel supply to the engine, thus optimizing performance and prolonging the lifespan of the vehicle's engine.
Fuel Filter in 1997 Toyota Camry: Yes or No?
You may want to see also
Explore related products
It's usually on the underside of the car, past the fuel pump
The inline fuel filter is usually located on the underside of the car, just past the fuel pump. This is the most common location for modern vehicles. The fuel filter is placed along the fuel line on the bottom of the car.
If the fuel filter is located on the underside of your vehicle, you will need to jack up the car to access it. Slide the jack under the car at one of its designated jack points, then either pump or twist the handle to raise the vehicle. Once the vehicle is jacked up, place jack stands underneath it before working underneath.
The fuel filter is the fuel system's primary line of defence against dirt, debris, and small particles of rust that flake off the inside of the fuel tank. It is designed to remove particles and contaminants from the fuel before they enter the fuel injection system.
Refer to your owner's manual for the exact location of the filter. Some vehicles may place the fuel filter in a different location, so it is important to consult the service manual to find out for sure.
Buick Lucerne Fuel Filter: Where is it?
You may want to see also
Explore related products
In some cases, it's inside the fuel tank
The inline fuel filter is sometimes located inside the fuel tank. If the filter is installed inside the tank, the tank will need to be drained before the filter can be removed for inspection or replacement. The fuel valve should be shut if the vehicle is equipped with one. If not, the gas line should be clamped using a fuel line clamp.
Some fuel tanks have internal, non-serviceable fuel filters. In such cases, the fuel tank must be removed to access the fuel pump and filter. Modern cars with electric pumps in the tank have filters on the pressure side of the system, never on the suction side.
The fuel filter is usually placed between the pump and the carburetor. It is important to ensure that the filter is installed correctly, as some filters have a direction of flow arrow. If the filter is on the suction side of the pump, it may cause a dramatic drop in fuel pressure and flow.
If you are unsure of the location of your fuel filter, refer to your vehicle's service manual.
How Water Gets into Your Fuel Filter
You may want to see also
Explore related products
Refer to the service manual to find the exact location
The exact location of an inline fuel filter can vary depending on the vehicle's make, model, and year. To find the precise location of the inline fuel filter for your specific vehicle, it is essential to refer to the service manual or the owner's manual. These manuals provide detailed information on the location of the fuel filter, as well as instructions on how to access and replace it if necessary.
For modern vehicles, the most common location for the inline fuel filter is along the fuel line on the bottom of the car, just past the fuel pump. In some cases, the fuel filter may be located in the engine bay or engine compartment, on the line leading to the fuel rail. However, it is important to note that vehicle manufacturers may place the fuel filter in different locations, so consulting the service manual is crucial to determining the exact position.
Small engines, such as those found in lawn mowers or snow blowers, may have fuel filters located inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters, while others may have accessible filters that require draining the tank before removal or inspection. Again, referring to the appropriate manual for the specific small engine will provide the most accurate information.
In addition to the service manual, vehicle owners can also consult the dealership's service department or refer to the vehicle's owner's manual for guidance on locating the fuel filter. It is worth noting that some vehicles may have multiple fuel filters, so comprehensive knowledge of the vehicle's fuel system is beneficial when performing maintenance or repairs.
By referring to the service manual and following the provided instructions, individuals can confidently locate the inline fuel filter and perform necessary maintenance tasks to ensure the optimal performance of their vehicles.
Toyota Rav4 Fuel Filter: When to Change?
You may want to see also
Frequently asked questions
The inline fuel filter is located in the engine compartment. It is usually found in one of two places: either under the vehicle near the fuel tank or under the hood in the fuel line near the engine.
The fuel filter could also be located in the fuel pump or there may be a filter screen inside the fuel tank. Some vehicles have multiple filters.
The fuel filter will either be inside the fuel tank or fitted into the fuel line between the tank and the fuel pump.
You can refer to your vehicle's service manual to determine the exact location of the fuel filter.
