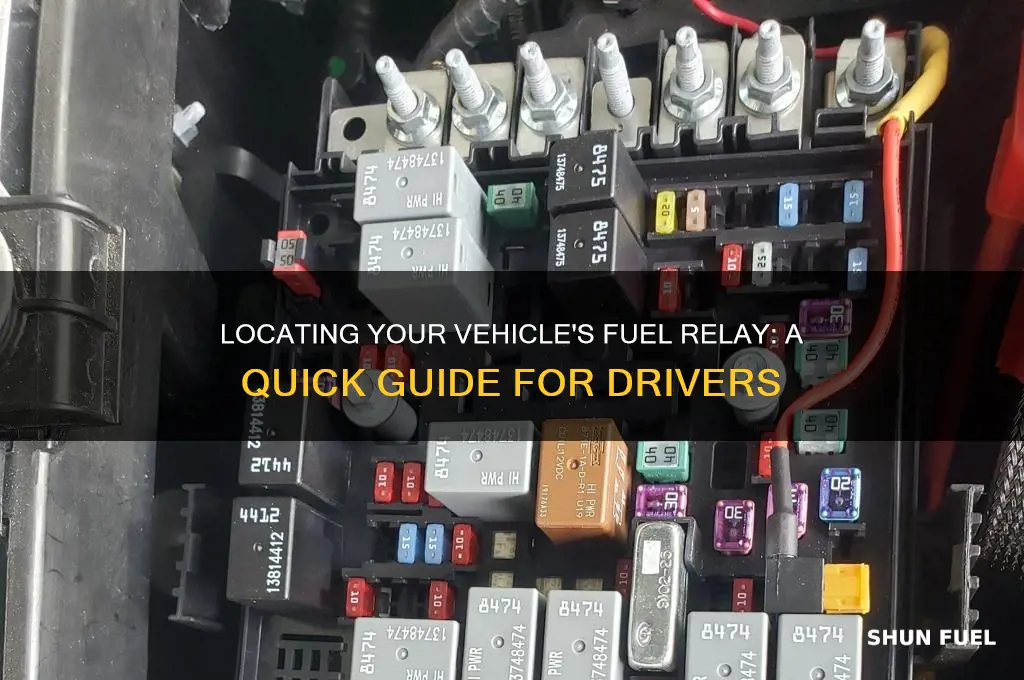

The fuel relay, a critical component in a vehicle's fuel system, is often a subject of inquiry for car owners and mechanics alike. Located typically in the fuse box under the hood or in the trunk, its exact position varies depending on the make and model of the vehicle. This relay plays a vital role in controlling the flow of electricity to the fuel pump, ensuring that the engine receives the necessary fuel for operation. Identifying its location is essential for troubleshooting fuel-related issues, such as a non-starting engine or erratic performance, making it a key area of focus for anyone looking to maintain or repair their vehicle's fuel system.
Explore related products
What You'll Learn
- Location in Different Vehicles: Varies by make/model; often near fuel pump or fuse box
- Common Symptoms of Failure: Engine stalls, no start, or inconsistent fuel delivery
- Testing the Relay: Use multimeter to check for continuity and proper function
- Replacement Steps: Disconnect battery, locate relay, swap with new one, reconnect
- Preventive Maintenance: Regularly inspect for corrosion or damage to ensure reliability
Location in Different Vehicles: Varies by make/model; often near fuel pump or fuse box
The fuel relay's location isn't a one-size-fits-all scenario. Across different vehicle makes and models, this crucial component can be found in various spots, often dictated by the manufacturer's design choices and the vehicle's overall layout. This variability underscores the importance of consulting your vehicle's manual or seeking model-specific guidance when attempting to locate the fuel relay.
In many vehicles, the fuel relay is strategically positioned near the fuel pump, a logical placement considering their interconnected functions. This proximity minimizes the length of wiring required, reducing potential points of failure and ensuring efficient operation. For instance, in some Ford models, the fuel relay is located in the engine bay, close to the firewall, while in certain Honda vehicles, it's found in the under-hood fuse/relay box. However, this isn't a universal rule, and exceptions abound.
A comparative analysis of fuel relay locations reveals interesting trends. In compact cars, space constraints often lead to the fuel relay being integrated into the fuse box, streamlining the design and conserving valuable real estate. In contrast, larger vehicles like SUVs and trucks may have the fuel relay situated near the fuel tank, facilitating easier access for maintenance and repairs. This diversity in placement highlights the need for a tailored approach when searching for the fuel relay in different vehicles.
When attempting to locate the fuel relay, it's essential to exercise caution and follow a systematic process. Start by consulting your vehicle's manual or online resources specific to your make and model. If you're unsure about the exact location, consider seeking guidance from a trusted mechanic or online forums dedicated to your vehicle. Remember, incorrect identification or handling of the fuel relay can lead to serious consequences, including fuel system malfunctions or even fires. Always prioritize safety and accuracy in your search.
In practice, understanding the fuel relay's location can be particularly useful when diagnosing fuel-related issues or performing maintenance tasks. For example, if you're experiencing difficulty starting your vehicle or notice a drop in fuel efficiency, checking the fuel relay could be a crucial step in identifying the root cause. By familiarizing yourself with your vehicle's unique layout and the fuel relay's position, you'll be better equipped to tackle these challenges and ensure your vehicle's optimal performance. Keep in mind that while the fuel relay's location may vary, its importance in the fuel system remains constant across all vehicles.
