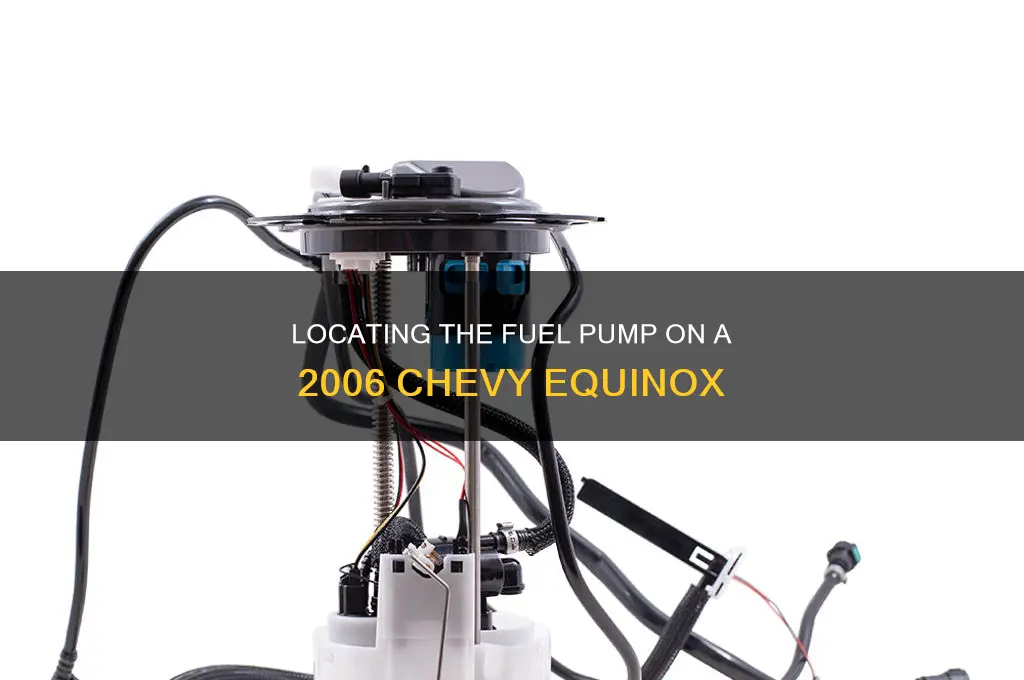

The fuel pump on a 2006 Chevrolet Equinox is located inside the fuel tank, which is situated beneath the rear passenger side of the vehicle. Accessing the fuel pump requires removing the rear seat cushion and the fuel tank access cover, followed by lowering the fuel tank itself. This design places the fuel pump in a protected environment, ensuring it remains submerged in fuel to prevent overheating and maintain consistent performance. Due to its location, replacing the fuel pump can be a labor-intensive task, often requiring specialized tools and a basic understanding of automotive repair procedures.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank for access |
| Fuel Tank Removal Steps | 1. Relieve fuel system pressure 2. Drain fuel tank 3. Disconnect fuel lines and electrical connectors 4. Lower and remove the fuel tank |
| Fuel Pump Module | Integrated with the fuel sender assembly |
| Tools Required | Basic hand tools, fuel line disconnect tool, safety equipment |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and relieve fuel pressure |
| Replacement Difficulty | Moderate to difficult (due to fuel tank removal) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connector corrosion |
| Compatibility | Specific to 2006 Chevrolet Equinox models |
Explore related products
What You'll Learn
Fuel pump location in 2006 Equinox
The fuel pump in a 2006 Chevrolet Equinox is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature extremes. To access the fuel pump, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the tank lines, and lowering the tank from the vehicle. This process demands caution due to the flammable nature of fuel and the weight of the tank when full.
Analyzing the fuel pump’s location reveals a trade-off: while in-tank placement enhances reliability and performance, it complicates replacement. Unlike external fuel pumps, which are easier to access, in-tank pumps require more labor-intensive steps. For a 2006 Equinox, this involves raising the vehicle, supporting the tank, and using specialized tools to remove the tank straps and lines. DIYers should consider renting a lift or using jack stands for safety, as working under a vehicle with a partially drained fuel tank carries risks.
Persuasively, opting for professional replacement of the fuel pump in a 2006 Equinox can save time and ensure safety, especially for those unfamiliar with fuel system repairs. Mechanics have the tools and experience to handle fuel lines, electrical connections, and tank removal efficiently. However, if you’re determined to tackle the job yourself, invest in a repair manual specific to the 2006 Equinox for detailed instructions and torque specifications. Additionally, always work in a well-ventilated area and avoid open flames or sparks during the process.
Comparatively, the fuel pump location in the 2006 Equinox differs from earlier models where pumps were often mounted externally, typically near the fuel tank or along the frame rail. This evolution reflects advancements in fuel system design aimed at improving efficiency and durability. While external pumps are simpler to replace, in-tank pumps offer better cooling and reduced noise, making them a preferred choice in newer vehicles like the 2006 Equinox. Understanding this shift helps owners appreciate the design rationale and prepare for the replacement process.
Descriptively, the fuel pump assembly in a 2006 Equinox includes the pump itself, a sending unit for the fuel gauge, and a filter to keep contaminants out of the fuel system. The assembly is mounted on the top of the fuel tank and secured with a locking ring. To replace it, you’ll need a specialized fuel pump removal tool to release the locking ring without damaging the tank. Once removed, the old pump can be swapped out for a new one, and the assembly reinstalled. Always test for leaks and ensure all connections are secure before refilling the tank.
Napa Fuel Pumps Review: Performance, Reliability, and Value Analysis
You may want to see also
Explore related products
Accessing the fuel pump in a 2006 Equinox
The fuel pump in a 2006 Chevrolet Equinox is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of fuel vapor lock. This design, while efficient, complicates access for maintenance or replacement. To reach the fuel pump, you must first address the fuel tank itself, which is situated beneath the rear passenger seats. This placement requires careful planning and safety precautions to avoid hazards like fuel spills or electrical shorts.
Steps to Access the Fuel Pump:
- Prepare the Vehicle: Park on a level surface, engage the parking brake, and disconnect the battery to prevent accidental ignition. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a tool.
- Remove Rear Seats: Lift the rear seat cushions by pulling the release tabs, then unbolt and remove the seatbacks to expose the fuel tank access panel.
- Access the Fuel Tank: Use a jack to safely raise the vehicle and locate the fuel tank. Disconnect the fuel lines and electrical connectors, ensuring to label their positions for reassembly.
- Lower the Tank: Unbolt the tank straps and carefully lower the fuel tank to access the fuel pump module.
Cautions and Practical Tips:
Working on a fuel system carries inherent risks. Always wear safety goggles and gloves, and avoid open flames or sparks. If you’re unsure about any step, consult a professional. For DIY enthusiasts, consider renting a fuel pump module removal tool to simplify the process. Additionally, replacing the fuel pump gasket is recommended during this procedure to prevent leaks.
Takeaway: Accessing the fuel pump in a 2006 Equinox is a task that demands precision and caution. While the process is labor-intensive, understanding the steps and taking safety measures can make it manageable. If you’re uncomfortable with any part of the procedure, seeking professional assistance is a wise decision to ensure the job is done safely and correctly.
Locate the Fuel Pump Relay in Your 2004 VW Beetle
You may want to see also
Explore related products
Identifying fuel pump components in 2006 Equinox
The fuel pump in a 2006 Chevrolet Equinox is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This in-tank design integrates the pump, sending unit, and often a filter into a single module, making it both efficient and compact. To access this component, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the tank lines, and lowering it from the vehicle. This process demands caution due to the flammable nature of fuel and the weight of the tank when full.
Identifying the fuel pump module begins with recognizing its key components. The module typically includes the electric fuel pump, a fuel level sender, and a fuel filter. The pump itself is a compact electric motor that draws fuel from the tank and delivers it to the engine. The sender is a float mechanism that measures fuel levels and sends data to the fuel gauge. The filter, often integrated into the module, traps debris to prevent contamination. These components are housed in a single assembly, usually secured to the top of the fuel tank with a locking ring or bolts.
When diagnosing fuel pump issues, start by checking for symptoms like a no-start condition, sputtering, or loss of power, especially during acceleration. If you suspect the pump is faulty, use a fuel pressure gauge to test pressure at the fuel rail. For a 2006 Equinox with the 3.4L V6 engine, the fuel pressure should read between 49 and 55 psi. If pressure is low or nonexistent, the pump or its electrical connections may be at fault. Always inspect the fuel pump relay and fuse before assuming the pump itself is defective, as these are common culprits for electrical failures.
Replacing the fuel pump module requires precision and safety precautions. After removing the fuel tank, disconnect the electrical connector and fuel lines from the module. Remove the locking ring or bolts securing the module to the tank, then carefully lift it out. When installing a new module, ensure the rubber gasket is properly seated to prevent leaks. Reassemble the tank, refill it with fuel, and check for leaks before starting the vehicle. This process, while labor-intensive, is straightforward with the right tools and a methodical approach.
Understanding the fuel pump’s role in the Equinox’s fuel system highlights its importance in maintaining engine performance. The in-tank design not only ensures consistent fuel delivery but also protects the pump from heat and external damage. Regular maintenance, such as replacing the fuel filter as part of the module or using high-quality fuel, can extend the pump’s lifespan. For DIY enthusiasts, familiarizing yourself with these components and their functions can save time and money, turning a daunting repair into a manageable task.
Bad Fuel Pump: How It Impacts Your Speedometer Accuracy
You may want to see also
Explore related products
Tools needed to replace 2006 Equinox fuel pump
The 2006 Chevrolet Equinox’s fuel pump is located inside the fuel tank, requiring a combination of specialized and common hand tools for replacement. Unlike external pumps, this in-tank design demands disassembling components to access the unit, making tool selection critical for efficiency and safety.
Essential Tools for Access and Removal
Begin with a floor jack and jack stands to safely raise the vehicle, as the fuel tank is located beneath the rear passenger side. A 10mm socket and ratchet are needed to remove the fuel tank shield, exposing the tank straps. Loosen these straps with a 15mm wrench or socket, but do not fully remove them until the fuel lines are disconnected. A fuel line disconnect tool (specific to GM vehicles) is essential to release the quick-connect fittings without damaging the lines. A flathead screwdriver or trim panel tool may also be required to pry off any protective covers.
Specialized Tools for Pump Replacement
Once the tank is lowered, a locking fuel tank ring wrench (or strap wrench) is necessary to remove the tank’s retaining ring without stripping it. Inside the tank, the fuel pump module is secured by a locking cam or clips, which may require a pump module removal tool or needle-nose pliers for extraction. A torque wrench is recommended to reinstall the retaining ring to factory specifications (typically 40-50 ft-lbs), ensuring a leak-free seal.
Safety and Diagnostic Equipment
Before starting, a fuel pressure gauge and battery disconnect tool are crucial for safety. Relieve fuel system pressure by locating the Schrader valve on the fuel rail and attaching the gauge. A battery disconnect tool ensures no accidental sparks occur during the process. Additionally, a drain pan is necessary to catch residual fuel when lowering the tank, minimizing environmental hazards and cleanup.
Optional but Recommended Tools
While not mandatory, a transmission jack or helper makes handling the fuel tank easier, especially for solo workers. A multimeter can verify the pump’s electrical connections pre- and post-replacement, ensuring functionality. For those replacing the pump due to failure, a fuel tank cleaning brush removes debris that could damage the new unit.
By assembling these tools beforehand, the replacement process becomes systematic and less prone to errors, saving time and reducing the risk of damage to the vehicle or injury to the technician.
Warning Signs of a Failing Fuel Pump: What to Watch For
You may want to see also
Explore related products
Steps to remove 2006 Equinox fuel pump
The fuel pump on a 2006 Chevrolet Equinox is located inside the fuel tank, a common placement in modern vehicles to help keep the fuel cool and reduce the risk of vapor lock. Removing it requires careful preparation and a systematic approach to avoid hazards like fuel spills or electrical shorts. Before starting, ensure the vehicle is on a flat surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage.
Step 1: Relieve Fuel System Pressure
Begin by relieving the fuel system pressure to prevent fuel from spraying during removal. Locate the fuel pump module fuse or relay in the engine bay fuse box and remove it. Start the engine and let it run until it stalls, then crank it for a few seconds to ensure pressure is fully relieved. This step is critical for safety and ease of removal.
Step 2: Access the Fuel Tank
With the pressure relieved, disconnect the negative battery terminal to prevent accidental electrical engagement. Raise the rear of the vehicle using a jack and secure it on stands. Locate the fuel tank, which is positioned beneath the rear seat area. Remove the rear seat bottom cushion by pulling the release tabs and lifting it out. Directly below, you’ll find the fuel pump access panel secured by several screws or bolts. Remove these to expose the fuel pump module.
Step 3: Disconnect and Remove the Fuel Pump Module
Carefully disconnect the electrical connector and fuel lines from the fuel pump module. Use a fuel line disconnect tool if necessary to avoid damaging the lines. Once disconnected, insert a drain pan beneath the module to catch any residual fuel. Unscrew the locking ring securing the module to the tank using a specialized fuel pump module removal tool. Lift the module out slowly, being mindful of any remaining fuel.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks. If the fuel tank is not empty, consider siphoning fuel beforehand to reduce spillage. Inspect the fuel tank for signs of corrosion or damage before reinstalling a new pump. If the locking ring is difficult to remove, apply gentle, even pressure to avoid warping the tank.
Removing the fuel pump on a 2006 Equinox is a task that requires precision and caution. By following these steps and taking necessary precautions, you can safely replace the fuel pump and restore your vehicle’s performance. Always refer to a repair manual or seek professional assistance if you’re unsure about any part of the process.
Disconnecting Fuel Pumps from Trendar System: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2006 Equinox is located inside the fuel tank, which is situated underneath the rear passenger side of the vehicle.
To access the fuel pump, you'll need to remove the fuel tank. This involves relieving the fuel system pressure, disconnecting the negative battery cable, raising the vehicle, and then lowering the tank after disconnecting the fuel lines and electrical connectors.
No, the fuel pump on a 2006 Equinox is an in-tank unit, meaning it's located inside the fuel tank. To replace it, you must remove the fuel tank from the vehicle.
You'll need a variety of tools, including a floor jack and jack stands, wrenches or sockets, a fuel line disconnect tool, a new fuel pump module, and possibly a specialty tool to lock the fuel tank ring during reassembly. It's also recommended to have a repair manual specific to your vehicle for detailed instructions.
