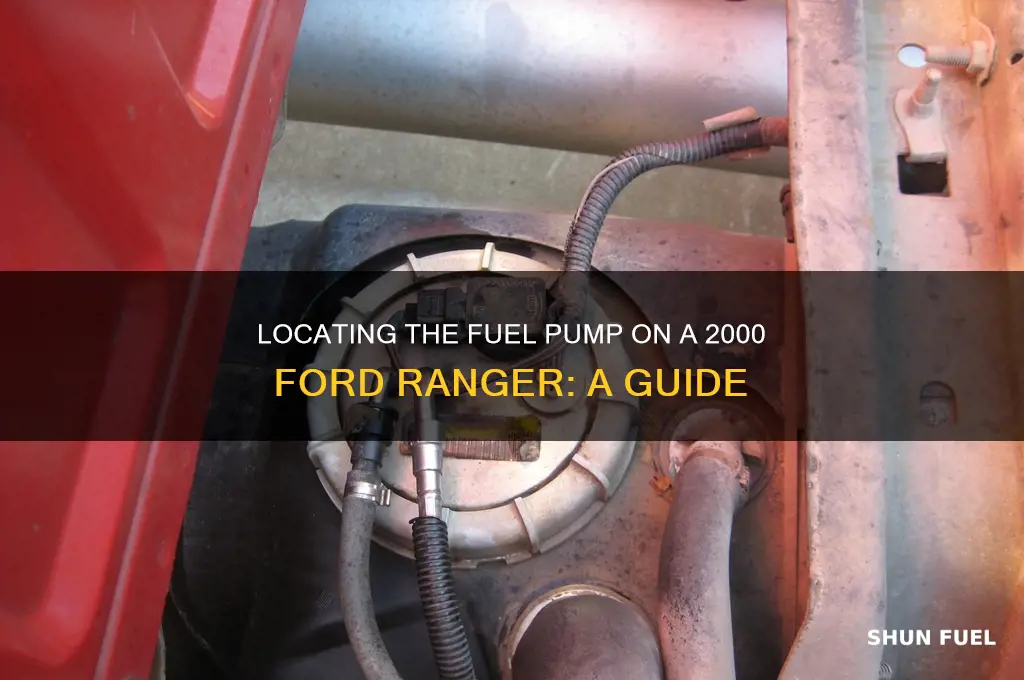

The fuel pump on a 2000 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle's rear seat area. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank or carefully extracting the pump assembly from the tank. This in-tank design is common in many modern vehicles to protect the pump from external damage and maintain fuel pressure efficiently. Proper safety precautions, such as relieving fuel system pressure and disconnecting the battery, are essential before attempting any repairs or replacements.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Fuel Tank Removal | Necessary to replace or service the fuel pump |
| Tank Support | Supported by straps or brackets under the vehicle |
| Pump Type | In-tank electric fuel pump |
| Model Year | 2000 Ford Ranger |
| Tank Capacity | Approximately 15.5 gallons (varies by model) |
| Pump Replacement Difficulty | Moderate to difficult due to tank removal requirement |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and fuel line disconnect tools |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty relay |
Explore related products
What You'll Learn
- Fuel Pump Location: Under the truck, near the fuel tank, accessible from underneath
- Accessing the Pump: Requires removing the skid plate and fuel tank shield
- Tools Needed: Basic socket set, wrenches, and a jack for undercarriage access
- Safety Precautions: Disconnect battery, relieve fuel pressure, and work in a well-ventilated area
- Replacement Steps: Drain fuel, disconnect lines, remove pump, and install new unit
Fuel Pump Location: Under the truck, near the fuel tank, accessible from underneath
The fuel pump on a 2000 Ford Ranger is strategically located under the truck, in close proximity to the fuel tank. This placement is both practical and efficient, as it minimizes the distance fuel needs to travel from the tank to the engine. When accessing the fuel pump, you’ll find it mounted directly on or near the fuel tank, typically on the top or side, depending on the model. This design ensures a consistent fuel supply while reducing the risk of airlocks in the system. To locate it, start by jacking up the truck and securing it on stands, then trace the fuel lines from the tank to identify the pump’s exact position.
Accessing the fuel pump from underneath the truck requires a systematic approach. Begin by ensuring the vehicle is on a level surface and the ignition is off to prevent accidents. Use a jack to lift the truck and place jack stands under the frame for stability. Once safely elevated, crawl under the vehicle and locate the fuel tank, which is usually near the rear axle. The fuel pump module is often attached to the top of the tank, requiring you to remove a protective shield or skid plate for visibility. Be prepared to disconnect electrical connectors and fuel lines, so have wrenches and a fuel line disconnect tool handy.
One of the advantages of this under-truck location is the ease of inspection and maintenance. Unlike in-tank fuel pumps found in newer vehicles, the 2000 Ford Ranger’s design allows for quicker diagnostics and replacement without dropping the tank. However, working underneath the vehicle demands caution. Always wear safety goggles and gloves, and consider using a drip pan to catch any residual fuel. If you’re unsure about the process, consult a repair manual or seek professional assistance to avoid damaging components or compromising safety.
Comparing this setup to other vehicles, the 2000 Ford Ranger’s fuel pump location is more accessible than many modern designs, which often integrate the pump inside the fuel tank. This external placement simplifies troubleshooting, such as checking for pump noise or testing electrical connections. However, it also exposes the pump to potential damage from road debris or corrosion, so regular inspections are crucial. For DIY enthusiasts, this accessibility makes the Ranger a more forgiving vehicle for fuel system repairs, provided proper safety measures are followed.
In summary, the fuel pump’s under-truck location near the fuel tank on a 2000 Ford Ranger offers a balance of efficiency and accessibility. While it requires working in a confined space, the design allows for straightforward maintenance and repairs. Always prioritize safety when accessing the pump, and familiarize yourself with the specific components of your vehicle. With the right tools and precautions, addressing fuel pump issues on this model can be a manageable task for both novice and experienced mechanics.
1989 Mercedes 300 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Accessing the Pump: Requires removing the skid plate and fuel tank shield
The fuel pump on a 2000 Ford Ranger is nestled within the fuel tank, a design choice that protects it from external damage but complicates access. To reach it, you’ll need to remove both the skid plate and the fuel tank shield, a process that demands patience and the right tools. These components serve as protective barriers, shielding the fuel tank and pump from debris and impacts during off-road or rough driving conditions. While their removal is necessary, it’s a step that underscores the importance of safety and precision in automotive repairs.
Begin by securing the vehicle on a flat surface and engaging the parking brake. Use a jack and jack stands to safely lift the truck, ensuring you have enough clearance to work beneath it. The skid plate, typically secured by a series of bolts or clips, is the first to go. Depending on the model, you may encounter rusted or stubborn fasteners, so having a penetrating oil like WD-40 on hand can save time and frustration. Once removed, set the skid plate aside carefully to avoid damaging its protective coating.
Next, tackle the fuel tank shield, which is often held in place by additional bolts or screws. This component is lighter and easier to handle than the skid plate but requires careful maneuvering to avoid bending or warping. With both protective layers removed, the fuel tank will be exposed, revealing the access point for the fuel pump. At this stage, it’s crucial to work in a well-ventilated area and avoid any open flames or sparks, as fuel vapors pose a significant fire risk.
Before proceeding further, relieve the fuel system pressure to prevent accidental fuel spray. This involves locating the Schrader valve on the fuel rail and using a pressure gauge to release the pressure safely. Once complete, disconnect the negative battery terminal to eliminate the risk of electrical shorts. These precautions, while time-consuming, are essential for a safe and successful repair. With the preliminaries out of the way, you’re now ready to address the fuel pump itself, whether for inspection, replacement, or maintenance.
Diagnosing Fuel Pump Issues in a 1999 Mercury Sable: A Guide
You may want to see also
Explore related products
Tools Needed: Basic socket set, wrenches, and a jack for undercarriage access
Locating and accessing the fuel pump on a 2000 Ford Ranger requires a specific set of tools to ensure the job is done safely and efficiently. A basic socket set is indispensable for removing bolts and fasteners that secure the fuel tank or its components. Opt for a metric set with sizes ranging from 8mm to 15mm, as these are commonly used in Ford vehicles. Ensure the sockets are in good condition to prevent stripping bolts, which can complicate the repair process.
Wrenches are equally essential, particularly for tasks where sockets may not fit or when working in tight spaces. A combination wrench set with both open-end and box-end options provides versatility. For this specific task, focus on wrenches sized 10mm to 15mm, as they align with the fasteners typically found on the fuel pump assembly. Keep in mind that adjustable wrenches can be used in a pinch, but they may not provide the same precision or torque control.
The jack is critical for undercarriage access, as the fuel pump is located inside the fuel tank, which is mounted beneath the vehicle. Use a hydraulic floor jack rated for at least 2 tons to safely lift the truck. Pair it with jack stands to secure the vehicle at the recommended lift points, ensuring stability while you work. Never rely solely on the jack to hold the vehicle aloft, as this poses a significant safety risk.
When assembling your tools, consider the workspace and lighting conditions. Working under a vehicle often means limited visibility, so a drop light or headlamp can be invaluable. Additionally, keep a drain pan and safety goggles on hand to handle any fuel spillage during the process. Proper preparation not only streamlines the task but also minimizes the risk of accidents or damage to the vehicle.
Finally, while these tools are essential, their effectiveness depends on proper technique. Always refer to a repair manual or trusted guide for step-by-step instructions specific to the 2000 Ford Ranger. Understanding the sequence of disassembly and reassembly ensures that you don’t overlook critical steps, such as relieving fuel system pressure before removing the pump. With the right tools and knowledge, accessing and replacing the fuel pump becomes a manageable DIY task.
Priming Your 01 Dodge Cummins Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Safety Precautions: Disconnect battery, relieve fuel pressure, and work in a well-ventilated area
Before attempting any work on the fuel pump of a 2000 Ford Ranger, prioritizing safety is paramount. Fuel systems operate under pressure and contain flammable materials, making them inherently dangerous if mishandled. Three critical precautions must be taken: disconnecting the battery, relieving fuel pressure, and working in a well-ventilated area. These steps are not optional—they are essential to prevent fires, explosions, and personal injury.
Disconnecting the battery is the first line of defense. The fuel pump is powered by the vehicle’s electrical system, and removing the battery connection eliminates the risk of accidental activation. To do this, locate the negative terminal (usually marked with a "-" symbol) and use a wrench to loosen the nut, then carefully pull the cable away from the terminal. Ensure the cable does not come into contact with any metal surfaces that could create a ground, as this could still allow current to flow. This simple step neutralizes the electrical hazard, making the rest of the process safer.
Relieving fuel pressure is equally critical. The fuel system in a 2000 Ford Ranger operates under significant pressure, which can cause fuel to spray or leak if the system is opened without depressurization. To relieve this pressure, locate the Schrader valve on the fuel rail (often near the engine) and press it with a tool designed for this purpose, such as a fuel pressure gauge or a small screwdriver. You may hear a brief hiss as pressure is released. If the engine has been running recently, allow it to cool for at least 30 minutes before attempting this step, as residual heat can increase pressure and the risk of ignition.
Working in a well-ventilated area is a non-negotiable safety measure. Fuel vapors are highly flammable and can accumulate in enclosed spaces, creating an explosion hazard. If working indoors, open all doors and windows, and consider using a fan to maintain airflow. Outdoors is always the safest option, provided it’s away from open flames, sparks, or other ignition sources. Avoid using any equipment that could generate heat or static electricity, such as power tools or cell phones, near the work area. Even a small spark can ignite fuel vapors, turning a routine repair into a catastrophic event.
By following these precautions—disconnecting the battery, relieving fuel pressure, and working in a well-ventilated area—you significantly reduce the risks associated with fuel pump maintenance on a 2000 Ford Ranger. These steps are not just recommendations; they are fundamental practices that protect both you and your vehicle. Skipping any of them could lead to serious consequences, from minor injuries to major fires. Safety should never be compromised, especially when dealing with volatile systems like fuel delivery.
Step-by-Step Guide to Removing a 2006 Jackpot Fuel Pump
You may want to see also
Explore related products
Replacement Steps: Drain fuel, disconnect lines, remove pump, and install new unit
The fuel pump on a 2000 Ford Ranger is located inside the fuel tank, a common placement for many vehicles to maintain fuel pressure and reduce vapor lock. Replacing it requires careful steps to ensure safety and efficiency. Begin by draining the fuel to minimize spillage and fire hazards. Use a siphon pump or a hand-operated fuel transfer pump to remove as much fuel as possible from the tank. Always work in a well-ventilated area and avoid open flames or sparks during this process.
Once the fuel is drained, disconnect the fuel lines and electrical connectors attached to the pump. Label each line and connector to avoid confusion during reassembly. The fuel lines are typically secured with clamps or quick-disconnect fittings, which can be released using pliers or a specialized tool. Be prepared for residual fuel to leak out, so have a drain pan or absorbent material ready. The electrical connectors may require gentle prying with a flathead screwdriver to detach without damaging the wiring harness.
With the lines and connectors removed, the next step is to extract the fuel pump assembly from the tank. Access the pump by removing the fuel tank or through an access panel, depending on the Ranger’s configuration. Loosen the retaining ring or bolts securing the pump module to the tank, then carefully lift it out. Inspect the tank for debris or contamination before installing the new unit. Clean the tank if necessary to prevent premature failure of the replacement pump.
Installing the new fuel pump involves reversing the removal process with precision. Ensure the pump module is aligned correctly and secured tightly to prevent leaks. Reattach the fuel lines and electrical connectors, double-checking their positions based on your earlier labels. Once installed, refill the tank with a small amount of fuel and turn the ignition to the "on" position to pressurize the system. Check for leaks around the pump and connections before fully refilling the tank and starting the engine. This methodical approach ensures a successful replacement and restores the Ranger’s fuel delivery system to optimal performance.
Locating the Fuel Pump on a 1996 Oldsmobile Bravada
You may want to see also
Frequently asked questions
The fuel pump on a 2000 Ford Ranger is located inside the fuel tank, which is situated beneath the vehicle's bed, near the driver's side rear wheel.
To access the fuel pump, you need to remove the fuel tank. First, relieve the fuel system pressure, then disconnect the battery, and lower the tank by removing the retaining straps.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to replace the pump.
Symptoms include difficulty starting the engine, sputtering or stalling, loss of power, and unusual noises coming from the fuel tank area.
Replacing the fuel pump typically takes 2-4 hours, depending on your experience and the tools available. It’s a moderately complex job due to the need to remove the fuel tank.
