The fuel pump in a 1996 Ford F-150 is typically located inside the fuel tank, a common design feature in many vehicles of that era to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which involves safely lowering it from the vehicle after disconnecting the fuel lines and electrical connections. This setup ensures the pump operates in a cooled environment, submerged in fuel, but also means replacement or maintenance can be labor-intensive, often requiring specialized tools and precautions to handle flammable materials safely.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for removal/replacement |
| Fuel Tank Location | Beneath the truck bed, between the frame rails |
| Tank Removal Tools | Jack, jack stands, wrenches, and fuel line disconnect tools |
| Pump Type | In-tank electric fuel pump |
| Common Issues | Pump failure due to age, contamination, or lack of fuel lubrication |
| Replacement Difficulty | Moderate to difficult (requires mechanical skill and safety precautions) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Estimated Replacement Time | 2-4 hours depending on experience |
| Compatibility | Specific to 1996 Ford F-150 models with in-tank fuel pump systems |
Explore related products
What You'll Learn
Fuel pump location under the truck
The fuel pump in a 1996 Ford F-150 is located within the fuel tank, a design choice that offers both advantages and challenges for maintenance. This in-tank placement, common in many modern vehicles, helps regulate fuel temperature and reduces the risk of vapor lock, ensuring consistent fuel delivery to the engine. However, accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions.
To locate the fuel pump under the truck, start by identifying the fuel tank, typically positioned along the vehicle’s underside near the rear axle. The tank is usually secured by straps and may have protective shielding. Before proceeding, relieve the fuel system pressure by disconnecting the fuel pump relay and running the engine until it stalls. This step is critical to prevent fuel spray or fire hazards during the removal process.

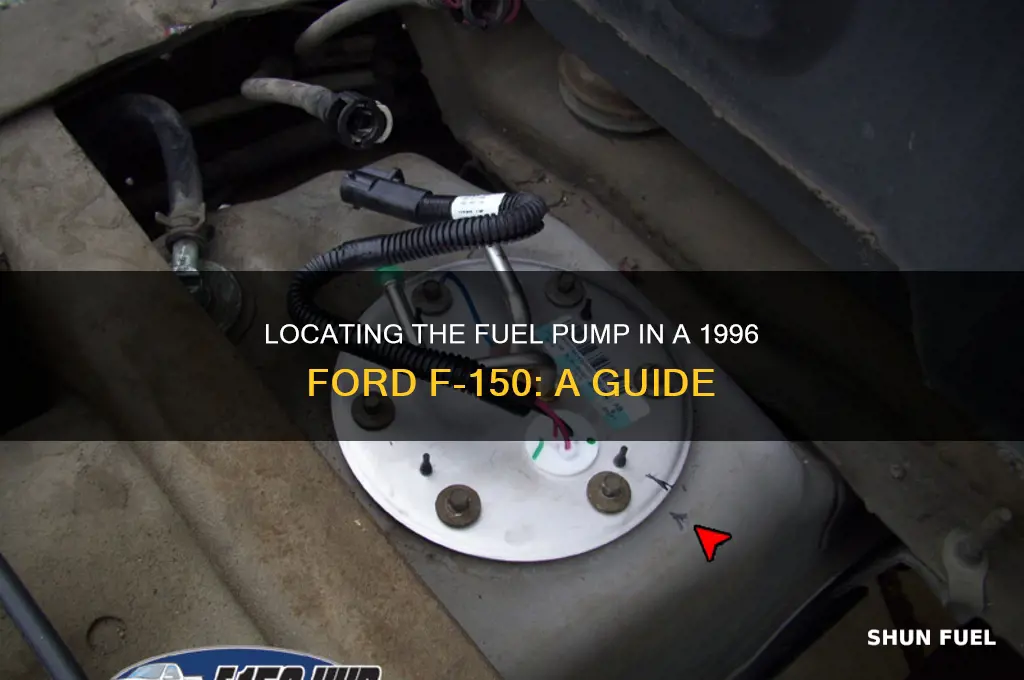

Once the fuel tank is safely lowered, the fuel pump module will be visible at the top of the tank. The module consists of the pump, sending unit, and float, all housed in a single assembly. Disconnect the electrical connector and fuel lines, then remove the retaining ring or bolts securing the module to the tank. Be prepared for residual fuel to spill, so have a drain pan and absorbent materials ready.
Replacing the fuel pump requires careful installation of the new module, ensuring the seal is intact to prevent leaks. Reattach the electrical connector and fuel lines, then reinstall the tank, securing it firmly with the straps. After reassembly, turn the ignition on for a few seconds to pressurize the system, then check for leaks before starting the engine. This process, while labor-intensive, ensures the fuel pump operates reliably, maintaining the truck’s performance and efficiency.
Selecting the Right Fuel Pump Size: A Comprehensive Guide
You may want to see also
Explore related products
Accessing the fuel pump in the tank
The fuel pump in a 1996 Ford F-150 is located inside the fuel tank, a design choice that protects the pump from heat and contamination while ensuring a consistent fuel supply. Accessing it requires careful planning and execution to avoid damage or injury. Begin by relieving the fuel system pressure using the Schrader valve on the fuel rail, a step that’s critical to prevent fuel spray or fires. Disconnect the battery to eliminate any risk of sparks, and ensure the vehicle is on a level surface with the tank no more than half full to reduce weight and fuel sloshing.
Once preliminary steps are complete, locate the fuel tank beneath the truck, typically near the rear axle. The fuel pump module is attached to the top of the tank, accessible through a panel in the truck’s bed or by lowering the tank itself. If your F-150 has a bed liner, remove it to expose the access panel. Use a jack and stands to support the tank if lowering it, ensuring stability to avoid strain on the fuel lines. Loosen the retaining bolts carefully, as they may be corroded, and have a drain pan ready if residual fuel spills.
Removing the fuel pump module involves disconnecting electrical connectors and fuel lines, a process that demands precision. Label each connection to simplify reassembly, and use appropriate tools to avoid damaging the quick-disconnect fittings. The module is secured by a locking ring or bolts, depending on the model, so consult a repair manual for specifics. Once removed, inspect the pump and sender for wear or debris, as contamination is a common cause of failure in older vehicles like the 1996 F-150.
Reinstallation requires a new gasket or O-ring to ensure a tight seal, preventing leaks that could lead to safety hazards or performance issues. Torque the locking ring or bolts to manufacturer specifications, typically around 20-25 ft-lbs, to avoid over-tightening. Reconnect the fuel lines and electrical connectors, ensuring they click securely into place. After reassembly, cycle the ignition a few times to pressurize the system, then check for leaks before starting the engine. This methodical approach ensures the fuel pump is accessed and replaced safely, maintaining the reliability of your F-150.
Does FiTech Control Voltage to Fuel Pump? A Comprehensive Guide
You may want to see also
Explore related products
Tools needed for fuel pump removal
The fuel pump in a 1996 Ford F-150 is located inside the fuel tank, which means removing it requires a specific set of tools to access and extract the component safely. Before diving into the removal process, it’s crucial to gather the right tools to ensure efficiency and prevent damage to the vehicle. Here’s a detailed breakdown of what you’ll need.
Essential Tools for Fuel Pump Removal
To start, a floor jack and jack stands are indispensable for safely raising the vehicle and accessing the fuel tank. A wrench set (both metric and standard sizes) or a socket set with extensions will be necessary for loosening bolts and connections. Additionally, a screwdriver set (flathead and Phillips) is required for removing any screws or panels obstructing access to the tank. For cutting through the fuel lines, a tubing cutter or fuel line disconnect tool is essential to avoid spills or damage.
Specialized Tools and Safety Equipment
A fuel pump module removal tool is highly recommended for extracting the pump assembly without causing harm to the tank. This tool typically includes a locking ring removal socket and a pry bar designed for fuel pump modules. Safety should never be overlooked; safety goggles and nitrile gloves are mandatory to protect against fuel spills and debris. A drain pan is also crucial for catching any residual fuel when disconnecting the lines.
Optional but Helpful Tools
While not strictly necessary, a battery-operated impact wrench can save time when removing stubborn bolts. A flashlight or work light is invaluable for illuminating the undercarriage, especially in low-light conditions. For those who prefer precision, a torque wrench ensures bolts are tightened to factory specifications during reassembly. Lastly, a fuel pressure gauge can be used to diagnose pump issues before removal, though it’s not required for the removal process itself.
Practical Tips for Tool Usage
When using the tubing cutter, ensure it’s properly aligned to avoid uneven cuts that could compromise the fuel lines. For the fuel pump module removal tool, apply steady pressure to avoid bending or damaging the locking ring. Always double-check that the jack stands are securely in place before sliding under the vehicle. If you’re unsure about any tool’s function, consult the vehicle’s service manual or a trusted repair guide for clarity.
By equipping yourself with these tools and following these tips, you’ll be well-prepared to tackle the fuel pump removal process on your 1996 Ford F-150 with confidence and precision.
Does CF Moto Ignition Switch Power the Fuel Pump?
You may want to see also
Explore related products
Identifying fuel pump components in the system
The fuel pump in a 1996 Ford F-150 is a critical component of the vehicle's fuel delivery system, and identifying its components is essential for maintenance and troubleshooting. Located inside the fuel tank, the pump is part of a modular assembly that includes the sending unit, fuel filter, and electrical connections. To access it, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the lines, and lowering the tank from the vehicle. This process demands caution to avoid fuel spills or electrical hazards, making it a task best suited for those with intermediate mechanical skills.
Analyzing the fuel pump assembly reveals several key components. The pump itself is typically an electric in-tank unit, designed to draw fuel from the tank and deliver it to the engine under pressure. Attached to the pump is the sending unit, which measures the fuel level and relays this information to the fuel gauge. A fuel filter is often integrated into the assembly to prevent contaminants from reaching the engine. Electrical connectors link the pump to the vehicle’s wiring harness, supplying power and control signals. Understanding these components is crucial for diagnosing issues like a failing pump, inaccurate fuel gauge readings, or poor engine performance.
When identifying fuel pump components, start by locating the fuel tank access panel, usually found beneath the rear seat or bed of the truck. Remove the panel to expose the pump assembly, which is secured to the top of the tank. Inspect the assembly for signs of damage, such as cracked lines, corroded connectors, or a clogged filter. If the pump is suspected to be faulty, use a multimeter to test for power at the electrical connections when the ignition is on. A lack of power indicates a wiring issue, while a non-operational pump despite adequate power suggests the pump itself may need replacement.
Comparing the 1996 Ford F-150’s fuel pump system to earlier models highlights advancements in design and integration. Older models often featured external pumps mounted along the frame rail, which were more susceptible to damage and fuel contamination. The in-tank design of the 1996 model improves reliability and reduces the risk of vapor lock, a common issue in hot climates. However, this design also complicates access for repairs, underscoring the importance of proper identification and preparation before attempting any work on the system.
Instructively, to replace the fuel pump assembly, begin by relieving fuel system pressure using the Schrader valve on the fuel rail. Disconnect the battery to prevent accidental activation of the pump. After removing the fuel tank, detach the pump assembly by unbolting it from the tank and disconnecting the fuel lines and electrical harness. Install the new assembly in reverse order, ensuring all connections are secure and seals are intact. Reinstall the tank, refill it with fuel, and check for leaks before starting the engine. This process requires precision and patience, but mastering it empowers you to address fuel system issues confidently.
Step-by-Step Guide: Removing Fuel Pump on a 1997 Chevy Blazer
You may want to see also
Explore related products
Safety precautions for fuel pump replacement
Fuel pump replacement in a 1996 Ford F-150 is a task that demands precision and caution. Before diving into the process, it’s critical to understand that gasoline is highly flammable, and the fuel system operates under pressure. Ignoring safety precautions can lead to fires, explosions, or personal injury. Always work in a well-ventilated area, away from open flames, sparks, or hot surfaces. Ensure the vehicle is on a level surface, the engine is cool, and the ignition is off before starting any work.
Analyzing the risks, one of the most overlooked precautions is relieving fuel system pressure. In the 1996 Ford F-150, the fuel pump is located in the fuel tank, which requires dropping the tank for access. Before removing the tank, disconnect the battery to eliminate any chance of electrical sparks. Then, use the pressure relief valve or loosen the fuel line at the filter to release pressure safely. Failure to do this can result in fuel spraying under pressure, increasing the risk of fire or inhalation of gasoline vapors.
Instructively, personal protective equipment (PPE) is non-negotiable. Wear safety goggles to protect your eyes from fuel splashes and nitrile gloves to prevent skin contact with gasoline, which can cause irritation or absorption of harmful chemicals. A long-sleeved shirt and pants made of natural fibers reduce the risk of burns in case of a flash fire. Keep a Class B fire extinguisher nearby, specifically designed for flammable liquid fires, and ensure it’s easily accessible but not in the immediate work area to avoid contamination.
Comparatively, working on a fuel system differs from other vehicle repairs due to the volatile nature of gasoline. Unlike changing oil or replacing a battery, fuel pump replacement requires handling pressurized fuel lines and working near the fuel tank. For instance, while a battery replacement might only require basic hand tools, fuel pump replacement involves siphoning or draining fuel, disconnecting electrical connectors, and handling heavy components like the fuel tank. This underscores the need for a methodical approach and adherence to safety protocols.
Descriptively, the environment in which you work plays a pivotal role in safety. Avoid working in confined spaces where fumes can accumulate, and ensure proper ventilation by keeping garage doors open or using fans. Place absorbent pads or trays under the vehicle to catch any spilled fuel, and dispose of it according to local hazardous waste regulations. After completing the replacement, inspect all connections for leaks by spraying a soapy water solution on fuel lines and looking for bubbles. A small leak can quickly escalate into a dangerous situation if left unchecked.
Conclusively, replacing the fuel pump in a 1996 Ford F-150 is a task that requires respect for the hazards involved. By relieving fuel pressure, wearing appropriate PPE, and maintaining a safe workspace, you significantly reduce the risks associated with this repair. Each step, from preparation to final inspection, is designed to protect both you and the vehicle. Approach this task with caution, and the outcome will be a successfully repaired fuel system without compromising safety.
Testing Fuel Pump Relay in a 1998 Ford Windstar: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump in a 1996 Ford F-150 is located inside the fuel tank, which is mounted underneath the truck bed, near the driver's side rear wheel.
To access the fuel pump, you’ll need to remove the fuel tank. First, relieve the fuel system pressure, disconnect the battery, and then lower the tank by removing the straps and fuel lines.
Common issues include fuel pump failure, which can cause the engine to stall or not start. Symptoms may include sputtering, loss of power, or a whining noise from the fuel tank.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump. It’s recommended to replace the fuel pump module as a complete assembly.
