The 2002 Chevrolet Trailblazer's fuel pump fuse is a critical component located in the underhood fuse block, which is situated near the driver's side fender. To access it, you'll need to open the hood and locate the fuse block, typically covered by a protective lid. Once the lid is removed, consult the fuse diagram, often found on the inside of the lid or in the vehicle's owner's manual, to identify the specific fuse for the fuel pump. This fuse is essential for ensuring the fuel pump operates correctly, and replacing it if blown can resolve issues such as the engine not starting or stalling. Always ensure the vehicle is turned off before attempting to replace any fuses to avoid electrical hazards.
| Characteristics | Values |
|---|---|
| Location of Fuse Box | Under the hood, on the driver's side near the firewall. |
| Fuse Box Name | Underhood Fuse Block (also known as Engine Compartment Fuse Block). |
| Fuse Number | Fuse #30 (20A) or #46 (15A), depending on the specific model and wiring. |
| Fuse Rating | 20 Amps or 15 Amps. |
| Fuse Purpose | Controls power to the fuel pump relay and fuel pump. |
| Fuel Pump Relay Location | Often located near the fuse box or in the underhood fuse block. |
| Additional Notes | Check the fuse box diagram in the vehicle's manual for exact confirmation. |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box location in a 2002 Trailblazer for fuel pump fuse
- Fuse Diagram: Understand the fuse diagram to locate the fuel pump fuse accurately
- Common Issues: Diagnose common issues related to the fuel pump fuse in a 2002 Trailblazer
- Replacement Steps: Learn the steps to replace the fuel pump fuse in a 2002 Trailblazer
- Safety Tips: Follow safety tips when working with the fuel pump fuse in a 2002 Trailblazer
Fuse Box Location: Identify the fuse box location in a 2002 Trailblazer for fuel pump fuse

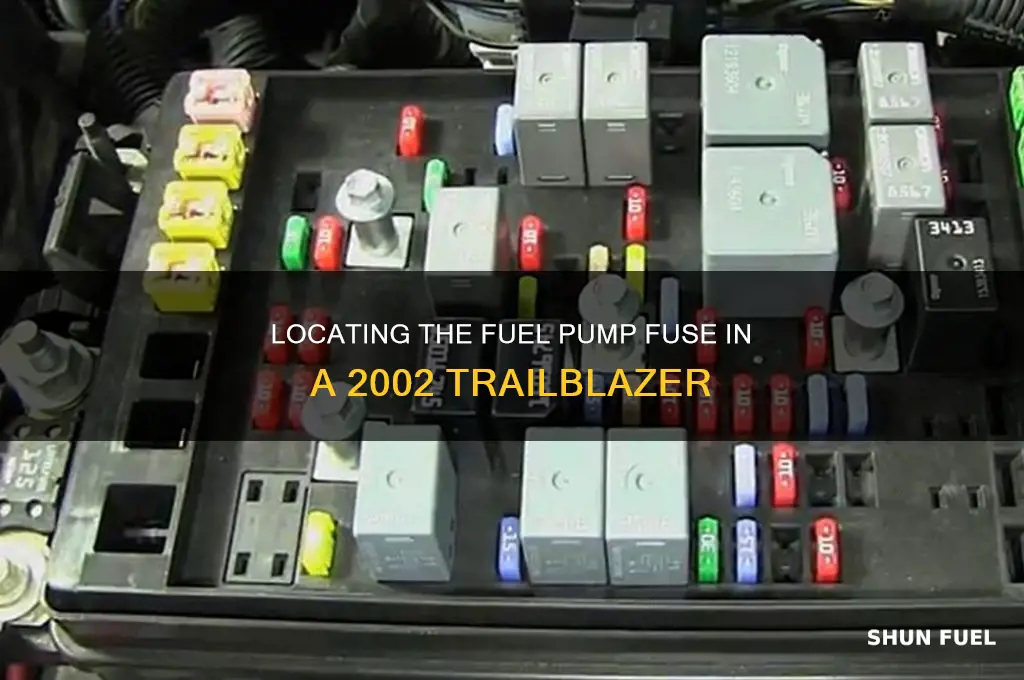

Locating the fuse box in a 2002 Trailblazer is the first step in identifying the fuel pump fuse. The primary fuse box, also known as the underhood fuse block, is situated in the engine compartment on the driver's side. It's a rectangular, black plastic box with a removable cover, often labeled with a diagram indicating the fuse positions. This is where most of the vehicle's critical electrical components, including the fuel pump fuse, are protected.
Upon opening the underhood fuse block, you'll notice a diagram on the underside of the cover or on a separate sticker nearby. This diagram is crucial, as it corresponds the fuse positions to their respective components. The fuel pump fuse, typically rated at 20 amps, is usually labeled as "FUEL" or "FUEL PUMP." It's essential to consult the diagram to confirm the exact location, as fuse arrangements can vary slightly between models or production years.
In some cases, the 2002 Trailblazer may also have a secondary fuse box inside the cabin, often located under the dashboard on the driver's side. However, the fuel pump fuse is generally housed in the underhood fuse block. If you're unsure about the fuse's condition, use a fuse puller or a pair of needle-nose pliers to extract it carefully. Inspect the fuse for signs of damage, such as a broken filament or discoloration, and replace it with a new one of the same amperage if necessary.
When working with the fuse box, it's vital to exercise caution. Always disconnect the battery before attempting any fuse-related tasks to prevent electrical shorts or damage to sensitive components. Additionally, avoid using makeshift tools or excessive force when removing or inserting fuses, as this can cause damage to the fuse block or surrounding wiring. By following these guidelines and consulting the fuse diagram, you can confidently locate and service the fuel pump fuse in your 2002 Trailblazer.
For those who prefer a more hands-on approach, consider creating a reference guide by taking a clear photo of the fuse diagram and storing it with your vehicle's documentation. This can save time and reduce frustration during future maintenance tasks. Remember, proper fuse maintenance is critical to ensuring the reliable operation of your Trailblazer's electrical systems, including the fuel pump. By familiarizing yourself with the fuse box location and layout, you'll be better equipped to address potential issues and keep your vehicle running smoothly.
Routing Toyota SR5 Fuel Pump to AE86: Step-by-Step Guide
You may want to see also
Explore related products
Fuse Diagram: Understand the fuse diagram to locate the fuel pump fuse accurately
The 2002 Trailblazer's fuel pump fuse is a critical component, and locating it requires a clear understanding of the fuse diagram. This diagram is essentially a roadmap to your vehicle's electrical system, mapping out the various fuses and their corresponding functions. By deciphering this diagram, you can pinpoint the exact location of the fuel pump fuse, ensuring efficient troubleshooting and maintenance.
Analyzing the Fuse Diagram
The fuse diagram for a 2002 Trailblazer typically consists of a grid-like layout, with each fuse represented by a symbol or label. The fuel pump fuse is often denoted by a specific icon or code, such as "FPD" (Fuel Pump Drive) or "FP" (Fuel Pump). To locate this fuse, start by identifying the main fuse box, usually located under the hood or in the interior cabin. Refer to your vehicle's manual for the exact location. Once you've located the fuse box, compare its layout with the diagram to find the fuel pump fuse's position.
Instructive Approach: Locating the Fuel Pump Fuse
- Obtain the Fuse Diagram: Consult your 2002 Trailblazer's manual or search online for a digital copy of the fuse diagram. Ensure it corresponds to your specific model and year.
- Identify the Fuse Box: Locate the main fuse box, typically situated in the engine compartment or under the dashboard.
- Compare and Locate: Match the fuse box layout with the diagram to pinpoint the fuel pump fuse. It's often found in the engine compartment fuse box, but may vary depending on the model.
Practical Tips for Fuse Maintenance
When working with fuses, it's essential to exercise caution. Always disconnect the battery before handling fuses to prevent electrical hazards. Use a fuse puller or needle-nose pliers to extract fuses gently, avoiding damage to the fuse box. Keep a set of spare fuses on hand, particularly for critical components like the fuel pump. Regularly inspect fuses for signs of corrosion, damage, or burnout, replacing them as needed to ensure optimal vehicle performance.
Comparative Analysis: Fuse Diagrams vs. Trial and Error
Attempting to locate the fuel pump fuse without a diagram can lead to frustration and potential damage. Trial and error methods, such as randomly checking fuses or relying on guesswork, are inefficient and may cause unnecessary wear on the fuse box. In contrast, utilizing the fuse diagram provides a systematic approach, saving time and minimizing the risk of errors. By understanding the diagram, you can quickly identify the fuel pump fuse, streamline troubleshooting, and maintain your 2002 Trailblazer's reliability.
BMW 325 Fuel System: Does It Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Common Issues: Diagnose common issues related to the fuel pump fuse in a 2002 Trailblazer
The fuel pump fuse in a 2002 Trailblazer is a critical component that ensures the proper functioning of the vehicle's fuel system. Located in the underhood fuse block, it is often the first suspect when diagnosing fuel delivery issues. However, identifying common problems related to this fuse requires a systematic approach to avoid misdiagnosis and unnecessary repairs.
One prevalent issue is a blown fuse, which can result from an electrical short, overloading, or age-related degradation. When this occurs, the vehicle may exhibit symptoms such as difficulty starting, stalling, or complete loss of power. To diagnose, use a multimeter to test the fuse for continuity; a reading of zero indicates a blown fuse. Replacement with a fuse of the correct amperage (typically 20A for the Trailblazer’s fuel pump) is essential, but also inspect the wiring harness for damage or corrosion that may have caused the failure.
Another common problem is a loose or corroded connection in the fuse block. Over time, exposure to moisture and dirt can cause oxidation, leading to intermittent power supply to the fuel pump. This manifests as sporadic stalling or hesitation during acceleration. To address this, remove the fuse and clean both the fuse terminals and the block contacts using a wire brush or electrical contact cleaner. Ensure a snug fit when reinserting the fuse to maintain reliable connectivity.
A less obvious issue is a faulty fuel pump relay, which shares the same circuit as the fuse. If the relay fails to engage, the fuel pump will not receive power despite a functioning fuse. Test the relay by swapping it with another of the same type in the fuse block (e.g., the horn relay) to see if the issue persists. If the problem resolves, replace the relay. Always consult the vehicle’s manual for relay location and compatibility.
Lastly, a malfunctioning fuel pump itself can sometimes be misdiagnosed as a fuse issue. If the fuse repeatedly blows after replacement, the pump may be drawing excessive current due to internal damage or wear. In such cases, measure the pump’s resistance using a multimeter and compare it to the manufacturer’s specifications. If out of range, the pump likely needs replacement. This step ensures that the root cause is addressed rather than merely treating the symptom.
By methodically examining these common issues—blown fuses, poor connections, faulty relays, and pump malfunctions—owners of a 2002 Trailblazer can accurately diagnose and resolve fuel pump fuse-related problems, restoring their vehicle’s reliability and performance.
Pump Fuel Insanity: Does This Pre-Workout Supplement Deliver Results?
You may want to see also
Explore related products
Replacement Steps: Learn the steps to replace the fuel pump fuse in a 2002 Trailblazer
The fuel pump fuse in a 2002 Trailblazer is a critical component, and knowing how to replace it can save you time and money. Located in the underhood fuse block, this fuse is essential for the fuel pump’s operation, ensuring your vehicle runs smoothly. If you suspect a blown fuse, replacing it is a straightforward process that requires minimal tools and basic mechanical knowledge.
Step 1: Locate the Fuse Box
Begin by opening the hood and identifying the underhood fuse block, typically found on the driver’s side near the firewall. Consult your owner’s manual for the exact location, as it may vary slightly. The fuse block cover usually has a diagram indicating which fuse corresponds to the fuel pump. For the 2002 Trailblazer, the fuel pump fuse is often labeled as "FPD" or "Fuel Pump."
Step 2: Remove the Fuse
Once you’ve located the correct fuse, use a fuse puller (often included in the fuse box) or a pair of needle-nose pliers to carefully extract it. Inspect the fuse for signs of damage, such as a broken filament or discoloration. If the fuse appears intact, test it with a multimeter to confirm it’s blown. A blown fuse will show no continuity, indicating it needs replacement.
Step 3: Install the New Fuse
Replace the blown fuse with a new one of the same amperage rating, typically 20 amps for the 2002 Trailblazer’s fuel pump. Ensure the fuse is inserted firmly and securely into the slot. Avoid using a fuse with a higher amperage, as this can damage the electrical system. Once installed, reattach the fuse block cover to protect the fuses from debris and moisture.
Cautions and Tips
Always disconnect the battery before working on the fuse box to prevent electrical shorts. If the new fuse blows immediately after replacement, this could indicate a deeper issue, such as a faulty fuel pump or wiring problem. In such cases, consult a professional mechanic to diagnose and resolve the underlying problem. Regularly inspecting your fuses during routine maintenance can help prevent unexpected breakdowns.
Replacing the fuel pump fuse in a 2002 Trailblazer is a simple yet crucial task that can keep your vehicle running reliably. By following these steps and exercising caution, you can address a blown fuse efficiently and avoid unnecessary trips to the mechanic. Keep a spare fuse in your vehicle for emergencies, and always refer to your owner’s manual for specific guidance.
Testing BMW High Pressure Fuel Pump: Step-by-Step Guide and Tips
You may want to see also
Explore related products
Safety Tips: Follow safety tips when working with the fuel pump fuse in a 2002 Trailblazer
Working on the fuel pump fuse of a 2002 Trailblazer requires careful attention to safety to prevent accidents or damage. The fuel system operates under pressure and involves flammable materials, making it a high-risk area for DIY repairs. Before you begin, ensure the vehicle is parked on a flat, stable surface, and the engine is turned off. Allow the engine to cool for at least 30 minutes to reduce the risk of ignition from residual heat. Always disconnect the battery’s negative terminal to eliminate the risk of electrical shorts or accidental activation of the fuel pump.
One critical safety tip is to avoid smoking or using open flames near the fuel system. Gasoline vapors are highly flammable and can ignite easily, even from a spark or static electricity. Wear protective gear, such as nitrile gloves and safety goggles, to shield yourself from fuel spills or debris. If you’re working in a garage, ensure proper ventilation to disperse any fumes that may accumulate. Keep a fire extinguisher rated for Class B fires (flammable liquids) nearby as a precaution.
When locating and handling the fuel pump fuse, refer to the vehicle’s manual or a reliable diagram to identify the correct fuse box and fuse number. The 2002 Trailblazer’s fuel pump fuse is typically found in the underhood fuse block, often labeled as "FPD" or "Fuel Pump." Use a fuse puller or a pair of needle-nose pliers to remove the fuse, but avoid metal tools that could cause a short circuit. Inspect the fuse for signs of damage, such as a broken filament or discoloration, and replace it only with a fuse of the same amperage rating.
Lastly, test the fuel pump’s functionality after reinstalling the fuse by turning the ignition to the "On" position (without starting the engine) and listening for the pump’s hum. If the pump doesn’t activate, further diagnosis may be needed, but avoid repeated attempts to start the engine, as this can drain the battery and increase the risk of fuel system issues. By following these safety tips, you can minimize risks while working on the fuel pump fuse of your 2002 Trailblazer.
Why Fuel Pumps Fail After Prolonged Vehicle Inactivity Explained
You may want to see also
Frequently asked questions
The fuel pump fuse on a 2002 Trailblazer is located in the underhood fuse block, often labeled as "FUSE #30" or "FUEL PUMP."
The fuel pump fuse for a 2002 Trailblazer is typically a 20-amp fuse. Always verify with your owner’s manual or a fuse diagram.
To access the fuel pump fuse, open the hood and locate the underhood fuse block. Remove the cover, and refer to the diagram on the lid or in the owner’s manual to identify the correct fuse.
