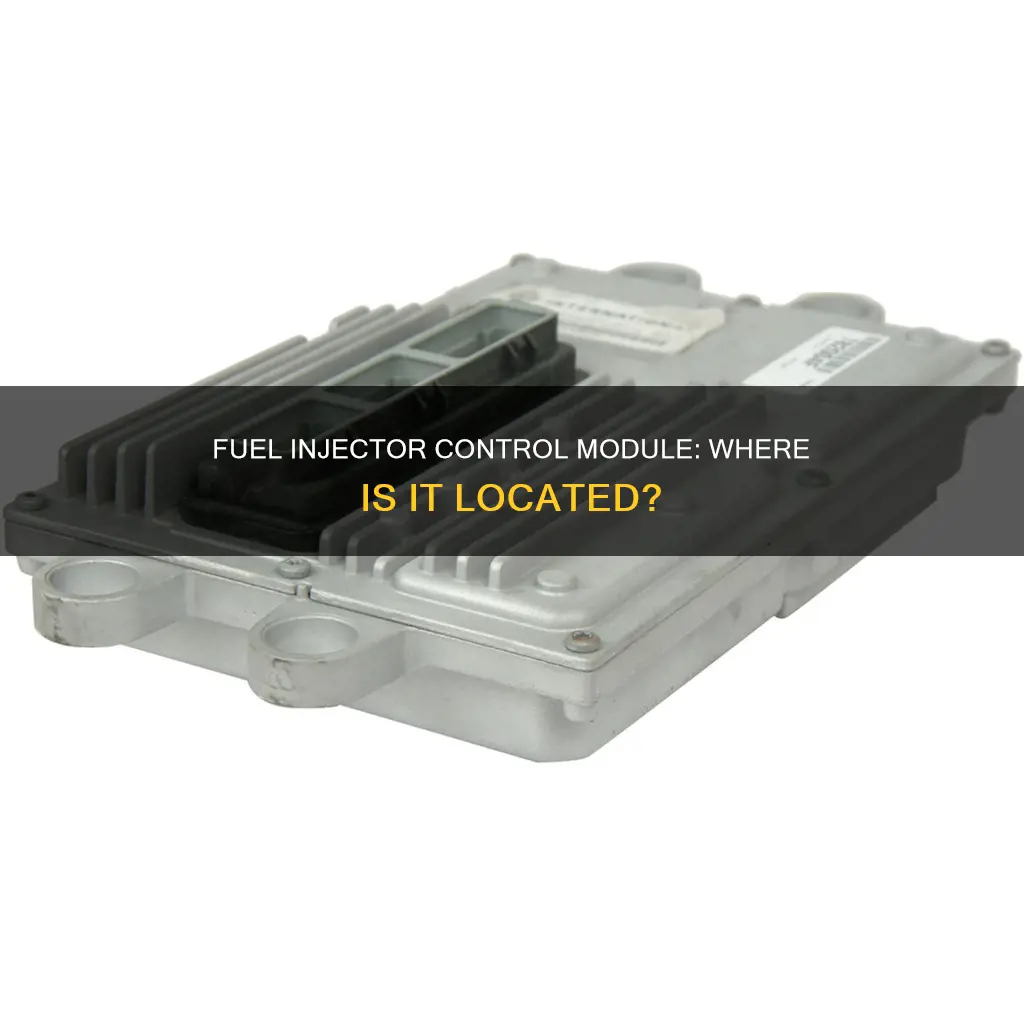

The fuel injector control module (FICM) is a crucial component in diesel engines, controlling the timing and pressure of fuel injection. It is located on the engine valve cover, where it is subject to intense heat and vibration. The FICM ensures that fuel is injected into the combustion chamber at the right time, optimising engine performance and fuel economy. This complex process involves the use of electrical impulses to signal to the injectors when to inject fuel into the engine cylinders. The FICM also manages a solenoid-operated valve that allows oil into the fuel injector.
| Characteristics | Values |
|---|---|
| Location | Engine valve cover |
| Function | Controls the electrical impulses that open and close the fuel injectors |
| Power source | 45-50 volts of electricity (ideally 48 volts) |
| Operation | Sends signals to the PCM to ensure the injectors' optimal operation |
| Issues | Voltage loss, signal loss, wiring issues |
Explore related products
What You'll Learn
- The FICM is located on the engine valve cover
- It controls the electrical impulses that open and close the fuel injectors
- The FICM uses 45-50 volts of electricity to power the fuel injector
- It ensures fuel gets injected into the chamber at the right time
- FICMs are leak and load tested to ensure proper engine performance and fuel economy
The FICM is located on the engine valve cover
The Fuel Injector Control Module, or FICM, is a crucial component of diesel engines. It controls the timing and pressure of the fuel injection process, ensuring that the engine runs at peak efficiency. The FICM is located on the engine valve cover, where it is subject to intense heat and vibration. This location ensures that the FICM can effectively control the electrical impulses that open and close the fuel injectors.
At the start of the engine cycle, the engine draws air into the combustion chamber and compresses it. This is known as the compression stroke. Once this is complete, the FICM uses electrical impulses to signal to the injectors that it is time to inject fuel into the engine cylinders. This actuates the pressure doors that allow the fuel to flow into the cylinders.
The FICM ensures that fuel is injected into the combustion chamber at just the right time and with the correct amount of pressure for maximum performance and fuel efficiency. It controls the injectors that are responsible for injecting the fuel, instructing them on when and how much fuel to inject based on the engine's position in its cycle. This process is surprisingly complicated, with many moving parts and sensors involved.
Over time, the FICM may experience problems due to the intense heat and vibration it is subjected to. It may lose the required output voltage to control the fuel injectors, causing them to fire at the wrong time or not at all. This can result in hard starts, rough idling, and decreased engine power. Therefore, it is important to regularly check the FICM and ensure it is functioning properly to maintain optimal engine performance and fuel economy.
Fuel Injector Cleaner: Safe for Ecoboost Engines?
You may want to see also
Explore related products
It controls the electrical impulses that open and close the fuel injectors
The fuel injector control module (FICM) is an essential component of a diesel engine. It controls the electrical impulses that open and close the fuel injectors, ensuring that fuel is injected into the combustion chamber at the right time for maximum performance and fuel efficiency.
The FICM is located on the engine valve cover and is subject to intense heat and vibration. It uses electrical impulses to signal to the injectors when to inject fuel into the engine cylinders. This process is known as the compression stroke. Once the engine draws air into the combustion chamber and compresses it, the FICM sends electrical impulses to the injectors, actuating the pressure doors and allowing fuel to flow to the cylinders.
The FICM ensures that the injectors release fuel at the correct time and in the right amount, depending on the engine's cycle and position. This process is crucial for the engine to generate enough power to turn the wheels. The FICM's control over the timing and pressure of fuel injection is essential for maintaining optimal engine performance and fuel efficiency.
The FICM typically uses between 45 and 50 volts of electricity to power the fuel injector, with an ideal voltage of 48 volts. Over time, the FICM's voltage may decrease, leading to potential issues with the injectors' firing timing. If the FICM's voltage drops below 45 volts, it should activate the check engine light, indicating a potential problem. Other warning signs of a malfunctioning FICM include hard starts, rough idling, and exhaust smoke from the tailpipe.
In summary, the FICM plays a critical role in diesel engines by controlling the electrical impulses that open and close the fuel injectors. It ensures the precise timing and amount of fuel injection, contributing to the engine's overall performance, fuel efficiency, and proper functioning.
Clean Fuel Injectors with Liqui Moly: Easy Steps
You may want to see also
Explore related products
The FICM uses 45-50 volts of electricity to power the fuel injector
The Fuel Injector Control Module (FICM) is an essential component of a diesel engine. It controls the flow of fuel through the injectors, ensuring that fuel is injected into the combustion chamber at the right time for maximum performance and fuel efficiency. The FICM uses electrical impulses to signal to the injectors when to inject fuel into the engine cylinders.
The FICM relies on sensors and actuators to control the flow of fuel. It collects information from various sensors, including the engine position sensor, fuel pressure sensor, injection pump speed sensor, and intake temperature sensor. These sensors allow the FICM to determine when and how much fuel to inject, depending on the position of the engine in its cycle.
Over time, the FICM voltage will decrease as the circuits get worn. This can cause the injectors to fire at the wrong time or fail to fire altogether. A faulty FICM can lead to a lack of fuel in the combustion chamber, resulting in reduced engine power or difficulty starting the vehicle.
It is important to monitor the FICM for any signs of deterioration and replace it if necessary. Regular maintenance and replacement of the FICM can help ensure optimal engine performance and fuel efficiency.
Clearing Fuel Injectors: DIY Methods to Try at Home
You may want to see also
Explore related products
It ensures fuel gets injected into the chamber at the right time
The fuel injector control module (FICM) is an essential component of a diesel engine. It controls the timing and pressure of the fuel injection process, ensuring that fuel is injected into the combustion chamber at the right time for maximum performance and fuel efficiency.
The FICM uses electrical impulses to signal to the injectors when to inject fuel into the engine cylinders. This process is initiated after the engine draws air into the combustion chamber and compresses it during the compression stroke. The FICM's electrical impulses then trigger the injectors to inject fuel, which flows through the pressure doors that open due to the excess pressure in the combustion chamber.
The timing of the fuel injection is critical. The FICM ensures that the injectors release fuel at the precise moment required, depending on the engine's position in its cycle. This precise timing ensures that the engine generates enough power to turn the wheels. Without the FICM's control, the engine may not receive enough fuel, leading to reduced power output or difficulty starting the vehicle.
The FICM typically uses between 45 to 50 volts of electricity to power the fuel injector, with an ideal voltage of 48 volts. Over time, the FICM's voltage may decrease, leading to potential issues with the fuel injection timing. If the FICM's voltage drops below 45 volts, it can activate the check engine light, indicating a potential problem.
The FICM relies on various sensors to function effectively. However, these sensors can sometimes lose their signal, impacting the FICM's ability to control the fuel injection process. In some cases, a faulty FICM may need to be replaced or reprogrammed to ensure the engine's optimal performance and fuel efficiency.
Fuel Injector Control: Understanding the Key Components
You may want to see also
Explore related products
FICMs are leak and load tested to ensure proper engine performance and fuel economy
Fuel Injector Control Modules (FICM) are an essential component of diesel engines. They control the timing and pressure of the fuel injection process, ensuring that the fuel enters the combustion chamber at the right time for maximum performance and fuel efficiency. Given their critical role, FICMs are meticulously tested to guarantee optimal functionality and reliability.
One such test is the leak and load test, which evaluates the FICM's ability to handle pressure and detect leaks. This test is crucial because FICMs are situated on the engine valve cover, exposing them to intense heat and vibration. By performing the leak and load test, manufacturers can ensure that the FICM can withstand these harsh conditions without compromising performance.
The leak and load test is a comprehensive assessment that validates the FICM's structural integrity and functionality. It involves simulating various engine parameters, such as temperature changes, to replicate real-world driving conditions. This includes cold starts, warm-up periods, and variable driving scenarios. By subjecting the FICM to these diverse conditions, the test verifies that the module can maintain proper engine performance and fuel economy across different situations.
Additionally, the leak and load test helps identify any potential issues with the FICM's circuitry and electrical connections. Over time, the FICM's voltage can decrease, leading to problems with the fuel injectors' timing and performance. The test ensures that the FICM can maintain the required voltage to control the fuel injectors accurately. This is vital because if the FICM loses voltage or signals, the injectors may fail to fire, resulting in the vehicle not starting.
Through rigorous leak and load testing, FICM manufacturers can guarantee the module's performance, durability, and reliability. This testing process ensures that the FICM can withstand the demanding conditions of diesel engines and deliver consistent engine performance and fuel efficiency. By investing in such comprehensive testing, manufacturers can provide diesel engine operators with the assurance of a well-functioning and dependable FICM.
When to Use Fuel Injector Cleaner?
You may want to see also
Frequently asked questions
The fuel injector control module (FICM) controls the timing and amount of fuel injected into the engine, ensuring smooth performance and efficiency.
The FICM is located on the engine valve cover.
The FICM uses electrical impulses to signal to the injectors that it’s time to inject fuel into the engine cylinders. It also receives signals from the Engine Control Unit (ECU) to adjust fuel injection timing.
A faulty FICM can harm your vehicle over time. Poor fuel management can cause engine performance declines, increase stress on other components, and lead to carbon buildup. In severe cases, it can cause engine misfires, loss of power, and inefficient fuel use.
