EZGO golf carts are a popular choice for many, but like all machines, they sometimes run into problems. One issue that has been reported by several users is that their EZGO golf cart is not pulling fuel into the engine. This could be due to a variety of reasons, including a blockage in the pulse line between the engine and fuel pump, a faulty PCV valve, or a lack of compression in the engine rebuild. Users have also reported backfiring issues, which could be caused by a sudden burst of fuel into the hot cylinder that is not being metered by the carburetor. In this article, we will explore the potential causes of these issues and provide troubleshooting tips to get your EZGO golf cart running smoothly again.
| Characteristics | Values |
|---|---|
| Fuel Filter Troubleshooting | Check for blockages, splits or holes in the short vacuum hose; ensure it is sealing correctly on the ports |
| Fuel Filter Troubleshooting | If the pump is working manually but no pulse is detected through the vacuum hose, check the PCV valve or the engine's crankcase pressure |
| Fuel Filter Troubleshooting | If the engine is not producing enough compression and crankcase pressure, perform a compression test on both cylinders to check piston rings are sealing properly |
| Fuel Filter Troubleshooting | If the pump is drawing air, it will not be able to produce the vacuum required to pull the fuel |
| Fuel Filter Troubleshooting | If the engine is backfiring, adjust the valves and put in a new carburetor and battery |
| Fuel Filter Troubleshooting | If the engine is not pulling fuel, check the pulse strength, the pump, the filter, and the fuel hose for any blockages or holes |
| Fuel Filter Troubleshooting | If the engine is running but blowing grey smoke and struggling to gain speed, change the fuel filter, check the pump, and clean the diaphragms |
| Fuel Filter Troubleshooting | If the engine is not pulling fuel, check the reed section for any bends or oil; check the gaskets and the tank to pump section for air leaks |
| Fuel Filter Troubleshooting | If the engine is not pulling fuel, check the pulse by fitting a rubber bulb to the vacuum port and rapidly squeezing it gently to create a pulse manually |
| Fuel Filter | Inline Fuel Filter for 4-cycle TXT, Medalist, and RXV Gas Golf Carts |
| Fuel Filter | Should be replaced at regular intervals to keep the fuel line clear from dust, rust particles and potential contamination |
| Fuel Filter | Weighs 0.2 lbs |
Explore related products
What You'll Learn
Troubleshooting an empty EZGO golf cart fuel filter
Firstly, it's important to understand that not all fuel filters are completely full, and some machines only pull enough fuel through the hose to keep the engine running. If your EZGO golf cart is running, even with an empty fuel filter, there may not be a significant issue.
However, if your golf cart is not running properly, there are several potential causes and solutions to consider. One common issue is a blockage in the pulse line between the engine and the fuel pump, or a faulty PCV valve, which controls crankcase pressure. To troubleshoot this, you can remove the pulse line and check for a good pulse directly at the PCV valve port. If there is no blockage, the next step is to perform a compression test on both cylinders to ensure the piston rings are sealing properly.
Another potential issue could be a restriction inside the fuel tank or collapsed fuel hoses. In this case, you may need to investigate further by checking the fuel hoses for any signs of damage or collapse. It is also important to ensure that you have good, fresh gas and that there is fuel flow from the tank, as a plugged internal screen could be causing the issue.
If your EZGO golf cart is backfiring when slowing down, this could be due to a sudden burst of fuel into the hot cylinder that is not being metered by the carburetor. Adjusting the valves and replacing the carburetor may help resolve this issue.
Finally, if your golf cart is not pulling fuel into the engine, it could be due to a faulty fuel pump or a clogged fuel line. Checking the fuel pump and fuel lines for any signs of damage or blockage, and replacing them if necessary, may resolve the issue.
Fuel Filter Costs in the UK: How Much Do They Cost?
You may want to see also
Explore related products
The importance of regular fuel filter replacement
Although fuel filters are often overlooked, they are essential components for keeping a smooth-running engine. The fuel filter in an EZGO golf cart, for instance, should be replaced at regular intervals to prevent dust, rust particles, and potential contaminants from entering the fuel line and ultimately the engine.
The fuel filter acts as a permeable barrier that cleans the fuel of impurities, sediment, contaminants, and rust. It is responsible for removing contaminants from the fuel before it reaches the engine, ensuring the engine runs smoothly and efficiently. A clogged fuel filter can reduce the flow of fuel to the engine, causing it to work harder to maintain power, resulting in decreased fuel efficiency and higher fuel costs.
By replacing the fuel filter regularly, you can improve fuel efficiency, ensure optimal engine performance, and extend the life of your engine. This is because a new fuel filter will allow for an unobstructed flow of fuel, preventing the engine from working harder than necessary and reducing the risk of damage to other vehicle components.
The recommended replacement interval for fuel filters varies depending on the vehicle's age and usage. For older models, some brands suggest replacing the fuel filter every 20,000 miles, while others recommend intervals of up to 70,000 miles. Newer models may have advanced fuel systems with lifetime filters, so it is always important to refer to the vehicle's owner's manual for specific guidance.
In summary, regular fuel filter replacement is a simple, cost-effective way to maintain the health of your engine and ensure your vehicle is running at its best.
Harley Heritage: Locating the Fuel Filter
You may want to see also
Explore related products
How to identify fuel starvation issues in an EZGO TXT
Fuel starvation in an EZGO TXT can manifest in various ways, including difficulty starting the engine, reduced performance, and backfiring. To identify and address fuel starvation issues, you can perform the following steps:
Check the Fuel Filter
The fuel filter in an EZGO TXT is an inline filter located in the fuel line. It is essential to replace the fuel filter at regular intervals to prevent dust, rust, and other contaminants from blocking the fuel line. A clogged fuel filter can restrict fuel flow and cause starvation.
Inspect the Fuel Pump
Ensure that the fuel pump is functional and drawing fuel from the tank. Check for a pulse on the vacuum line from the engine, and verify that the hoses are connected to the correct ports at the pump. If there is no fuel flow from the pump, it may be faulty or unable to create sufficient vacuum due to an air leak in the line between the pump and the tank.
Examine the Pulse Line
Remove the pulse line and check for any blockages. Ensure a good pulse at the PCV valve port. If the pulse is weak, perform compression tests on the cylinders to check piston ring sealing. A weak pulse or lack of pulse could be due to a blockage in the pulse line, a faulty PCV valve, or insufficient engine compression.
Verify Fuel Hose Integrity
Inspect the fuel hoses for any splits or holes, especially in the fuel hose or pickup tube. A damaged hose can draw air, preventing the pump from creating the necessary vacuum to pull fuel.
Check for Air Leaks
Carefully examine the entire fuel system, including the tank, pump, and hoses, for any air leaks. Even a small leak can disrupt the fuel vacuum and cause starvation.
Consider Other Possibilities
If the issue persists, there may be other factors contributing to fuel starvation. These could include a clogged fuel line, a faulty carburetor, or issues with the engine itself. In such cases, further diagnostics and repairs may be necessary.
Fuel Filter Facts: 2004 2500HD Edition
You may want to see also
Explore related products
The role of the fuel filter in preventing contamination
Fuel filters are essential to the fuel system of your EZGO golf cart. They are designed to trap and remove impurities and contaminants present in the fuel, ensuring that only clean and filtered fuel enters the engine.
Unfiltered fuel may contain several kinds of contamination, such as paint chips and dirt that have entered the fuel tank while filling, or rust caused by moisture in a steel tank. If these substances are not removed before the fuel enters the system, they will cause rapid wear and failure of the fuel pump and injectors.
An efficient fuel filter acts as a guardian, preventing these contaminants from reaching the engine and causing damage. It plays an important role in safeguarding the engine from potential damage and enhancing its overall performance. By preventing wear and tear caused by impurities, a well-maintained fuel filter also contributes to the longevity of the engine, helping it last longer and reducing the need for costly repairs.
Fuel filters are typically made into cartridges containing a filter paper, and they need to be maintained or replaced at regular intervals. The expected service life of in-tank fuel filters and many in-line filters in late-model vehicles exceeds 100,000 miles, and many vehicle manufacturers recommend replacement only if the filter becomes clogged. When replacing the filter, it is important to clean the fuel tank before installing a new one.
Fuel Filter Instability: A Cause for Concern?
You may want to see also
Explore related products
Common causes of backfiring in EZGO golf carts
EZGO golf carts are recreational vehicles used on golf courses to help golfers travel between holes. While these carts are designed to enhance the golfing experience, certain issues can arise, such as backfiring. Backfiring in an EZGO golf cart can be caused by several factors, and it is important to identify and address these issues promptly to prevent damage to the engine and maintain optimal performance. Here are some common causes of backfiring in EZGO golf carts:
Air Leaks in the Engine: Air leaks can disrupt the delicate air-fuel mixture entering the engine. When there is an abundance of air and a shortage of fuel, the mixture becomes too lean, resulting in incomplete combustion. This unburned fuel can then ignite in the exhaust system, leading to backfiring. Common areas for air leaks include worn gaskets, loose hoses, or damaged intake manifolds. Regular inspections of these components can help identify issues before they lead to backfiring.
Improper Fuel Flow: When fuel flow is not properly managed, it can lead to a backfire. This often occurs due to a rich fuel mix, which means there is too much gasoline in the mixture. Adjusting the fuel/air ratio can rectify this issue. On four-cycle engines, locate the plastic cap on top of the engine to control fuel flow.
Defective Intake Valves and Ignition Timing: Backfiring can also be caused by defective intake valves and ignition timing that is out of tune. This can result in a buildup of excessive fuel in the intake manifold, leading to backfiring. Adjusting the valves and ensuring proper ignition timing are crucial steps in preventing backfires.
Open Throttle Plate: An open throttle plate can cause the EZGO golf cart to backfire through the carburetor. This happens when the accelerator cable is out of adjustment, preventing the throttle plate from closing properly. This results in accelerated fuel burn and still air in the intake manifold, leading to backfiring. Proper adjustment of the accelerator cable and inspection of the throttle plate for wear are necessary to address this issue.
It is important to note that backfiring can be a symptom of other underlying problems with your EZGO golf cart. If backfiring persists or other issues arise, it is recommended to consult a professional technician to ensure proper diagnosis and maintenance of your golf cart.
Jeep Wrangler Fuel Filter: Location and Access Guide
You may want to see also
Frequently asked questions

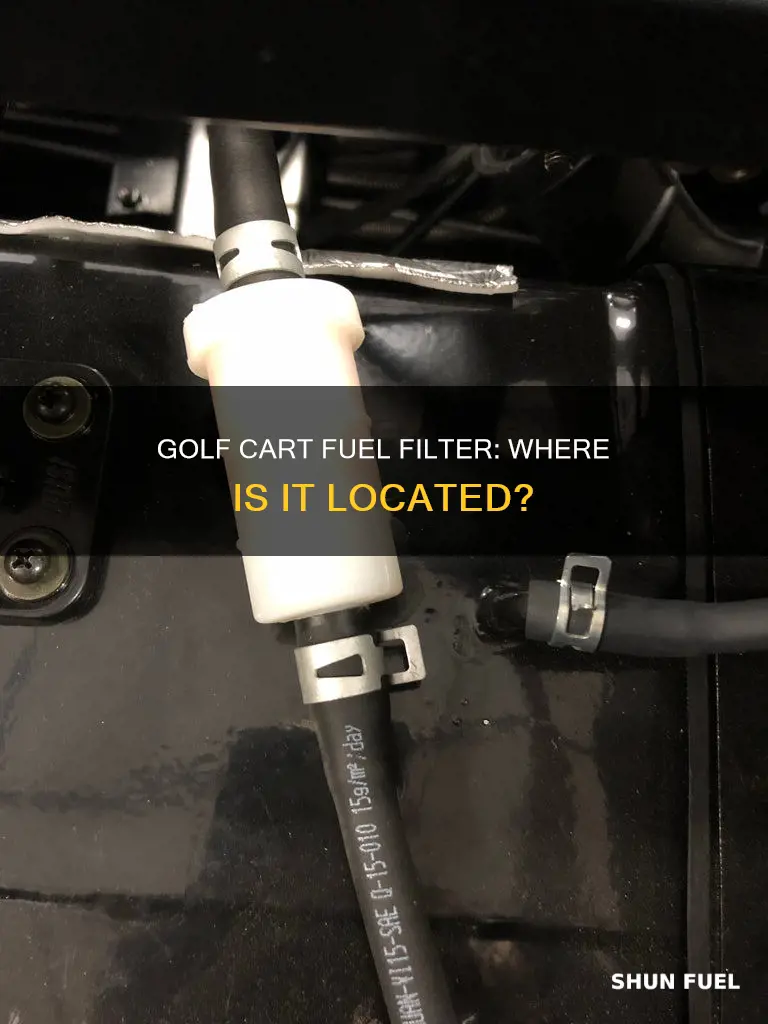

The fuel filter is located in the fuel line of your EZGO golf cart.
If your EZGO golf cart is not pulling fuel into the engine, there may be a blockage in the pulse line between the engine and fuel pump, or the fuel filter may need replacing.
It is recommended to replace the fuel filter on your EZGO golf cart at regular intervals to keep the fuel line clear from dust, rust particles and potential contamination.
