The fuel filter on a 06 Duramax is located underneath the hood near the firewall on the passenger side of the engine. The fuel filter housing has an integrated hand pump that pumps diesel from the fuel tank into the filter. The Duramax fuel filter is compatible with model years 2001 to 2016 and features an integrated fuel plunger to prime the fuel system after replacing the fuel filter.
| Characteristics | Values |
|---|---|
| Location | Underneath the hood near the firewall on the passenger side on the engine |
| Tools needed | Panel clip remover, Water In Fuel sensor wrench (or channel locks), 1/2 inch Nut driver, 2-stroke oil |
| Fuel filter housing | Located on the passenger side of the engine with an integrated fuel plunger to prime the fuel system |
| Fuel filter replacement | Compatible with 2001 to 2016 model year Duramax diesels |
| Water-in-fuel sensor assembly replacement | Compatible with 2001 to 2011 model year Duramax diesels |
| O-rings | Lubricate with clean engine oil or diesel |
| Fuel hose attachment | Optional - attach a small section of 1/4" fuel hose to the water-fuel separator drain valve |
| Fuel filter removal | Rotate counter-clockwise, remove and drain |
Explore related products
What You'll Learn
- The fuel filter is located underneath the hood on the passenger side
- You need tools like a panel clip remover, Water In Fuel sensor wrench, and a 1/2 inch Nut driver
- Disconnect the WIF connector, unscrew the fuel filter, and remove it
- Dispose of the contents inside the filter properly
- Lubricate the new o-rings with engine oil before installing them
The fuel filter is located underneath the hood on the passenger side

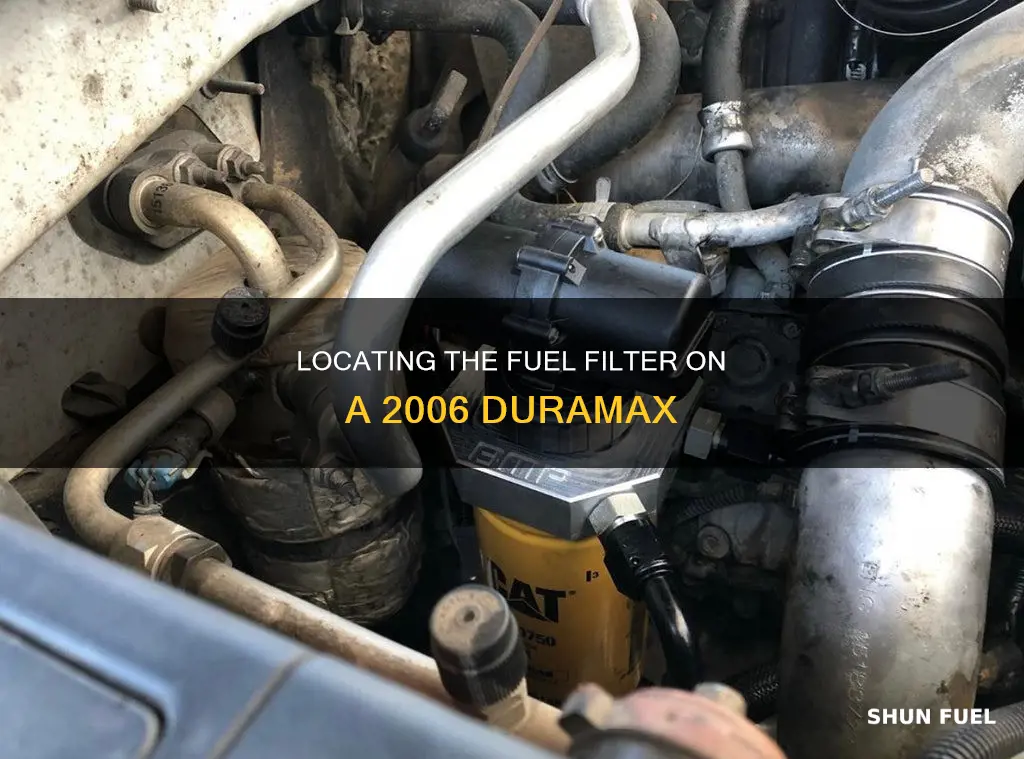

The fuel filter on a 2006 Duramax is located underneath the hood on the passenger side. More specifically, it is near the firewall on the passenger side of the engine. To access the fuel filter, you will need to pop the hood and sit by the passenger-side tire, looking at the fender well.
From there, you can use a panel clip remover to remove the pins holding the inner fender well liner to the truck. With the liner removed, you will have a clear view of the fuel filter from the passenger side. It is important to note that the fuel filter housing is located on the passenger side of the engine and features an integrated fuel plunger used to prime the fuel system after replacing the fuel filter.
Additionally, the fuel filter is located below the air intake tube on the passenger side of the engine. To access it, you may need to remove the center air intake tube and the passenger-side inner fender, which is typically secured by plastic body clips. By following these steps, you can easily locate and access the fuel filter on a 2006 Duramax.
Dodge Durango Fuel Filter: Location Guide
You may want to see also
Explore related products
You need tools like a panel clip remover, Water In Fuel sensor wrench, and a 1/2 inch Nut driver
To replace the fuel filter on a Duramax, you'll need to gather the right tools for the job. The fuel filter is located underneath the hood near the firewall on the passenger side of the engine. The tools you'll need to access and replace the fuel filter include a panel clip remover, a Water In Fuel (WiF) sensor wrench, and a 1/2 inch Nut driver.
First, you'll need to pop the hood and take a seat by your passenger side tire, facing the fender well. Using the panel clip remover, you can then remove the pins holding the inner fender well liner to the truck. With the pins removed and the wire harnesses pulled out, you can set the liner aside and access the fuel filter.
Next, you'll need the WiF sensor wrench to disconnect the WiF connector and remove the old fuel filter. Strong individuals may be able to unscrew the fuel filter by hand, but a strap wrench from an auto parts store can also be used. After disposing of the contents inside the filter, you'll use the WiF sensor wrench again to remove the WiF sensor.
Now, you'll need to lubricate the O-rings on the new filter with 2-stroke oil. Don't forget to replace the little O-ring on the WiF sensor as well. With the new filter and sensor ready, you can begin to reassemble the components.
Finally, you'll use the 1/2 inch Nut driver to loosen the bleeder screw. This will allow you to prime the new fuel filter. You'll know it's primed when you hear Diesel Fuel coming out, at which point you can tighten the bleeder screw and continue pumping the primer until it becomes very hard to pump. And that's it! Your Duramax's fuel filter has been successfully replaced.
Fuel Pump Filtering: Does It Clean Fuel?
You may want to see also
Explore related products
Disconnect the WIF connector, unscrew the fuel filter, and remove it
Disconnecting the WIF connector, unscrewing the fuel filter, and removing it are essential steps in replacing the fuel filter on a 2006 Duramax. This process can be done from the side or underneath the hood. Here is a detailed guide:
Disconnect the WIF Connector
The WIF (Water In Fuel) sensor connector is located near the fuel filter. To disconnect it, locate the small grey connector or plug held by a plastic-coated retainer on the valve cover. Pull up on the retainer to release the connector. It should be about four inches forward from the fuel filter. Ensure that the water-in-fuel sensor wire does not become entangled during this process.
Unscrew the Fuel Filter
Once the WIF connector is disconnected, you can proceed to unscrewing the fuel filter. This is done by rotating the filter counter-clockwise, as if looking from the bottom up. You may be able to do this by hand, but if you need more leverage, a strap wrench can be used. Be careful not to spill any fuel during this step, and keep the filter upright until it is removed from the vehicle.
Remove the Fuel Filter
After the fuel filter is unscrewed, carefully remove it from its housing. It is important to note that the fuel filter should be drained and properly disposed of after removal. Additionally, the gasket should be inspected to ensure it did not stick to the fuel filter housing flange.
Post-Removal Steps
Following the removal of the fuel filter, there are several important steps to take. Firstly, the water-in-fuel sensor assembly should be removed from the bottom of the fuel filter using a wrench, socket, or pliers. The o-rings on the assembly and the WIF sensor should be replaced with new ones and lubricated with engine oil. Finally, the new fuel filter can be installed, ensuring that the water-in-fuel sensor connector is not entangled.
It is important to note that the fuel system should be bled of air after installing a new filter, as Duramax diesels do not have an electric lift pump. This can be done using the integrated fuel plunger or by pumping the primer until it becomes very hard to pump.
Fuel Water Separator Filters: How Long Do They Last?
You may want to see also
Explore related products
Dispose of the contents inside the filter properly
The fuel filter on a 2006 Duramax is located underneath the hood near the firewall on the passenger side of the engine.
Now, onto the disposal of the contents inside the filter. This process should be carried out with caution and in accordance with local regulations. Here are the steps you can follow:
- Obtain a suitable container to collect the drained fuel. Make sure it is specifically designated for this purpose and is capable of storing petroleum products safely.
- Remove the fuel filter by rotating it counter-clockwise, as if you are looking from the bottom up. Keep the filter upright until it is removed from the vehicle to prevent fuel spills.
- Once the filter is removed, drain the contents into the designated container. Ensure that you perform this step in a well-ventilated area to avoid inhaling any fumes.
- Verify that the gasket did not stick to the fuel filter housing flange. If it did, carefully remove it and dispose of it separately.
- Clean the drained filter and its components with a suitable solvent to remove any remaining residue or contaminants. Some solvents may require additional disposal considerations, so be sure to read the instructions and dispose of the solvent-soaked waste properly.
- Properly dispose of the drained fuel. Contact local waste management facilities or auto part stores to inquire about their hazardous waste disposal procedures and whether they accept diesel fuel. Some facilities may have specific requirements or limitations, so it is important to check beforehand.
- Alternatively, you can reach out to local recyclers or recycling programs that handle automotive waste streams. They may be able to recycle or repurpose the diesel fuel and the filter components.
- If you choose to dispose of the contents yourself, follow any specific guidelines provided by your local authorities or waste management companies. Some localities may have designated drop-off locations or collection events for hazardous waste, including automotive fluids.
- Remember to keep the disposal process safe and environmentally responsible. Avoid pouring the diesel fuel down drains or into natural water bodies. Always store and transport the waste securely, using appropriate containers and labels.
- Finally, maintain proper records of your disposal activities, including the quantities disposed of, the methods used, and the disposal locations. This documentation can be important for regulatory compliance and environmental stewardship.
Fuel Filter Presence in 2003 Ford F250 Models
You may want to see also
Explore related products
Lubricate the new o-rings with engine oil before installing them
The fuel filter on a 2006 Duramax is located underneath the hood near the firewall on the passenger side of the engine.
When replacing the fuel filter, you should lubricate the new o-rings with engine oil before installing them. This is a vital step as the o-rings provide a tight seal, preventing leaks from occurring. Lubricating the o-rings will also reduce wear and friction between moving parts.
There are a variety of lubricants that can be used on o-rings, including silicone grease, petroleum grease, and engine oil. It is important to use a lubricant that is compatible with the material of the o-ring, in this case, neoprene. Some sources recommend using a light grade oil, such as engine oil, to lubricate the o-rings on fuel injectors.
Before installing the new o-rings, be sure to remove and discard the old o-rings. Lubricate the new o-rings generously with engine oil, taking care not to overtighten them when installing. This will ensure that the o-rings are seated correctly and provide an effective seal.
After installing the new o-rings and fuel filter, you will need to prime the fuel filter. This involves pumping the plunger on the top of the fuel filter housing until all air escapes and diesel fuel begins to flow out. Once this is complete, you can start the engine and check for leaks.
Easy Guide: Installing the 320R-RAC-01 Racor Fuel Filter
You may want to see also
Frequently asked questions
The fuel filter on a 2006 Duramax is located on the passenger side of the engine.
To change the fuel filter, you will need a panel clip remover, a Water In Fuel sensor wrench, a 1/2 inch Nut driver, and 2-stroke oil to lube up the o-rings. Start by popping the hood and removing the pins holding the inner fender well liner. With the liner removed, you can access the Fuel Filter. Disconnect the WIF connector, unscrew the fuel filter, and remove it. Dispose of the contents inside the filter properly.
GM recommends replacing the fuel filter every 15,000 miles for 2001 to 2010 model year vehicles and every 22,500 miles for 2011 to 2016 model year vehicles.
