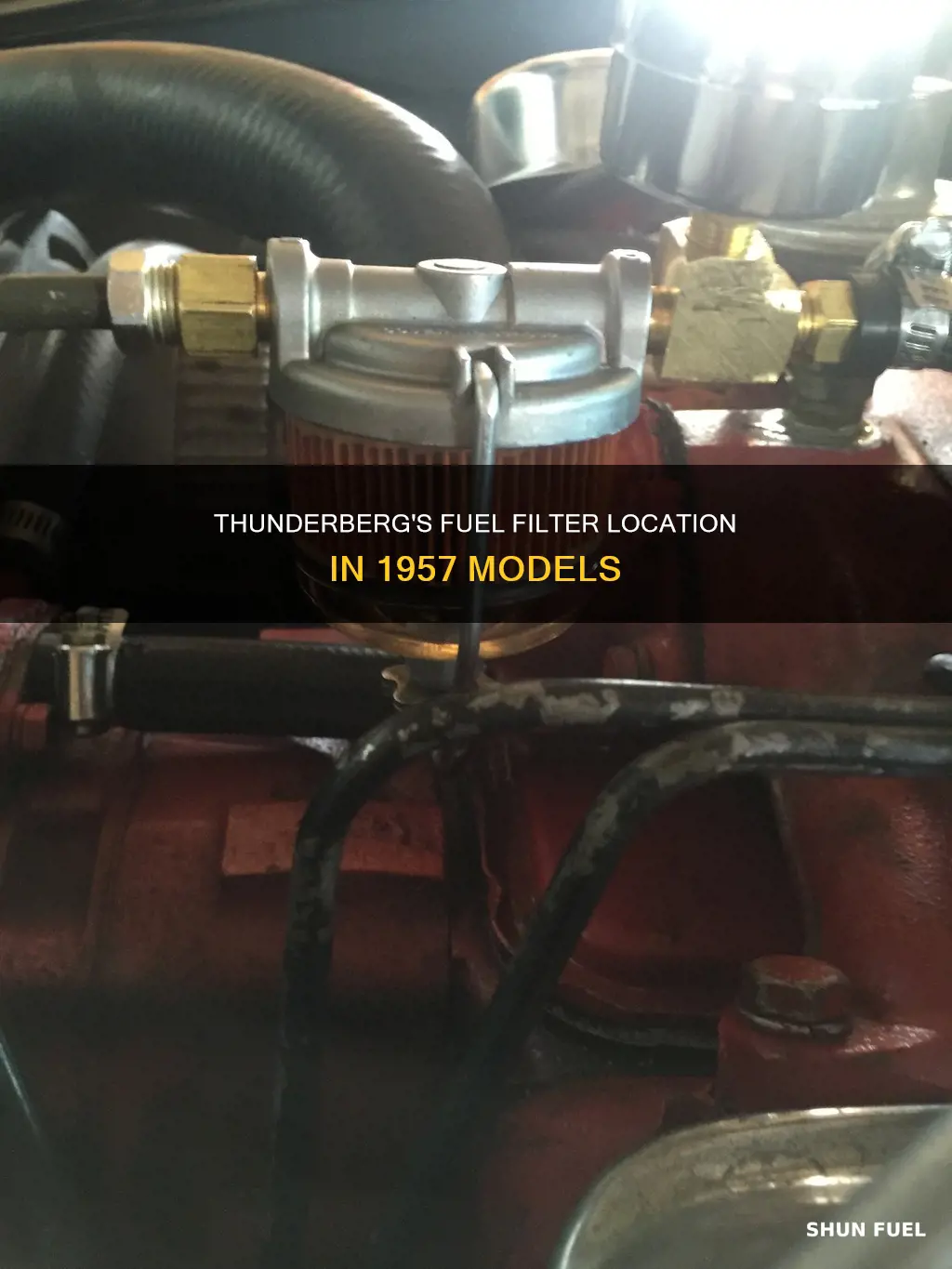

The fuel filter for a 1957 Thunderbird is located inside a glass bowl in the fuel line, which is directly above the fuel pump. The fuel pump is on the driver's side of the engine compartment at the front of the engine. There should be a filter canister on the fuel pump, which looks like a smaller version of the oil filter.
Explore related products
What You'll Learn
- The fuel filter is located inside a glass bowl in the fuel line
- The glass bowl is above the fuel pump on the driver's side
- The fuel filter can be purchased from Thunderbird parts suppliers
- The fuel filter sock in the gas tank may need replacing
- There were four original types of fuel filters for 1955-1957 Thunderbirds
The fuel filter is located inside a glass bowl in the fuel line
To replace the fuel filter, first, loosen the knurled nut under the fuel bowl. Next, swivel out of the way the bale that holds the glass bowl to the metal top of the filter holder. Then, gently tap the glass bowl to remove it. After that, remove the filter, which is just pressed up against the metal top. Finally, reverse the process after cleaning the sediment from the glass bowl.
When changing the fuel filter, caution must be taken as you will be working with gasoline. It is important to periodically change the fuel filter to ensure that your car's fuel system is working properly.
In addition to the fuel filter, the 1957 Thunderbird also has a filter sock in the gas tank. This sock can be replaced by first removing the fuel line going to the fuel filter and checking the fuel flow through the filter. Then, place the end of the fuel line coming from the fuel pump into a jar and turn the car over a few times.
Fuel Filter Maintenance for Onan 5500 Generators
You may want to see also
Explore related products
The glass bowl is above the fuel pump on the driver's side
The fuel filter for the 1955 Thunderbird is located inside a glass bowl, which sits in the fuel line directly above the fuel pump on the driver's side of the engine compartment. The glass bowl is part of the fuel filter assembly, which also includes a metal top, a filter element, and a rubber gasket.
To replace the fuel filter, first loosen the knurled nut under the glass bowl. Then, swivel out of the way the bale that holds the glass bowl to the metal top of the filter holder. Next, gently tap the glass bowl to remove it. The filter can then be taken out, as it is just pressed up against the metal top.
After cleaning the sediment from the glass bowl, the new filter can be installed. The paper side of the new filter element should face towards the fuel filter housing. The new gasket should be installed over the filter element, ensuring it does not fold or kink. The gasket should fit evenly in the recessed channel of the filter housing.
The glass bowl can then be reinstalled, and the wire harness replaced around it. Tighten the wing nut so that the glass bowl fits snugly into the fuel filter housing. Ensure the gasket has not shifted out of the channel in the filter housing. Turn the filter housing, with the glass bowl attached, back into its original position, so that the glass bowl is underneath the filter housing.
Finally, re-tighten the brass gas line fittings on both sides, start the engine, and check for leaks.
Although the above instructions refer to a 1955 Thunderbird, they may be applicable to the 1957 Thunderbird as well, given that the fuel filter assembly for the 1957 Thunderbird also includes a glass bowl.
Fuel Filter Selection: Factors to Consider
You may want to see also
Explore related products
The fuel filter can be purchased from Thunderbird parts suppliers
The fuel filter on a 1957 Thunderbird is located on the fuel pump. It looks like a smaller version of the oil filter and is situated next to it. The filter element inside the canister is unscrewed from the pump assembly. If the pump has been changed to a non-canister type, the filter could be anywhere in the line or may have been omitted.
Fuel Filter Sizing: Bigger, Better, or Bust?
You may want to see also
Explore related products
The fuel filter sock in the gas tank may need replacing
The fuel filter in a 1955 Thunderbird is located inside a glass bowl in the fuel line, which is directly above the fuel pump on the driver's side of the engine compartment at the front of the engine. It is recommended that the fuel filter is periodically changed to ensure the car's fuel system is working properly.
To replace the fuel filter sock, you will need to drain the old fuel from the tank. There is a drain plug by the left rear wheel that will drain most of the fuel. You should also replace the rubber lines, as they will not stand up to the ethanol in modern fuel. There are three short rubber sections: one at the fuel tank, one inside the left front wheel rear splash shield, and a third between the fuel pump and the metal line on the chassis.
You should also check for an air leak in your connections, as your mechanical pump may have failed. If you have an original non-Chinese pump, you can send it to a rebuilder. If the vacuum side of your fuel pump still works, you can bypass the pump with an electric pump.
Removing Fuel Filter: 1992 Ford F150 Guide
You may want to see also
Explore related products
There were four original types of fuel filters for 1955-1957 Thunderbirds
There were four original types of fuel filters for 1955–1957 Thunderbirds. The first type was used in the E-Birds, the second in the F-Birds, and the remaining two were glass bowl filters, one with a short bowl and another with a longer bowl. The short glass bowl filters were used in 1955 and 1957 models, while the long glass bowl filters were used in 1956 and early 1957 models.
The fuel filter on a 1957 Thunderbird is located on the fuel pump. It looks like a smaller version of the oil filter and is situated right next to it. Inside the canister is a filter element that can be unscrewed from the pump assembly. If the pump has been changed to a non-canister type, the filter could be anywhere in the line or may have been omitted.
Owners of vintage Thunderbirds often encounter fuel issues. Some have replaced the flexible fuel line going to the fuel pump, only to find that the fuel bowl does not fill up completely, and the car won't get gas. In some cases, the fuel pump may need to be replaced, but it is worth checking for air leaks in the connections first, as the mechanical pump may have failed. If you have an original non-Chinese pump, you can send it to a rebuilder. Alternatively, if the vacuum side of your fuel pump still works, you can bypass the pump with an electric pump.
Changing Your 2004 Dodge Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter is located inside a glass bowl in the fuel line, directly above the fuel pump on the driver's side of the engine compartment at the front of the engine.
The fuel filter is located inside a glass bowl, which has a rubber gasket that slides over the filter element. The filter has a bit of material protruding, so the rubber gasket holds it in place against the filter housing.
There were four original types of filters for 1955-1957 Thunderbirds. Two glass bowl filters, one with a short bowl and another with a longer bowl. The short glass bowl filters were used in 1955 and 1957, and the long glass bowl filters were used in 1956 and early 1957.
