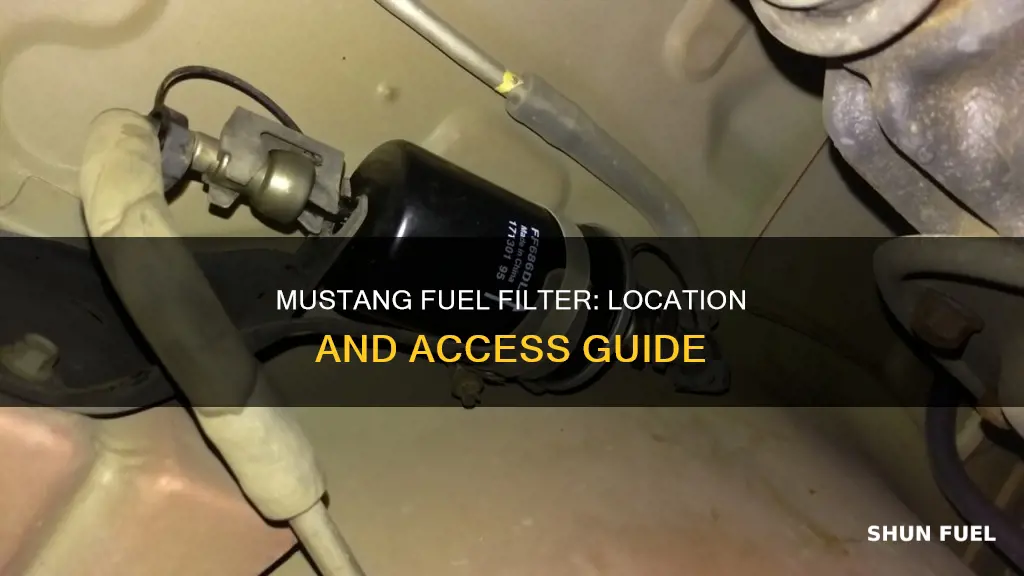

The fuel filter in a 2004 Mustang is located behind the gas tank, under the car. It is recommended that you change the fuel filter every 30,000 miles, and sometimes earlier if you feel any signs of hesitation. To replace the fuel filter, you will need to relieve fuel pressure by letting the car sit for a few hours. You will then need to locate the Schrader valve, remove its cap, and press on it with a small flathead screwdriver. Next, remove the two metal clips on each end of the filter by pulling them up with your hands. Finally, connect the fuel line disconnect tool to the metal part coming out of the filter, and pull away from the fuel filter. Be cautious, as fuel will drip out once the line is unclipped.
| Characteristics | Values |
|---|---|
| Location of the fuel filter | On the rear of the vehicle, on top of the tank on the side facing the front of the car |
| Fuel filter replacement | Behind the gas tank under the car |
Explore related products
What You'll Learn
The fuel filter is behind the gas tank
The fuel filter in a 2004 Mustang is located behind the gas tank, under the car. It is important to know where the fuel filter is located, as it is a part that needs to be replaced from time to time. The fuel filter is designed to prevent any dirt from getting into the engine. Over time, the filter accumulates deposits that restrict the fuel flow, which can cause performance issues.
To replace the fuel filter, you will need a fuel line/AC disconnect tool, which can be purchased at a local auto store for a small price. It is important to depressurise the system before attempting to replace the fuel filter. This can be done by letting the car sit for a few hours or by using a specific tool to depressurise it. Once the system is depressurised, locate the fuel filter and remove the two metal clips on each end by pulling them up with your hands. Connect the fuel line disconnect tool to the metal part coming out of the filter, then pull away from the fuel filter. Be cautious, as fuel will drip out once the line is unclipped.
Wait for the fuel to stop dripping, then unclip the other side of the filter in the same way. Pull the filter off the bracket to remove it, then place the new filter in the bracket in the same direction as the old one. Connect the two lines on both ends and snap them into place. Reinstall the fuel line shield and install the fuel pump relay. Finally, connect the negative battery terminal.
Unclogging Fuel Filters: DIY Maintenance Tips
You may want to see also
Explore related products
It's on the rear of the vehicle
The fuel filter in a 2004 Mustang is located at the rear of the vehicle. It is situated on top of the tank, on the side facing the front of the car. The filter will have two hoses connected to it on each end, with metal clips that can be removed by pulling them up.
To replace the fuel filter, you will need to connect a fuel line disconnect tool to the metal part coming out of the filter. Once the tool is connected, close it and pull it away from the fuel filter. Fuel will drip out, so caution is advised. Wait for the fuel to stop dripping, and then unclip the other side of the filter in the same way. Pull the filter off the bracket to remove it.
A new filter can then be placed in the bracket, ensuring it is facing the same direction as the old one. Connect the two lines on both ends, aligning them in place and snapping them in.
The fuel filter should be replaced every 30,000 miles, or before this if the engine hesitates when you press on the gas.
Removing a Boat Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
It's above the rear axle
The fuel filter on a 2004 Mustang is located above the rear axle. To access it, jack up the rear end of the car and look up above the axle. You will see the fuel filter connected to two hoses on each end. There are also small white clips at each end that you will need to remove carefully. Be cautious as fuel will drip out once the lines are unclipped.
To replace the fuel filter, first relieve the fuel pressure by letting the car sit for a few hours. Then, locate the Schrader valve behind the alternator, remove its cap, and press on it with a small flathead screwdriver. Next, remove the two metal clips on each end of the fuel filter by pulling them up with your hands. Connect the fuel line disconnect tool to the metal part coming out of the filter, close the tool, and pull it away from the fuel filter. Allow the fuel to drip out, then unclip the other side of the filter in the same way. Finally, pull the filter off the bracket to remove it and install the new filter in the same direction as the old one.
It is recommended that you replace your fuel filter every 30,000 miles or if you notice any signs of hesitation when stepping on the gas. A clogged fuel filter can restrict fuel flow from the fuel tank to the engine, causing the engine to receive less fuel than it needs and resulting in hesitation or loss of power. Replacing the fuel filter is a quick and easy process and will immediately restore your Mustang's performance.
Dodge Sprinter Fuel Filter: Step-by-Step Replacement Guide
You may want to see also
Explore related products
Disconnect the negative battery terminal
To disconnect the negative battery terminal on a 2004 Mustang, follow these steps:
- Loosen the 8mm clamp nut on the negative battery terminal using a socket wrench. You may need to jack up the right rear tire to access the battery terminal and relieve the tension on the post spring, making it easier to loosen the nut.
- After loosening the nut, pry up the negative battery cable from the battery terminal. You may need to use a flat-head screwdriver or a similar tool to gently pry it up from both sides. Be careful not to damage the terminal or the cable.
- Once the cable is loose, lift it off the battery terminal.
- If you are replacing the battery terminal, you can proceed with the next steps. Otherwise, if you are simply disconnecting the battery for maintenance or repair, you can stop here.
- Measure 7/16 of an inch from the old cable wire end and trim it if necessary.
- Slide an eyelet over the negative cable down to the insulation, leaving about 1/4 inch of wire exposed. You may need to crimp the wire to make it fit properly.
- Fold the wires over the eyelet sides, ensuring they wrap around it completely.
- Slide the new terminal onto the crimp nut and hand-tighten it. Then, use a 14mm or adjustable wrench to tighten it further, ensuring a secure connection.
It is important to note that you should always disconnect the negative battery terminal first and reconnect it last to avoid any electrical issues. Additionally, when working with batteries, it is crucial to wear protective gear, such as gloves and eye protection, to safeguard against any potential hazards.
Finding the Right Fuel Filter for Your Car
You may want to see also
Explore related products
The filter has two hoses connected to it
The fuel filter on a 2004 Mustang is located on the rear of the vehicle, on top of the tank, on the side facing the front of the car. The filter has two hoses connected to it, with metal clips on each end. To remove the filter, pull up on the metal clips with your hands to release them. Be cautious, as fuel will drip out once the clips are removed. After removing the clips, connect the fuel line disconnect tool to the metal part of the filter, then pull the tool away from the filter. Allow the filter to spill the fuel in the line, then unclip the other side in the same way. Finally, pull the filter off of its bracket to complete the removal.
When replacing the fuel filter, it is important to use the correct tools and take safety precautions. Before starting, it is recommended to depressurize the fuel system by letting the car sit for a few hours or using a fuel line disconnect tool. Wear protective gear, such as goggles, to shield your eyes from any fuel spray. Additionally, be cautious of any fuel dripping or spraying during the removal process.
The new filter should be installed in the same direction as the old one. Connect the two lines on both ends, aligning them in place, and ensure they are securely attached. Reinstall any clips or brackets that were removed during the process.
It is recommended to replace the fuel filter every 30,000 miles or if you experience any signs of hesitation or loss of engine power. Replacing the fuel filter can help improve the performance of your Mustang and prevent dirt from entering the engine.
Fuel Filter Mystery: 2006 F250 Diesel Edition
You may want to see also
Frequently asked questions
The fuel filter on a 2004 Mustang is located on the rear of the vehicle, above the rear axle, on top of the tank on the side facing the front of the car.
It is recommended that you change your fuel filter every 30,000 miles, and sometimes before that if you feel any signs of hesitation.
A clogged fuel filter restricts the fuel flow going from the fuel tank to the engine, which gives the engine less fuel than it needs and causes hesitation when you press on the gas.
You will need a fuel line disconnect tool, which can be purchased at a local auto store for around $10. You may also need a pair of safety goggles to protect your eyes from any spraying fuel.
