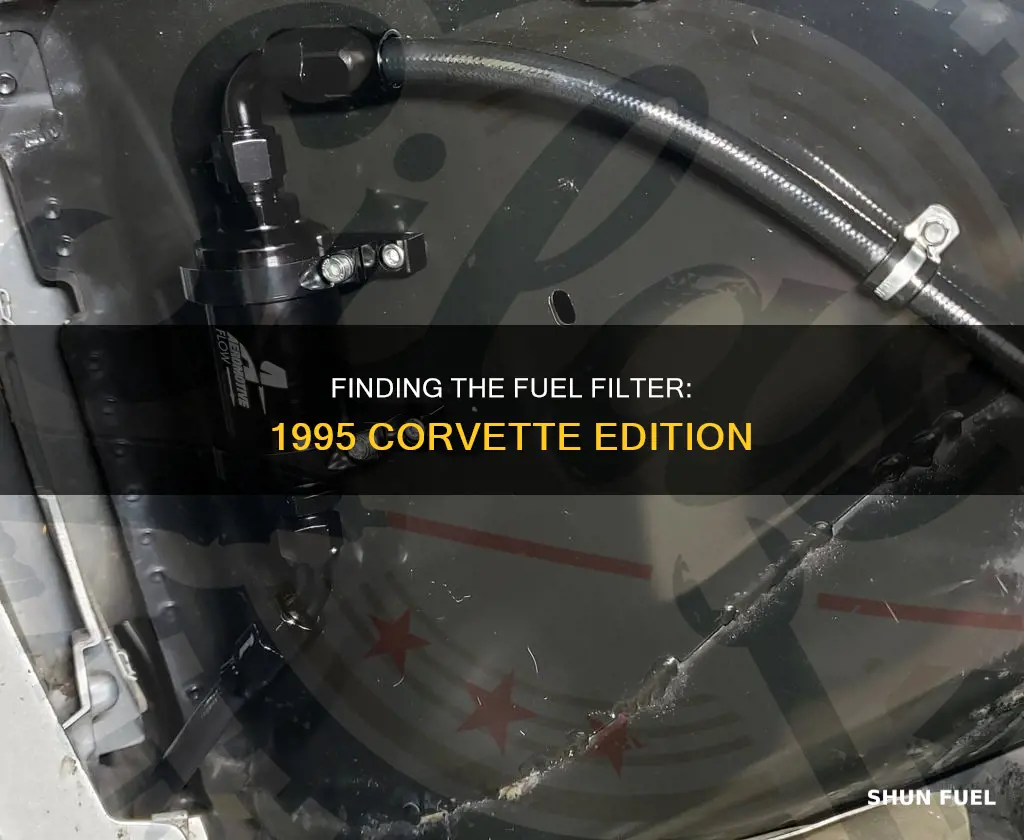

The fuel filter in a 1995 Corvette is located in the fuel feed line attached to the frame rail, at the rear of the vehicle. It is tucked inside the frame rail, behind the front passenger-side wheel. You can follow the fuel line to locate it.
| Characteristics | Values |
|---|---|
| Location of the fuel filter | Behind a shield, in the fuel feed line attached to the frame rail at the rear of the vehicle |
| Ease of access | Fairly easy to replace |
| Fuel filter type | Threaded fitting type |
Explore related products
What You'll Learn
The fuel filter is located in the fuel feed line
To relieve the pressure, raise the rear of the vehicle and disconnect the negative battery cable. You can then remove the fuel filter shield and attaching screws. Before disconnecting the fuel feed pipes from the fuel filter, be sure to clean the area around all in-line fuel filter connections and surrounding areas to avoid possible contamination of the fuel system.
Once the fuel filter is visible, you can disconnect the fuel feed pipes and remove the fuel filter. When installing a new fuel filter, be sure to use a backup wrench to prevent the filter from turning and tighten to 30 Nm (22 lb.ft).
It is important to note that the process of replacing a fuel filter can be messy, as fuel may spill out. It is recommended to have a backup wrench and a fuel-line disconnect tool to assist in the process. Additionally, always refer to the vehicle's repair guide for specific instructions and safety precautions.
Fuel Filter on a 2000 Honda Civic: Yes or No?
You may want to see also
Explore related products
It's behind a shield, attached to the frame rail
To locate the fuel filter on a 1995 Corvette, you will need to look behind a shield, attached to the frame rail. This is at the rear of the vehicle, and you will need to raise the car to access this area.
The fuel filter is likely to be behind a shield, which will need to be removed to access the filter. To do this, first relieve the fuel system pressure, then disconnect the negative battery cable. Next, raise the vehicle and locate the fuel filter shield. You can find this by following the fuel line from the tank. Once located, unfasten the screws and remove the shield.
With the shield removed, you will be able to access the fuel filter. It is important to clean the area around the fuel filter connections and the surrounding area before disconnecting anything, to avoid possible contamination of the fuel system.
The process of replacing the fuel filter can then begin. This will involve disconnecting the fuel feed pipes from the filter, draining any remaining fuel, and removing the filter attaching screw. A new filter can then be installed, and the process reversed to reconnect everything.
It is important to note that this process may vary slightly depending on the specific model and year of the Corvette, and it is always recommended to refer to a repair guide or seek professional assistance if you are unsure about any part of the process.
Priming John Deere X758: Fuel Filter Steps
You may want to see also
Explore related products
Disconnect the battery before attempting to access the fuel filter
While some people argue that disconnecting the battery is unnecessary when changing the fuel filter, it is generally recommended for safety reasons. One of the main concerns when working on the fuel system is the risk of a spark while the gas tank is open. By disconnecting the battery, you eliminate the possibility of electrical power near the fuel pump, reducing the risk of sparks or other electrical issues.
Additionally, disconnecting the battery can help relieve pressure in the fuel lines. Before loosening any connections, it is crucial to relieve this pressure to prevent fuel from spraying out. While some suggest that simply pulling the fuel pump relay and draining the fuel line pressure is sufficient, disconnecting the battery ensures that there is no power near the fuel pump.
Furthermore, by disconnecting the battery, you can avoid potential issues with the vehicle's electrical system. Disconnecting the battery prevents any accidental activation of the ignition, which could lead to electrical power being sent to the fuel pump or other components. This precaution ensures that there is no unexpected release of fuel or activation of systems during the repair process.
To ensure a safe working environment and prevent potential hazards, it is always recommended to disconnect the battery before attempting to access or work on the fuel filter. While it may be an extra step, it provides peace of mind and reduces the risk of injury or damage to the vehicle. It is also important to follow other safety precautions, such as relieving fuel system pressure and raising the vehicle to access the fuel filter.
Overall, while there may be varying opinions on the necessity of disconnecting the battery, prioritizing safety by taking this precaution can help ensure a smooth and incident-free process when working on the fuel filter of a 1995 Corvette or any other vehicle.
The Ultimate Guide to Cleaning Your K-Tuned Fuel Filter
You may want to see also
Explore related products
Relieve the pressure in the fuel line at the rail
To relieve the pressure in the fuel line at the rail of a 1995 Corvette, follow these steps:
Firstly, it is important to note that the Corvette has a fuel pressure gauge installed on the Schrader valve on the passenger-side fuel rail. This gauge will give a reading of the fuel pressure when the key is turned to the "Run" position.
Now, to relieve the pressure:
- Raise the rear of the car, preferably from the rear subframe.
- Disconnect the negative battery cable.
- Locate the fuel filter. It is likely in the fuel feed line attached to the frame rail at the rear of the vehicle.
- Remove the fuel filter shield attaching screws and the shield itself.
- Clean all in-line fuel filter connections and surrounding areas to avoid possible contamination of the fuel system.
- Using a backup wrench, disconnect the fuel feed pipes from the fuel filter.
- Drain any remaining fuel into an approved container.
By following these steps, you can safely relieve the pressure in the fuel line at the rail of your 1995 Corvette. It is important to work carefully and methodically to avoid any issues.
Locating the Fuel Filter in Your 98 Sunfire
You may want to see also
Explore related products
The filter can be accessed by raising the rear of the car
To access the fuel filter on a 1995 Corvette, you will need to raise the rear of the car. This can be done by raising the vehicle from the rear subframe.
The fuel filter is located in the fuel feed line attached to the frame rail at the rear of the vehicle. It is tucked behind a shield and can be hard to see. To access it, first relieve the fuel system pressure and disconnect the negative battery cable. Then, raise and safely support the vehicle.
Unfasten the fuel filter attaching screws and remove the fuel filter shield. Before disconnecting, clean the area around all in-line fuel filter connections and the surrounding areas to avoid possible contamination of the fuel system. Using a backup wrench to avoid warping the lines, disconnect the fuel feed pipes from the filter.
With the rear of the car raised, you will be able to access the fuel filter and continue with the removal and replacement process.
Air in Fuel Filter: Potential Engine Damage and Performance Issues
You may want to see also
Frequently asked questions
The fuel filter is located in the fuel feed line attached to the frame rail, at the rear of the vehicle. It is probably behind a shield and will be hard to see.
You will need to relieve the fuel system pressure, disconnect the negative battery cable, and raise and safely support the vehicle.
Unfasten the fuel filter attaching screws and remove the fuel filter shield. Clean the area around all in-line fuel filter connections and surrounding areas before disconnecting to avoid possible contamination of the fuel system.
