Regan Brown
The fuel filter in a Gen 2 Mini is located in the right side fuel tank. The fuel pump, on the other hand, is located in the left side tank. The fuel filter is an important part of the fuel system, ensuring that only clean fuel is delivered to the fuel injectors. It is recommended by the factory to be changed at around 100,000 miles, although some suggest replacement at 50,000-75,000 miles or even every 30,000 miles. To access the fuel filter, the rear seat on the passenger side of the vehicle must be removed.
| Characteristics | Values |
|---|---|
| Location of fuel filter in Gen 2 Mini | Right side fuel tank |
| Location of fuel pump | Left side fuel tank |
| Models | 2007-2013 R56 MINI Cooper and Cooper S Hardtop |
| 2008-2014 R55 MINI Cooper and Cooper S Clubman | |
| 2009-2015 R57 MINI Cooper and Cooper S Convertible | |
| 2012-2015 R58 MINI Cooper and Cooper S Coupe | |
| 2012-2015 R59 MINI Cooper and Cooper S Roadster | |
| Countryman and Paceman |
Explore related products
What You'll Learn
The fuel filter is located in the right side tank
The fuel filter is an important part of the fuel system in a car, ensuring that only clean fuel is delivered to the fuel injectors. In a Gen 2 Mini, the fuel filter with a level sensor is located in the right-side tank.
To replace the fuel filter, you will need to access it by removing the rear seat on the passenger side of the vehicle. This will expose the access panel to the fuel filter. Before removing the access panel, brush or blow away any dirt or debris that may have gathered around the filter housing to prevent it from falling into the tank.
Once the area is clean, remove the 10mm nuts surrounding the exterior of the panel. Then, using needle-nose pliers, push in on the sides of the fuel line connector tab, then pull and twist the fuel line to remove it. Mark the locking ring and the access hole edge to ensure proper alignment when reinstalling. Using a flat-tip screwdriver and a hammer, gently tap the screwdriver against the edge of the ridges to rotate the locking ring counterclockwise and remove it.

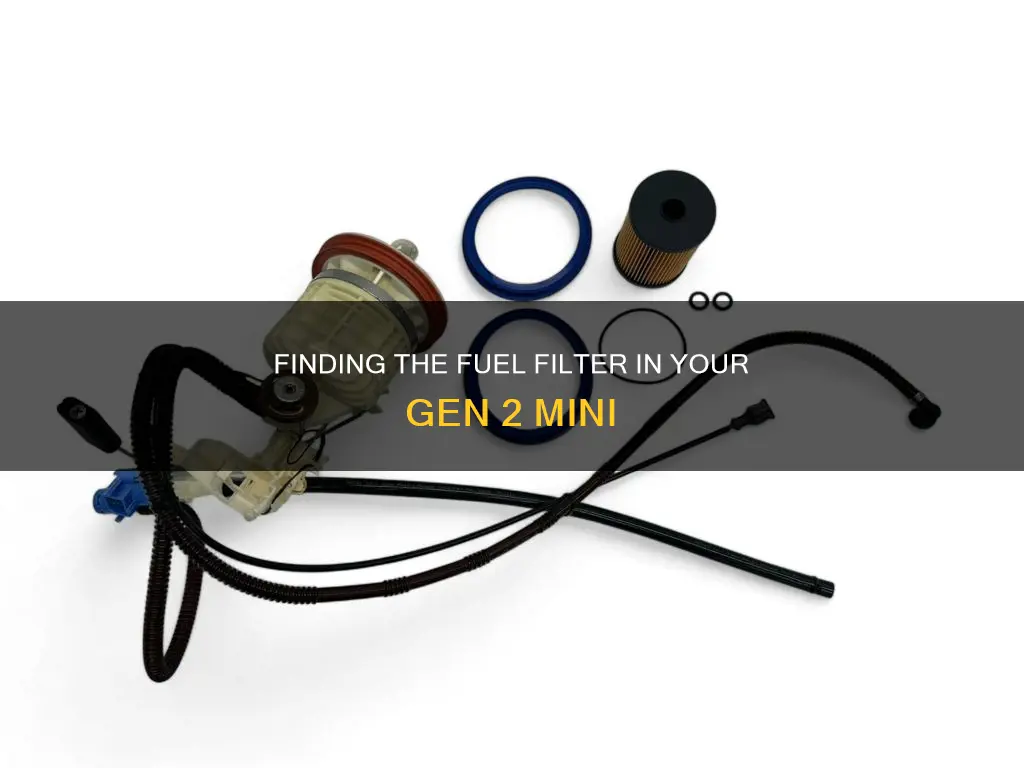

With the locking ring removed, you can now access the fuel filter canister. Hold the bottom part of the canister with one hand while unscrewing the lid with the other. Be careful not to lift the canister more than 3-4 inches, as the fuel pump hoses, wiring, and float are attached to the bottom. After removing the canister, you can install the new fuel filter following the above steps in reverse.
Performance Fuel Filters: Picking the Right One
You may want to see also
Explore related products
The fuel pump is located in the left side tank
The fuel pump is located in the left-side tank of the Gen 2 Mini. This is different from Gen 1 Minis, where the fuel pump is located in the left-side tank and the fuel filter is located in the right-side tank.
The fuel filter in the Gen 2 Mini is located in the right-side tank. The Mini Cooper Fuel Filter and Fuel Pump are located in the gas tank, accessible underneath the rear seat.
To replace the fuel filter, it is a good idea to have at least a quarter tank of gas. You will need to reprime the fuel pump when the filter is replaced. Remove the five nuts holding the access port cover to the body using a 10mm socket driver. You may find that a putty knife or flat-blade screwdriver could also be useful here.
Once you have removed the cover, you may want to use a vacuum cleaner and a rag to clean the area. You should then be able to see the unbroken seal at the back. You can then use a screwdriver to coax the fuel filter canister out of the tank. You will need to hold the bottom part of the canister with one hand while unscrewing the lid with the other. Be careful not to allow the base to twist, as it is attached to other plastic parts and wiring that could break.
The Mini catalog lists only the complete fuel pump assembly and does not offer the filter separately.
Fuel Filter: The Culprit Behind Your Car's Jerking?
You may want to see also
Explore related products
The fuel filter is accessible underneath the rear seat
The fuel filter in a Gen 2 Mini is located in the gas tank, which is accessible underneath the rear seat. The fuel filter is an integral part of the electric fuel pump. It is recommended that the fuel filter be replaced every 50-75k miles, with some people suggesting every 30k miles.
To access the fuel filter, the rear seat must be removed. The seat is anchored at several points and is held in place by clips on the floor. To remove the seat, press the latch to release the seat back center pivot. The slots and tabs on the outside pivot will line up at about 45 degrees. Pull out the plastic grommets for the child seat anchors and reach under the front edge, pulling up to release it. With the front loose and angled up, press down in the center of the seat to pop the rear hook free. Pull up on the cushion to pop it free of the clips. The seat cushion is held in the center by a single hook.
Once the seat is removed, the access panel to the fuel filter can be seen. Remove the 10mm nuts that surround the exterior of the panel. Brush or blow away any dirt or debris that may have gathered around the filter housing so it doesn't fall into the tank. Pack some paper towels loosely around the fuel line connection. Using needle-nose pliers, push in on the sides of the fuel line connector tab, then pull and twist the fuel line to remove it. When this happens, a small amount of fuel will discharge from the connector.
The fuel filter canister can be coaxed out of the tank using a screwdriver. Hold the bottom part of the canister with one hand while unscrewing the lid with the other, being careful not to allow the base to twist since it is attached to other plastic parts, wiring, etc. that could break. The fuel pump hoses, wiring, and float are attached to the bottom of the canister, so be careful not to lift it more than 3-4 inches.
Fuel Filter: Emission System Component?
You may want to see also
Explore related products
The fuel filter should be replaced every 50-75k miles
The fuel filter in a Gen 2 Mini is located in the gas tank, which is accessible underneath the rear seat. It is recommended that the fuel filter be replaced every 50,000 to 75,000 miles, or even as often as every 30,000 miles according to some sources. This is because the fuel filter can get very dirty, and a clogged filter can cause "go" issues with your Mini.
While Mini Cooper's official service schedule does not specify a time for replacement, it is recommended that the filter be inspected after about 50,000 to 60,000 miles. Replacement kits are relatively inexpensive, and with some DIY know-how, you can replace the filter yourself.
To replace the fuel filter, you will need to remove the rear seat and the access panel. You will then need to remove the fuel line and unscrew the fuel filter assembly threaded collar. It is important to note that there is still fuel in the canister, so be careful not to spill it. Once the old filter is removed, you will need to clean out any residual dirt and replace the O-rings. Finally, you will need to reprime the fuel pump and ensure that the new filter is securely in place.
It is worth noting that some sources suggest that the fuel filter does not need to be replaced at all during the lifetime of the car. However, this may depend on where you fill up your gas tank. If you frequently fill up at big-name gas stations, your fuel filter may last longer, up to 100,000 miles.
Fuel Filter Requirements for Your C11 Cat
You may want to see also
Explore related products
The fuel filter is integral to the electric fuel pump
In the Gen 2 Mini, the fuel pump is located in the left-side tank, and the fuel filter is located in the right-side tank. The fuel filter is an essential component of the electric fuel pump system. It is responsible for removing impurities from the fuel before it reaches the pump, ensuring that clean fuel is delivered to the engine.
The fuel filter plays a critical role in protecting the electric fuel pump from damage caused by contaminants in the fuel. Over time, dirt, rust, and other particles can accumulate in the fuel tank, and if these particles are not removed, they can clog the fuel pump and fuel injectors, leading to reduced performance and even engine failure.
By locating the fuel filter before the electric fuel pump in the fuel system, it acts as a barrier, trapping these contaminants and preventing them from reaching the pump. This helps to maintain the proper functioning of the fuel pump and ensures that only clean fuel passes through. Regular maintenance and replacement of the fuel filter are crucial to maintaining the overall performance and longevity of the electric fuel pump and fuel injection system.
While the fuel filter plays a vital role in protecting the electric fuel pump, it is important to select the appropriate type of fuel filter. Using a finer (lower micron rating) filter upstream from the fuel pump can lead to pump failure due to increased pressure drop over time. This pressure drop can cause the fuel to boil or vaporize, resulting in cavitation and potential damage to the pump. Therefore, it is recommended to use a "Post-Pump" filter, which is typically replaced during normal vehicle maintenance, rather than a finer filter upstream of the pump.
Additionally, it is worth noting that accessing and replacing the fuel filter in the Gen 2 Mini may require some careful manoeuvring. The filter is located underneath the rear seat, and special tools such as putty knives, screwdrivers, and socket drivers may be needed to remove the access port cover and extract the fuel filter canister from the tank. It is also important to ensure that the fuel pump is reprimed after replacing the filter.
Dodge Neon 2003: Fuel Filter Location Guide
You may want to see also
Frequently asked questions
The fuel filter is located in the right side fuel tank.
No, the fuel pump is located in the left side tank.
You can access the fuel filter by removing the rear seat on the passenger side of the vehicle.
Mini recommends replacing the fuel filter at around 100k miles, but some people suggest replacing it more frequently, at 50-75k miles or even every 30k miles.
Yes, you can replace the fuel filter yourself if you have some DIY know-how. Mini provides an access panel so you don't need to remove the gas tank.
