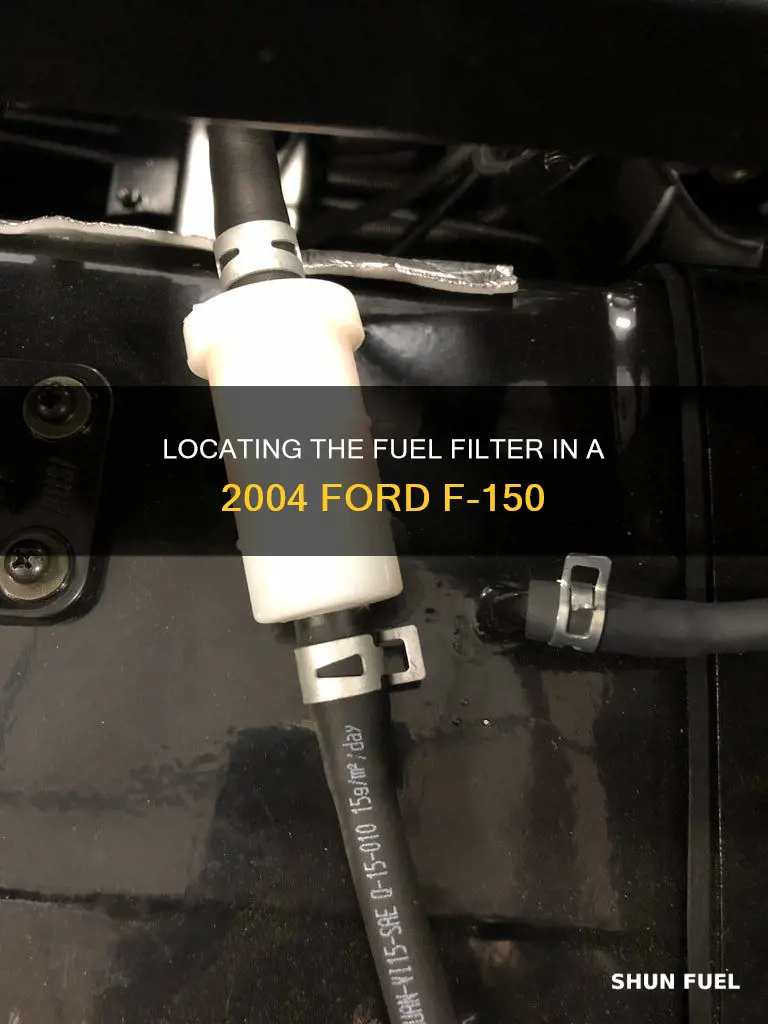

The fuel filter in a 2004 Ford F150 is located in front of the gas tank, near the driver's door. It is tucked up pretty far, so it may be hard to spot. The fuel filter is always found between the fuel tank and the engine. For most vehicles, the fuel filter is located inside the top of the fuel tank, where it connects with the fuel line.
| Characteristics | Values |
|---|---|
| Location | Under the driver's side door, in front of the gas tank |
| Ease of access | Tucked up pretty far |
| Tools required | Tool to get one of the hoses off |
| Additional information | The fuel filter is always found between the fuel tank and the engine |
Explore related products
What You'll Learn
The fuel filter is located in front of the gas tank
The fuel filter in a 2004 Ford F-150 is located in front of the gas tank, near the driver's side door. It is tucked up pretty far, so it may be hard to spot at first.
To access the fuel filter, you will need to look under the driver's side door. You will need to purchase a special tool or clips to unlock the fasteners that hold the fuel lines to the filter. It is important to locate the fuel pressure release valve and release the pressure before removing the lines from the filter.
Once the pressure is released, you can start working on removing the fuel filter. Begin by unhooking the metal retaining clip and positioning the line compression removal tool at the front end of the filter. Apply a small amount of pressure and slide the tool into the line fitting until it comes off. Repeat this process at the rear of the filter, being careful to apply as little pressure as possible. After removing both ends of the line fitting, use a flat-blade screwdriver to disconnect the dirty filter.
It is important to note that you should never force anything during this process. If you cannot remove any components with gentle to moderate force, something is wrong. Always refer to the owner's manual or seek professional assistance if you are unsure about any steps.
Fuel Filter Leaks: What You Need to Know
You may want to see also
Explore related products
It's tucked away near the driver's side door
The fuel filter on a 2004 Ford F-150 is located near the driver's side door. It is tucked away, but you can find it by looking under the driver's side door. It is located in front of the gas tank, somewhat by the driver's door, and tucked up pretty far.
To replace the fuel filter, you will need to purchase a new one, as well as the special tool or clips required to unlock the fasteners that hold the fuel lines to the filter. Before removing the lines from the filter, it is important to search for and find the fuel pressure release valve.
Once you have the necessary tools and have located the fuel filter, you can begin the removal process. First, remove the metal retaining clip that holds the fuel filter in place. Then, position the line compression removal tool at the front end of the filter and apply a small amount of pressure, sliding the tool into the line fitting until it slides off. Keep towels or rags handy, as fuel tends to gush out during this step.
Repeat this process at the rear of the filter, applying as little pressure as possible. Once both ends of the line fitting have been removed, use a flat-blade screwdriver to disconnect the dirty filter. Be sure to have a rag ready to catch any excess fuel.
Finally, install the new filter, being careful to position it so that the flow arrow is pointing towards the front end of the vehicle.
Diesel Fuel Filters: Understanding Micron Ratings
You may want to see also
Explore related products
You'll need a tool to get the hoses off
When replacing the fuel filter on a Ford F-150, you will need a line compression removal tool to disconnect the fuel hoses. This tool is designed to remove the line from the fuel filter by compressing the metal fitting and sliding the line off.
To begin, locate the fuel filter under the driver's side door, on the inside frame rail, near the rear of the transfer case. It is important to note the direction of the filter, as the flow points to the front of the truck.
Now, starting with the front end of the fuel filter, unhook and swing the metal retaining clip out of the way. Then, slip the line removal tool onto the front end of the fuel filter. Using gentle pressure, compress the metal fitting towards the fuel filter and slide the tool towards the front of the truck into the line fitting until firm.
At this point, the line fitting should slide off the old filter, and fuel may spray out, so it is recommended to cover the line with a rag to minimize the spray. You may also want to unhook the line from the plastic c-clamp that holds this line. It is important to be gentle, especially with the rear line, as it is more delicate.
By following these steps and using the correct tool, you can safely and effectively remove the fuel hoses from the fuel filter on your 2004 Ford F-150.
Clogged Fuel Filter: Signs and Solutions
You may want to see also
Explore related products
The filter is behind a metal retaining clip
The fuel filter on a 2004 Ford F-150 is located in front of the gas tank, near the driver's door. It is tucked away, so it may be a little hard to spot.
To replace the fuel filter, you will need to purchase a new one, as well as a fuel line disconnect tool, and safety equipment such as safety glasses. You will also need a rag to catch any excess fuel.
Before attempting to replace the fuel filter, it is important to release the fuel pressure. There are two ways to do this: by removing the fuse (although this is not recommended as you may remove the wrong one) or by tripping the inertia fuel reset switch.
Once the pressure has been released, you can begin to remove the fuel filter. To do this, locate the metal retaining clip and unhook it. Then, position the line compression removal tool at the front end of the filter and apply a small amount of pressure, sliding the tool into the line fitting until it slides off.
Repeat this process at the rear of the filter, being careful to apply as little pressure as possible. Once both ends of the line fitting have been removed, use a flat-blade screwdriver to disconnect the dirty filter.
Now, the filter is free, but the bracket is very tight. Use one hand to pull back one side of the bracket and your other hand to ease the filter out.
Finally, insert the new filter, ensuring that the flow arrow is pointing towards the front end of the F-150.
Dirty Diesel Fuel Filter: What to Look For
You may want to see also
Explore related products
You'll need a screwdriver to disconnect the dirty filter
To disconnect the dirty filter on your 2004 Ford F150, you'll need to first assemble your tools and parts. These include a new fuel filter, a fuel line disconnect tool, a medium-size flat-blade screwdriver, rags, safety glasses, and a rubber mallet and wooden dowel (optional).
Now, you'll need to relieve the pressure in the fuel system. This can be done in two ways: by removing the fuse or tripping the inertia fuel reset switch. Removing the fuse is not recommended, as you may remove the wrong one and cause issues. To trip the inertia fuel reset switch, locate it under the hood on the driver's side with a red rubber top. With the motor running and all accessories off, use the end of a hammer handle to tap the middle of the switch, then tap the metal end with a rubber mallet. If you're afraid of breaking the switch, remove the two bolts fastening it to the wall and gently tap the switch against something hard. Crank the motor a few times to ensure most of the fuel pressure is released.
Next, disconnect the orange clip from the fuel line connecting the fuel tank to the filter. Use your flat-tip screwdriver to carefully remove the clip, as it is fragile and doesn't come out easily. Once the clip is removed, the fuel line will come off. Push the line up and over the frame to keep it out of the way, and be ready with a rag to catch any leaking fuel.
Now, disconnect the forward fuel line from the filter by removing the safety clip. Pinch the front portion of the clip to unlock the clip's jaws. Then, insert your disconnect tool into the coupling. Use the small end of the tool and push it away from the filter until the coupling releases. Use your other hand to pull the line free from the filter, and have a rag ready to catch excess fuel.
At this point, the filter is technically free, but the bracket is tight. Use one hand to pull back one side of the bracket while using the other hand to ease the filter out. Now, you can remove the dirty filter. Use your flat-blade screwdriver to pry the old filter out of the clamps. Be careful, as fuel may gush out during this step.
Finally, install the new filter, being sure to position it so that the flow arrow is pointing towards the front end of your F-150. Reconnect the front line and hook the retaining clip back into position. Repeat this process for the rear line.
Testing Fuel Pressure: 1993 Chevy Silverado Guide
You may want to see also
Frequently asked questions
The fuel filter on a 2004 Ford F-150 is located in front of the gas tank, close to the driver's side door.
To replace the fuel filter, you will need to unhook the metal retaining clip and position the line compression removal tool at the front end of the filter. Then, apply a small amount of pressure, sliding the tool into the line fitting until it comes off. Repeat this at the rear of the filter, applying minimal pressure. Once both ends are removed, use a flat-blade screwdriver to disconnect the dirty filter and replace it with a new one.
It is recommended to replace the fuel filter every 5 years or 50,000 miles. However, you may need to replace it more frequently depending on factors such as your driving habits and the quality of fuel used.
There are several signs that indicate you need to replace the fuel filter, including difficulty starting the engine, stalling, excessive vibration while driving, and rough slow-speed cruising.
