Regan Brown
The SLK230 fuel pump fuse is a critical component in the vehicle's fuel system, ensuring the fuel pump operates correctly to deliver fuel from the tank to the engine. Located in the fuse box, typically found in the engine compartment or interior cabin, its exact position can vary depending on the model year and configuration. Identifying the correct fuse is essential for troubleshooting fuel delivery issues, such as a non-starting engine or poor performance. Consulting the vehicle’s owner’s manual or a fuse box diagram is highly recommended to accurately locate the fuel pump fuse and avoid confusion with other fuses. Regular inspection and maintenance of this fuse can prevent unexpected breakdowns and ensure the vehicle’s reliability.
| Characteristics | Values |
|---|---|
| Location | In the fuse box, typically located in the engine bay or trunk of the SLK230 |
| Fuse Box Type | Main fuse box (engine bay) or rear fuse box (trunk), depending on model |
| Fuse Number | Varies by year and model; commonly Fuse #15 or #20 (check manual) |
| Fuse Rating | Typically 15-20 amps |
| Function | Protects the fuel pump circuit from electrical overload |
| Related Components | Fuel pump relay, fuel pump, wiring harness |
| Troubleshooting Tip | Check fuse for continuity or visual damage (blown fuse) |
| Model Compatibility | Mercedes-Benz SLK230 (R170 chassis, 1996–2004) |
| Consult Manual | Always refer to the vehicle's owner manual for exact location and details |
Explore related products
$42.7 $54
What You'll Learn
- Fuse Box Location: Identify where the fuse box is located in the SLK230
- Fuse Number: Determine the specific fuse number for the fuel pump
- Fuse Replacement: Steps to replace a blown fuel pump fuse
- Symptoms of Failure: Common signs of a faulty fuel pump fuse
- Troubleshooting Tips: Quick checks to diagnose fuel pump fuse issues

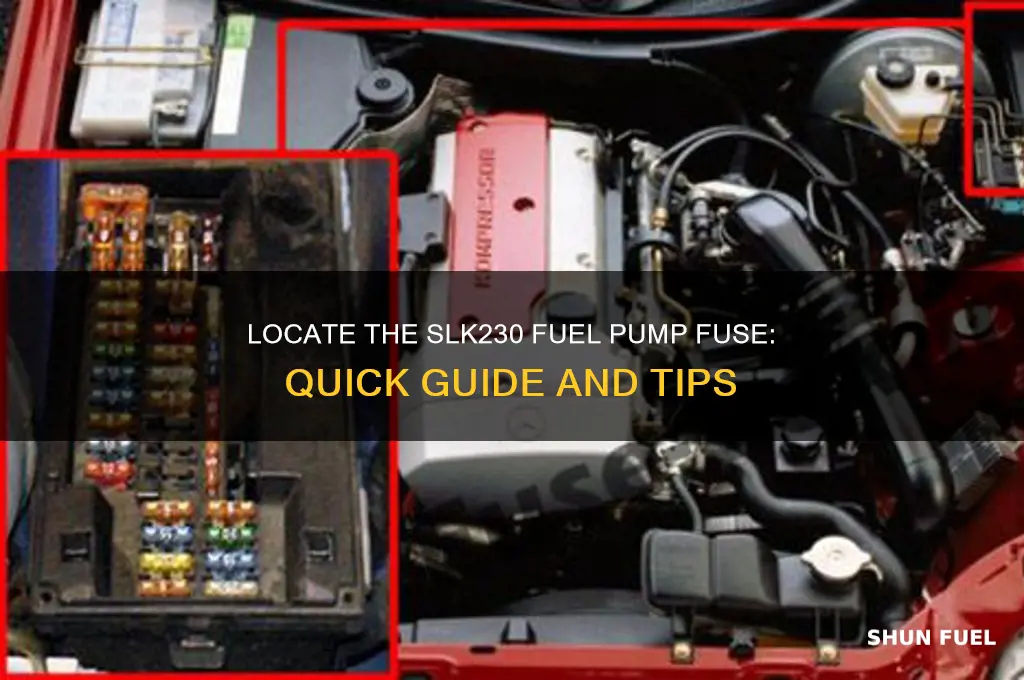

Fuse Box Location: Identify where the fuse box is located in the SLK230
The SLK230's fuse box is a critical component for troubleshooting electrical issues, including those related to the fuel pump. Locating it efficiently can save time and frustration. In the SLK230, the primary fuse box is situated in the engine compartment, typically on the driver’s side near the battery. This placement is standard for many Mercedes-Benz models, ensuring easy access for maintenance. However, the SLK230 also features an additional fuse box in the interior, usually found in the left footwell area beneath a removable panel. Understanding which fuse box houses the fuel pump fuse is essential, as it varies by model year and configuration.
To identify the correct fuse box for the fuel pump, consult the vehicle’s manual, which provides a detailed diagram of fuse locations. For the SLK230, the fuel pump fuse is often located in the engine compartment fuse box, labeled as "Fuel Pump" or "EFI" (Electronic Fuel Injection). This fuse is typically rated at 20 amps, though it’s crucial to verify the exact specifications for your specific model year. If the fuse box in the engine compartment is inaccessible or damaged, the interior fuse box may serve as a secondary location for fuel pump-related fuses in some configurations.
When accessing the fuse box, ensure the vehicle is turned off and the ignition is in the "Off" position to prevent electrical hazards. Use a fuse puller or a pair of needle-nose pliers to remove the fuse carefully, avoiding damage to the surrounding components. Inspect the fuse for signs of burning or breakage, which indicate a need for replacement. Always replace fuses with the correct amperage to prevent further electrical issues.
For SLK230 owners, familiarity with the fuse box layout is a practical skill. Regularly checking the condition of fuses, especially those critical to the fuel system, can prevent unexpected breakdowns. If the fuel pump fuse is repeatedly blowing, it may signal an underlying issue, such as a faulty fuel pump or wiring problem, requiring professional diagnosis.
In summary, the SLK230’s fuse box is primarily located in the engine compartment, with a secondary box in the interior. The fuel pump fuse is typically found in the engine compartment box, labeled clearly for identification. Knowing this location and how to inspect the fuse can empower owners to address minor electrical issues confidently, ensuring their vehicle remains reliable and safe.
Can a 97 Fuel Pump Work in a 95 Blazer?
You may want to see also
Explore related products
Fuse Number: Determine the specific fuse number for the fuel pump
The SLK230's fuel pump fuse is a critical component, and identifying its specific fuse number is essential for troubleshooting and maintenance. This fuse is typically located in the main fuse box, often found in the engine compartment or under the dashboard, depending on the model year. To determine the exact fuse number, consult the vehicle's owner manual, which provides a detailed diagram of the fuse box layout. For instance, in many SLK230 models, the fuel pump fuse is labeled as "Fuse 15" or "F32," but this can vary, so always verify with your specific model.
Analyzing the fuse box diagram reveals that the fuel pump fuse is usually rated at 15 to 20 amps, designed to protect the fuel pump circuit from electrical overloads. If the fuel pump stops working, checking this fuse should be one of the first steps. A blown fuse can be identified by a broken or melted wire inside the transparent fuse casing. Replacing a blown fuse with the correct amperage is crucial; using a higher-rated fuse can lead to electrical damage or fire hazards.
For a practical approach, start by locating the fuse box and removing its cover. Use the diagram to identify the fuel pump fuse, typically marked with a symbol resembling a fuel pump or labeled explicitly. If the fuse appears intact, test it with a multimeter to ensure continuity. If it’s faulty, replace it with a new fuse of the same rating. Keep a spare fuse in your vehicle for emergencies, as fuel pump issues can leave you stranded.
Comparing the SLK230’s fuse layout to other Mercedes-Benz models highlights a common design philosophy but with variations. For example, the C-Class may have the fuel pump fuse in a different position or under a different number. This underscores the importance of model-specific research. Online forums and automotive databases like AllData or Mitchell1 can provide additional insights if the owner’s manual is unavailable.
In conclusion, determining the specific fuse number for the SLK230’s fuel pump involves consulting the owner’s manual, inspecting the fuse box, and verifying the fuse’s condition. This process not only resolves immediate issues but also empowers owners with knowledge for future maintenance. Always prioritize safety by working with the ignition off and using the correct tools to avoid electrical mishaps.
Does Your Fuel Pump Run When the Engine is Off?
You may want to see also
Explore related products
Fuse Replacement: Steps to replace a blown fuel pump fuse
The SLK230’s fuel pump fuse is typically located in the engine bay fuse box, often labeled as "Fuel Pump" or "Fuse 21" (depending on the model year). Identifying the correct fuse is the first step in diagnosing and resolving fuel delivery issues. Before proceeding, ensure the vehicle is turned off and the ignition is in the "off" position to avoid electrical hazards.
Step 1: Locate the Fuse Box
Open the hood and identify the engine bay fuse box, usually situated near the battery or along the firewall. Consult the owner’s manual or the fuse box cover diagram to pinpoint the fuel pump fuse. For the SLK230, it’s often a 20-amp fuse, but verify the amperage to avoid mismatches.
Step 2: Inspect and Remove the Fuse
Using a fuse puller or needle-nose pliers, carefully extract the fuel pump fuse. Visually inspect it for signs of damage, such as a broken filament or discoloration. A blown fuse will often appear charred or have a visible gap in the metal strip. If the fuse looks intact, test it with a multimeter to confirm continuity.
Step 3: Replace the Fuse
Insert a new fuse of the same amperage rating into the slot. Ensure it clicks securely into place. Avoid using a fuse with a higher amperage, as this can lead to electrical system damage or fire hazards. If the replacement fuse blows immediately, this indicates an underlying issue, such as a faulty fuel pump or wiring short, requiring further diagnosis.
Cautionary Notes
Always replace fuses with the correct type and rating. If the fuel pump fuse blows repeatedly, refrain from driving the vehicle and seek professional assistance. Persistent fuse failure can signal a serious electrical problem that, if ignored, may cause permanent damage to the fuel system or other components.
Final Takeaway
Replacing a blown fuel pump fuse in an SLK230 is a straightforward task when done methodically. By following these steps and exercising caution, you can restore fuel delivery and ensure your vehicle operates safely. However, recurring issues warrant a deeper inspection to address the root cause.
Testing Your 2002 Ford Taurus Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Symptoms of Failure: Common signs of a faulty fuel pump fuse
A faulty fuel pump fuse in your SLK230 can manifest in several ways, often mimicking symptoms of a failing fuel pump itself. Understanding these signs is crucial for timely diagnosis and repair, preventing potential breakdowns or costly misdiagnoses.
One telltale sign is difficulty starting the engine, especially after the car has been sitting for a while. This occurs because the fuel pump relies on the fuse to receive power, and a weak or blown fuse can result in insufficient fuel pressure, making it hard for the engine to ignite. If you notice that your SLK230 cranks but doesn’t start, or starts only after multiple attempts, the fuel pump fuse should be one of the first components to inspect.
Another common symptom is a sudden loss of power while driving, particularly during acceleration or under load. This happens when the fuse intermittently fails, causing the fuel pump to cut out momentarily. The engine may sputter, hesitate, or even stall, leaving you stranded if the issue isn’t addressed promptly. Unlike a gradual loss of power due to a clogged fuel filter, this symptom is abrupt and often unpredictable, making it a strong indicator of fuse-related trouble.
A less obvious but equally important sign is an illuminated check engine light accompanied by erratic fuel gauge behavior. A faulty fuse can disrupt the fuel system’s electrical circuit, triggering error codes related to fuel pressure or delivery. Simultaneously, the fuel gauge may fluctuate or read inaccurately due to inconsistent power supply to the fuel level sensor. If you notice these symptoms, use an OBD-II scanner to check for codes related to the fuel system, and inspect the fuse as part of your troubleshooting process.
Lastly, a blown fuel pump fuse can sometimes be traced back to an underlying electrical issue, such as a short circuit or excessive current draw. If you’ve replaced the fuse and the problem recurs, investigate the wiring harness and connectors around the fuel pump for damage or corrosion. In the SLK230, the fuel pump fuse is typically located in the engine bay fuse box, often labeled as “Fuel Pump” or “FP.” Always refer to your vehicle’s manual for the exact location and fuse rating (usually 15-20 amps). Addressing these symptoms promptly not only ensures your SLK230 runs smoothly but also prevents potential damage to the fuel pump or other components.
Stormworks Fuel Transfer Guide: Safely Pump Fuel Between Vehicles
You may want to see also
Explore related products
Troubleshooting Tips: Quick checks to diagnose fuel pump fuse issues
The SLK230’s fuel pump fuse is a critical component, often located in the engine bay fuse box or the interior fuse panel, depending on the model year. Before assuming a faulty fuse, verify its location using the vehicle’s manual or online resources specific to your year and trim. Misidentifying the fuse can lead to unnecessary troubleshooting, so precision here is key.
Start with a visual inspection of the fuse. A blown fuse often shows visible signs, such as a broken filament or discoloration. Use a fuse puller to extract it carefully, holding it up to light for clarity. If the filament appears intact, test it with a multimeter set to continuity mode. A reading of "OL" (open loop) indicates a blown fuse, while a low resistance reading confirms it’s functional. This step eliminates guesswork and ensures you’re not replacing a good fuse unnecessarily.
If the fuse appears intact, check the circuit for issues. A common problem is a loose or corroded connection at the fuse box or fuel pump relay. Disconnect the fuse box cover and inspect the terminals for green corrosion or poor contact. Clean the terminals with a wire brush and dielectric grease to improve conductivity. If the issue persists, test the relay by swapping it with a similar one in the fuse box. If the fuel pump engages, the relay is likely faulty, not the fuse.
For a more advanced diagnosis, use a test light or multimeter to check for power at the fuel pump connector. With the ignition on, probe the connector’s power wire. If voltage is present, the issue may lie with the pump itself or its ground connection. If no voltage appears, trace the wiring back to the fuse and relay, looking for breaks or damage. This methodical approach narrows down the problem area efficiently.
Finally, consider environmental factors. Water intrusion or extreme temperatures can cause intermittent fuse issues. Inspect the fuse box for moisture or debris, and ensure it’s properly sealed. If the vehicle has been exposed to harsh conditions, replace the fuse as a precautionary measure, even if it appears functional. This proactive step can save time and prevent future failures. By combining visual checks, electrical testing, and environmental awareness, you can diagnose fuel pump fuse issues with confidence.
Where Are Walbro Fuel Pumps Manufactured? A Global Production Overview
You may want to see also
Frequently asked questions
The fuel pump fuse in a SLK230 is typically located in the main fuse box, which is usually found in the engine compartment. Refer to your vehicle’s manual for the exact location.
The fuse number for the fuel pump in a SLK230 varies by model year, but it is often labeled as "Fuel Pump" or "F3" in the fuse box diagram. Check your owner’s manual for the correct fuse designation.
Yes, a blown fuel pump fuse can prevent the fuel pump from operating, resulting in a no-start condition. Always check the fuse as part of your troubleshooting process.
To replace the fuel pump fuse, locate the fuse box, identify the correct fuse using the diagram, and swap it out with a fuse of the same amperage rating. Ensure the ignition is off before making any changes.
