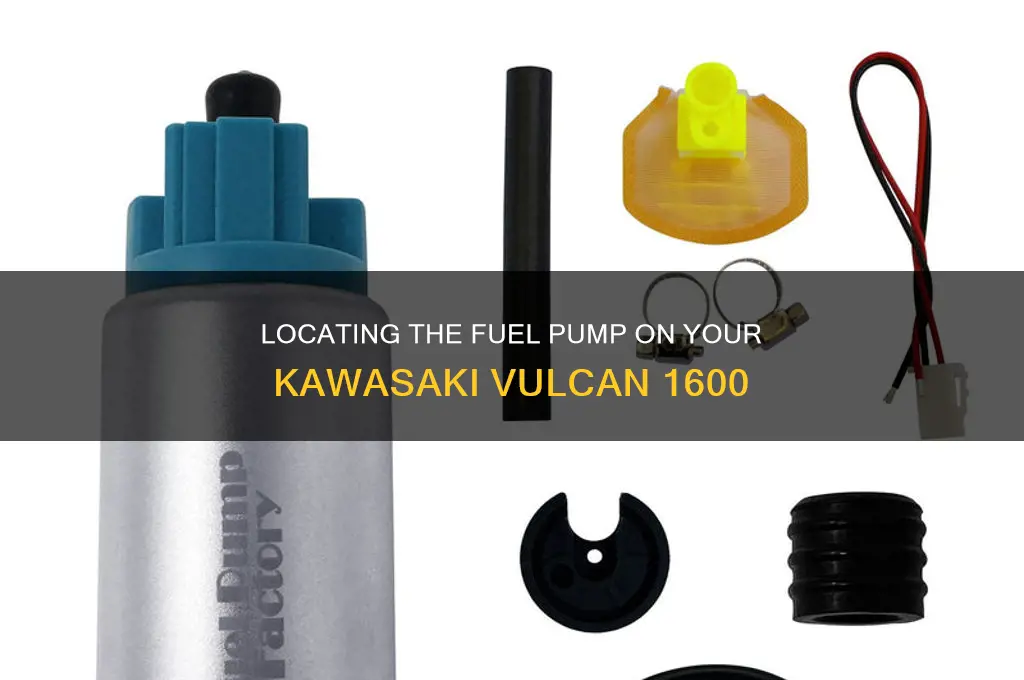

The Kawasaki Vulcan 1600 is a popular cruiser motorcycle known for its powerful engine and smooth ride. When it comes to locating the fuel pump on this model, it is typically situated within the fuel tank, a common placement for modern motorcycles to ensure efficient fuel delivery to the engine. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines and electrical connectors, making it a task that demands careful attention to avoid spills or damage. This design not only protects the fuel pump from external elements but also integrates it seamlessly into the bike's fuel system for optimal performance.
| Characteristics | Values |
|---|---|
| Location | Beneath the motorcycle's seat, near the fuel tank |
| Access | Remove the seat to access the fuel pump |
| Fuel Pump Type | In-tank electric fuel pump |
| Function | Delivers fuel from the tank to the engine |
| Compatibility | Specific to Kawasaki Vulcan 1600 models |
| Maintenance | Requires periodic inspection and replacement if faulty |
| Symptoms of Failure | Engine stalling, difficulty starting, or poor performance |
| Replacement | Involves draining the fuel tank and disconnecting fuel lines |
| Tools Required | Basic hand tools (e.g., wrenches, screwdrivers) |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery |
Explore related products
What You'll Learn
Fuel Pump Location Identification
The Kawasaki Vulcan 1600's fuel pump is nestled within the fuel tank, a design choice that optimizes space and protects the component from external elements. This internal placement, while advantageous for durability, can pose a challenge for those unfamiliar with the bike's anatomy. Locating the fuel pump requires a methodical approach, beginning with safety precautions to avoid fuel spills or electrical hazards.
To identify the fuel pump’s location, start by ensuring the motorcycle is on a stable surface and the ignition is off. Remove the seat by unscrewing the retaining bolts, typically located beneath a small panel or directly under the seat. Next, detach the fuel tank by loosening the mounting bolts and disconnecting the fuel lines and wiring harness. This step demands caution to prevent damage to the tank or electrical components. Once the tank is removed, the fuel pump assembly will be visible at the bottom, often secured by a locking ring or screws.
A comparative analysis of the Vulcan 1600’s fuel pump placement reveals a contrast with older models, where external mounting was more common. This internal design enhances the bike’s aesthetics and reduces exposure to debris, but it complicates access for maintenance. For instance, replacing the fuel pump on a Vulcan 800 involves fewer steps due to its external location, whereas the 1600 requires tank removal—a task that demands precision and patience.
Practical tips for successful identification include using a service manual for detailed diagrams and steps, as well as having a catch pan ready to collect any residual fuel during tank removal. Additionally, labeling disconnected wires and hoses can streamline reassembly. For those less experienced, consulting a mechanic or watching model-specific tutorials can provide clarity and confidence in tackling this task.
In conclusion, identifying the fuel pump on a Kawasaki Vulcan 1600 involves a systematic process of disassembly and careful observation. While the internal placement offers protective benefits, it necessitates a deliberate approach to access. By following safety protocols and leveraging resources, riders can efficiently locate and address fuel pump issues, ensuring their bike remains in optimal condition.
