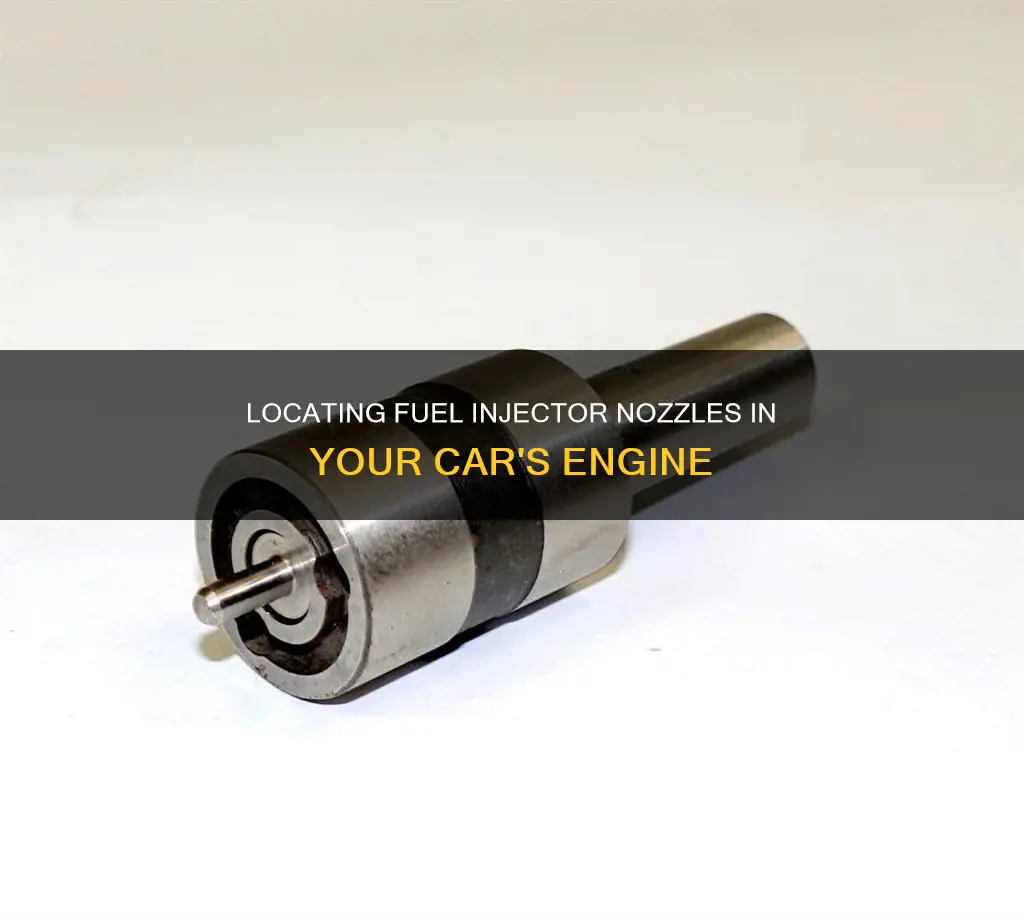

Fuel injectors are an integral part of a car's engine fuel delivery system. They are responsible for delivering the right amount of fuel at the right time, ensuring the engine runs smoothly. A fuel injector nozzle is a small device that atomises and sprays fuel into the combustion chamber of an internal combustion engine. It is usually located near the intake valves in the engine's cylinder head. The nozzle tip can be designed in different ways, such as single or multi-hole, cone-shaped or fan-shaped, to achieve different spray patterns. Faulty fuel injectors can cause issues with the engine's performance, such as reduced fuel efficiency, engine misfires, and fuel leaks. Therefore, it is important to keep them in excellent condition and perform regular maintenance checks.
| Characteristics | Values |
|---|---|
| Purpose | To inject the fuel quantity calculated by the control unit in all engine operating states |
| Location | Usually near the intake valves in the engine's cylinder head |
| Function | Controls the amount of fuel that is delivered from a vehicle's fuel pump into the combustion chamber |
| Operation | Can be operated at different times during the engine cycle to provide the optimal fuel-to-air ratio for combustion |
| Maintenance | Regular maintenance checks are required to keep the engine running smoothly |
| Testing | Possible to test the spray pattern of the injection nozzles when they are disassembled on a stationary test stand |
| Cleaning | Ultrasonic cleaning tanks can be used to remove deposits from fuel injectors; nozzle inserts can be purchased separately for cleaning |
| Faults | Clogged injectors can cause engine problems, loss of power, and higher emission levels; internal parts may corrode or rust with prolonged exposure to moisture |
Explore related products
What You'll Learn
Injector nozzle design and performance
The design of a fuel injector nozzle is critical to the performance and emissions of modern engines. The nozzle's design parameters, such as the injector seat, injector sac, and nozzle hole size and geometry, influence the combustion characteristics and emissions of the engine.
Injector nozzles interact with pistons in combustion chambers. When the piston is drawn away from the spark plug, the injector nozzle sprays a fuel and air mixture into the combustion chamber. This mixture is ignited by the spark plug, creating the combustion that powers the engine. The nozzle tip design can vary, with different spray patterns, such as single or multi-hole, cone-shaped, or fan-shaped, which affect combustion efficiency and engine performance. For example, single-hole nozzles produce a fine mist of fuel droplets and are used in low- to medium-power engines, while multi-hole nozzles generate a wider and more intense spray for high-power engines.
The performance of injector nozzles can be tested in various ways. On a stationary test stand, the spray pattern of the injection nozzles can be examined when they are disassembled. Cylinder comparison measurements and simultaneous exhaust measurements can also be used to compare the injected fuel quantity based on speed, HC, and CO values. The injection signal can be visualized using an oscilloscope by connecting the measurement line to the signal line and a suitable ground pin.
The design of the injector nozzle is also crucial for meeting performance and emissions goals. For instance, common rail nozzles must be well-designed to prevent leakage, while unit injector/unit pump nozzles must meet demanding fatigue strength requirements due to pressure pulsing conditions. The nozzle's design directly impacts the stability of emissions and performance over the engine's lifetime.
Cleaning Your Car's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Injector nozzle maintenance and cleaning
Injector nozzles are a vital part of your car's engine. They are responsible for controlling the amount of fuel that is delivered from the fuel pump into the combustion chamber, ensuring that it burns evenly and efficiently. Therefore, it is important to keep them in excellent condition.
Location of Fuel Injector Nozzles
The injector nozzles are usually located near the intake valves in the engine's cylinder head. They are small nozzles into which liquid fuel is injected at high pressure, typically around 45-70 PSI.
Maintenance and Cleaning
To maintain your injector nozzles, it is recommended to use high-quality fuel. Cheap fuel often contains impurities that can clog the nozzles. Premium-grade fuel contains additives such as detergents, friction reducers, and anti-corrosion agents that help keep the nozzles clean. Regularly replacing your fuel filter is also important, as a dirty filter can reduce efficiency and allow dirt into the fuel system.
There are several methods for cleaning or changing fuel injectors, ranging from expensive to inexpensive options. The most expensive option is outright replacement, which can cost between $1000 and $2000. A moderately expensive option is to remove the injector and clean it with an appropriate solution, which can cost between $370 and $620. The least expensive option is hydrogen treatment via a Carbon Cleaning station, which does not require disassembly.
Other cleaning methods include using fuel injection cleaners, which are poured into the fuel tank and mixed with the fuel. However, these can have disastrous consequences if not used properly, and may not be suitable for all fuel systems. It is recommended to consult a professional before using any cleaning products.
Additionally, it is possible to test the spray pattern of the injection nozzles when they are disassembled. This can help identify any issues with the spray pattern or droplet size, which can affect combustion efficiency and engine performance.
Dispose of Your Car Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Injector nozzle spray patterns
Injector nozzles are a crucial component of fuel injection systems, which are used in many modern vehicles to deliver fuel to the engine in a precise and controlled manner. They are responsible for controlling the amount of fuel that is delivered from a vehicle's fuel pump into the combustion chamber, ensuring that it burns evenly and efficiently. The nozzle tip can be designed in different ways to achieve different spray patterns, such as single or multi-hole, cone-shaped or fan-shaped.
The spray pattern, along with droplet size and the amount of fuel delivered, affects the combustion efficiency, which in turn impacts engine performance and emissions. When the fuel injector nozzle opens, fuel is delivered under high pressure and forced through the nozzle tip, where it is atomized into small droplets. These droplets are then injected into the combustion chamber, where they mix with air and are ignited by the spark plug, resulting in the combustion that powers the engine.
The spray characteristics of injector nozzles can be visualized and captured through experimental analysis. This involves determining the physicochemical properties of the fuel and using techniques like the Schlieren visualization method to observe and record the spray pattern within a constant volume spray chamber (CVSC). Parameters such as spray length, spray cone angle, spray area, spray volume, and spray velocity are measured and analysed to understand the spray behaviour.
The spray pattern of injection nozzles can also be tested when they are disassembled on a stationary test stand. This allows for a detailed examination of the spray characteristics, and in some cases, the opportunity to clean or service the injection valves. Maintaining injector nozzles through regular maintenance checks and cleaning is essential to ensure the vehicle's smooth operation and to prevent issues such as irregular spray patterns caused by clogging or deposits.
The Future of Cars: Electric, Hydrogen, or Hybrid?
You may want to see also
Explore related products
Injector nozzle malfunctions
Injector nozzles are a crucial component of fuel injection systems, which are used in many modern vehicles to deliver fuel to the engine in a precise and controlled manner. They are responsible for controlling the amount of fuel that is delivered from a vehicle's fuel pump into the combustion chamber, ensuring it burns evenly and efficiently.
Incorrect Installations
Incorrect installations can lead to performance issues, including injector nozzle malfunctions. This includes missing sealing rings, improper tightening torque, and inadequate cleaning of the nozzle. These issues can cause problems such as misfiring, black smoke, and the check engine light illuminating.
Dirty Fuel Injectors
Dirty fuel injectors can cause a range of issues, including rough idling, engine stalling, decreased engine performance, and poor fuel economy. They can also lead to engine misfires, making the motor feel like it is sputtering and sending vibrations through the car.
Fuel Leaks
Fuel leaks can be a sign of a crack in the rubber seals or the injector nozzle itself. This can result in a decrease in fuel pressure, affecting the injector nozzle's ability to deliver fuel at the correct pressure and spray pattern.
Clogged Injector Nozzles
Clogged or malfunctioning injector nozzles can cause engine misfires, where the engine briefly loses power or stumbles during acceleration. This can feel like a slight jerk or shudder and is often due to the affected cylinder not receiving the correct amount of fuel, disrupting the engine's normal firing sequence.
To diagnose injector nozzle malfunctions, it is important to have access to scan tools and OE procedures. Regular maintenance checks and cleaning of the injector nozzles can help prevent these issues and ensure the vehicle continues to run smoothly.
The Mystery Spray: Formula 1's Fuel Secret
You may want to see also
Explore related products
Injector nozzle testing
Step 1: Visual Inspection
Before conducting any tests, it is essential to perform a visual inspection of the injector nozzle. Remove the nozzle from the cylinder head and examine it for any signs of damage, corrosion, or carbon accumulation. This initial inspection can provide valuable insights into the condition of the nozzle.
Step 2: Pressure Testing
Pressure testing is a critical aspect of injector nozzle testing. It involves setting the pressure above the opening pressure and observing any droplet formation. This test helps identify leaks or blockages in the nozzle. Additionally, it is important to check the tightness between the nozzle needle and its seat by slowly increasing the pressure until it reaches just below the opening pressure. Maintain the pressure for a few seconds and ensure that the injector is not dripping.
Step 3: Spray Pattern Assessment
The spray pattern of the injector nozzle significantly impacts combustion efficiency and engine performance. To assess the spray pattern, disassemble the nozzle and place it on a stationary test stand. By observing the spray pattern, you can determine if the nozzle is functioning correctly or if adjustments are needed.
Step 4: Leak Tests
Leak tests are crucial to ensure that the injector nozzle is not leaking fuel. During a leak test, pressure is set above the opening pressure, and any droplet formation is carefully monitored. This test helps identify leaks that may impact fuel efficiency and engine performance.
Step 5: Chatter Tests
Chatter tests are performed to assess the smoothness of the needle's action within the injector nozzle. By operating the hand pump to increase pressure, you can evaluate the dispersion of fuel particles and the resultant spray pattern. A smooth needle action is essential for optimal fuel injection.
Step 6: Measuring Fuel Pressure
Measuring fuel pressure is important to identify potential faults in other components of the fuel system, such as the fuel pump, fuel filter, or pressure regulator. Comparing the fuel pressure to the standard values can help pinpoint any issues that may impact the injector nozzle's performance.
It is important to note that injector nozzle testing requires specialized tools and equipment, such as nozzle testers, pressure gauges, and hand pumps. These tests should be performed by skilled professionals or experienced diesel mechanics to ensure accuracy and safety. Regular maintenance and testing of injector nozzles are crucial to keep your vehicle running smoothly and efficiently.
A Quick Guide to Inspecting Your Car's Fuel System
You may want to see also
Frequently asked questions
The fuel injector nozzle is usually located near the intake valves in the engine's cylinder head.
The fuel injector nozzle controls the amount of fuel that is delivered from the vehicle's fuel pump into the combustion chamber, helping to ensure that it burns evenly and efficiently. The nozzle tip can be designed in different ways to achieve different spray patterns, such as single or multi-hole, cone-shaped or fan-shaped.
Dirty and clogged injectors can cause classic engine problems such as lean misfire, rough idle, hesitation, loss of power, and higher emission levels of unburned fuel and carbon monoxide. If you suspect a faulty fuel injector nozzle, it is important to get it checked and serviced by a professional.
