Regan Brown
The fuel filter in a 2004 F-150 FX4 is located on the driver's side frame rail. Changing the fuel filter is a straightforward job that can be done by anyone with basic mechanical knowledge. Fuel filters screen out dirt and rust particles that may have gotten into the fuel tank or lines. Clogged fuel filters can cause various issues with your vehicle and extra wear on your fuel system.
| Characteristics | Values |
|---|---|
| Fuel filter location | Driver's side frame rail |
| Fuel filter replacement frequency | Every 10,000 miles or so |
| Fuel filter replacement necessity | Poor fuel economy, slow moving acceleration, clogged fuel filter |
| Fuel filter replacement difficulty | Relatively simple, can be performed by a novice truck owner or a local mechanic |
| Fuel filter replacement tool | Special tool required |
| Fuel filter replacement steps | Remove the fuse cover located under the hood on the driver's side, trip the inertia fuel reset switch, disconnect the fuel lines, remove the old filter, install the new filter, reconnect the fuel lines |
Explore related products
What You'll Learn

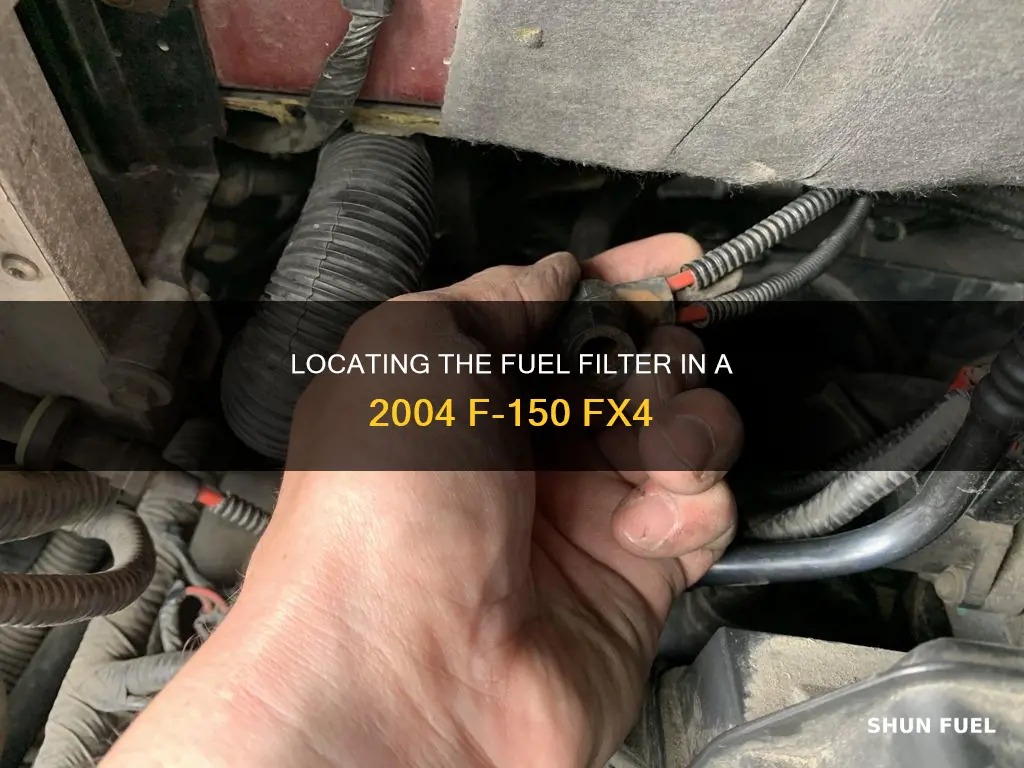

The fuel filter is located on the driver's side frame rail
The fuel filter on a 2004 F-150 FX4 is located on the driver's side frame rail. Changing the fuel filter is a relatively simple task and can be performed by a novice truck owner or tackled by a local mechanic. Fuel filters screen out dirt and rust particles that may have gotten into your fuel tank or lines. Clogged fuel filters can cause a variety of issues with your vehicle and extra wear to your fuel system.
To change the fuel filter, you will need a fuel line disconnect tool, a flat-tip screwdriver, rags, and safety glasses. Begin by removing the fuse cover located under the hood on the driver's side and tripping the inertia fuel reset switch, which should have a red rubber top. You will then need to remove the soft line with the plastic clip by popping out the little tab with a flat screwdriver. The new filter should be easy to install. Simply get it into the bracket, pop the hard line back on, and put the metal safety clip back in place.
The front hard line connection uses a special tool. Pick the correct size, close it around the filter tube, slide it into the fuel line connector, and it should pop off. The soft line connection towards the rear of the truck will just click back on, and then you can press the small locking tab back in. It is recommended that you change your fuel filter every 10,000 miles or so, or immediately if you suspect you have filled up with a batch of questionable fuel.
Fuel Filter Clog: Can It Unclog Itself?
You may want to see also
Explore related products
Replacing the fuel filter is a simple task
Fuel filters screen out dirt and rust particles that may have gotten into your fuel tank or lines. Clogged fuel filters can add a variety of issues to your vehicle and extra wear to your fuel system. Poor fuel economy or slow-moving acceleration could be a red flag that your fuel filter needs to be replaced.
To replace the fuel filter, you will need a fuel line disconnect tool, a flat-tip screwdriver, rags, and safety glasses. Begin by removing the fuse cover located under the hood on the driver's side and tripping the inertia fuel reset switch, which should have a red rubber top.
The filter itself is located on the driver's side frame rail. You will need to use the special tool to disconnect the front hard line connection. Pick the correct size, close it around the filter tube, slide it into the fuel line connector, and then it should pop off. The new filter should go in easily. Just get it in the bracket, pop the hard line back on, and then put the metal safety clip back in place. The soft line connection towards the rear of the truck will just click back on, and then you can press the small locking tab back in.
Fuel Filter Leak: Why Your Check Engine Light is On
You may want to see also
Explore related products
A dirty filter can cause poor fuel economy and acceleration
The fuel filter on a 2004 F-150 FX4 is located on the driver's side frame rail. It is a fairly simple job to change the fuel filter, but a special tool is required.
A dirty fuel filter can cause poor fuel economy and acceleration due to the build-up of dirt and rust particles in the filter, which can lead to clogging. This clogging restricts the flow of fuel to the engine, resulting in reduced performance and acceleration. In addition, a clogged fuel filter can cause the engine to work harder, leading to decreased fuel efficiency.
A clogged fuel filter will result in hesitation and, eventually, complete engine fuel starvation. While a clean fuel filter may not directly increase fuel economy, it can improve engine performance and power.
It is important to note that a dirty fuel filter may not always be the root cause of poor fuel economy and acceleration. Other factors, such as a faulty fuel pressure regulator, weak fuel pump, or leaking fuel injectors, can also contribute to these issues. Therefore, it is recommended to consult a qualified mechanic or refer to a service manual for a comprehensive diagnosis.
As a preventative measure, it is advisable to regularly change the fuel filter to avoid potential problems and maintain optimal vehicle performance.
Removing Fuel Pump Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Clogged filters add extra wear to the fuel system
If you own a 2004 F-150 FX4, your fuel filter is located on the driver's side frame rail. Changing the fuel filter is a straightforward job that anyone with a little mechanical ability can do. However, it is important to note that clogged filters can cause a variety of issues and add extra wear to your fuel system.
Fuel filters screen out dirt, rust, and debris that may have gotten into your fuel tank or lines. Over time, these filters can become clogged due to contaminated fuel, normal wear and tear, or lack of maintenance. A clogged fuel filter prevents the correct amount of fuel from reaching the engine, starving it of fuel. This can make it difficult or sometimes impossible to start the vehicle, causing drivability issues and reducing engine performance.
A clogged fuel filter requires the fuel pump to work harder to push fuel through the system, increasing fuel pump pressure. This extra strain can cause the pump to overheat, become noisy, and fail prematurely. It can also decrease fuel pressure, resulting in longer-than-usual cranking before the engine starts and repeated stalling while driving. Under heavy or high-speed acceleration, a clogged fuel filter may cause the engine to randomly hesitate, surge, or sputter.
In addition, a clogged fuel filter can lead to decreased fuel economy. When the fuel supply is insufficient, the power control module compensates by increasing the fuel input to maintain the correct air-fuel ratio, reducing fuel efficiency. This inefficiency can be costly over time and degrade your vehicle's performance. Therefore, it is important to regularly service and replace your fuel filter to avoid these issues and extend the lifespan of your fuel pump.
Fuel Filter Installation Direction for 2001 Escape
You may want to see also
Explore related products
A special tool is needed to replace the filter
To replace the fuel filter on a 2004 F-150 FX4, you will need a special tool. This is because the front hard line connection uses a special tool to disconnect the fuel line connector. The correct tool must be selected, closed around the filter tube, and then slid into the fuel line connector to disconnect it.
There are a variety of tools that can be used to disconnect the fuel line connector. One user recommends using a plastic disconnect tool, while another suggests a scissor tool. However, these tools can be difficult to use and may require a lot of pushing and pulling to remove the filter.
Another user recommends using the tool that XLT-FX4 posted on a forum, which may be a reference to a specific tool or type of tool. This user also mentions that the front line fitting has a "safety clip" that must be removed before the filter can be taken off the line.
A parts list for replacing the fuel filter on a 2004 F-150 includes a 5/16 line compression removal tool, which may be the special tool referenced by other users. This tool can be purchased for around $2.50 at a local parts store.
It is important to note that when removing the fuel filter, no force should be applied. If gentle to moderate force does not work, then something is being done incorrectly.
Cleaning Your 2003 Suzuki GSXR 600 Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter is on the driver's side frame rail.
It is recommended to change the fuel filter every 10,000 miles or so. However, if you suspect you filled up with bad fuel, change the filter immediately.
A clogged fuel filter can cause a variety of issues, including poor fuel economy and slow acceleration. It can also add extra wear to your fuel system by wreaking havoc on your injectors, forcing your vehicle to work harder than usual.
You will need a fuel line disconnect tool, a flat-tip screwdriver, rags, and safety glasses.
Changing the fuel filter is a relatively simple task that can be performed by a novice truck owner or tackled by a local mechanic.
