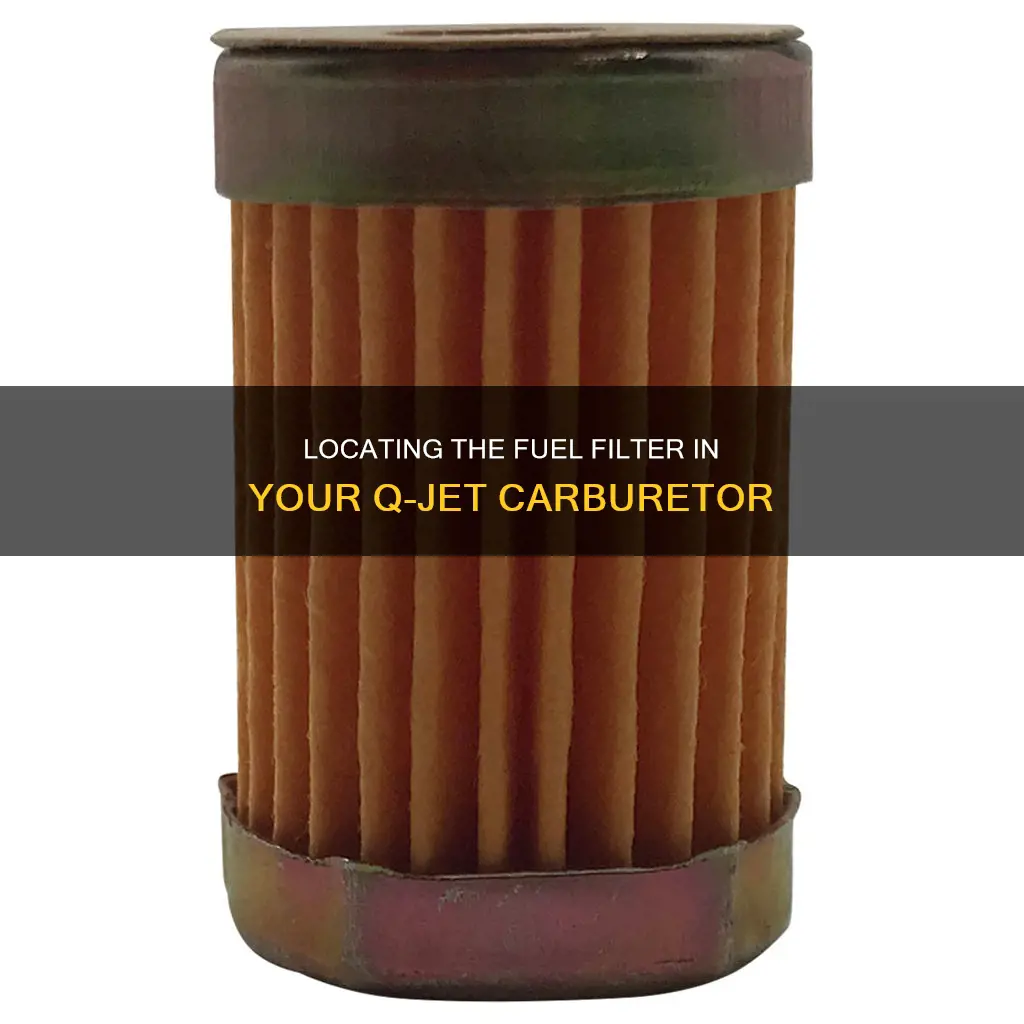

The Rochester Quadrajet carburetor is a popular choice for car enthusiasts, but the location of its fuel filter can be a source of confusion for some. The fuel filter is located in the carburetor's fuel inlet housing, and it is designed to replace the OEM part. This setup is standard for all Q-Jets, with the later carbs utilizing a 2-inch long filter. The filter ensures that fuel passes through it and not around it, thanks to a spring behind it that pushes it into the inlet nut, sealing it.
Explore related products
What You'll Learn
Fuel filter location in carburettors
The fuel filter in a carburettor can be located in a few different places. Firstly, it could be inside the fuel tank. If the filter is installed inside the tank, the tank will need to be drained before it can be removed for inspection or replacement. Alternatively, the fuel filter could be fitted into the fuel line between the tank and the fuel pump. If the filter is installed in the fuel line, it can be removed by taking out the metal clips on both sides of the filter with needle-nose pliers and sliding the filter out.
Some carburettors have a fine mesh screen, or a small paper filter, located under the hose where the fuel line enters the carb. This can be removed by opening up the filter housing. There may also be an inline fuel filter somewhere between the carb and the tank, which can be located by following the fuel line back from the carb.
As for the Quadrajet 4-barrel carburettor, the fuel filter is located in the carburettor's fuel inlet housing.
Stihl BG55 Fuel Filter: Where Is It?
You may want to see also
Explore related products
Fuel filter replacement
The fuel filter in a Q-jet 4-barrel carburetor is located in the carburetor's fuel inlet housing.
Firstly, locate your vehicle's fuse box and remove the fuel pump fuse or relay to relieve the pressure in the fuel system. Then, start the engine and let it run until it stalls, which will depressurize the system.
Next, locate the fuel filter. Typically, it is found along the fuel line, either under the car or in the engine bay. You can check your vehicle's owner's manual for the specific location.
Once you have located the fuel filter, use a wrench or pliers to loosen the fittings on both sides. Be prepared for fuel to leak out, so have a rag ready to catch any spills.
Now, you can install the new fuel filter. Ensure that the arrow on the fuel filter points towards the engine, indicating the direction of fuel flow. Tighten the fittings on both sides to secure the new filter in place.
Turn the ignition key to the "on" position to allow the fuel pump to pressurize the fuel system. Check for any leaks around the fuel filter and fittings. If you notice any leaks, tighten the fittings until they stop.
Finally, dispose of the old fuel filter properly, and clean up any spilled fuel with a rag. Make sure to dispose of any used rags and other materials to prevent a fire hazard.
Regularly changing your fuel filter is essential for maintaining your fuel system and prolonging the life of the fuel pump.
Fuel Filter: Engine Dying Mystery Solved
You may want to see also
Explore related products
Fuel filter nut issues
The fuel filter nut in a Qjet 4-barrel carburetor can be a source of frustration for many car enthusiasts and mechanics alike. Over time, the nut can become extremely tight, making it difficult to remove without damaging the fuel line or the carburetor itself.
One of the main issues with the fuel filter nut is that it can become rusted and seized, as highlighted in a user's experience on CorvetteForum. In this case, the inner small nut was rusted solid to the larger nut, and starting to round off, which would have made it nearly impossible to remove without causing further damage.
To address this issue, it is recommended to invest in a good set of flare nut wrenches. Cheap wrenches can often do more harm than good, so it's worth opting for a quality set, such as Craftsman. When using the wrench, it's crucial to hold the 1-inch filter housing without turning it, to avoid messing up the threads in the carburetor. If the nut is severely rusted, you may need to use a small hammer to tap the wrench a few times and loosen the nut.
In some cases, the fuel filter nut may be so damaged that it needs to be replaced. If the nut is stripped, it can cause gas leaks, as shared by a user on Team Camaro Tech. While auto parts stores carry replacement nuts, finding the right fit can be challenging. One user suggested using a self-tapping nut, which can cut its own threads, but this may not seal properly and might require additional modifications.
To avoid further complications, it is always recommended to consult with an expert carburetor rebuilder or mechanic. They can provide guidance on the best course of action and help prevent any potential damage to the carburetor or fuel system.
Fuel Filtering with Mr. Funnel: Does It Work?
You may want to see also
Explore related products
Fuel filter spring
The fuel filter spring is an important component of the Quadrajet 4-barrel carburetor, ensuring the fuel filter element is securely held in place within the carburetor's fuel inlet housing.
The stock replacement paper fuel filter element, which the spring retains, is designed to fit a range of carburetors, including those from Rochester, Carter, Holley, and Stromberg. This filter element is compatible with the Rochester Quadrajet Carburetor, specifically the Rochester 2G Carburetor, as originally used in marine applications.
The fuel filter spring plays a critical role in maintaining the proper function of the carburetor by securely holding the fuel filter element in place. This spring ensures that the filter element does not shift or become dislodged during the operation of the engine, which could result in fuel leakage or contamination.
When servicing or replacing the fuel filter element, it is essential to also inspect the fuel filter spring for any signs of damage, corrosion, or weakening. Over time, the spring may lose its tension or become deformed, reducing its effectiveness in retaining the fuel filter element securely. Therefore, it is recommended to replace the fuel filter spring periodically or whenever there are indications of deterioration to ensure optimal performance and prevent potential fuel-related issues.
Additionally, when sourcing a replacement fuel filter spring, it is crucial to obtain one that is specifically designed for the Quadrajet 4-barrel carburetor. This ensures compatibility and guarantees that the spring will provide the necessary tension and retention force for the fuel filter element.
Priming Your 22re Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel leaks
The Rochester Quadrajet carburetor is known to have issues with fuel leaks. There are a few reasons why this may be happening. Firstly, check the two plugs at the bottom of the float bowl. These plugs can come loose, allowing fuel to drain from the float bowl into the intake manifold. Another potential issue is the fuel inlet, which sits at the bottom of the float bowl. Fuel can drain back through the fuel system to the fuel tank.
To resolve the first issue, ensure that the plugs are tight and secure. For the second issue, replace the carburetor's fuel filter with one that has a check valve at the inlet end. This will prevent fuel from draining back into the fuel tank.
Leaking inside the carburetor will not cause a visible mess, but it will affect the idle and off-idle performance of the carburetor. It may also make the car hard to start after sitting for a while, as the fuel bowl empties and the pump needs to crank to fill it back up.
There are a few suggested methods to repair the leaks. One method is to use epoxy to plug the leaking area. For example, JBWeld or Loctite gas tank repair putty, a two-part putty that you knead with your fingers until the two parts form a uniform color. Clean the area with a carb cleaner and let it dry before pressing the patch into the area. Another method is to drill out the leaking plug, tap the carb, and thread in a pipe plug. However, some people have found that the epoxy method does not hold up over time and starts leaking after a few months.
Resetting Fuel Filter on a 2007 Dodge Sprinter: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel filter in a Q-Jet 4-barrel carburetor is located in the carburetor's fuel inlet housing.
The Q-Jet 4-barrel carburetor uses a stock replacement paper fuel filter element with a built-in check valve.
The check valve in the fuel filter prevents fuel from draining back out of the carburetor when the engine is turned off.
