The fuel filter in a 99 Pontiac Grand Prix is located under the car on the driver's side, just ahead of the rear wheel. Some sources suggest that it is located in front of the fuel tank, while others state that it is next to or close to the fuel tank. One source mentions that it is under the back seat on the driver's side, but this information may not be accurate as the fuel filter location may have changed over the years. It is important to note that accessing and changing the fuel filter may require raising the car and taking certain safety precautions.
| Characteristics | Values |
|---|---|
| Location | Under the car on the driver's side |
| Just ahead of the rear wheel | |
| Near the fuel tank | |
| Under the back seat on the driver's side | |
| In the fuel line | |
| Next to the carb |
Explore related products
What You'll Learn
- The fuel filter is located on the driver's side, under the rear
- Depressurise the fuel line to prevent gas from shooting out
- Disconnect the negative battery cable to prevent fuel discharge
- Loosen the fuel filler cap to relieve tank pressure
- The fuel filter is located by the gas tank on the side of the frame
The fuel filter is located on the driver's side, under the rear

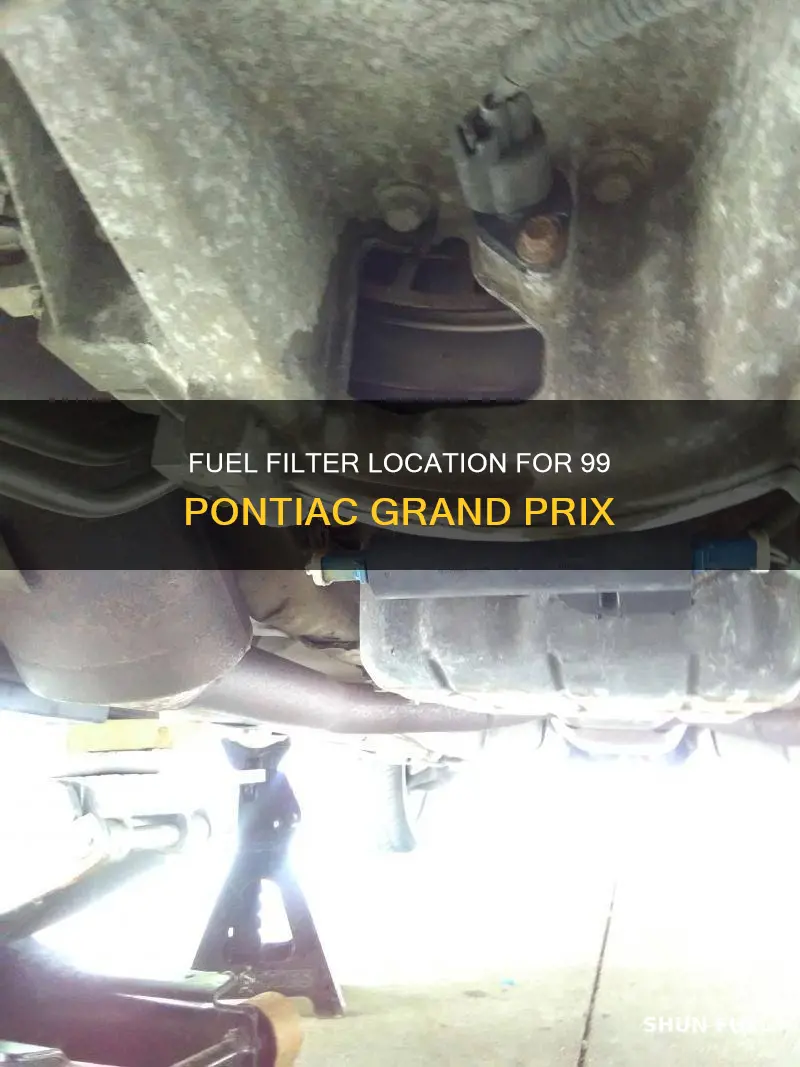

The fuel filter in a 99 Pontiac Grand Prix is located on the driver's side, under the rear of the car. It is positioned just ahead of the rear wheel, approximately where the cardboard box is located.
To access the fuel filter, you will need to raise the car off the ground, using jack stands or ramps. It is important to de-pressurise the fuel line before beginning any work to prevent gas from shooting out and causing injury or damage.
The fuel filter is attached to the fuel feed pipe, between the fuel pump and the fuel rail. When replacing the fuel filter, ensure that you clean any gas off the fuel lines with a rag before attaching the new filter.
It is recommended to refer to a repair guide or video tutorial for a step-by-step process when replacing the fuel filter in a 99 Pontiac Grand Prix.
Cleaning the Fuel Filter on a KM110-R: Step-by-Step Guide
You may want to see also
Explore related products
Depressurise the fuel line to prevent gas from shooting out
The fuel filter on a 99 Pontiac Grand Prix is located under the car on the driver's side, just ahead of the rear wheel.
To depressurise the fuel line and prevent gas from shooting out, follow these steps:
- Lift the hood and locate the housing for your fuses and relays.
- Remove the cover from the housing.
- Turn on your Grand Prix and walk over to the housing.
- Find the fuel pump relay. It is usually a black box, but the specific location may vary depending on your model.
- Remove the fuel pump fuse, as demonstrated in the video referenced for the 2001 model. This will allow your car to suck out all the fuel in the lines, depressurising the fuel line.
- With the key in the "on" position, but the engine off, re-pressurise the fuel line.
- Get out of the car and check both ends of the fuel filter for leaks.
By removing the fuel pump fuse and allowing the car to drain the fuel from the lines, you can effectively depressurise the fuel line and prevent gas from shooting out during maintenance or repairs.
How to Clean Your Marine Fuel Filter
You may want to see also
Explore related products
Disconnect the negative battery cable to prevent fuel discharge
To replace the fuel filter on a 99 Pontiac Grand Prix, you will need to locate it first. The fuel filter is under the car on the driver's side, just ahead of the rear wheel.
Now, to disconnect the negative battery cable to prevent fuel discharge, follow these steps:
- Locate the negative battery cable: The negative battery cable is typically identified by the color black and is usually located on the driver's side of the vehicle. It is often connected to the terminal on the left side of the battery, while the positive cable is on the right.
- Prepare the necessary tools: You may need a wrench or a socket set to loosen and remove the cable. Have a clean cloth or towel handy to wipe away any corrosion or dirt that may be present on the battery terminals.
- Disconnect the negative cable: Once you have located the negative cable, loosen the nut or bolt that secures it to the battery terminal using your wrench or socket. Do not allow the wrench or socket to come into contact with any other metal parts of the car, as this could result in an electrical short. Then, carefully remove the cable from the terminal. Be gentle, as the cable may be stuck due to corrosion or dirt. If necessary, wiggle the cable gently to detach it.
- Prevent arcing and sparks: To avoid any potential sparks or arcing, cover the terminal with a piece of electrical tape or a rubber glove after removing the cable. This will prevent accidental contact with other metal components.
- Isolate the battery: To ensure further safety, you can disconnect the positive cable as well. Always disconnect the negative cable first and reconnect it last to prevent any short circuits.
- Work safely: Before proceeding with any repairs or maintenance involving the fuel system, ensure that you are wearing proper eye protection and that the work area is well-ventilated. Fuel can be highly flammable, and battery acid can be dangerous if it comes into contact with your skin or eyes.
By disconnecting the negative battery cable, you will prevent any accidental discharge of fuel and ensure a safer working environment when replacing the fuel filter on your 99 Pontiac Grand Prix.
Choosing the Right Micron Fuel Filter for Your John Deere 4020
You may want to see also
Explore related products
Loosen the fuel filler cap to relieve tank pressure
To loosen the fuel filler cap to relieve tank pressure in a 1999 Pontiac Grand Prix, follow these steps:
First, disconnect the negative battery cable to prevent any unintended voltage from reaching the pump assembly. If your tank is less than half full, you will need to remove the filler tube or hose at the tank. You can do this by spraying penetrating fluid on the bolts or nuts that hold the straps and loosening them about three-quarters of the way.
Next, locate the fuel filler cap and loosen it. This will relieve the tank pressure. Be very careful during this step, as fuel may spray out. It is recommended to use a Fuel Pressure Gauge for this step, which can be rented from local "big chain" parts stores. The gauge needs to be installed onto the Fuel Pressure port on the Fuel Rail. If you do not have access to a gauge, you can carefully push in the center of the port with a suitable tool, but be extremely cautious as fuel may spray out.
Once the tank pressure is relieved, you can proceed with other maintenance tasks, such as changing the fuel filter or pump. Remember to always exercise caution when working with fuel systems and refer to a professional mechanic if you are unsure about any steps.
Air Bubbles in Fuel Filter: Causes and Solutions
You may want to see also
Explore related products
The fuel filter is located by the gas tank on the side of the frame
The fuel filter on a 99 Pontiac Grand Prix is located by the gas tank on the side of the frame. It is situated under the car, on the driver's side, just ahead of the rear wheel.
To access the fuel filter, you will need to raise the car off the ground, using jack stands or ramps. It is positioned approximately where the cardboard box is located.
Before attempting to replace the fuel filter, it is important to depressurise the fuel line to prevent gas from shooting out and causing injury or mess. To do this, locate the housing for the fuses and relays under the hood, and remove the cover. Turn on the car and locate the fuel pump relay (it may be a black box in the centre).
Once the fuel line is depressurised, you can proceed to replace the fuel filter.
Filtering WVO: Steps for Clean Fuel
You may want to see also
Frequently asked questions
The fuel filter is located on the driver's side, under the rear of the car.
Yes, the fuel filter is located just ahead of the rear wheel, approximately where the cardboard box is located.
Yes, the fuel filter is by the gas tank on the side of the frame. It is on the fuel feed pipe, between the fuel pump and the fuel rail.
If you are unable to locate the fuel filter, it may be necessary to raise the car to access it.
