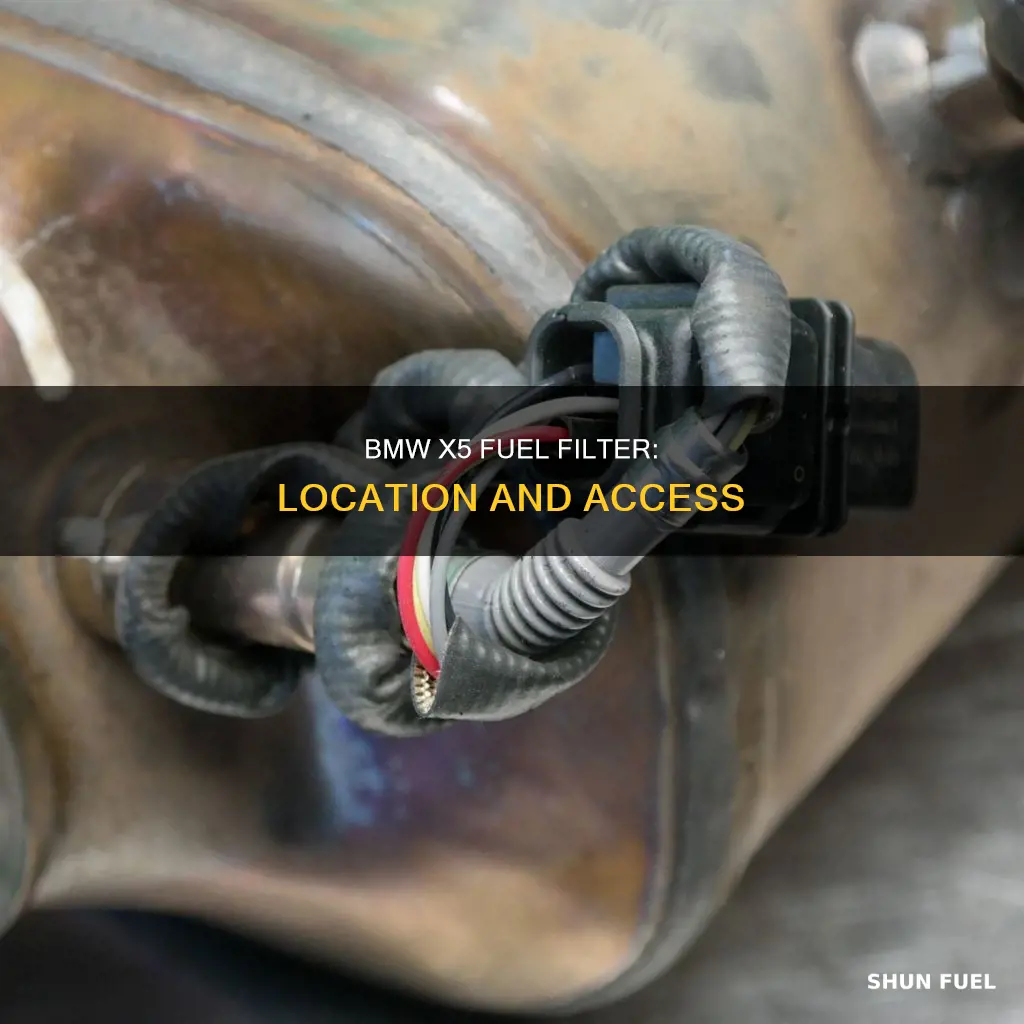

The BMW X5 fuel filter is located in front of the fuel tank and behind the charcoal canister. It is tucked away behind the fuel tank splash shield, which needs to be removed to access the filter. The fuel pump creates positive pressure in the fuel lines, pushing gasoline to the fuel rail, where the DME controls the flow to the engine. A dirty or restricted fuel filter can cause poor engine performance and hard starting problems. It is recommended to replace the fuel filter when the fuel pressure is relieved to reduce the amount of possible spilled fuel and fuel vapors.
BMW X5 Fuel Filter Characteristics and Values
| Characteristics | Values |
|---|---|
| Location | Mounted in front of the fuel tank and behind the charcoal canister |
| Maintenance | Should be replaced regularly, especially if there are issues with engine performance or starting |
| Replacement Process | Involves relieving fuel pressure, working in a well-ventilated area, and removing vacuum and fuel lines, fasteners, and the fuel tank splash shield |
| Tools and Precautions | Avoid incandescent lights and power tools; have different-sized sockets and wrenches on hand due to potential variations in fastener sizes |
| Priming | The fuel system may self-prime without software intervention, but some users recommend using the software to activate the electric lift pump |
Explore related products
What You'll Learn
BMW X5 Fuel Filter Replacement (E53 2000 - 2006)
If you own a BMW X5 (E53 2000 - 2006) and are looking to replace the fuel filter, this guide will take you through the process step by step.
Firstly, it is important to relieve fuel pressure before replacing the fuel filter. This will reduce the amount of fuel spilled and fuel vapour produced. Always work in a well-ventilated area, preferably outdoors, and avoid using incandescent work lights or power tools as fuel and fuel vapours are highly combustible.
The fuel filter is located at the front of the fuel tank and behind the charcoal canister. To access it, you will need to remove the fuel tank splash shield. Start by removing the three 13mm fasteners at the front of the shield. Once removed, you can either take the shield off completely or let it hang as you work.
Now, you can begin removing the fuel filter. First, remove the vacuum line by pulling it straight off. Check that the nipple on the old fuel filter is intact, as it may corrode and remain in the hose, requiring a hose replacement. Next, remove the fuel line by pressing the blue tab and holding it while pulling the line off the filter. You can use a rag to prevent spillage. Remove the two remaining fuel lines in the same way. Then, loosen the two 10mm fuel filter bracket fasteners and remove the fuel filter by sliding it out of the bracket.
Finally, install the new fuel filter by reversing the removal process. Ensure all fasteners are tightened securely and check for any fuel leaks before starting the engine.
Oil Change Places: Fuel Filter Replacement?
You may want to see also
Explore related products
How to replace the fuel filter
To replace the fuel filter on a BMW X5, it is recommended to relieve the fuel pressure to reduce the risk of fuel spills and vapours. Start by removing the engine covers, then the fuel test port cap on the fuel rail using a flathead screwdriver. Press the Schrader valve to relieve the fuel pressure.
Next, remove the vacuum line by pulling it straight off, then check that the nipple on the old fuel filter is intact. Remove the fuel line by pressing the blue tab and holding it while pulling the line off the filter. Remove the two remaining fuel lines in the same way. Loosen the two 10mm fuel filter bracket fasteners, then remove the fuel filter by sliding it out of the bracket.
Before installing a new fuel filter, check that there are no leaks in the fuel system. A small amount of oil can be applied to the O-rings to ease re-installation of the quick-connect fittings.
It is important to note that fuel and fuel vapours are highly combustible, so this task should be performed in a well-ventilated area, preferably outdoors, and without the use of incandescent work lights or power tools.
Fuel Filter Failure: Understanding the Consequences
You may want to see also
Explore related products
The fuel pump and fuel filter
The fuel pump is typically located inside the fuel tank of your BMW X5, submerged in the fuel. This design helps keep the pump cool and prevents issues like vapor lock and electrical problems. By being immersed in fuel, the pump can effectively draw fuel from the tank and push it through the fuel filter.
The fuel filter, on the other hand, is usually mounted in front of the fuel tank. Its primary function is to ensure that the fuel entering the engine is free of contaminants. Over time, the fuel filter can become clogged with dirt and debris, restricting fuel flow. This can lead to poor engine performance and difficulty in starting your BMW X5. Therefore, it is recommended to regularly inspect and replace the fuel filter when necessary.
When replacing the fuel filter, it is crucial to relieve the fuel pressure beforehand to minimize the risk of fuel spills and exposure to highly combustible fuel vapors. Always work in a well-ventilated area, preferably outdoors, and avoid using incandescent work lights or power tools. The replacement process involves removing the fuel tank splash shield, detaching the vacuum line, and carefully disconnecting the fuel lines before installing the new fuel filter.
Additionally, it is worth noting that some BMW X5 models may have specific recommendations or variations in the fuel pump and fuel filter replacement procedures. Always refer to the maintenance guidelines provided by BMW or seek advice from authorized service centers to ensure the correct and safe execution of these tasks.
Where is the Fuel Filter on a Can-Am Defender?
You may want to see also
Explore related products
Signs your fuel filter needs replacing
The fuel filter in a BMW X5 is mounted to the front of the fuel tank and behind the charcoal canister. The fuel pump creates positive pressure in the fuel lines, pushing gasoline to the fuel rail, where the DME controls the flow to the engine.
- Poor Engine Performance and Hard Starting Problems: A dirty or restricted fuel filter can cause issues with engine performance and make it difficult to start the car.
- Fuel Contamination: If any foreign fluids, bad fuel, or water enter the fuel system, the fuel filter should be replaced. This includes situations where contaminated gas has been bought.
- Fuel System Repairs: If the fuel pump has been replaced, work has been done on the gas tank, or the fuel injectors have been cleaned or replaced, a new fuel filter should be installed.
- Leaks: If there is any leakage of fuel (liquid or vapour) at the fuel filter connections, the filter may need to be replaced.
- Warning Light Indication: Some diesel-powered vehicles have a water-sensor warning light circuit that signals if excessive water has accumulated in the fuel filter.
- High Mileage: A fuel filter can get clogged up over time, so a very high-mileage vehicle may need a fuel filter replacement.
It is important to consult your vehicle's maintenance schedule and a qualified mechanic to determine if and when the fuel filter needs to be replaced.
Signs of a Faulty Fuel Filter in Your Integra
You may want to see also
Explore related products
$18.99
How to prime the fuel system
The fuel filter on a BMW X5 is mounted to the front of the fuel tank and behind the charcoal canister. The fuel pump creates positive pressure in the fuel lines, pushing gasoline to the fuel rail, where the DME controls the flow to the engine via a programmed fuel injection map.
- Work in a well-ventilated area, preferably outdoors, as fuel and fuel vapors are highly combustible.
- Remove the vacuum line by pulling it straight off. Be sure the nipple on the old fuel filter is intact.
- Remove the fuel line by pressing the blue tab and holding it while pulling the line off the filter.
- Remove the two remaining fuel lines. Press the blue tabs and hold them while pulling the lines off the filter.
- Loosen the two 10mm fuel filter bracket fasteners.
- Remove the fuel filter by sliding it out of the bracket.
- Install a new fuel filter and tighten the fuel hoses. Priming may not be needed if this is done correctly.
- If priming is required, use software such as ISTA-D or a scanner like the Foxwell nt510.
- If using ISTA-D, follow the on-screen instructions to prime the system.
- If using a scanner, ensure it has the necessary capabilities for your specific BMW model and year.
- Connect the scanner to the OBD port and follow the on-screen instructions to prime the fuel system.
It is important to note that different tools and methods may be required depending on the year and model of your BMW X5. Always refer to the official maintenance guide or seek professional assistance if you are unsure about any steps in the process.
Volvo Fuel Filter Cost: How Much Does It Cost to Replace?
You may want to see also
Frequently asked questions
The fuel filter is mounted to the front of the fuel tank and behind the charcoal canister. It is tucked away behind the fuel tank splash shield, which must be removed to access it.
To remove the fuel tank splash shield, first, remove the three 13mm fasteners at the front of the shield. Then, pull the shield towards the centre of the vehicle and let it hang.
Once the splash shield is removed, you will need to relieve the fuel pressure. Start by removing the engine covers and the fuel test port cap on the fuel rail. Use a flathead screwdriver for this. Press in the Schrader valve to relieve the pressure—be prepared for fuel to be expelled.
Working in a well-ventilated area, remove the vacuum line by pulling it straight off. Ensure the nipple on the old fuel filter is intact.
