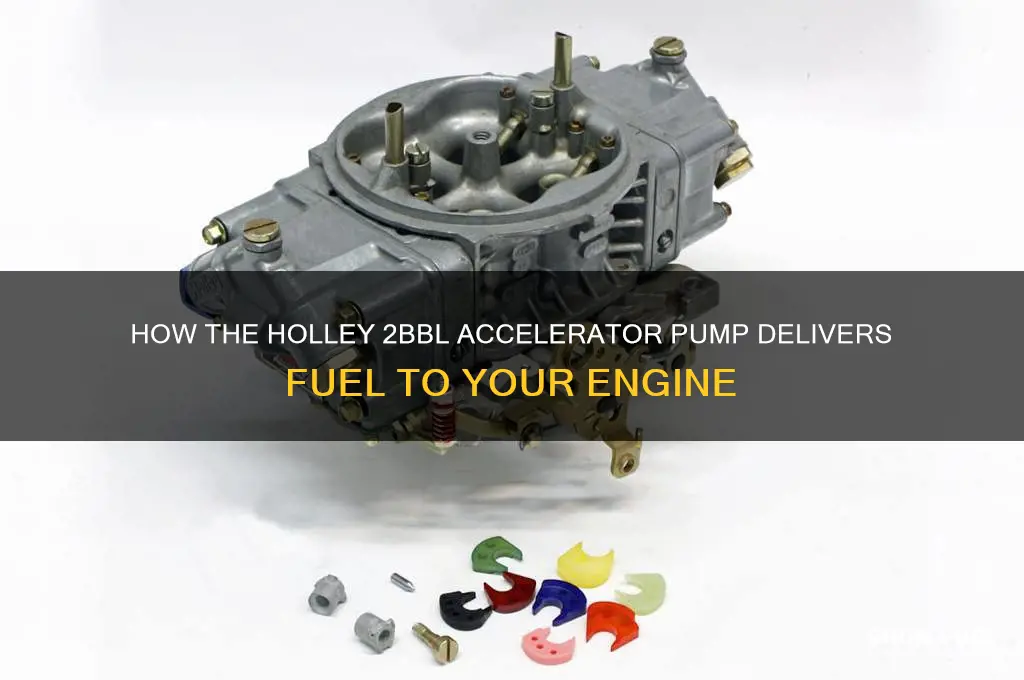

The accelerator pump in a Holley 2-barrel carburetor plays a crucial role in delivering additional fuel during rapid throttle openings, ensuring smooth acceleration and preventing engine hesitation. To understand where the accelerator pump gets its fuel, it’s important to recognize that it draws fuel directly from the carburetor’s fuel bowl, which is constantly supplied with fuel from the fuel line. When the accelerator pedal is pressed, a linkage activates the pump, forcing a small, measured amount of fuel through a dedicated nozzle into the intake manifold. This process bypasses the main metering system, providing an immediate fuel boost to meet the engine’s increased demand during acceleration. Proper functioning of the accelerator pump and its fuel supply is essential for optimal performance in vehicles equipped with a Holley 2-barrel carburetor.
| Characteristics | Values |
|---|---|
| Fuel Source | The accelerator pump in a Holley 2bbl carburetor draws fuel from the fuel bowl. |
| Fuel Bowl Location | Mounted directly beneath the carburetor, acting as a reservoir for fuel. |
| Pump Mechanism | A diaphragm or plunger-type pump activated by the accelerator linkage. |
| Fuel Delivery Path | Fuel is drawn from the fuel bowl through a dedicated passage to the pump. |
| Pump Operation | Activated when the accelerator pedal is pressed, creating a vacuum or mechanical force to draw fuel. |
| Fuel Discharge | Fuel is discharged into the carburetor throat for immediate enrichment. |
| Purpose | Provides additional fuel during rapid throttle openings for better acceleration. |
| Compatibility | Specific to Holley 2-barrel (2bbl) carburetors. |
| Maintenance | Requires periodic cleaning and inspection to ensure proper function. |
| Common Issues | Clogged passages, worn diaphragms, or leaks can affect performance. |
Explore related products
What You'll Learn
- Fuel Bowl Supply: Accelerator pump draws fuel directly from the carburetor's fuel bowl for quick delivery
- Pump Diaphragm Action: Diaphragm compresses, forcing fuel through discharge nozzle into the intake manifold
- Discharge Nozzle Role: Nozzle sprays fuel into the airstream, ensuring proper atomization for combustion
- Check Valve Function: Prevents fuel backflow, maintaining pressure and consistent pump operation during acceleration
- Cam Activation: Pump is activated by throttle linkage, synchronizing fuel delivery with throttle opening
Fuel Bowl Supply: Accelerator pump draws fuel directly from the carburetor's fuel bowl for quick delivery
The Holley 2bbl carburetor's accelerator pump is a critical component for ensuring rapid fuel delivery during throttle transitions. Unlike systems that rely on external fuel sources, this pump draws fuel directly from the carburetor's fuel bowl. This design choice is intentional, leveraging the fuel bowl's proximity and constant supply to minimize lag and maximize responsiveness. When the accelerator pedal is depressed, the pump's diaphragm creates a vacuum, pulling fuel from the bowl and delivering it to the booster discharge nozzle, where it mixes with air for immediate combustion.
This direct fuel bowl supply system offers several advantages. First, it eliminates the need for additional fuel lines or reservoirs, simplifying installation and reducing potential points of failure. Second, the fuel bowl's consistent fuel level ensures a steady supply, even during hard acceleration or cornyering, when fuel slosh might occur in external tanks. For optimal performance, maintain the fuel bowl level between 1/4 and 1/2 inch from the top of the sight glass, as specified in Holley's tuning guidelines. This range ensures sufficient fuel for the pump while preventing overflow or airlock issues.
However, this system is not without its nuances. The accelerator pump's effectiveness depends on proper calibration and maintenance. A worn diaphragm or clogged nozzle can lead to hesitation or flat spots during acceleration. To diagnose issues, perform a pump spray test: with the engine off, depress the accelerator and observe the fuel discharge. A weak or inconsistent spray indicates a problem. Regularly inspect the pump components and replace them as needed, typically every 20,000 miles or if performance degrades.
Comparatively, carburetors with external fuel sources for the accelerator pump often require more complex plumbing and are prone to vapor lock in high-temperature conditions. The Holley 2bbl's fuel bowl supply design mitigates these risks, making it a reliable choice for both street and performance applications. For enthusiasts seeking to fine-tune their setup, Holley offers adjustable pump cams and nozzle sizes, allowing customization of fuel delivery volume and timing to match specific engine demands.
In practice, understanding this direct fuel bowl supply system is key to troubleshooting and optimizing performance. For instance, if the engine stumbles under load, check the fuel bowl level and pump operation before adjusting jetting or ignition timing. By focusing on this specific mechanism, you can address issues more efficiently and ensure the carburetor delivers the quick, consistent fuel supply essential for smooth power delivery. This knowledge not only enhances performance but also extends the life of the carburetor, making it a valuable skill for any Holley 2bbl user.
