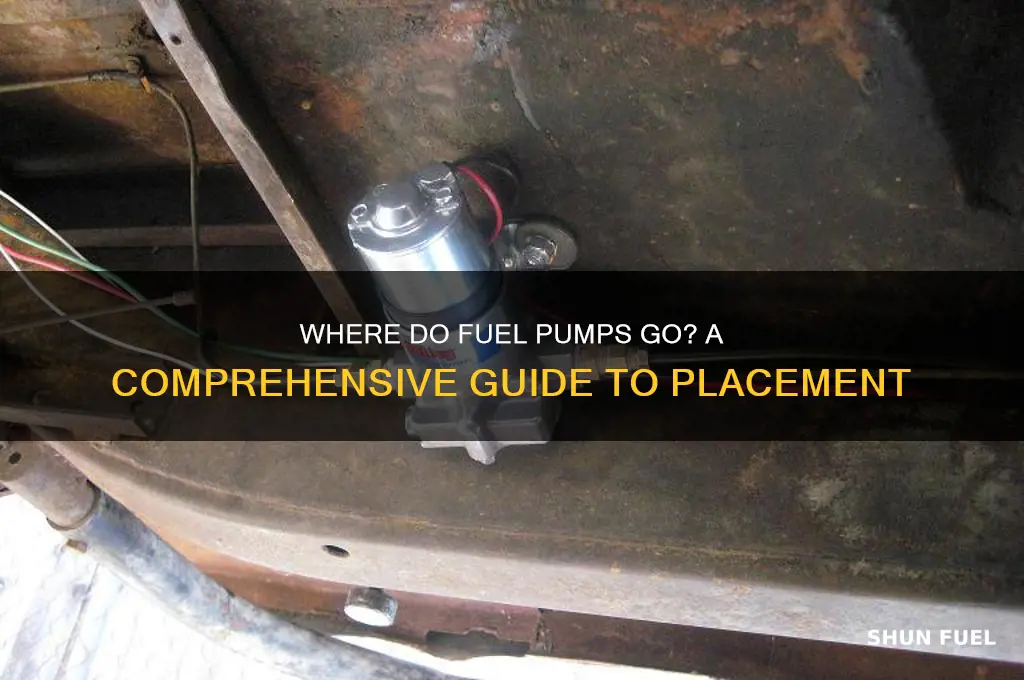

Fuel Pump Location in Vehicles
Fuel pumps are typically located inside the fuel tank in modern vehicles, a design choice that emerged in the 1980s to improve safety and efficiency. This in-tank placement immerses the pump in fuel, which helps dissipate heat generated during operation and reduces the risk of vapor lock, a condition where fuel vaporizes and disrupts fuel delivery. For example, most late-model cars, from compact sedans to SUVs, house their fuel pumps within the tank, ensuring consistent fuel pressure and minimizing the chance of overheating. This setup also protects the pump from external damage and corrosion, extending its lifespan.
In older vehicles, particularly those manufactured before the 1990s, fuel pumps were often mounted externally, either near the engine bay or along the chassis. These external pumps, usually mechanical and driven by the camshaft, were simpler in design but more prone to failure due to exposure to heat and debris. For instance, classic muscle cars like the 1967 Ford Mustang often featured external fuel pumps, which required periodic maintenance and were less efficient than their modern in-tank counterparts. Understanding this historical shift helps mechanics diagnose issues in vintage vehicles and highlights the advancements in fuel system technology.
For DIY enthusiasts or mechanics working on vehicles with in-tank fuel pumps, accessing the pump requires removing the fuel tank, a task that demands caution. Start by relieving fuel system pressure, disconnecting the battery, and ensuring the vehicle is on a level surface. Use a jack to support the tank while unbolting it, and always work in a well-ventilated area to avoid inhaling fuel vapors. For example, when replacing the fuel pump in a 2010 Toyota Camry, follow the manufacturer’s torque specifications for reinstalling the tank to prevent leaks. This step-by-step approach ensures safety and efficiency during the repair process.
While in-tank fuel pumps are standard in most vehicles, some high-performance or specialty models may feature auxiliary pumps to meet increased fuel demands. For instance, turbocharged or supercharged engines often require additional pumps to maintain optimal fuel pressure under high-load conditions. These auxiliary pumps are typically located along the fuel line, closer to the engine, and work in tandem with the primary in-tank pump. Understanding this dual-pump setup is crucial for tuning and maintaining performance vehicles, as it directly impacts engine efficiency and power output.
Finally, the location of the fuel pump influences diagnostic strategies when troubleshooting fuel system issues. If a vehicle exhibits symptoms like sputtering, stalling, or difficulty starting, the pump’s in-tank placement may complicate testing. Mechanics often use a fuel pressure gauge to check for adequate pressure at the fuel rail, bypassing the need to access the pump directly. For example, a 2015 Honda Civic with a failing fuel pump might show low pressure readings, indicating the need for replacement. This diagnostic approach saves time and reduces the risk of unnecessary tank removal, making it a practical tip for both professionals and hobbyists.
Exploring the 2005 F150's Fuel System: Dual Pumps or Single?
You may want to see also
Explore related products
Identifying Fuel Pump Placement
Fuel pump placement varies significantly across vehicle types, driven by design priorities like safety, efficiency, and accessibility. In passenger cars, the fuel pump is typically located inside the fuel tank, submerged in gasoline to prevent overheating and ensure a consistent fuel supply. This in-tank design also reduces noise and protects the pump from external damage. Conversely, motorcycles often house the fuel pump near the engine or within a separate module due to space constraints and the need for quick fuel delivery during acceleration. Understanding these differences is crucial for diagnostics, maintenance, or upgrades, as misplacement can lead to performance issues or safety hazards.
For diesel vehicles, fuel pump placement is even more critical due to the higher pressure requirements of diesel injection systems. In heavy-duty trucks, the fuel pump is usually mounted inline between the fuel tank and the engine, often near the chassis for easy access. This external placement allows for better cooling and simplifies replacement, but it requires robust mounting to withstand vibrations. In contrast, some modern diesel cars integrate the pump into the fuel tank, similar to gasoline vehicles, to enhance efficiency and reduce emissions. Technicians must account for these variations when troubleshooting fuel delivery problems, as diesel systems are less forgiving of improper installation.
When identifying fuel pump placement, start by consulting the vehicle’s service manual, which provides precise diagrams and specifications. For DIY enthusiasts, visual inspection is the next step: trace the fuel lines from the tank to the engine, noting any components resembling a pump. In older vehicles, the pump may be mechanical and mounted on the engine block, driven by the camshaft. Modern vehicles, however, almost exclusively use electric fuel pumps, which are quieter and more reliable. If the pump is in the tank, you’ll need specialized tools to access it, such as a lock ring removal tool and a drain pan to catch residual fuel.
One common mistake is assuming all vehicles follow the same placement logic. For instance, some high-performance cars locate the fuel pump in the rear of the vehicle to improve weight distribution and fuel flow under hard cornering. Others, like certain off-road vehicles, may have auxiliary fuel pumps or tanks to extend range or handle extreme angles. Always cross-reference your findings with the vehicle’s make, model, and year to avoid errors. Misidentifying the pump’s location can lead to unnecessary disassembly or damage to unrelated components.
Finally, safety should be the top priority when working with fuel systems. Always disconnect the battery before handling fuel pumps to prevent sparks, and work in a well-ventilated area. If the pump is in the tank, relieve fuel pressure by removing the fuel pump fuse and running the engine until it stalls. For diesel systems, be cautious of high-pressure lines, which can cause injury if punctured. By combining technical knowledge with practical precautions, you can confidently identify and address fuel pump placement issues, ensuring optimal vehicle performance and longevity.
1990 Bronco Fuel Pump Reset: Troubleshooting and Solutions Explained
You may want to see also
Explore related products
Fuel Pump Installation Process
Fuel pumps are typically installed within the fuel tank in modern vehicles, a design choice that ensures efficient fuel delivery and reduces the risk of vapor lock. This in-tank placement also helps maintain a consistent fuel temperature, which is crucial for optimal engine performance. However, older vehicles or certain specialized applications may require external fuel pumps, often mounted near the fuel tank or along the chassis. Understanding the specific location for your vehicle is the first critical step in the installation process, as it dictates the tools, techniques, and precautions needed.
The installation process begins with safety precautions: disconnect the battery to prevent electrical hazards and relieve fuel system pressure to avoid spills or accidents. For in-tank fuel pumps, access is gained by removing the fuel tank or using a specialized access panel, depending on the vehicle’s design. External pumps require securing the unit to a stable mounting point, ensuring it’s free from vibration and heat sources. Always refer to the vehicle’s service manual for torque specifications and mounting orientations to prevent damage or failure.
Once the pump is positioned, connect the electrical harness and fuel lines according to the manufacturer’s instructions. Use new seals or gaskets to prevent leaks, and ensure all connections are tight but not over-tightened. For in-tank installations, reattach the fuel tank securely, checking for proper alignment and fastening. Test the system by cycling the ignition to prime the pump, then inspect for leaks before starting the engine. Proper installation not only ensures functionality but also extends the pump’s lifespan.
A common mistake during installation is neglecting to check fuel line compatibility or using incorrect fittings, which can lead to leaks or reduced performance. For ethanol-blended fuels, ensure all components are ethanol-resistant to avoid corrosion. If installing an external pump, consider adding a pre-filter to protect the pump from debris. Post-installation, monitor fuel pressure and engine performance to confirm the pump operates within specifications, typically between 30–60 PSI depending on the vehicle.
In summary, the fuel pump installation process demands precision, adherence to safety protocols, and attention to detail. Whether in-tank or external, proper placement, secure mounting, and correct connections are essential for reliability. By following these steps and addressing potential pitfalls, you can ensure a successful installation that supports efficient fuel delivery and engine operation. Always consult vehicle-specific resources to tailor the process to your exact make and model.
Fuel Pumps for 2000 Models: Compatibility, Issues, and Replacement Tips
You may want to see also
Explore related products
Common Fuel Pump Positions
Fuel pumps are typically located in one of three primary positions within a vehicle, each chosen for efficiency, safety, and accessibility. The most common placement is inside the fuel tank, a design prevalent in modern vehicles. This in-tank configuration immerses the pump in fuel, which helps prevent overheating and ensures a consistent supply of liquid to the engine. For example, most passenger cars and SUVs manufactured after the 1990s use this setup, as it reduces the risk of vapor lock and improves fuel system reliability. If you’re working on a vehicle with an in-tank pump, note that accessing it requires draining the tank and removing it from the vehicle, making this a more labor-intensive repair.
In older vehicles or certain specialty models, fuel pumps are often found inline, positioned along the fuel line between the tank and the engine. This external placement was common in carbureted engines before fuel injection became standard. Inline pumps are easier to access for maintenance but are more susceptible to heat and vibration, which can shorten their lifespan. For instance, classic cars like the 1970s Ford Mustang or Chevrolet Camaro frequently used inline fuel pumps. If you own such a vehicle, inspect the pump for leaks or corrosion regularly, as these issues can lead to fuel delivery problems.
A third, less common position is near the engine bay, often mounted on the firewall or chassis. This setup is occasionally seen in high-performance or racing vehicles, where fuel delivery demands are extreme. Placing the pump closer to the engine allows for shorter fuel lines and reduced pressure drop, optimizing performance. However, this location exposes the pump to higher temperatures, requiring robust cooling mechanisms. For example, some aftermarket fuel systems in drag racing cars use engine bay-mounted pumps with external cooling fans or heat sinks. If considering this setup, ensure the pump is rated for high-temperature environments and install it away from exhaust components.
Understanding these common fuel pump positions is crucial for diagnostics, maintenance, and upgrades. For instance, if your vehicle exhibits symptoms like sputtering or stalling, the pump’s location can narrow down potential causes. In-tank pumps may fail due to contamination or electrical issues, while inline pumps often suffer from mechanical wear. Always consult the vehicle’s manual or a trusted repair guide before attempting any work, as improper handling of fuel systems can pose safety risks. Whether you’re a DIY enthusiast or a professional mechanic, knowing where to look is the first step in resolving fuel pump issues efficiently.
Electric Fuel Pump: Essential Upgrade or Unnecessary Expense for Your Vehicle?
You may want to see also
Explore related products
Fuel Pump Access Points
When considering fuel pump access points, safety is paramount. In-tank fuel pumps are typically accessed by removing the fuel tank, a task that requires draining the tank and disconnecting fuel lines—a process best handled with caution to avoid spills or ignition risks. External fuel pumps, on the other hand, are more accessible but still demand careful handling due to their proximity to high-pressure fuel lines. Always work in a well-ventilated area, use non-sparking tools, and ensure the vehicle is on a level surface with the engine off. For electric vehicles (EVs), the concept of a fuel pump is obsolete, as they rely on battery power, but understanding traditional fuel systems remains relevant for hybrid vehicles that still incorporate internal combustion engines.
The evolution of fuel pump placement reflects advancements in automotive engineering. Early vehicles often featured mechanical fuel pumps mounted directly on the engine, driven by the camshaft. While this design was simple, it was prone to failure and inefficient at maintaining consistent fuel pressure. Modern electronic fuel pumps, whether in-tank or external, use electric motors to deliver precise fuel flow, improving performance and fuel efficiency. This shift underscores the importance of access points—easier access means quicker diagnostics and repairs, reducing downtime and costs. For instance, some vehicles now include quick-release panels or dedicated service ports to streamline fuel pump maintenance.
Practical tips for locating fuel pump access points include consulting the vehicle’s manual, which often includes diagrams and step-by-step instructions. Online forums and manufacturer-specific resources can also provide insights tailored to particular makes and models. For in-tank pumps, look for a service panel or access plate beneath the rear seat or trunk lining in some vehicles. External pumps are usually found along the fuel line, identifiable by their cylindrical shape and electrical connections. If in doubt, trace the fuel lines from the tank to the engine—the pump will be positioned to ensure uninterrupted fuel delivery. Regular inspection of these access points can prevent unexpected failures, especially in older vehicles where corrosion or wear is more likely.
In summary, fuel pump access points are not one-size-fits-all; their location depends on vehicle design, fuel system complexity, and engineering priorities. Whether submerged in the tank or mounted externally, these access points are gateways to maintaining a vehicle’s fuel delivery system. By familiarizing yourself with their placement and adhering to safety protocols, you can tackle fuel pump issues with confidence, ensuring your vehicle runs smoothly and efficiently.
