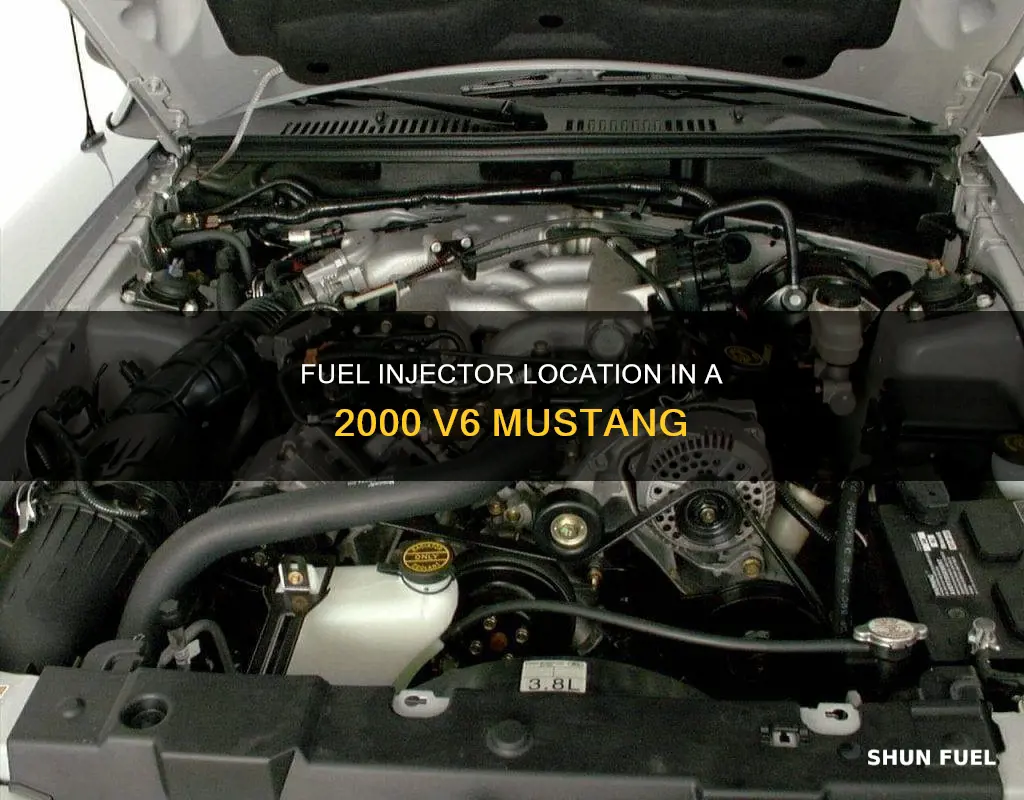

The fuel injectors on a 2000 V6 Mustang are located on the fuel rail, which is found on top of the engine. The Mustang has eight fuel injectors in total, four on each side. The fuel injectors are a crucial component of the Mustang's engine, supplying it with the required amount of fuel. They can be replaced or upgraded, and the process typically takes around 1.5 hours for the average person.
Explore related products
What You'll Learn
Fuel injector replacement
The fuel injectors on a 2000 V6 Mustang are located on the fuel rail. Here is a step-by-step guide on how to replace them:
Preparation
Before starting, ensure you have the correct replacement injectors for your specific engine. It is recommended to change all the injectors as a set, even if only one or two need replacing. This ensures each cylinder in your engine gets an equal amount of gas.
Step 1: Disconnect the Battery
Start with a cold car and engine. Disconnect the battery to ensure no power is running through the vehicle.
Step 2: Remove the Fuel Rail
Remove the plastic engine covers using a suitable socket. Then, use pliers to disconnect the electrical connector on each injector. The fuel rail is held in place by bolts and brackets, which can be removed with a socket and ratchet. Depending on the model, you may also need to disconnect the fuel line from the fuel rail.
Step 3: Remove the Old Fuel Injectors
Lift the fuel rail off the intake manifold, bringing the injectors with it. This may require some force, but be careful not to deform or bend the fuel rail. The old injectors can then be removed from the fuel rail. Gently wiggle them until they pop out, and use a small flathead screwdriver to remove any metal clips.
Step 4: Clean and Prepare
Clean the injector cylinders, removing any fuel, water, or contaminants. Also, wipe away any dirt, grime, or debris near the cylinders or on the injector clamps.
Step 5: Install the New Fuel Injectors
Dip the tip of each new injector into a small amount of engine oil to wet the seals and prevent leaks. Then, press the injector into the fuel rail until it stops. Reattach the metal clip if there is one.
Step 6: Reinstall the Fuel Rail
Line up all the injectors over their respective holes, then press each injector until they slide into place. Bolt down the fuel rail and reconnect the fuel line if it was removed.
Step 7: Reconnect the Battery and Test
Reconnect the battery and turn the key to the 'on' position. Wait for the fuel pump to refill the lines and fuel rails before attempting to start the engine. After the engine reaches its normal idle RPM, turn it off and check for any fuel leaks.
Safety and Precautions
Removing Fuel Injectors from Your Dodge Neon: Step-by-Step Guide
You may want to see also
Explore related products
Installation
Firstly, disconnect the battery ground cable and secure it out of the way. Remove the fuel cap. Remove the intake tube from the throttle body. This may vary depending on whether you are running a stock intake, cold air intake, or any other type of piping. Remove any intake manifold covers on the engine. Move the heater hose that sits over the fuel rails by moving them out of the way. If you can't move them enough, you can disconnect the hoses by depressing the retainer tabs and pulling up on the heater hoses.
Next, disconnect the electrical connectors from all eight fuel injectors by depressing the release tab and pulling each connector off. Remove all four fuel rail mounting bolts (two on each side) with a short ratchet extension and an 8mm deep socket. These are located on top of the fuel rail, under the clips that were removed. Remove the fuel rails and injectors as a single assembly. Make sure you have some rags ready to absorb the residual fuel that runs out of the injectors and fuel rails.
When reinstalling the new injectors, you will need to lube the injectors with clean engine oil or similar o-ring lube. Coat each of the two O-rings on each new injector with a small amount of oil and then install each injector into each fuel rail in the same manner each was removed. Replace the retaining clip into each injector after it is installed in the fuel rail.
Carefully reinstall the fuel rail to the pre-oiled injector o-rings. Tighten the four fuel rail bolts, and install the upper intake in the reverse of removal. Make sure to reattach all hoses, connections, and sensors. Install the intake tube to the throttle body, close the fuel cap, and reattach the negative battery cable.
Once everything has been put back together, flash the PCM with a new tune. Do not start the engine until you load the tune. Turn the key until the fuel system reaches operating pressure. Correct any leaks prior to starting the engine. Start the engine and check for any fuel leaks for at least a few minutes while the engine is running. Drive the car for about thirty minutes and check again for leaks. Tighten anything if necessary.
BMW 328i Fuel Injector Secrets: What's Really in Control?
You may want to see also
Explore related products
Common problems
The fuel injectors on a 2000 V6 Mustang are located on the fuel rail. Common problems with the fuel injectors on this model include:
- Leaking fuel injectors, which can cause a loss of fuel rail pressure.
- A faulty DPFE sensor, which can result in raw gasoline smells while driving. The sensor should read about 0.5 or 1.0 volts depending on the sensor.
- A faulty Mass Airflow sensor, which can also lead to raw gasoline smells. The voltage output of this sensor should be between 0.7 and 1.1 volts at hot curb idle.
- A faulty injector pulse width, which can cause similar issues. The normal PW at a hot idle should be between 3.8 and 4.9 mS.
- Exhaust leaks, which can cause shaking or vibration in the vehicle.
- Low voltage to the 2nd Air Injection system, which can trigger a fault code during a smog check.
Installing Fuel Injectors: 2007 Dodge Nitro V6 Guide
You may want to see also
Explore related products
Fuel injector size
The fuel injector size for a 2000 V6 Mustang is 21 lb. This is the stock injector size for all 1999-2004 3.8L/3.9L Mustangs.
The formula for calculating the correct size fuel injector for a Mustang is: Injector Flow Rate (lb/hr) = (Engine HP) x (BSFC) / (Number of Injectors) x (Injector Duty Cycle). Engines require a certain fuel flow rate, generally measured in lb/hr (pounds per hour), and can be calculated using the engine's Brake Specific Fuel Consumption (BSFC).
For example, if you have a gasoline engine that makes 300 brake horsepower, the total maximum fuel requirement in lb/hr can be calculated as: Fuel flow requirement = (brake horsepower) x (BSFC). This calculation can also be reversed to give the maximum safe horsepower a set of injectors can support: Max safe hp = [(injector size) x (total number of injectors) x (max duty cycle)] / BSFC.
As you modify your engine, you will need larger fuel injectors. However, simply adding bigger injectors will not increase horsepower.
Fuel Injectors: Universal Fit or Engine-Specific?
You may want to see also
Explore related products
Troubleshooting
If you are experiencing issues with your 2000 V6 Mustang's fuel injectors, there are several troubleshooting steps you can take to identify and resolve the problem.
Firstly, check for any signs of fuel leaks. Fuel leaks can be dangerous and should be addressed immediately. Make sure to have rags ready to absorb any residual fuel that may come out of the injectors and fuel rails during inspection or repair.
Next, check the DPFE sensor reading with the key in the 'on' position and the engine off. The sensor reading should be approximately 0.5 to 1.0 volts, depending on the sensor. Additionally, check the voltage output of the Mass Airflow sensor at idle. A typical reading will show 0.7 to 1.1 volts at hot curb idle.
Another aspect to examine is the injector pulse width at idle. A normal pulse width at a hot idle should be between 3.8 and 4.9 mS. It is also important to verify the barometric (baro) reading in the computer.
If you are experiencing a rough idle or engine shaking, there could be several potential causes. One possibility is that the fuel injectors need to be replaced. It is recommended to consult a certified technician or refer to the OEM manuals for specific guidance on troubleshooting and repairs.
In some cases, issues with fuel injectors may be related to fuel pressure. Ensure that the fuel system pressure and fuel pump pressure are within the specified ranges for your vehicle. The official Ford manual for the 2000 3.8 V6 Mustang provides detailed information on these pressure specifications.
Additionally, if you are smelling raw gasoline while driving, it could indicate an issue with the fuel injectors or other components of the fuel system. It may be necessary to replace the fuel filter or address other potential sources of the odour.
If you have replaced the fuel injectors and are still experiencing issues, it is possible that the problem lies elsewhere in the engine or is related to electrical or sensor malfunctions. In such cases, it is advisable to seek assistance from a qualified mechanic or specialist who can perform a thorough diagnosis and recommend appropriate repairs.
The Magic of Fuel Injectors: Atomization Process Explained
You may want to see also
Frequently asked questions
The fuel injectors on a 2000 V6 Mustang are located under the fuel rails.
A 2000 V6 Mustang has eight fuel injectors.
The stock fuel injector size for a 2000 V6 Mustang is 21 lb.
Here is a simplified process for replacing the fuel injectors on a 2000 V6 Mustang:
- Disconnect the electrical connectors from all eight fuel injectors.
- Remove the fuel rails and injectors as a single assembly.
- Clean up any residual fuel.
- Install the new injectors, ensuring they seat properly.
- Reattach the fuel rails and injectors assembly.
- Check for any fuel leaks.
