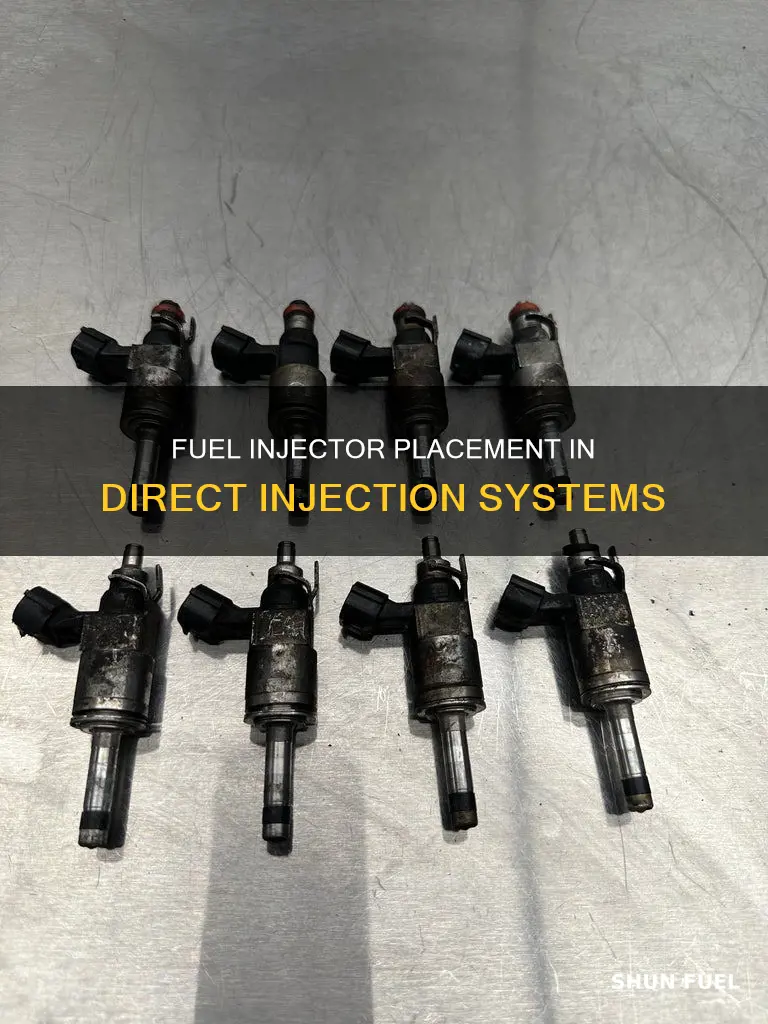

In a direct injection system, fuel injectors are placed near the cylinder head intake ports, where they spray fuel directly into the combustion chamber. This is in contrast to port fuel injection, where fuel is injected into the intake manifold or inlet port, mixing with air before entering the combustion chamber. The placement of the injectors in a direct injection system allows for more precise control over fuel delivery and timing, as the injectors spray fuel directly onto the piston or into the cylinder head. This results in improved engine performance, efficiency, and fuel economy.
| Characteristics | Values |
|---|---|
| Location of fuel injectors in a direct injection system | Directly in the cylinder head or combustion chamber |
| Fuel application | Fuel is applied directly into the combustion chamber |
| Fuel timing | Can be timed to enter the combustion chamber at a specific crank rotation |
| Fuel apply rate | Tuned via pressure in the common fuel rail, the frequency of injector openings, and the duration of those openings |
| Injector type | Mechanical or electronic |
| Injector operation | Injectors are opened by fuel pressure or an electromagnet |
| Fuel pressure | Typically 2,200 psi or more |
| Fuel flow | Injectors spray fuel directly onto the piston or into the cylinder head |
| Fuel delivery | More precise control over fuel delivery compared to port injection |
| Fuel efficiency | Superior fuel economy compared to port injection |
| Emissions | Reduced emissions due to improved combustion efficiency and minimized fuel waste |
| Cost | Higher initial cost compared to port injection |
| Carbon buildup | Potential for carbon buildup on valves and piston head |
| Engine noise | Increased engine noise due to higher pressure |
Explore related products
What You'll Learn
Injector placement and timing
The timing of fuel injection in a DI system is carefully calibrated to ensure optimal engine performance. The injectors typically open and close multiple times during the intake stroke, providing enough fuel for combustion while maintaining precise timing. The fuel application timing, or the Start of Injection (SOI), is usually set around 4 degrees after top dead centre (TDC), marking the beginning of the intake stroke. This timing ensures that the injector does not spray fuel when the exhaust valve is still open, as this would result in fuel spraying out of the exhaust port.
The DI fuel application is defined by two main categories: fuel apply rate and fuel timing. The fuel apply rate refers to the amount of fuel injected during the intake cycle and is controlled by factors such as the pressure in the common fuel rail and the duration of injector openings. The fuel timing, on the other hand, determines when the fuel is injected into the combustion chamber in relation to the crank rotation degrees. This timing is crucial for achieving stoichiometric combustion, the desired 14:1 ratio of fuel to air.
The high-pressure nature of DI systems, often operating at 2,200 psi or more, enables the injectors to flow enough fuel within a limited crank rotation. This high pressure allows for more precise fuel delivery and contributes to the improved combustion efficiency associated with DI engines. The ability to time fuel injection accurately in relation to crank rotation degrees offers a dynamic tuning tool for engine calibrators, allowing them to fine-tune engine performance, reduce emissions, and increase durability.
While DI systems offer superior fuel economy, power, and emissions reduction, they also come with certain considerations. The high-pressure nature of DI systems requires robust components, such as thicker fuel rail tubes, to handle extreme pressures. Additionally, DI systems may be more susceptible to carbon buildup on valves and piston heads, necessitating regular cleaning. Despite these challenges, DI systems provide significant advantages in terms of injector placement and timing, making them a popular choice for modern vehicles.
Pour-in Fuel Injector Cleaners: Safe or Risky?
You may want to see also
Explore related products
Fuel application rate
In a direct injection system, the fuel injector typically applies fuel directly into the main combustion chamber of each cylinder. This is in contrast to port fuel injection, where fuel is applied in the intake ports upstream of the intake valve. The direct injection approach allows for more precise timing of fuel delivery, enabling engine tuners to enhance performance, reduce emissions, and increase engine durability.
The fuel application rate in a direct injection system is significantly higher than in port fuel injection. Direct injection systems often operate at extremely high pressures, such as 2,200 psi or more, to ensure that enough fuel is injected during the shorter crank rotation window. This high-pressure fuel application contributes to achieving stoichiometric combustion, the ideal 14:1 ratio of fuel to air.
To control the fuel application rate, direct injection systems employ electronic fuel injectors and an engine computer. The engine computer instructs the injectors on when to open and close, allowing pressurized fuel to pass into the combustion chamber. This precise control of fuel delivery enables tuners to fine-tune engine performance and efficiency.
The fuel application rate also plays a crucial role in spray-guided systems, where fuel injection occurs immediately before ignition. In these systems, the rate at which fuel is injected directly impacts the spray parameters, including the range and shape of the injected fuel spray. By shaping the fuel injection rate, engineers can control the variable fuel flow to create a stoichiometric mixture around the spark plug.
Performance Fuel Injectors: Worth the Upgrade?
You may want to see also
Explore related products
Fuel apply pressure
Fuel injectors in a direct injection (DI) system are placed within the combustion chamber. This is in contrast to port fuel injection, where fuel is applied in the intake ports upstream of the intake valve. DI systems are defined by two categories: fuel apply rate and fuel timing.
The fuel apply rate is tuned via the pressure in the common fuel rail that the injectors are connected to. This pressure is typically much higher than in port fuel injection systems, at around 2,200 psi or more. This high pressure allows the injector to flow enough fuel to achieve stoichiometric combustion (the desired 14:1 ratio of fuel to air) in less than half the number of degrees of crank rotation as compared to port fuel injection. The fuel injectors on a DI engine often open and close more than once during the intake stroke to provide enough fuel for combustion while applying it at the ideal time.
The pressure in the common fuel rail is controlled by a pump, which pressurises the fuel from about 3-4 bar (40-60 psi) to between 100-300 bar (1500-4500 psi). The pump is typically cam-driven, with the cam lobe pressurising the fuel and a fuel quantity valve on the pump opened and closed to allow fuel into the rail. The timing of valve closing is critical to building pressure in the fuel rail, as the fuel is only pressurised while the cam has lifted the plunger.
The pressure in the rail is measured by a rail pressure sensor, which sends a signal back to the engine control unit (ECU). The ECU uses a control algorithm to integrate the measurements and actuators to achieve the desired fuel rail pressure. If the pressure in the rail is above the target value, the pulse width command to the fuel quantity valve will decrease to reduce the amount of fuel allowed into the rail. Conversely, if the pressure is below the target value, the pulse width command will increase to allow more fuel into the rail and raise the pressure.
In addition to the higher pressure, the increased injection pressure in DI systems is achieved through the use of outward-opening nozzles with piezo actuators. The high-pressure pump on a direct-injection engine shares more in common with an ABS modulator pump than a mechanically driven fuel pump. Mechanical pumps use pressure and other engine-related information to determine output, which is controlled by an actuator on the intake side of the pump.
Fuel Injector Failure: How Long Can You Drive?
You may want to see also
Explore related products
Multi-port injection
Multi-port fuel injection, also known as multi-point injection, is a system that uses multiple fuel injectors, with each cylinder getting its own fuel injector mounted in the intake manifold, right outside its intake port. This is why the system is sometimes called port injection. The fuel injectors are located near the intake valve, and the fuel is sprayed into the intake of the engine. The suction created by the piston then sucks the atomized fuel with air through the intake valve opening.
The main advantage of multi-port injection is that it meters fuel more precisely than Throttle Body Injection (TBI) designs, better achieving the desired air-fuel ratio and improving all related aspects. It also virtually eliminates the possibility that fuel will condense or collect in the intake manifold. With TBI and carburettors, the intake manifold must be designed to conduct the engine's heat to vaporize liquid fuel. This is unnecessary for engines equipped with multi-port injection, so the intake manifold can be formed from lighter-weight material, even plastic, resulting in incremental fuel economy improvements.
The Bosch Motronic multi-point fuel injection system was the first mass-produced system to use digital electronics. It was also amongst the first systems where the ignition system was controlled by the same device as the fuel injection system. The Ford EEC-III single-point fuel injection system, introduced in 1980, was another early digital fuel injection system. These and other electronic manifold injection systems (using either port injection or throttle-body injection) became more widespread through the 1980s, and by the early 1990s, they had replaced carburettors in most new petrol-engined cars sold in developed countries.
Removing Fuel Injector in 2004 PT Cruiser: Step-by-Step Guide
You may want to see also
Explore related products
Electronic fuel injection
Fuel injection is a vital component of modern internal combustion engines. Mechanical systems have now been largely superseded by electronic fuel injection (known as EFi). This is due to the increasing reliability and decreasing costs of electronic control systems.
In a direct injection (DI) engine, fuel is injected directly into the combustion chamber, bypassing the intake manifold. This system uses high-pressure injectors that spray fuel directly onto the piston or into the cylinder head, allowing for more precise control over fuel delivery. The main aspect that defines a DI engine is the application of the fuel directly into the combustion chamber. The DI fuel application is a big leap forward, allowing precise timing of when fuel enters the combustion chamber and creating a plethora of opportunities for engine tuners to make power, reduce emissions, and increase the durability of the engines.
The combustion chamber on a DI engine receives fuel from the injector after the exhaust valve has closed and before the spark plug fires, usually a crank rotation of about 310 degrees. The fuel injectors on a DI engine often open and close more than once during the intake stroke to provide enough fuel for combustion while applying it at the ideal time. The most exciting feature of the modern DI system is the ability to time (in crank rotation degrees) when the fuel is applied in the combustion chamber.
DI fuel systems are substantial in their design because they usually generate and hold fuel pressurized at a high psi, requiring the DI fuel rail tube to have about a 1/8-inch wall thickness to handle these extreme pressures. The injectors on a port fuel injection engine can flow fuel for almost the entire 720 degrees of crank rotation, whereas a DI engine has less than half the crank rotation to get all the fuel in the chamber, hence the need for higher pressure.
Fuel Injector Cleaner: Best Time for Application
You may want to see also
Frequently asked questions
In a direct injection system, fuel injectors are placed in the cylinder head, where they spray fuel directly into the combustion chamber.
In a port injection system, fuel is injected into the intake manifold, where it mixes with air before entering the combustion chamber. In a direct injection system, fuel is injected directly into the combustion chamber, bypassing the intake manifold.
Fuel injectors in a direct injection system use high pressure to spray fuel directly onto the piston or into the cylinder head. This allows for more precise control over fuel delivery and can improve combustion efficiency, leading to reduced emissions and increased power.
