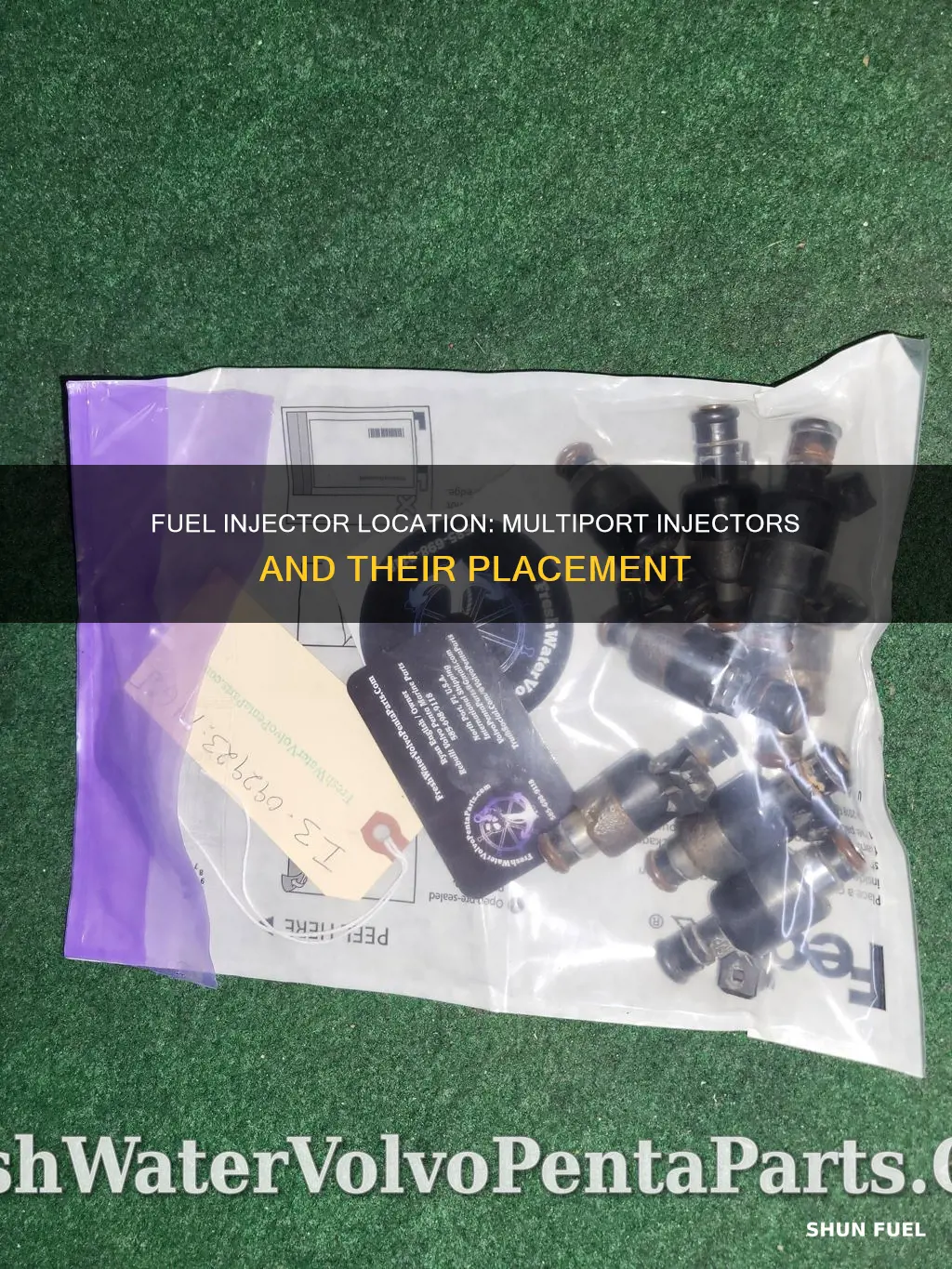

Fuel injectors are an integral part of modern engines, with multiport fuel injection systems, also known as port, multi-point, or sequential fuel injection, being a common method of fuel delivery. This system involves multiple fuel injectors, typically located in the intake manifold, that spray atomized fuel directly at the intake valves of each cylinder. The injectors are controlled by the engine control unit (ECU), which uses sensors to monitor various factors and adjust the fuel rate accordingly. The location of the fuel injectors in multiport injection systems allows for more accurate fuel metering and a quicker response compared to throttle body injection.
| Characteristics | Values |
|---|---|
| Location of fuel injectors in multiport fuel injectors | The injectors are located at the intake ports or throttle body, instead of inside the combustion chamber |
| Type of injection | Multi-point injection (also called port injection) |
| Injection process | Injects fuel into the intake ports just upstream of each cylinder's intake valve, rather than at a central point within an intake manifold |
| Number of injectors | Typically, multiport injection systems use multiple fuel injectors |
| Control mechanism | The ECM (Electronic Control Module) controls the injectors by pulse width, i.e., the time the injector sprays fuel into the port |
| Advantages | More efficient than single-point injection, improved performance, fuel economy, and emissions |
| Common applications | Most of the EFI systems used in the late 1980s and early 1990s; replaced carburetors in most new petrol-engined cars sold in developed countries during this period |
Explore related products
What You'll Learn
Injectors are located in the combustion chamber, inlet manifold or throttle body
The fuel injector is a spray nozzle that delivers fuel into the engine. Injectors are located in the combustion chamber, inlet manifold, or throttle body.
The combustion chamber is the main component of the engine where the combustion process takes place. The injector sprays fuel into the chamber, where it mixes with air. This mixture of air and fuel is then ignited, powering the engine. In some cases, the fuel is sprayed onto the walls of the combustion chamber, while in other cases, it is sprayed directly into the middle of the chamber.
The inlet manifold is located just upstream of each cylinder's intake valve. In a manifold injection system, the air and fuel are mixed outside the combustion chamber. This mixture is then sucked into the engine during the intake stroke. The main types of manifold injection systems are multi-point injection and single-point injection.
The throttle body is a component of the engine that controls the airflow. Single-point injection, also called throttle-body injection, uses one injector in the throttle body. This type of injection system mixes fuel and air before they enter the intake manifold. Throttle-body injection was a low-cost way for automakers to reduce emissions and improve "driveability".
Rebuilding Chevy TPI Fuel Injector: Step-by-Step Guide
You may want to see also
Explore related products
Multi-port injection systems fire injectors in groups
Multi-port injection systems, also known as multi-point injection or port injection, inject fuel into the intake ports just upstream of each cylinder's intake valve. This is in contrast to single-point injection, also known as throttle-body injection, which uses a single injector in the throttle body, similar to a carburettor.
Sequential port fuel injection systems, on the other hand, fire each injector individually. This system is more efficient than multi-port systems as changes to the fuel mixture are instantaneous. Most engines today use sequential fuel injection systems, which are controlled by the engine control module (ECM) through pulse width modulation, determining the time the injector sprays fuel into the port.
Multi-port fuel injection systems offer several advantages, including improved port fuel delivery, high reliability, better hot starts, and reduced vapor emissions. They also have faster prime on hot restarts and advanced pulse-to-pulse precision, with improved spray injector nozzle designs that reduce deposit buildup and enhance pressure control at low recirculation rates.
ArchOil Cleaner's Effectiveness on Fuel Injectors: Does It Work?
You may want to see also
Explore related products
Sequential fuel injection systems fire each injector individually
The fuel injector is a spray nozzle that delivers fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. Fuel injectors that control metering are called injection valves, while those that perform all three functions are called unit injectors. Direct injection involves injecting fuel directly into the main combustion chamber of each cylinder, where air and fuel mix. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system.
Multi-point injection (MPI), also known as port injection, uses multiple fuel injectors to deliver fuel into the intake ports just upstream of each cylinder's intake valve. MPI systems can use multiple injectors or a central injector with tubes and poppet valves. MPI ensures that fuel is completely drawn into the cylinder and offers more precise metering than single-point injection (SPI) or carburetors.
Basic multiport fuel injection (MPFI) systems spray fuel simultaneously or in groups, which can cause fuel to linger at a port when the engine is idling. Sequential fuel injection systems, an improvement over MPFI, fire each injector individually, improving efficiency and emissions. This allows for instantaneous changes to the fuel mixture. Sequential injection systems time the firing of injectors like spark plugs, spraying fuel immediately before or as the intake valve opens. Most modern engines use sequential fuel injection.
One example of a sequential fuel injection system is GM's Vortec engines, which feature a Sequential Central Port Injection (SCPI) system. The SCPI system offers advantages such as improved spray injector nozzle design, enhanced pressure control, and advanced pulse-to-pulse precision.
Fuel Injectors: Cost of a Full Set
You may want to see also
Explore related products
Injectors can be cleaned to improve performance
Fuel injectors are located in the combustion chamber, inlet manifold, or throttle body. Multi-point injection (MPI) systems, also known as port injection, inject fuel into the intake ports just upstream of each cylinder's intake valve, employing multiple fuel injectors or tubes with poppet valves fed by a central injector.
Fuel injectors are an essential component of an engine's fuel delivery system, and their cleanliness directly impacts performance. Over time, residue builds up on the injector tips, compromising the atomized fuel flow and leading to issues such as rough idling, stalling, misfires, sputtering, and poor acceleration. While some residue is normal, excessive buildup can obstruct the injectors, leading to performance issues and increased fuel consumption.
To maintain optimal performance, it is recommended to clean the fuel injectors periodically. This can be done in several ways, including using fuel additives, fuel solvents, or seeking professional cleaning services. Fuel additives are convenient and affordable, involving pouring a cleaner into the fuel tank, which cleans the injectors as you drive. Fuel solvents are stronger and more effective at removing stubborn residue. For a more thorough cleaning, a certified mechanic can remove the injectors and utilize specialized tools and cleaning solutions, ensuring the spray pattern is checked.
While opinions vary on the necessity of regular fuel injector cleaning, it is generally advised to clean them every 15,000 to 30,000 miles or once a year. Additionally, using high-quality gasoline and occasionally adding a bottle of fuel injector cleaner to the tank can help maintain injector cleanliness and prevent issues. However, it is important to consult the vehicle's manual and follow the manufacturer's recommendations regarding fuel and additive usage.
Fuel Injector Issues: Low Acceleration and Possible Solutions
You may want to see also
Explore related products
Direct injection is more common in diesel engines
Fuel injectors are components of fuel injection systems, which are used in most modern engines. Fuel injection is the process of introducing fuel into an internal combustion engine. The injector is located in the combustion chamber, inlet manifold, or throttle body.
Direct injection is a type of fuel injection that delivers highly pressurised fuel directly into the engine's cylinders. This is in contrast to traditional port or throttle body injection systems, which deliver fuel into the intake port above the intake valve, where it is mixed with air before entering the cylinder. Direct injection is more common in diesel engines, although it is becoming more prevalent in gasoline engines.
Direct injection in diesel engines has been common since the first successful prototype in 1894. Mass-produced diesel engines for passenger cars became available in the late 1930s and early 1940s, and these were the first fuel-injected engines for passenger car use. In comparison, direct injection in gasoline engines has only become common since around the year 2000.
There are several reasons why direct injection is more common in diesel engines. Firstly, diesel engines have used direct injection for much longer than gasoline engines, giving diesel technology a significant head start. Secondly, direct injection in diesel engines operates with higher injection pressure, which can lead to improved performance and fuel efficiency. The higher injection pressure also contributes to higher injection pressures, which can result in increased power output.
Another reason for the prevalence of direct injection in diesel engines is the fuel itself. Diesel fuel provides better lubrication for the injector components than gasoline, which can be a limiting factor in the injection pressures used in gasoline direct injection engines. Additionally, direct injection in diesel engines has a lower cost of implementation due to its "lower" pressure injection system requirements. This also contributes to a longer service life for vital components.
How Transmission Fluid Cleans Diesel Fuel Injectors
You may want to see also
Frequently asked questions
Fuel injection is the introduction of fuel into an internal combustion engine, usually an automotive engine, via a fuel injector.
Multiport fuel injectors are located at the intake ports or throttle body, instead of inside the combustion chamber. They inject atomized fuel into a port before the intake valve.
Multiport fuel injectors fire the injectors in groups. For example, a four-cylinder engine may fire the #1 and #3 injectors on the first crankshaft revolution, and then fire the #2 and #4 injectors on the second.
Multiport fuel injectors offer advantages such as port fuel delivery, high reliability, better hot starts, and reduced vapor emissions. They also provide faster prime on hot restarts and improved spray injector nozzle design, reducing deposit buildup and clogging issues.
