The most common place for an airplane's fuel tank is within the structure of its wings. This design improves the overall structural efficiency of the aircraft by counter-balancing the wing's lift and the fuselage's weight, reducing aircraft fuel system complexity, and improving passenger safety by locating fuel away from the passenger cabin. The wings are an ideal place to transport kerosene, and the weight of the fuel in the wings reduces structural loading. The earliest aircraft designs featured fuel tanks installed in the fuselage of the aircraft, typically between the engine firewall and cockpit.
Explore related products
What You'll Learn
Fuel tanks are often located in the wings of an aircraft
There are several advantages to placing fuel tanks in the wings of an aircraft. Firstly, it helps to maintain the structural integrity of the wings by counteracting wing-bending loads and reducing fatigue on the spar structure. This, in turn, reduces the stress on the wings during takeoff and flight, as the weight of the fuel is placed directly inside the source of lift. Additionally, placing the fuel tanks in the wings reduces the amount of weight that is off-center from the plane's center of gravity, which improves the aircraft's efficiency.
Furthermore, the placement of fuel tanks in the wings provides stability to the aircraft during flight. As fuel is consumed and the weight of the wings decreases, the aircraft's center of gravity shifts to the rear. This can be compensated for by pumping fuel forward from a trim tank located in the tail assembly.
It is worth noting that while the wings are the most common location for fuel storage in commercial aircraft, there are also fuel tanks located in other areas of the aircraft, such as the fuselage, empennage, or aft cargo hold. The specific requirements of each aircraft, such as the number of engines and its size, determine the position, capacity, and configuration of its fuel tanks.
Draining Freelander 2 Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
They can also be found in the belly or rear of the plane
The placement of fuel tanks in an aircraft is crucial for its performance and safety. While the wings are the most common location for fuel storage in commercial aircraft, fuel tanks can also be found in the belly or rear of the plane, also known as the fuselage and empennage.
The belly or rear of the plane is an optimal location for fuel storage in certain aircraft types. For example, the A320 family of aircraft has the option to install additional fuel storage in the aft cargo hold, located in the rear of the plane. This location can help to balance the weight distribution of the aircraft, especially during long-haul flights when the weight of the wings decreases as fuel is consumed.
The use of the belly or rear of the plane as a fuel storage location can also provide stability to the aircraft. By placing the heavy fuel tanks in these areas, the aircraft's center of gravity can be lowered, reducing the amount of weight that is off-center. This, in turn, improves the aircraft's efficiency by reducing the need for elevators during flight.
Additionally, the belly or rear of the plane may be utilized for fuel storage in smaller, single-engine aircraft. In these cases, the fuel tanks are typically positioned above the wing, utilizing a gravity feed system for fuel delivery to the engine, also known as overwing fueling. This design ensures that the weight of the fuel is optimally distributed to enhance the aircraft's performance and stability.
The placement of fuel tanks in the belly or rear of the plane also offers certain safety advantages. By locating the fuel tanks away from the wings, the potential risks associated with in-flight fuel ignition or explosion are reduced. This design consideration helps to protect the passengers and crew by minimizing the direct impact of any fuel-related incidents.
The Ultimate Guide to Safely Dropping a Fuel Tank
You may want to see also
Explore related products
Fuel tanks can be internal or external
Fuel tanks are a critical component of aircraft fuel systems, ensuring flight operations and efficiency. These tanks are designed to store and deliver clean fuel to the aircraft's engines at the correct pressure and flow rate. The placement of these tanks can either be internal or external to the aircraft's structure.
Internal fuel tanks, also known as integral tanks, are areas inside the aircraft that have been sealed to allow for fuel storage. These tanks are commonly found in the wings, fuselage, and empennage of larger aircraft. The use of integral tanks maximizes space utilization by utilizing the hollow structure of the wings and avoids adding unnecessary weight that would reduce the aircraft's efficiency. Additionally, placing fuel tanks in the wings moves them further from passengers and crew in the event of a leak or explosion.
Integral tanks are constructed within sealed wing regions, often utilizing non-corrosive aluminum frames. These tanks are integrated into the aircraft's structure and cannot be removed for service or inspection. Instead, inspection panels must be provided to allow for internal access and servicing.
On the other hand, external fuel tanks, also known as drop tanks or auxiliary tanks, are mounted outside the aircraft's structure. These tanks are typically used on military aircraft and occasionally on civilian aircraft in emergency situations. Drop tanks are designed to be jettisoned when empty or in emergencies to reduce drag and weight, thereby increasing the aircraft's manoeuvrability and range.
Both internal and external fuel tanks play a crucial role in aircraft operations, with their placement and design optimized for performance, safety, and efficiency.
Making a Fuel Tank Float: The Ultimate Guide
You may want to see also
Explore related products
Integral tanks are sealed areas inside the aircraft structure
Fuel tanks are typically located in the wings of an aircraft. This is because, during flight, the aircraft is supported by the wings, so adding weight to the wings reduces structural loading. In contrast, if the fuel tanks were placed in the fuselage, it would add significant stress to the wings when the plane is in flight.
Some aircraft, especially older ones, feature rigid tanks constructed from various materials and strapped into the airframe structure. These tanks are often riveted or welded together and can include baffles and other fuel tank features. However, integral tanks are a more modern design. Integral tanks are sealed areas inside the aircraft's structure, forming a tank as a unit within the airframe. In other words, the wing itself is the tank. This design makes use of the otherwise unused space inside the wings, and the sealed skin and structural members provide the highest volume of space with the lowest weight.

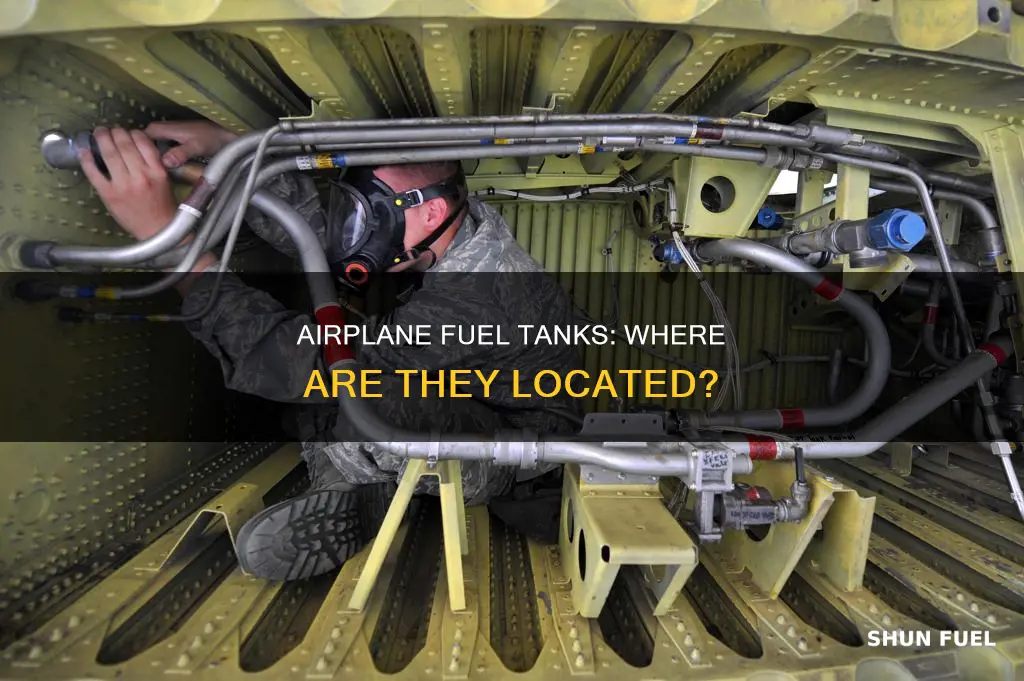

Integral tanks are sealed with a fuel-resistant two-part sealant or resin. The joints between exterior panels are sealed, and anti-slosh structures are put in place as required. Baffles are also added to keep the fuel from sloshing during aircraft maneuvers. On large aircraft, technicians may even enter the tank for maintenance through access panels.
Overall, integral tanks are a more efficient use of space and weight than traditional rigid tanks. This design allows aircraft to carry the necessary fuel without adding unnecessary weight or stress to the wings.
How Heaters in Diesel Fuel Tanks Work
You may want to see also
Explore related products
Bladder tanks are reinforced rubberised bags installed in a section of the aircraft
Bladder tanks, also known as fuel cells, are reinforced rubberised bags that serve as aircraft fuel tanks. They are installed in a section of the aircraft structure designed to accommodate the weight of the fuel. Bladder tanks are commonly found in high-performance light aircraft, helicopters, and some smaller turboprops.
The installation process involves rolling up the bladder tank and inserting it into the designated compartment through a small opening, such as the fuel filler neck or an access panel. Once inside, the bladder is secured using metal buttons or snaps. It is important that the bladder tank lies smooth and unwrinkled, especially on the bottom surface, to prevent fuel contaminants from settling in the tank sump.
Bladder tanks offer several advantages. They are strong and durable, with seams only around installed features like tank vents and sump drains. Additionally, bladder tanks do not require large openings in the aircraft skin for installation, making them more accessible than rigid tanks. However, one notable downside is the tendency for the materials to work harden through extensive use, making them brittle and prone to cracking.
When a bladder tank develops a leak, it can be patched following the manufacturer's instructions or sent to a specialised repair station. For extended periods of storage without fuel, it is recommended to wipe the inside of the tank with clean engine oil, as per the manufacturer's guidelines for dry storage.
Bladder tanks are an essential component of aircraft fuel systems, providing a flexible and functional option for storing fuel in various types of aircraft.
Fuel Storage: Tip Tank Capacity in Aircrafts
You may want to see also
Frequently asked questions
The fuel tanks in an airplane are commonly located in the wings.
Locating the fuel tanks in the wings improves the overall structural efficiency by counter-balancing the wing's lift and the fuselage's weight. It also reduces aircraft fuel system complexity, and improves passenger safety by locating fuel away from the passenger compartment.
Yes, in some cases, fuel tanks may also be located in the fuselage (the main body of the aircraft). The A320 family of aircraft, for example, has options to install additional fuel storage in the aft cargo hold.
The location of the fuel tanks can impact the aircraft's performance in several ways. For example, placing the fuel tanks in the wings helps to counterbalance the lift generated by the wings during flight, reducing structural loading. It also simplifies the fuel supply system by minimizing the complexity of fuel tank designs and the associated pumps and plumbing.
